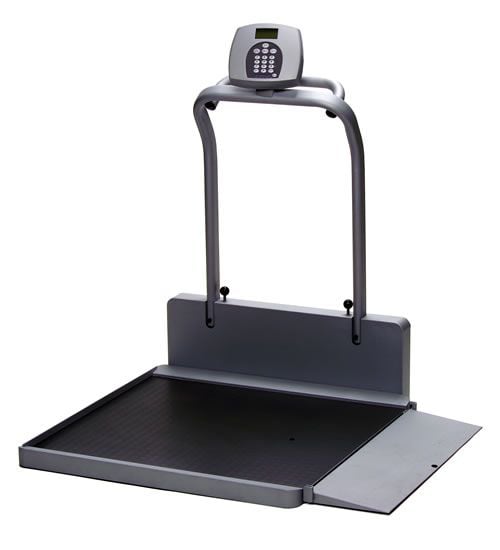

Health-O-Meter 2600KL ProPlus Wheelchair Folding Ramp Scale

Who Uses This Product? Healthcare professionals in a doctor's office, clinic, or long-term care facility who gather patient statistics.

Why Give It a Try? This digital wheelchair scale (2600kl) provides an access ramp and a large comfortable platform for wheelchair users. The digital wheelchair ramp folds in half and is mobile for portability and storage.

Health-o-Meter Digital Wheelchair Scale (2600KL) Overview

The Health-o-Meter ProPlus Wheelchair Ramp Scale (2600KL) is a digital platform scale with a weight capacity of 1000 lb to support patients with mobility limitations. The Health o Meter low-profile platform creates ease of access for not only wheelchairs but for bariatric patients as well who need a larger nonskid surface. The scale's keypad is easy to navigate and features a swivel head that turns up to 180 degrees. As a wheelchair scale, the platform does take up more space. The folding feature adds versatility in a doctor's office so it can remain folded or stored into another location for storage until it's needed. Health o Meter's Medical Ramp Scale is the only wheelchair scale on the market with casters to facilitate mobility performance.

HealthOMeter ProPlus Wheelchair Folding Ramp Functions

• Everlock: LBS / KG
• BMI
• Zero/Auto/Zero
• Tare/Pre-Tare
• Reweigh
• Recall
• Auto-Off
• Time/Date
• Audible/Mute Sound
• Parent/Child Weighing

Scales Features and Benefits



• Large Platform Folds To Store in Small Spaces
• Casters for Portability
• Display Head Swivels 180 Degrees
• Large, Low-Profile Platform
• EMR Software USB Connectivity or Optional Pelstar Wireless Technology
• Antimicrobial Keypad
• USB Interface To Connect to a Computer
• High-Contrast Color TFT-LCD Screen
• Pre-Tare Function Removes Wheelchair Weight from Total Weight
• Comes Factory Calibrated

Frequently Asked Questions (FAQs)

How does the Health-o-Meter ProPlus Wheelchair Folding Ramp Scale fold?
To fold, unplug the AC adapter. Loosen all four handrail locking pins by turning them counterclockwise. The pins are located on the side of the scale base. Carefully lower the handrail so it lies flat against the platform and relock the pins.

Can the ramp be installed on either side of the scale?
Yes.

Can the scale be locked to weigh in only pounds or kilograms?
Yes. Use the menu to select the desired weighing unit of measure.

Is there a height rod available for the 2600KL?
No.

How long is the power adapter cord?
6 feet.

What are the shipping dimensions?
45 L x 39.5 D x 14.5 W inches.

Product Specifications

• Manufacturer: Health o meter
• Product Numbers: 2600KL
• Platform Dimensions
  • Height: 21/2 Inches
  • Width: 36 Inches
  • Depth: 32 Inches
• Wheelchair Scale Footprint
  • Height: 49? Inches
  • Width: 48? Inches
  • Depth: 43? Inches
• Ramp Dimensions
  • Width: 32 Inches
  • Depth: 9? Inches
  • Weight: 93 Pounds
• Resolution: 0.2 Pounds
• Power Source: 100-240V Adapter and (6) D Batteries
• EMR Connectivity: USB (Optional Pelstar Wireless Technology
• Display: High-Contrast Color TFT-LCD Screen
• Warranty: 2 Years

Cautions

• When folding the scale, keep a firm hold on the handrail while unlocking the pins.
• Do not transport until all four pins are completely tightened.
• While transporting, keep a firm hold to prevent the scale from falling.

Manuals and Documents

• Brochure contains product features and technical specifications.
• Calibration Steps provide instructions in the event that re-calibration is needed.
