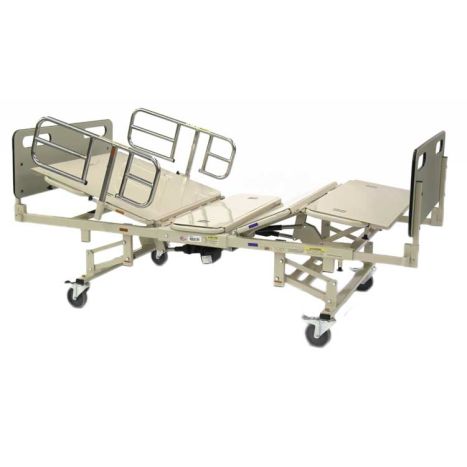

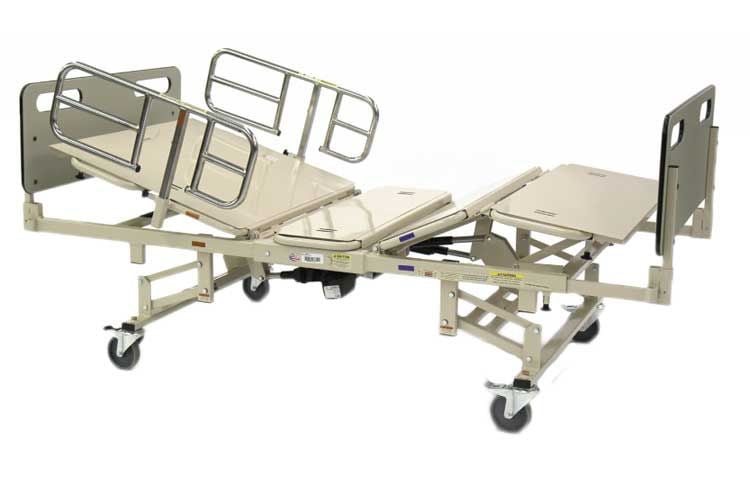

Invacare BAR750 Heavy Duty Bariatric Hospital Bed
The Invacare Heavy-Duty Bariatric Bed is a heavy-duty full-electric bed frame capable of supporting up to 750 pounds. This bariatric bed is a full electric bed that provides complete control of positioning and bed height. Four ultra-quiet DC actuators easily reposition the head and foot sections, as well as the bed height. This heavy-duty bed comes standard with a battery backup and an emergency crank that manually functions to lower any raised section of the bed. The bed includes a hand control that allows patients or caregivers to change the positioning of the head and foot sections as well as bed height. This bed is manufactured by Invacare, a leading manufacturer of medical supplies.

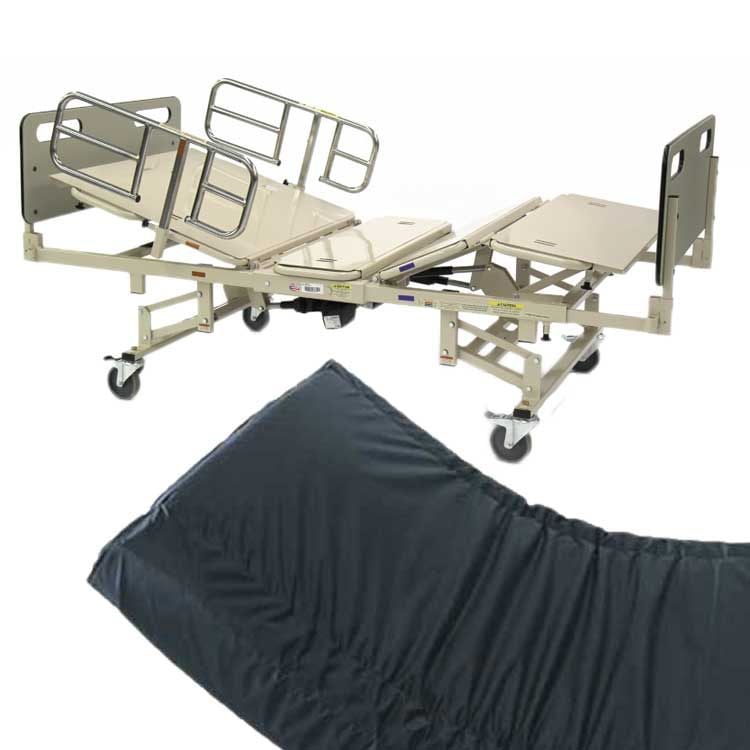

Bariatric Bed Package with Battery Backup, Head/Footboards, Half Rail and Expandable Mattress
This combination option provides you with a very flexible hospital bed for patients with changing needs or for hospitals with various size patients. This hospital bed has an adustable width and a mattress that can also be adjusted to the needs of the patient. A heavy duty bed rail is also included. The width is adjustable to 39, 42 or 48 inches. This bed package supports up to 750 pounds, including the mattress, rail, accessories and patient.
Build Your Own Bariatric Bed Package
This selection provides you with an adjustable width bed, allowing you to select your own mattress and bed rail to fit you specific needs. The width settings are adjustable to 39, 42 or 48 inches. Just select the mattress that meet your needs and then add the Half-Length Rail if needed. This bed supports up to 750 pounds.
Invacare manufactures several hospital and homecare beds. Below are links to detailed product descriptions about other beds from Invacare.
Bariatric Bed Bundled Components
- Adjustable bedframe with expandable width of 39, 42 or 48 inch
- Expandable Mattress width of 39, 42 or 48 inch
- Half-Length Bed Rail
- Battery Backup
- Head & Foot Boards (also included in Bed Only Package)
- Hand Pendant (also included in Bed Only Package

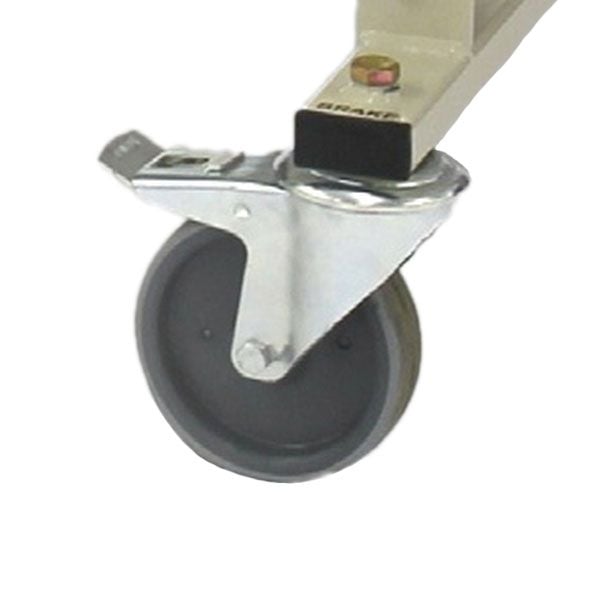

- Locking Casters (also included in Bed Only Package
Bookmark Links

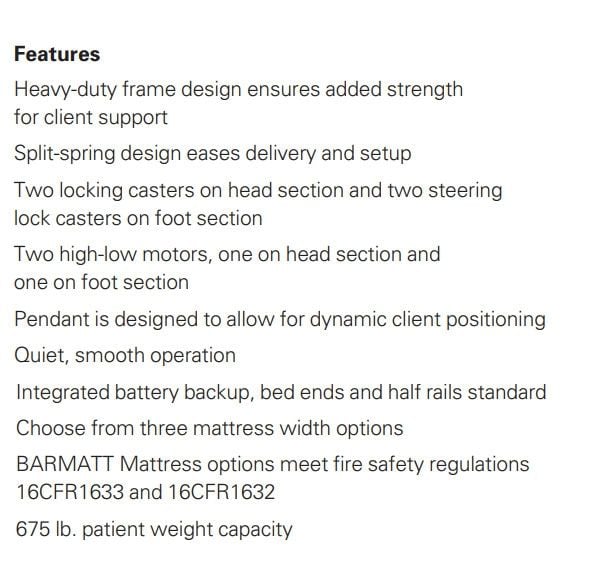

Product Features and Benefits
- Split-spring design for easier shipping and delivery.

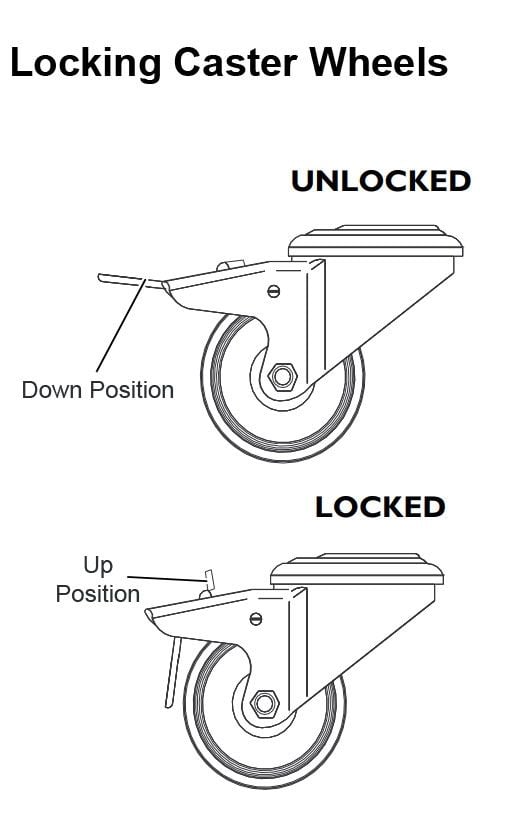

- Two locking casters on head section and two steering lock casters on foot section.
- Two high-low motors, one on the head section and one on the foot section.

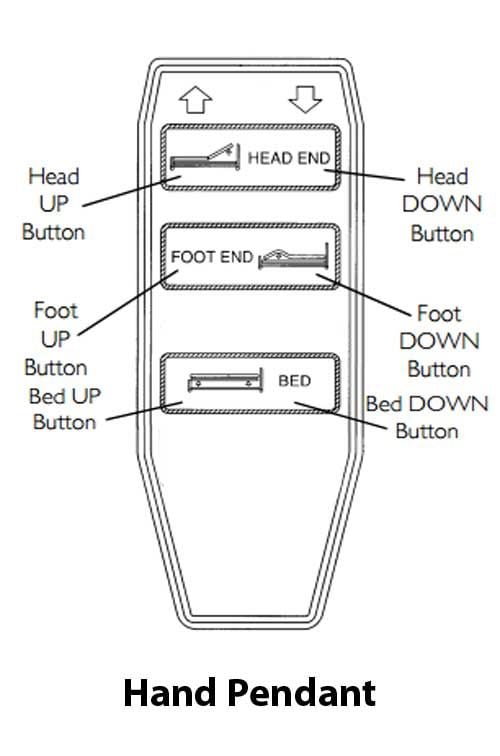

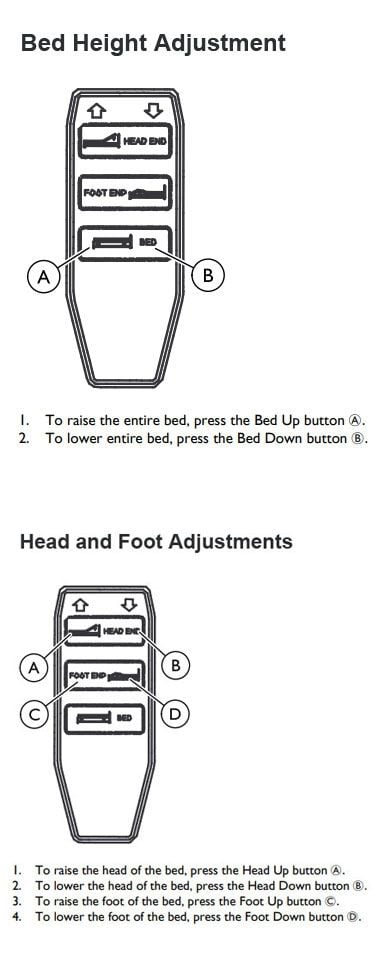

- Hand pendant allows for dynamic patient positioning.
- Heavy-duty frame design ensures added strength for client support.
- Integrated battery backup.
- Two high-low motors, one on the head section and one on the foot section.
- Two locking casters on the head section and two steering lock casters on the foot section.
- Split-spring design eases delivery and setup.
- Quiet, smooth operation.
- DC low voltage, compact motor system.
- Washable motor system and frame.
- Color-coded connections on junction box.
- Double insulated junction box.
- Ergonomic hand pendant.
- Hand pendant cradle.

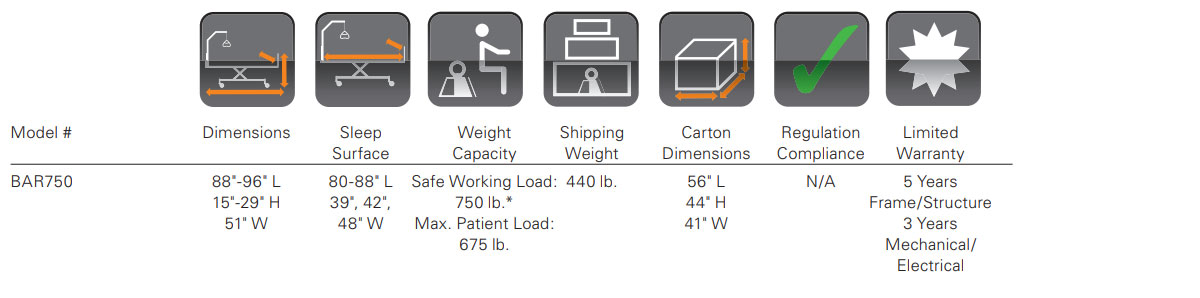

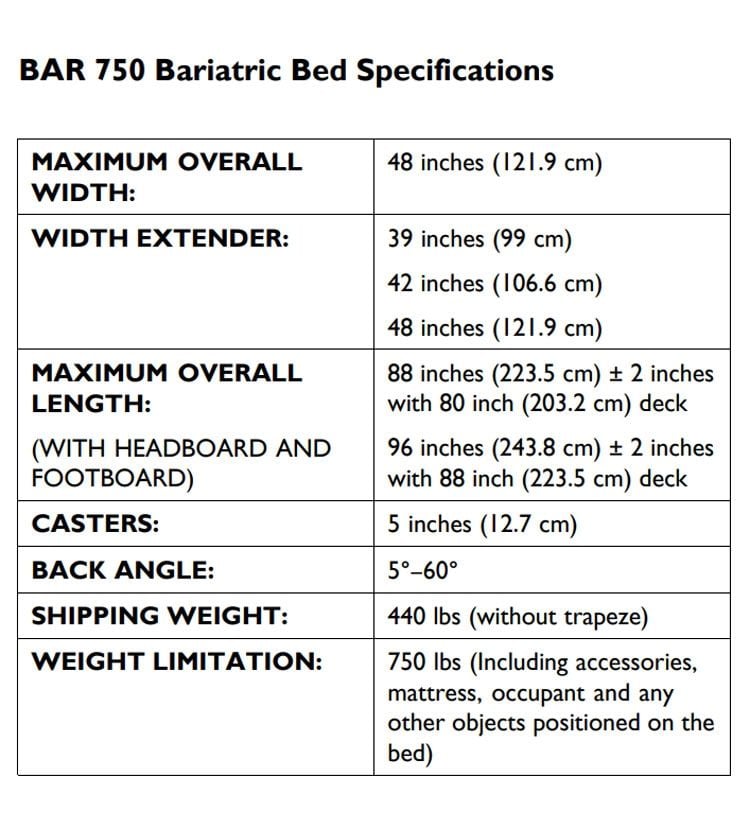

Key Specifications
- Product Number: BAR750
- Width: Adjustable 39, 42 or 48 Inch
- Height: Adjustable 15.5 to 29.5 Inch
- Length: Adjustable 80-88 Inch
- Weight Capacity: 750 lbs.
- Shipping Weight: 440 lbs.
- HCPCS Code: E0302
- Frame/Weld Warranty: 5 Years/5 Years
- Mechanical Warranty: 3 years
- Electrical Warranty: 3 years
Mattress Options See All Mattress Options
Bariatric Mattresses
These bariatric mattresses are made with latex free materials. Manufactured with high-quality foam, these heavy duty mattresses are designed to support bariatric patients. The foam has high resilience and is designed to provide extended life. A durable vinyl cover offers protection to the mattresses. The mattress length is 80 inches and the width is available in 39-, 42-, or 48-inch options. The mattress has a solid inner core and is reversible.
- Product Numbers: BARMATT39, BARMATT42, BARMATT48
- Width Options: 39, 42 or 48 Inch
- Length: 80 Inch
- Depth: 6.5 Inch
- Weight Capacity: 600 Pounds
- 11-ounce vinyl cover
- Solid inner core
- Reversible mattress
- Flippable mattress
- Offers extended life and service
- Easy to clean
- Latex free
- Complies with Federal Flammability Standards 16CFR1632 and 16CFR1633
- HCPCS Code: E0272
- Warranty: 1 year

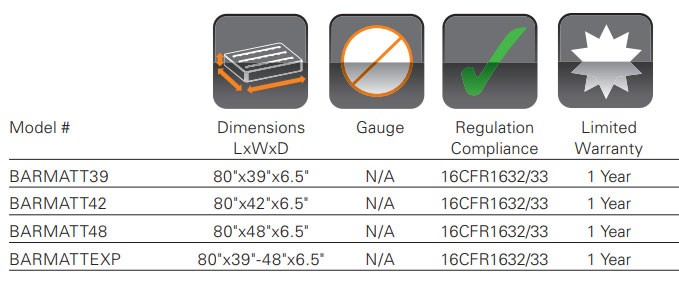

Specifications Comparison Chart
Expandable Bariatric Mattress
This unique bariatric mattress has an expandable width. It expands to 39-, 42-, or 48-inches. The mattress is made with latex free materials. Manufactured by Invacare with high-quality foam, the mattress is covered with an 11-ounce durable vinyl cover to protect it from soiling. The mattress has a solid inner core and is reversible and flippable.
- Product Numbers: BARMATTEXP
- Width Options: 39, 42 or 48 Inch
- Length: 80 Inch
- Depth: 6 Inch
- Weight Capacity: 600 Pounds
- 11-ounce vinyl cover
- Solid inner core
- Reversible mattress
- Flippable mattress
- Offers extended life and service
- Easy to clean
- Latex free
- Complies with Federal Flammability Standards 16CFR1632 and 16CFR1633
- HCPCS Code: E0272
- Warranty: 1 year
Softform Premier Foam Mattress
Invacare Softform Premier Mattresses are made with high-resiliency foam. This foam mattress contours to the body for greater comfort and a better fit. Castellated foam cells maximize body contact to provide enhanced pressure reduction. The mattress foam has a single piece U-core that offers side support. The Softform Premier Mattress features premium HR foam cut into mushroom-shaped cells to allow superior patient immersion, pressure redistribution, and optimizes pressure reduction for users with up to very high risk for skin ulcers. A removable zippered cover allows for laundering and foam inspection. The mattress cover has high-frequency welded seams and a full flap to hide the zipper and to add durability. The Softform mattress cover is fluid-resistant and stretches four ways to protect skin integrity.
- Product Number: IPM1080B39, IPM1080B42, IPM1080B48
- Width Options: 39, 42, or 48 Inch
- Length: 80 Inch
- Depth: 6 Inch
- Weight Capacity: 650 lbs
- Premium, removable fluid-resistant cover
- HCPCS Code: E0184
- Manufacturer: Invacare
- Invacare Mattress Warranty: 8 years for mattress, 4 years for cover
Specifications Chart

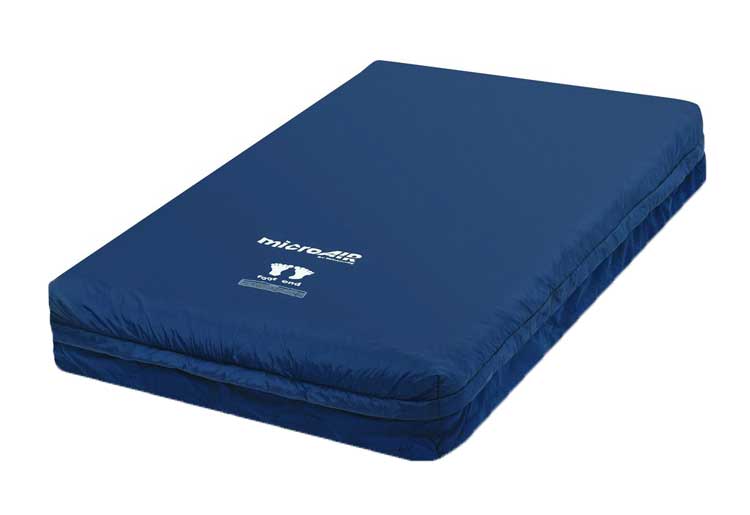

microAIR Mattress
Invacare microAIR Alternating Pressure Bariatric Mattress offers 50 LPM of low alternating pressure for a comfortable air bed mattress. It is a complete system, consisting of the air mattress, compressor and tubing. It is designed to serve patients with stage 1 to IV pressure ulcers and anyone wanting a more comfortable hospital bed mattress. The mattress alternates in 5, 10, 15 or 20 minute cycles. Patient weight is redistributed upon the mattress. A wireless auto-fowler prevents the user from bottoming out when bed back is raised.
- Product Number: MA65B42, MA65B48
- Width Options: 42 or 48 Inch
- Length: 80 Inch
- Depth: 10 Inch
- Weight Capacity: 1000 lbs
- Flow: 50 LPM
- Treatment Cycles: 4
- Constant pressure monitoring
- Treats pressure ulcers
- Rolls up for easy transport or storage
- Attached carry strap
- 10 Nylon, buckled straps that firmly secure the mattress to the bed
- Allow extra two weeks for delivery
- HCPCS Code: E0277
- Manufacturer: Invacare
- Invacare Mattress Warranty: 1 year for mattress and cover, 2 years for power unit
Specifications Chart
Side Rail
Half-Length Bariatric Bedside Rail
These half rails are specifically designed for the BAR750 Bariatric Bed and come as standard equipment when you purchase the bed. These half rails are durable and sturdy.
- Product Number: BAR6640P
- HCPCS Code: E0305
- Warranty: 1 year
Specifications Chart
Accessory Options
Overbed Table with Auto Touch
This overbed table has an easily adjustable height with a spring-loaded locking handle. Constructed with a chrome=plated heavy gauge steel, this hospital bed table is very durable. Caster wheels attached to the frame allow the table to roll over your bed.
- Product Number: 6417.
- Dimensions: 30 x 15 Inch (table top).
- Height: Adjustable 29 to 45 Inch above floor.
- Chrome-plated, welded steel construction.
- Walnut wood grained laminate top.
- Warranty: 3 year limited.
Tilt Bedside Table
Tilt top tables accommodate reading, writing or laptop use. The tilt and height of the table are easily adjustable with the touch of a lever. The overbed table is constructed with heavy gauge steel that is welded at the joints for greater stability and durability. The table top has an attractive walnut wood grain laminate.
- Product Number: 6418.
- Dimensions: 30 x 15 Inch (table top).
- Height: Adjustable 25.75 to 39 Inch above floor.
- Weight: 23 lbs.
- Weight Capacity: 25 lbs.
- Welded steel construction.
- Walnut wood grained laminate top.
- Warranty: 1 year.
Fixed Offset Trapeze
This Trapeze Bar bolts onto any metal frame headboard or can be attached to the Trapeze Floor Stand (7714P) sold separately. Trapeze bars allow patients more independence by providing assistance for changing position or getting into or out of a hospital bed. The hand bar is nylon coated to provide a comfortable gripping surface. The height is adjustable to meet the needs of individual patients.
- Product Number: 7740P.
- Diameter: 1.25 Inch octagon tubing.
- Height: 61 Inch.
- Reach: 34 Inch
- Weight: 17 lbs.
- Weight Capacity: 250 lbs.
- Warranty: 3 year.
Heavy Duty Trapeze
This trapeze bar serves as a transfer aid for bariatric patients. Although designed for heavy duty use, this hospital trapeze bar has a capacity of 1000 pounds and works well in home care or clinical settings. Constructed as a free standing unit, this trapeze can even work with a standard bed.
- Product Number: BARTRAP.
- Base: 50.5 (L) x 40 (W) Inch.
- Height: 73 Inch
- Reach: 35.5Inch
- Weight: 72 lbs.
- Warranty: 3 year.
Specifications Chart
Hospital Sheet Set
Manufactured by ReliaMed, this three piece hospital sheet set comes with a mattress sheet, top sheet, and pillowcase. This sheet set is designed for standard hospital beds. The top sheet is larger than a standard top sheet for easy bed making. The mattress sheet is a fitted bottom sheet to provide a snug fit upon the mattress.
- Product Number: 6615631
- Bottom Sheet Dimensions: 36 Inch Width x 80 Inch Length x 8 Inch Deep
- Top Sheet Dimensions: 66 Inch Width x 104 Inch Length
- Standard Pillow Case: 20 Inch Width x 30 Inch Length
- HCPCS Code: A9270
Delivery and Setup
White Glove Service
White Glove Delivery Service includes shipping and full assembly in a suitable room of your choice. This shipping service provides two highly skilled technicians that will move everything into your home, assemble it, ensure that it works properly, demonstrate its functionality and how to use it, and will remove any excess packaging upon leaving your home. Background checks have been done on every technician, so you can always rest assured that you're in safe hands. White-Glove Delivery is available by appointment in most states. Once you have placed your order, we will have an associate contact you to arrange a time that complements your schedule for the delivery and set up of your new bed.
***Disclaimer: White glove delivery is available in most states, but does not include North Dakota. Please allow an additional 1-3 weeks for the completion of white glove delivery.***
- Product Number: WHITEGLOVET1
- Shipping
- Unloading from truck
- Transport into residence
- Fully assemble
- Test functionality
- Demonstrate functions
- Remove packaging
- Completed by background checked technicians
Lift Gate Service
Lift Gate Delivery Service includes shipping and lift gate service. Lift gate service provides for delivery of your shipment to your curb or driveway. The delivery personnel will remove your shipment from the truck to the ground.
- Product Number: LIFTGATE
- Shipping to a residential address
- Unloading from truck
