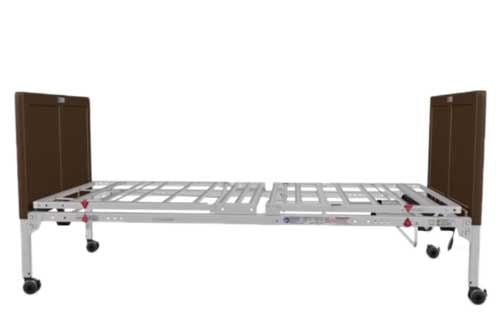

Invacare G5510 G-Series Full Electric Hospital Bed

As low as: $1,249.00

Price as configured: $0.00

TOP Features:
  • 5/2-Year Warranty
  • FREE Shipping
  • Impact and Scratch Resistant
  • Easy to Clean
  • Ergonomic Hand Pendant Included
  • Interchangeable Head and Foot Ends
  • Emergency Crank
  • 15 to 32 Inch Adjustable Height
  • 450 lbs. Capacity
  • Click for More Features & Benefits
Free Shipping! Authorized Retailer Easy Returns

* Required Fields

Customers Also Bought



Invacare G5510 G-Series Hospital Bed

G-Series Hospital Beds

Bed Components

  • Bed Frame
  • Hand Pendant
  • Head/Foot Boards
  • Innerspring Mattress 5185
  • Optional Half-Length Rail
  • Optional Full-Length Rail
  • Optional Battery Backup


Invacare G5510 Hospital Bed meets the latest patient safety standards. It employs an ergonomic mattress deck. This mattress deck is constructed with metal slats for increased patient support. The deck also offers reduced wear and tear on the mattress and an easy to clean surface. The G Series provides for extended bed height to allow caregivers easier access to patients. The G5510 comes with a convenient pendant control that is ergonomically designed for easier use.


Invacare manufactures many hospital and homecare beds to meet the needs of patients and caregivers. Below are links to additional information about other beds from Invacare.


Bookmark Links

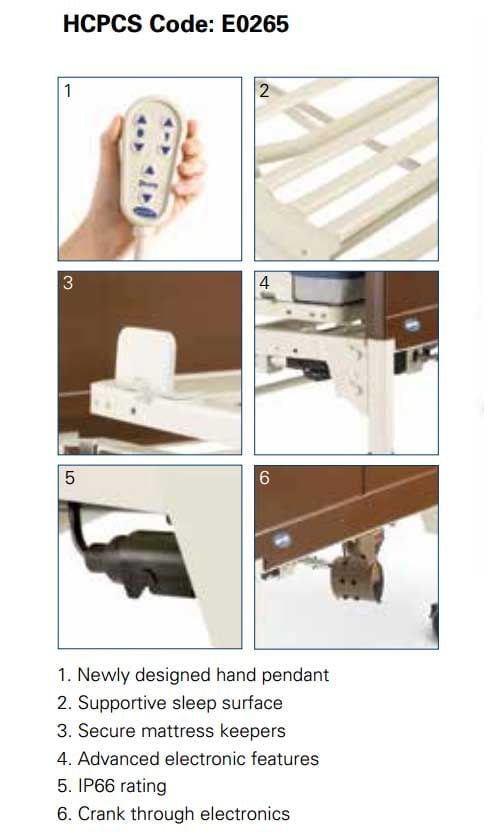

Product Features and Benefits

  • Ergonomically designed pendant.
  • Pendant connects to either side of bed.
  • Meets IEC 60601-2-52 requirements.
  • Meets FDA dimensional guidelines for rails.
  • Interchangeable head and foot ends.
  • Easy to clean head/foot boards offer improved infection control.
  • Impact resistant head/foot boards.
  • Supportive slat deck reduces wear and tear on mattresses.
  • Easy to clean mattress deck.
  • Ergonomic head and foot sections with elongated head section.
  • Supports up to 450 pounds.
  • Secure mattress keepers.
  • Crank through electronics offers motors to be operated manually in case of power outages.
  • Advanced electronics.
  • Water resistant electrical connections prevent fluid penetration.
  • Meets the voluntary FDA Guidelines for rail entrapment.

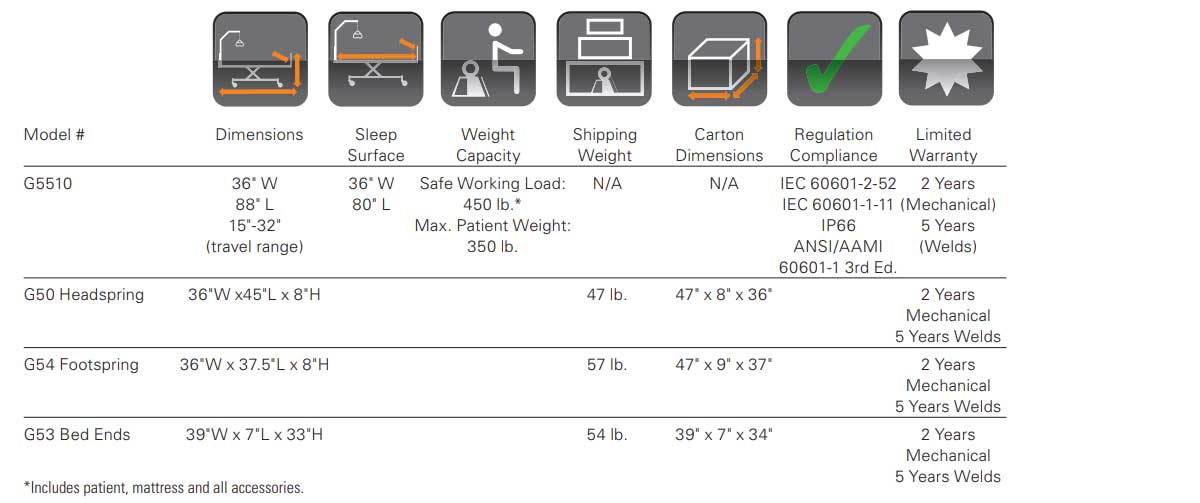

Specifications Chart

Specifications Chart



Mattress Options See All Mattress Options


Invacare Innerspring Mattress

Innerspring Mattress

Constructed with 312 coil and high-density poly fiber. This mattress comes with a protective vinyl cover that is anti-bacterial, anti-static, acid-resistant, and waterproof. The mattress offers durability, firm support and comfort for users. It meets regulation compliance with 16 CFR 1632 and 16 CFR 1633.

  • Product Number: 5185
  • Dimensions: 36 x 80 x 6 Inch
  • Weight Capacity: 250 lbs
  • Shipping Weight: 30 lbs
  • Regulation Compliance: 16CFR1632/33
  • Mattress Materials: High-density poly fiber, 312 coil.
  • Mattress Cover Materials: 11-ounce vinyl cover
  • Mattress Cover Charateristics: anti-bacterial, anti-static, acid-resistant, waterproof
  • Provides firm and comfortable support
  • HCPCS Code: E0271
  • Invacare Warranty: 1 year limited


Foam Mattress

Economy Foam Mattress

Homecare Economy Foam Mattress brings the comfort, therapeutic value, and durability of a foam mattress to the home care market at an economical price that meets fire regulation code 16 CFR 1633. Equipped with a mattress cover that will keep your mattress clean and fresh, The mattress cover protects the mattress from stains, odors, dust, and incontinence. Covers are made of non-allergenic waterproof vinyl and are zippered.

  • Product Number: 5180
  • Dimension: 36 x 80 x 5.5 Inch
  • Weight Capacity: 250 pounds
  • HCPCS Code: E0272
  • High-density 1.5 pound density foam
  • One-piece construction
  • Manufacturer Warranty: 1 year limited
  • Condition: Patient having a medical condition which requires positioning of the body


Invacare Softform Excel Foam Mattress

Softform Excel Foam Mattress

Constructed with a contoured foam layer which is designed to evenly distribute the weight of a user. The Softform Excel Mattress promotes greater comfort and helps to facilitate pressure ulcer prevention in users up to the high-risk level. Regulation compliance with TB 129, 16 CFR 1632, 16 CFR 1633.

  • Product Number: IXL1080
  • Dimensions: 36 x 80 x 6 Inch
  • Weight Capacity: 450 lbs
  • HCPCS Code: E0184
  • Laser cut square cells breakup surface tension to maximize body contact
  • Keyhole cut cells ensure airflow through foam to maintain consistent temperature
  • Premium fluid-resistant cover maximize mattress lifespan
  • Anticicrobial cover affords healthy skin
  • Four-way stretch cover helps protect skin integrity
  • Firm, foam layer at mattress base offersr substantial support
  • Unique castellated cells maximize body contact for optimal pressure reduction
  • Removable cover allows for easy replacement or laundering
  • Manufacturer's Warranty: 6 years Foam, 2 years Cover


Invacare Softform Premier Mattress IPM1080

Softform Premier Foam Mattress

The Softform Premier Mattress Mattress is made with high-resiliency foam. This foam mattress contours to the body for greater comfort and a better fit. Castellated foam cells maximize body contact to provide enhanced pressure reduction. The mattress foam has a single piece U-core that offers side support. The Softform Premier mattress features premium HR foam cut into mushroom-shaped cells to allow superior patient immersion, pressure redistribution, and optimizes pressure reduction for users with up to very high risk for skin ulcers. A removable zippered cover allows for laundering and foam inspection. The mattress cover has high-frequency welded seams and a full flap to hide the zipper and to add durability. The Softform mattress cover is fluid-resistant and stretches four ways to protect skin integrity.

  • Product Number: IPM1080
  • Dimensions: 35 x 80 x 6 Inch
  • Weight Capacity: 500 lbs
  • HCPCS Code: E0184
  • Warranty: 8 years for mattress, 4 years for cover

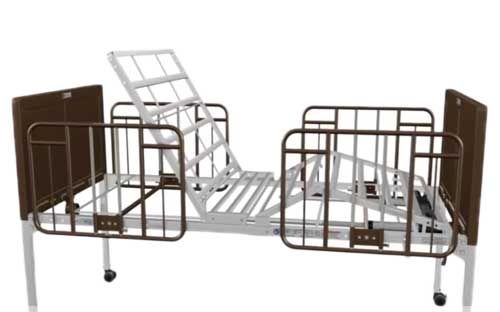

Rail Options


GSeries Half Rail

G Series Half Rail

The G30 Half Rail is constructed with a cross brace that offers strength and durability for added protection for the patient. The half-length construction of the rails doubles as an assist rail to help patients ingress and egress from the bed. They also help patients reposition. These rails are designed to offer safety and accident prevention.

  • Product Number: G30
  • Length: 32 Inch
  • Width Between Rails: 36.5 Inch
  • Height Above Bed Deck in Raised Position: 17 Inch
  • Height Avove Bed Deck in Lowered Position: 0.5 Inch
  • Shipping Weight: 27 lbs
  • Durable powder coating finish
  • Fits G Series beds
  • Meets IEC 60601-2-52 requirements
  • Meets  FDA dimensional guidelines for rails
  • Removable installation brackets
  • Sold and shipped in pairs
  • Warranty: 1 year


Invacare G-Series Full Bed Rail

G29 Full Rail

These safety rails feature 1/2 inch diameter tubing for extra strength and durability. This full bed rail bolts directly to the frame of the bed for greater strength. The G29 Rails meet FDA Guidelines for safety rail entrapment protection.

  • Product Number: G29
  • Length: 65 Inch
  • Width Between Rails: 36.5 Inch
  • Height Above Bed Deck in Raised Position: 15.5 Inch
  • Height Avove Bed Deck in Lowered Position: 5 Inch
  • Shipping Weight: 32 lbs
  • Durable powder coating finish
  • Fits G Series beds
  • Meets IEC 60601-2-52 requirements
  • Meets  FDA dimensional guidelines for safety rails
  • Removable installation brackets
  • Sold and shipped in pairs
  • Warranty: 1 year



Bed Rail Comparison Chart

Bed Rail Comparison Chart



Accessory Options

Overbed Table Auto Touch

Overbed Table with Auto Touch

This table has an easily adjustable height with a spring-loaded locking handle. Constructed with chrome-plated heavy gauge steel, this table is very durable. Caster wheels attached to the frame allow the table to roll under your bed.

  • Product Number: 6417
  • Dimensions: 30 x 15 Inch (table top)
  • Height: Adjustable 29 to 45 Inch above floor
  • Chrome-plated, welded steel construction
  • Walnut wood grained laminate top
  • Warranty: 3 year limited


Overbed Table Tilt Top

Tilt Bedside Table

Tilt top tables accommodate reading, writing or laptop use. The tilt and height of the table are easily adjustable with the touch of a lever. The overbed table is constructed with heavy gauge steel that is welded at the joints for greater stability and durability. The tabletop has an attractive walnut wood grain laminate.

  • Product Number: 6418
  • Dimensions: 30 x 15 Inch (table top)
  • Height: Adjustable 25.75 to 39 Inch above floor
  • Weight: 23 lbs
  • Weight Capacity: 25 lbs
  • Welded steel construction
  • Walnut wood grained laminate top
  • Warranty: 1 year

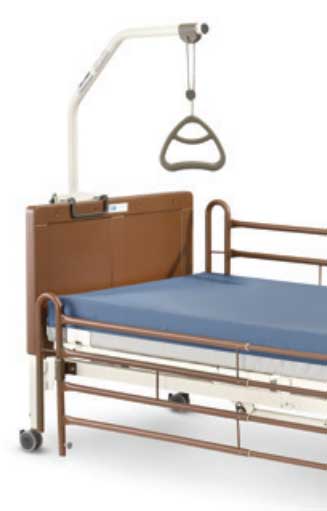

G-Series Trapeze Bar

G-Series Trapeze

This Trapeze Bar attaches to the bed head/footboard. This trapeze bar allows patients to reposition while in bed. It also provides easier ingress and egress from the bed. Height is adjustable to meet individual needs. The soft-grip handle is comfortable for the patient. This device meets the requirements of the IEC 60601-2-52 standard.

  • Product Number: G7740CS
  • Diameter: 1.25 Inch octagon tubing
  • Height: Adjustable, 20 to 25.5 inch above bed deck
  • Powder coated finish resists scratching
  • Weight: 17 lbs
  • Shipping Weight: 32 lbs.
  • Weight Capacity: 168 lbs
  • Expected Service Life: 2 years
  • HCPCS Code: E0910
  • Warranty: 1 year





Trapeze Specification Chart

Trapeze Specification Chart



Heavy Duty Trapeze Bar

Heavy Duty Trapeze

This trapeze bar serves as a transfer aid for bariatric patients. Although designed for heavy-duty use, this trapeze bar has a capacity of 1000 pounds and works well in-home care or clinical settings. Constructed as a free-standing unit, this trapeze can even work with a standard bed.

  • Product Number: BARTRAP
  • Base: 50.5" (L) x 40" (W)
  • Height: 73"
  • Reach: 35.5"
  • Weight: 72 lbs
  • Warranty: 3 year


Hospital Sheet Set

Sheet Set

Manufactured by ReliaMed, this three-piece sheet set comes with a mattress sheet, top sheet, and pillowcase. This sheet set is designed for standard hospital beds. The top sheet is larger than a standard top sheet for easy bed making. The mattress sheet is a fitted bottom sheet to provide a snug fit upon the mattress.

  • Product Number: 6615631
  • Bottom Sheet Dimensions: 36 Inch Width x 80 Inch Length x 8 Inch Deep
  • Top Sheet Dimensions: 66 Inch Width x 104 Inch Length
  • Standard Pillow Case: 20 Inch Width x 30 Inch Length
  • HCPCS Code: A9270


Delivery and Setup Upgrades


White Glove Shipping Service



White Glove Service

White Glove Delivery Service includes shipping and full assembly in a suitable room of your choice. This shipping service provides two highly skilled technicians that will move everything into your home, assemble it, ensure that it works properly, demonstrate its functionality and how to use it, and will remove any excess packaging upon leaving your home. Background checks have been done on every technician, so you can always rest assured that you're in safe hands. White-Glove Delivery is available by appointment in most states. Once you have placed your order, we will have an associate contact you to arrange a time that complements your schedule for the delivery and set up of your new bed.

***Disclaimer: White glove delivery is available in most states, but does not include North Dakota. Please allow an additional 1-3 weeks for completion of white glove delivery.***

  • Product Number: WHITEGLOVET1
  • Shipping
  • Unloading from truck
  • Transport into residence
  • Fully assemble
  • Test functionality
  • Demonstrate functions
  • Remove packaging
  • Completed by background checked technicians



Lift Gate Shipping Service

Lift Gate Service

Lift Gate Delivery Service includes shipping and lift gate service. Liftgate service provides for the delivery of your shipment to your curb or driveway. The delivery personnel will remove your shipment from the truck to the ground.

  • Product Number: LIFTGATE
  • Shipping to a residential address
  • Unloading from truck



Additional Information

Additional Information

What's in the Box?
  • Bed
  • Molded, Raised Wood Panel Headboard & Footboard with Casters
  • Economy Foam Mattress or Upgrade
  • Half Length Bed Rail
  • Hand Pendant
  • Manual
  • Width
    36 Inch
  • Length
    88 Inch
  • Height Range
    15 to 32 Inch
  • Sleep Surface Dimensions
    Width 36 Inch, Length 80 Inch
  • Weight
    158 Pounds
  • Weight Capacity
    450 Pounds
  • Maximum Back Angle
    70 Degrees
  • Maximum Knee Angle
    20 Degrees
  • Maximum Knee to Leg Angle
    40 Degrees
  • Welds
    5 Years
  • Mechanical
    2 Years
  • Electrical
    2 Years

Shipping & Returns

Shipping Information

Leaves Warehouse: 1-2 Days. If white glove shipping is selected, please allow an additional lead-time of 1-3 weeks. - More details
Economy Shipping: Guaranteed 7-10 business days

Returns Information
Refer to our returns policy for more information.
Manuals & Documents



Manuals and Documents






Product Comparison

Product Comparison


Invacare Full-Electric Hospital Bed


Invacare Full-Electric Low Hospital Bed


Invacare G5510 G-Series Full Electric Hospital Bed

Sleep Surface Dimensions36 Inch Width, 80 Inch Length36 Inch Width, 80 Inch Length36 Inch Width, 80 Inch Length
Height Range15 to 23 Inch9.5 to 20 Inch15 to 32 Inch
Weight176.5 Pounds176.5 Pounds158 Pounds
Weight Capacity450 Pounds450 Pounds450 Pounds
Maximum Back Angle70 Degrees70 Degrees70 Degree
Maximum Knee Angle40 Degrees40 Degrees20 Degrees
Warranty5 Years5 Years5 Years
View ProductView ProductView Product
