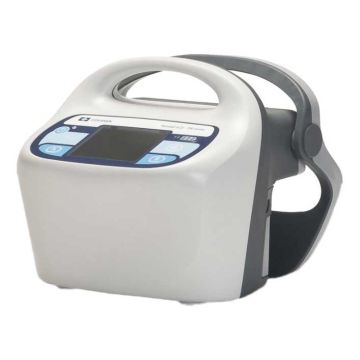

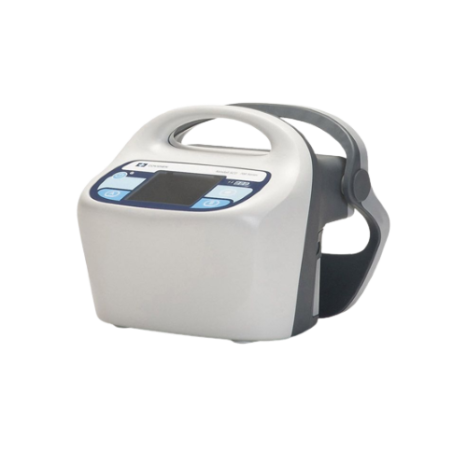

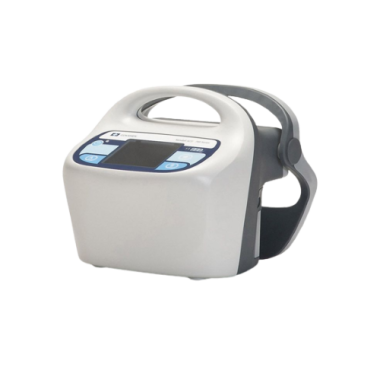

Kendall SCD 700 Series Compression Therapy Pump

As low as: $1,999.00

Price as configured: $0.00

By Medtronic
Free Shipping! Secure Shopping Easy Returns

    Availability: In stock

  • adapts to patient’s vascular refill rate
  • offers customized therapy

* Required Fields

Customers Also Bought

Description

Details



Kendall SCD 700 Comparison



Kendall SCD 700 Series provides DVT compression therapy in three separate modes—sequential, gradient and circumferential. This compression pump offers simultaneous compression to the leg and foot or separately. It is designed to help prevent deep vein thrombosis (DVT) and pulmonary embolism (PE).

Kendall SCD 700 from CardinalHealth provides for prophylactic treatment of sequential, gradient and circumferential leg compression. It also provides for uniform foot cuff compression. It comes with a hospital grade power cord and an integrated lithium-ion battery. The battery can supply up to 8 hours of uninterrupted compression. An ergonomic handle makes transport comfortable and a bed mount function is integrated into the unit. The pump allows for customized compressions cycles to circulate blood from the lower extremities as quickly as the veins refill.

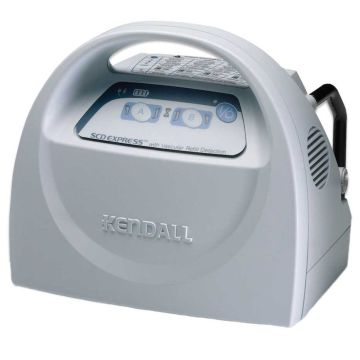

Select between two options—SCD 700 Series designed for home use (29525) or the SCD Express Controller designed for acute care applications (9525). The homecare version is designed for maximum portability and has easy to understand controls that are easy to use. It also comes with a color LCD screen. The Express Controller has a control panel that is easy to set and monitor from patient to patient.

Components

  • Pump
  • Tubing Set, 2 individual assemblies
  • Power Cord, hospital grade plug
  • Bed Hook, (optional for 9525)
  • Shoulder Strap, (optional for 9525)
  • Lithium Ion Battery, (optional for 9525)
  • Operation & Service Manual

Treatment

  • deep vein thrombosis propylasis
  • pulmanary embolism prophylaxis
  • circulation enhancement
  • acute edema
  • chronic edema
  • extremity pain resulting from trauma or surgery
  • leg ulcers
  • venous stasis
  • venous insufficiency



SCD 700 Comparison Chart



  Homecare SCD 700 Express SCD 700
Product Number 29525 9525
Targeted Use homecare therapy acute therapy
Power Source AC and lithium ion battery AC and OPTIONAL lithium ion battery
Function designed for portability, patient operation designed for hospital care, caregiver operation
Optional Equipment - - Lithium Ion Battery
- Shoulder Strap
- Bed Hook
Controller Weight (lbs) 5 3.5
Product Size (cubic inch) 382.2 195.3

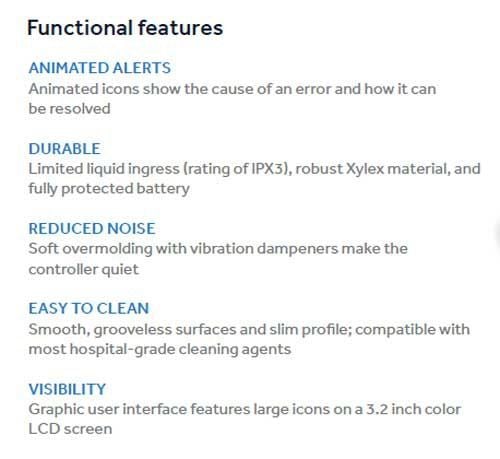

Features - patient detection

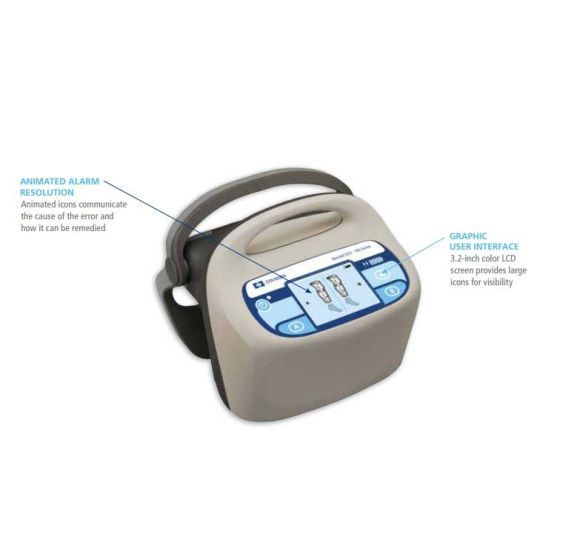

- animated alerts
- low noise
- easy to use interface
- color screen, large icons

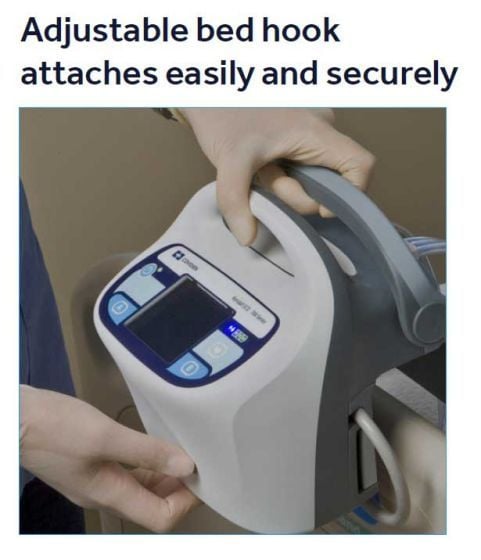

- adjustable bed hook




Features and Specifications



Product Features & Benefits

  • Offers customized compression therapy for individual patients.
  • Offers the same standard of care that doctors prescribe for hospital compression therapy.
  • Fully portable to go where you need therapy.
  • Provides treatment when moving patients from room to room.
  • Delivers all-in-one leg or foot treatments.
  • Utilizes patented Vascular Refill Detection technology.
  • Prevents the formation of swelling.
  • May decrease swelling.
  • Maintains deep tissue oxygen saturation.
  • Battery supplies up to 8 hours of uninterrupted compression.
  • Regularly re-evaluates each patient’s refill time and automatically adjusts for changes in body position.
  • Minimizes stasis and maximizes blood flow.
  • Provides customized compression cycles.
  • Offers DVT compression therapy.
  • Ergonomic carry handle.
  • Integrated bersatile bed mounting.
  • Offers customized compression cycles.
  • Adjust level and frequency of compression without caregiver intervention.
  • USB port for efficiently updating software.
  • One-touch operation for leg compression.
  • Compatible with most major hospital-grade cleaning agents.

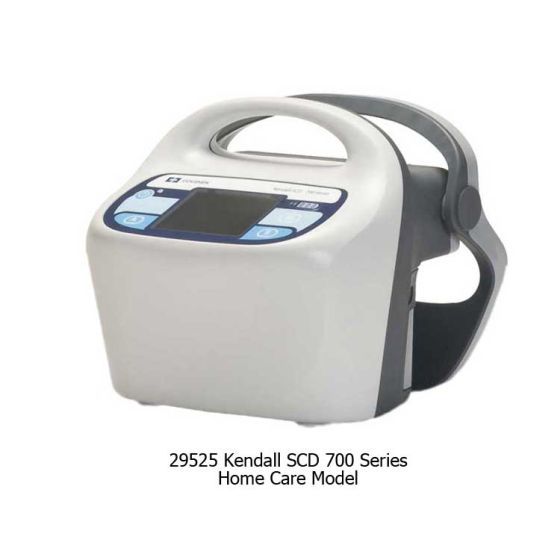

Homecare Model 29525 Specifications

  • Product Number: 29525 Homecare Pump
  • Controller width: 7.7 in (19.6 cm)
  • Controller height: 6.8 in (17.3 cm)
  • Controller depth (freestanding): 7.3 in (18.5 cm)
  • Controller weight: 5 lbs (2.3 kg)
  • Shipping width: 9.25 Inch (23.5 cm)
  • Shipping height: 11.6 Inch (29.4 cm)
  • Shipping depth: 13.25 Inch (33.7 cm)
  • Shipping weight: 7 lbs 4 oz (3.3 kg)
  • Mode of Operation: Continuous
  • Compression Type: Leg Sleeves: Sequential, Gradient, Circumferential | Foot Cuffs: Uniform
  • Compression Cycle: Leg Sleeves: 11 Seconds Compression | Foot Cuffs: 5 Seconds Decompression
  • Set Pressure: Leg Sleeves: 45 mmHg | Foot Cuffs: 130 mmHg
  • Adjustable Bed Hook: Yes
  • Power Cord Storage: Yes
  • Audible/Visual Errors: Low Pressure, High Pressure, Internal Electronics Malfunction
  • Power Cord: 13 feet long with region specific appropriate cordage and plug
  • Lightweight, portable unit can be used in any facility or for home care
  • Brand: Kendall
  • Manufacturer: CardinalHealth (formerly Medtronic)

Express Model 9525 Specifications

  • Product Number: 9525 Acute Care Pump
  • Controller Width: 7 Inch
  • Controller Height: 6.2 Inch
  • Controller Depth: 4.5 Inch
  • Controller Weight: 3.5 lbs.
  • Shipping weight: 7 lbs 6 oz (3.45 kg)
  • Shipping width: 9.0 Inch (22.8 cm)
  • Shipping height: 11.6 Inch (29.4 cm)
  • Shipping depth: 11.4 Inch (28.9 cm)
  • Mode of Operation: Continuous
  • Set Pressure: 45 mmHg for leg sleeves, 130 mmHg for foot cuffs
  • Compression Cycle: Leg Sleeves: 11 Seconds Compression | Foot Cuffs: 5 Seconds Compression | Decompression time based upon Vascular Refill Detection measurement
  • Compression Type: Leg Sleeves: Sequential, Gradient | Foot Cuffs: Uniform
  • Power Requirements: 100-240 VAC, 50VA, 50/60 Hz
  • Battery: 16.5 V, 2000mAhr, Lithium Ion (Optional) | Run Time: 6-8 hours | Charge time: 4 hours (charging only)
  • Safety Standards: Built to UL60601-1, CSA-C22.2 No. 601.1-M90, EN60601-1, and IEC 60601-1-2 Standards UL Classified File # E189131
  • Brand: Kendall
  • Manufacturer: CardinalHealth (formerly Medtronic)



SCD 700 Sleeves



Kendall provides many compression sleeve options and replacement parts for the SCD 700 Pumps. A short summary about each of the sleeve options and the tubing set is provided below.

SCD 700 Express Sleeves

Express Sleeves

Express Sleeves offer circumferential, sequential and gradient compression. These sleeves are anatomically constructed and are adjustable to meet individual patient needs. Thigh length and knee length options are available.

  • Product Numbers: 9529, 9545, 9789, 9790.
  • Sizes: Small, Medium, and Large.
  • Length: Thigh or Knee Length.
  • Color: White.
  • Material: Soft Vinyl.
  • Style: 3 Chamber Garment.
  • Ensures clearance of the deep veins without the risk of distal blood trapping.
  • Anatomically designed for greater patient comfort.
  • Sleeves are adjustable for a customized fit.
SCD 700 Express Tear-Away Sleeves

Express Tear-Away Sleeves

These sleeves are constructed with a unique tear-away design that allows the sleeves to easily convert from thigh-length to knee length in just seconds. Equipped with 3 separate chambers, the Express Tear-Away Sleeves offer circumferential, sequential and gradient compression.

  • Product Numbers: 9530T, 9545T, and 9780T.
  • Sizes: Small, Medium, and Large.
  • Color: White.
  • Material: Vinyl.
  • Style: 3 Chamber Garment.
  • DVT compression therapy garment for single patient use.
  • Adjustable sleeve closure adapts to individual patients.
  • Features "all-in-one" design.
SCD 700 Foot Cuffs

Express Foot Cuffs

These Foot Garments treat deep vein thrombosis (DVT) and pulmonary embolism (PE) through compression therapy to the feet. This foot garment compresses the plantar plexus to force blood up the leg and back to the heart. Express Foot Cuffs have an adjustable closure that adapts to individual patient needs.

  • Product Numbers: 5897, 5898.
  • Sizes: Regular and Large.
  • Material: Vinyl.
  • Provides single bladder construction.
  • Universal sizing and design.
  • Provide DVT prophylaxis treatment.
SCD 700 Comfort Sleeves

Comfort Sleeves

Constructed with 3 separate bladders, these Comfort Sleeves provide circumferential, sequential and gradient compression for the treatment of DVT. These sleeves are available in knee and thigh lengths and have a white and blue appearance. These compression sleeves offer greater patient comfort.

  • Product Numbers: 74021, 74022, 74023, 74010,74011, 74012 and 74013.
  • Sizes: X-Small, Small, Medium, and Large.
  • Length Options: Knee Length or Thigh Length.
  • Color: Blue/White.
  • Material: Vinyl.
  • Offers increased patient comfort.
  • Anatomically designed.
  • Provides compression therapy for deep veins without distal blood trapping.
SCD 700 Comfort Tear-Away Sleeves

Comfort Tear-Away Sleeves

Comfort Tear-Away Sleeves are easy to convert from thigh length to knee length. The design can help reduce the frequency of garment changes. They offer proximal DVT protection during peak high-risk periods.

  • Product Numbers: 74041, 74042, 74043.
  • Sizes: Small, Medium and Large.

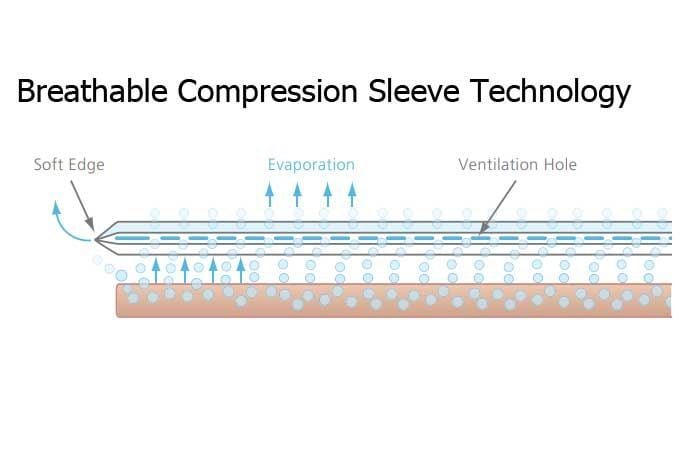

  • Breathable fabric offers increased comfort.
  • Increased comfort.
  • Tear-away design provides for easy conversion from thigh high to knee high.



Replacement parts for the SCD 700 can be found at Kendall SCD Tubing Set.



Product Videos



Product Review Video (11:31 minutes)






This item requires a prescription

Additional Information

Additional Information

Performance
  • Leg Sleeves Set Pressure
    45 mmHg
  • Foot Cuffs Set Pressure
    130 mmHg
  • Leg Compression Type
    Sequential, Gradient, Circumferential
  • Foot Compression Type
    Uniform
  • Leg Compression Cycle
    11 Seconds
  • Foot Decompression Cycle
    5 Seconds
  • Mode of Operation
    Continuous
Power
  • Power Cord Length
    13 Feet
  • Power Requirements
    100-240 VAC, 50VA, 50/60 Hz
  • Battery
    16.5 V, 2000mAhr, Lithium Ion
  • Battery Run Time
    6 to 8 hours
  • Battery Charge Time
    4 hours
  • Battery
    16.5 V, 2000mAhr, Lithium Ion
