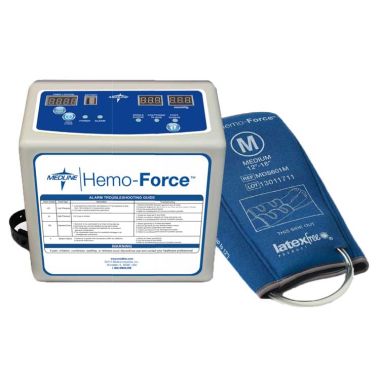

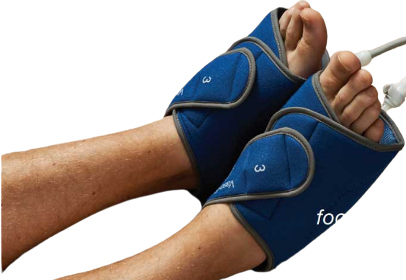

Medline Hemo-Force DVT Pumps are a compression pump system for preventing deep vein thrombosis. Select between two different pumps, Hemo-Force (orginal) and Hemo-Force II, that provide you with treatment options. Both models offer non-segmented compression to the legs. Both include a therapy duration timer to end the compression session at a scheduled time. They also come with an audio and visual alarm system to notify the patient or caregiver of a pressure fault or low battery. They also provide a troubleshooting guide on the front of the pump to identify typical errors and their solutions. These compression devices offer uniform compression to the foot, calf, or thigh to stimulate venous circulation. The tubing design is anti-kink and is easy to clean. The hooks on the back of the machine are spring-loaded, reinforced for strength, and rubberized to protect furniture. They are easy to clean and durable.

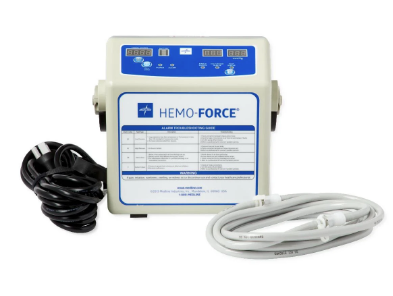

Product Components
- Pump
- Five-Foot Tubing
- AC Power Cord
- Assorted Sizes of Foot, Calf, and Thigh Sleeves (Sold Separately)
- Optional Lithium-Ion Battery (Sold Separately)

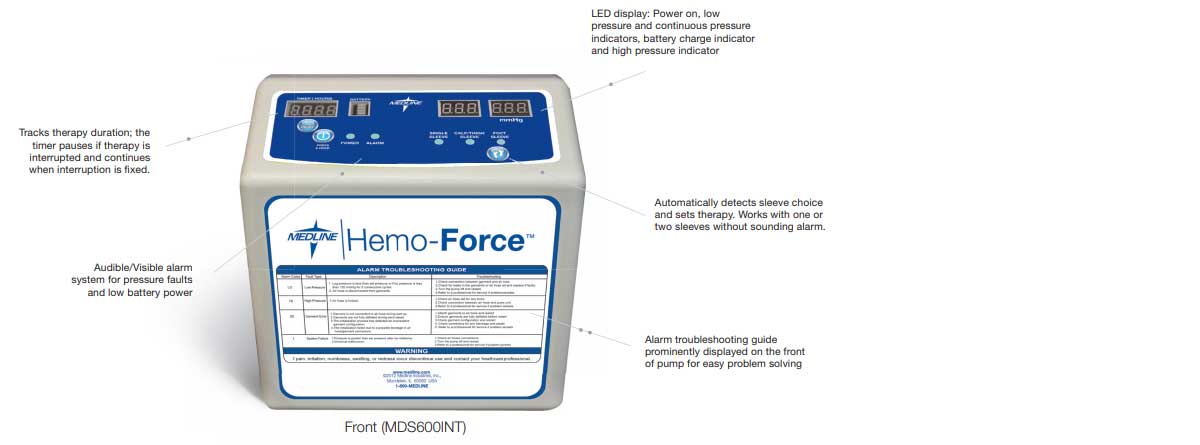

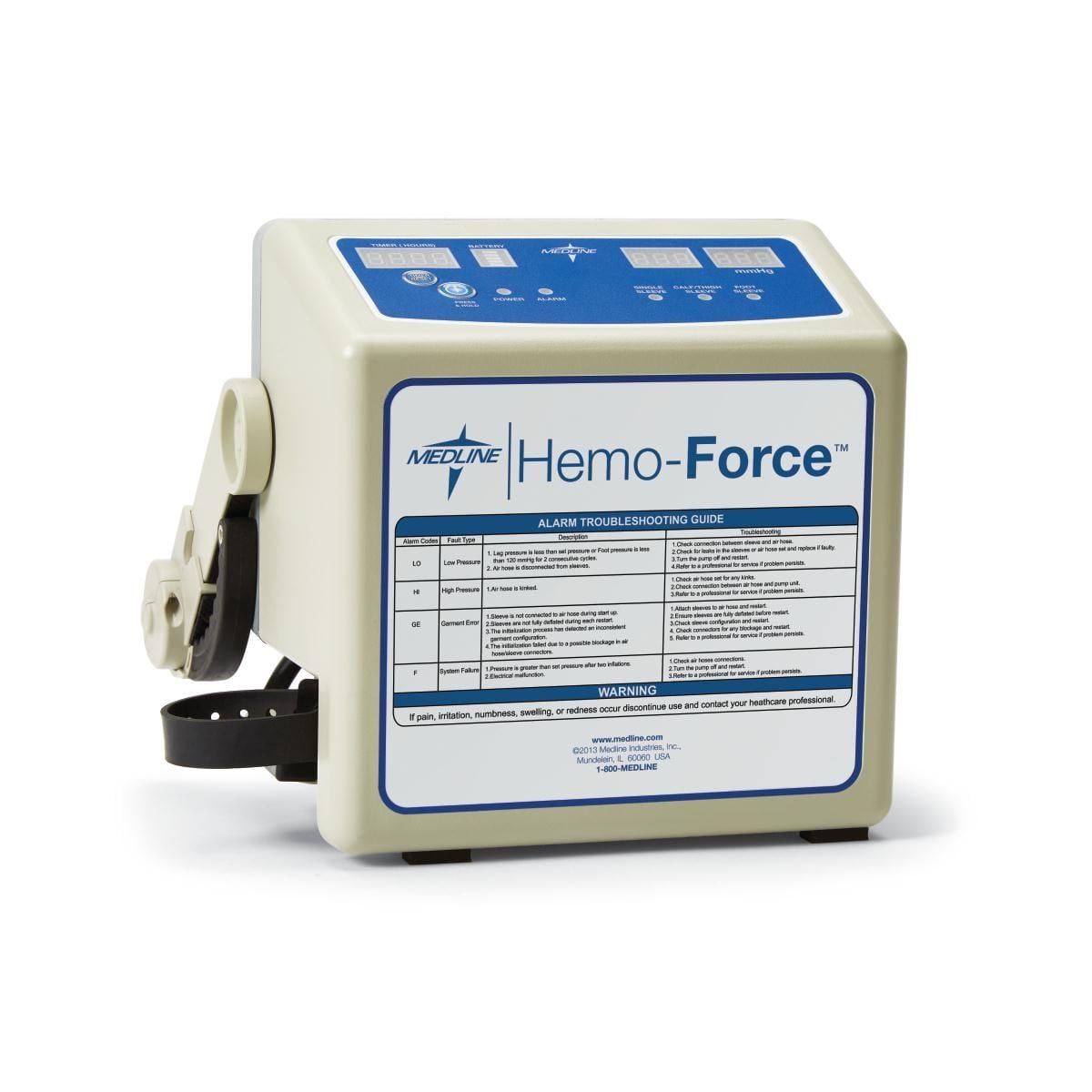

Hemo-Force Intermittent DVT Pump Anatomy

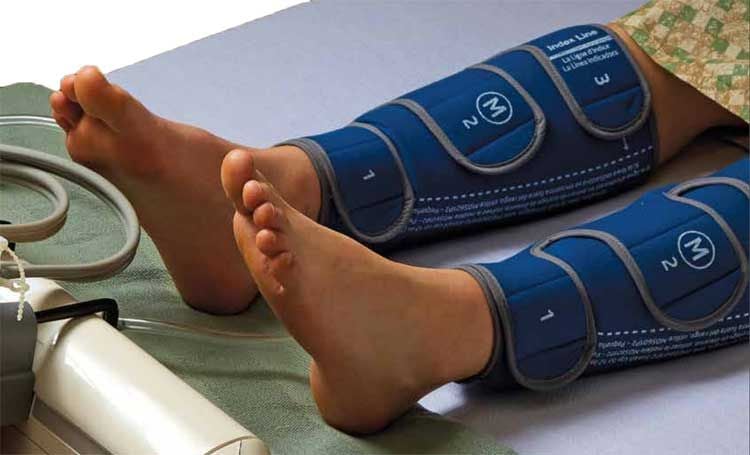

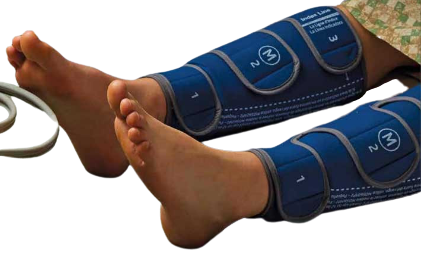

Leg Sleeve Anatomy

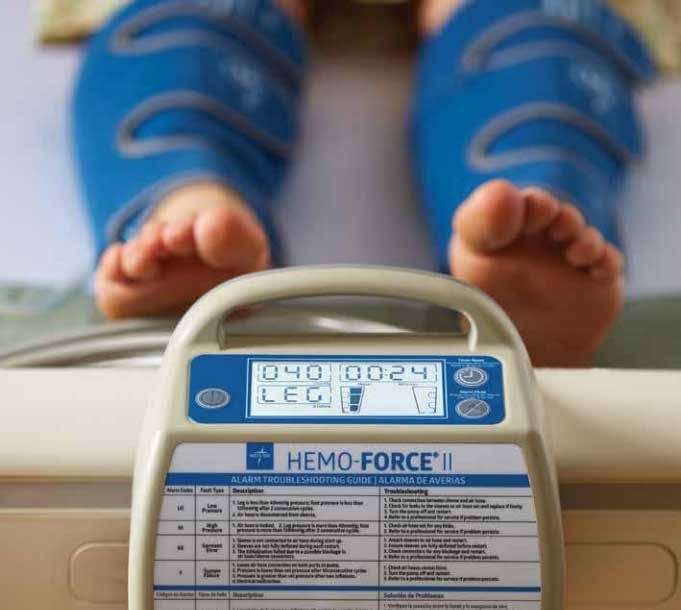

Hemo-Force II is a 2nd generation pump that provides a few additional features not found with the standard model. The Medline HemoForce II comes with an integrated handle and is smaller, affording easier portability. This model is also bilateral, allowing you to provide therapy to two legs simultaneously. The device is also able to auto-detect the type of sleeve and the number of sleeves attached to the pump to output the appropriate therapy. Below is a comparison chart displaying the two options and their features.
HemoForce DVT Pump Comparison Chart
| Feature | HemoForce | HemoForce II |
|---|---|---|
| Size | 4.9 x 5.1 x 4.3 Inches | 25% Smaller |
| Bilateral Operation |  |
 |
| Integrated Handle | |
|
| Auto Detect Sleeve | |
|
| Auto Set Therapy | |
|
| Alarm Mute | |
|
| Alarm Functions | Auido, Visual, Reference Code | Auido, Visual, Reference Code |
| Timer | Hours | Minutes and Hours |
| Troubleshooting Guide | English Only | English and Spanish |
| Hooks | Spring-Loaded, Rubberized, Reinforced | Spring-Loaded, Rubberized, Metal Reinforced, Fold-Away |
Vitality Medical also carries the Medline Hemo-Force SQ that uses sequential compression therapy to prevent DVT.
Product Features and Benefits
- LED Display
- Integrated Audio and Visual Alarms
- Low-Pressure Alert
- Low-Battery Alert
- Simple Application
- Soft, Comfortable Sleeves (Sold Separately by Size)
- Timed Therapy
- Timer Auto Pauses When Therapy Is Interrupted and Continues When Interruption Ceases
- Prevents and Treats DVT
- Durable ABS Case
- Lightweight
- Integrated Backup Battery Operation
- Portable
- Alarm Troubleshooting Guide Posted to the Front of the Machine
- Integrated Zip Ties Secure Tubing to Pump
- Built-In Hinge for Bedside Hanging
- Bilateral Operation with 2nd Gen Model

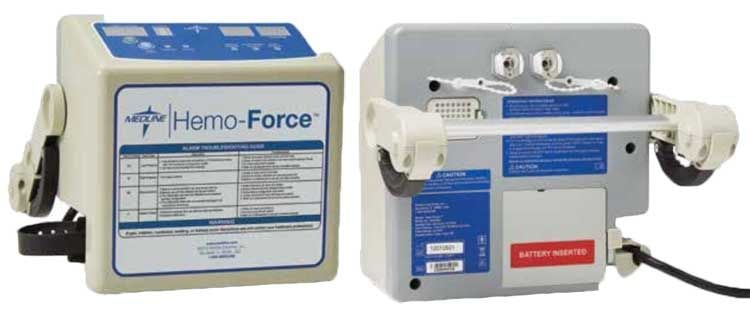

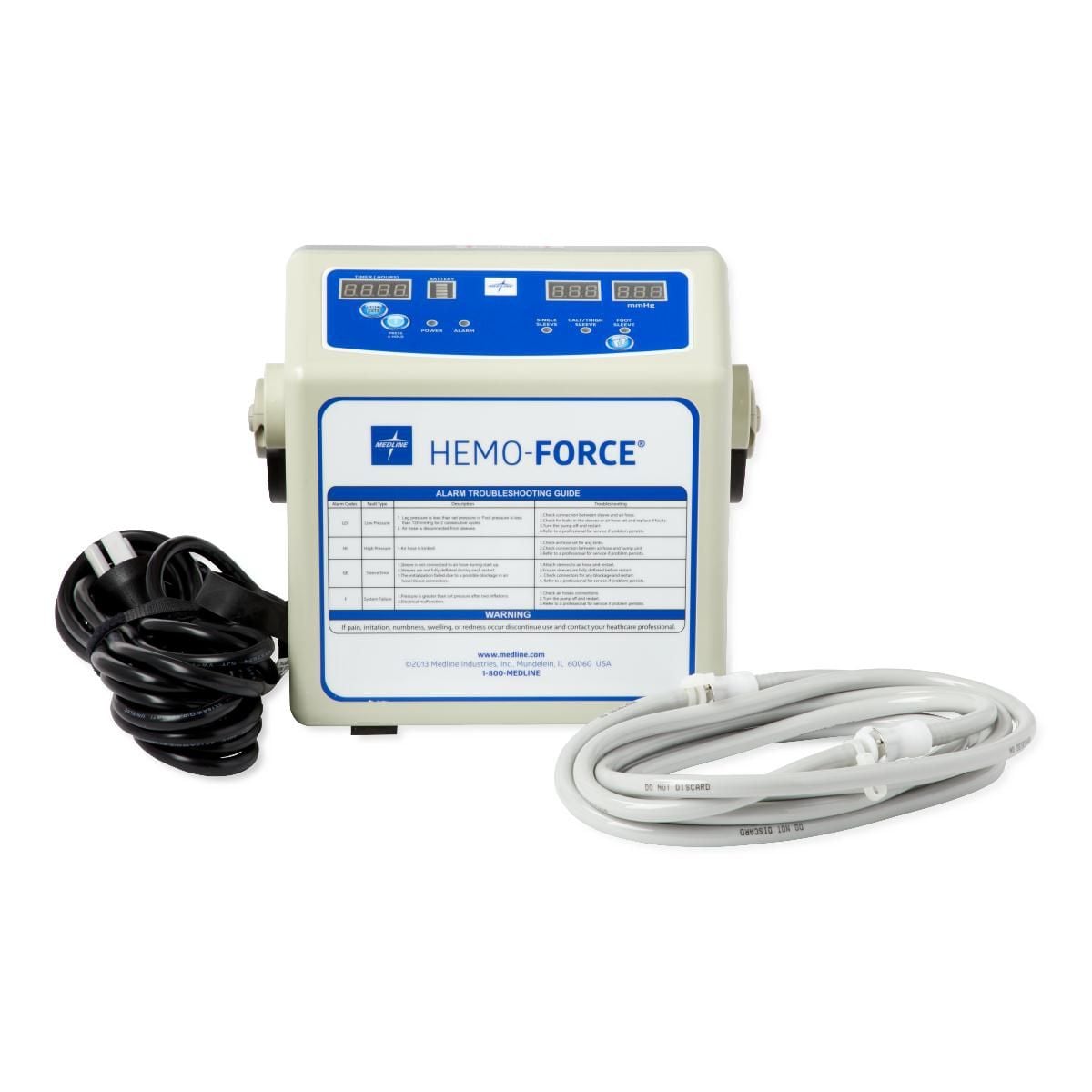

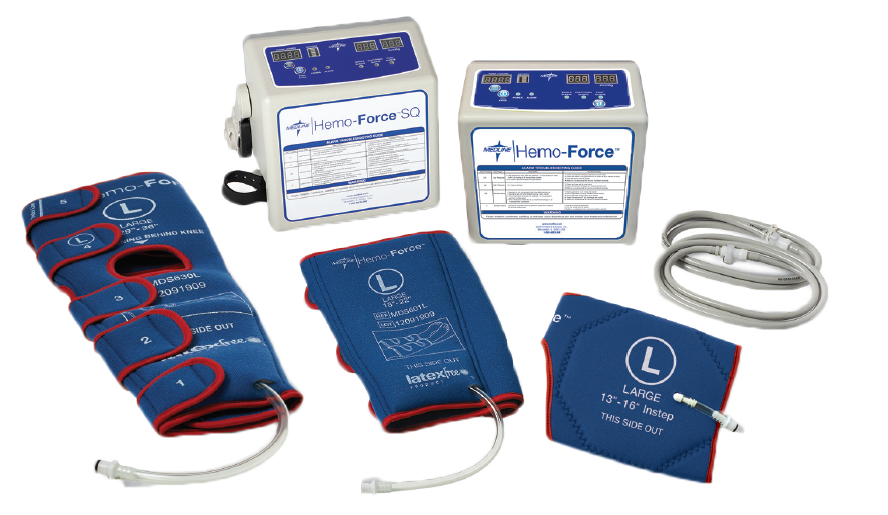

HemoForce 1st Gen with Sleeves

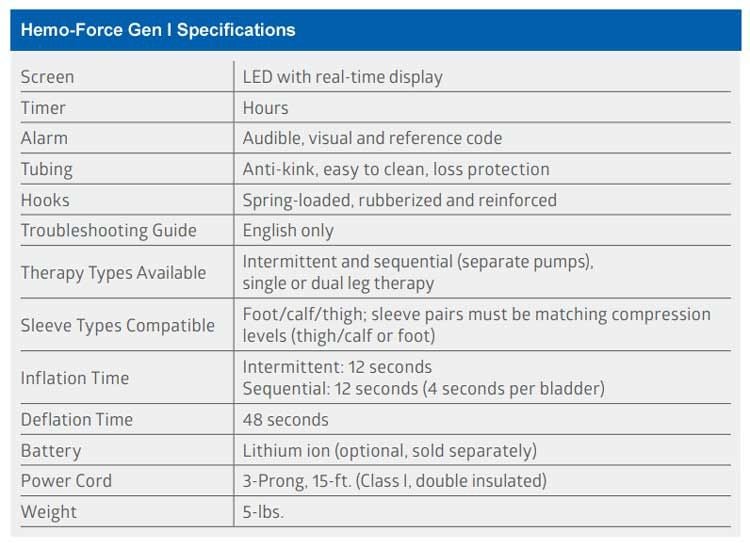

Hemo-Force 1st Gen Standard Model Product Specifications
- Pump Product Number: MDS600INT
- Width: 4.998 Inches
- Height: 5.12 Inches (HemoForce II is 25% Smaller)
- Depth: 4.3 Inches
- Pump Weight: 5 Pounds
- Inflation Time: 12 Seconds
- Deflation Time: 48 Seconds
- Materials: ABS Plastic
- Screen: LCD with Real-Time Display
- Timer: Hours
- Alarm: Audio and Visual with Reference Code
- Available Therapy Type: Intermittent to Single Leg
- Sleeve Compatibility: Foot, Calf, Thigh (See Gen I Sleeves)
- Tube Length Options: 5 or 10 Feet
- Pressure Range: 40 - 120 mmHg
- Battery: Lithium-Ion (Optional, Sold Separately, MDS600BAT - Call 800-397-5899)
- Power Cord: 3-Prong, 15-Foot, Class 1, Double Insulated
- Troubleshooting Guide: English

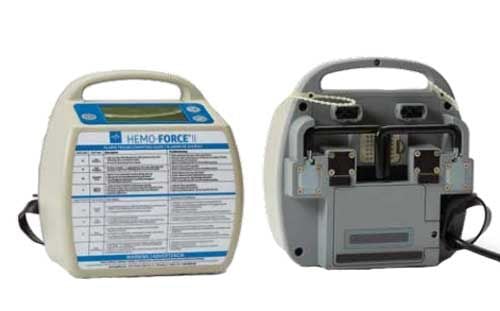

HemoForce 2nd Gen with Sleeves

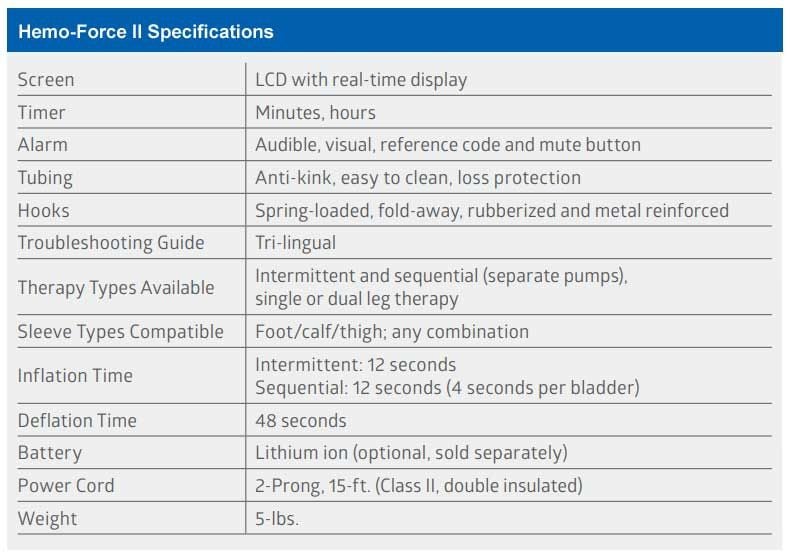

Hemo-Force II, 2nd Gen Model Product Specifications
- Pump Product Number: MDS600INT2
- Dimensions: 25% Smaller than the Standard Model
- Pump Weight: 5 Pounds
- Inflation Time: 12 Seconds
- Deflation Time: 48 Seconds
- Materials: ABS Plastic
- Screen: LCD with Real-Time Display
- Timer: Minutes and Hours
- Alarm: Audio and Visual with Reference Code and Mute Button
- Available Therapy Type: Bilateral, Intermittent Compression to Single or Two Sleeves
- Sleeve Compatibility: Foot, Calf, Thigh; Any Combination. (See Gen II Sleeves)
- Tube Length Options: 5 or 10 Feet
- Pressure Range: 40 - 120 mmHg
- Battery: Lithium-Ion (Optional, Sold Separately, HemoForce Battery MDS600BAT)
- Power Cord: 3-Prong, 15-Foot, Class 1, Double Insulated
- Troubleshooting Guide: English and Spanish
Replacement parts and accessories are available at the following link: Hemo-Force Parts and Accessories.
Competitive Compression Pump Cross-Reference Chart
Competitive Compression Sleeves Cross-Reference Chart

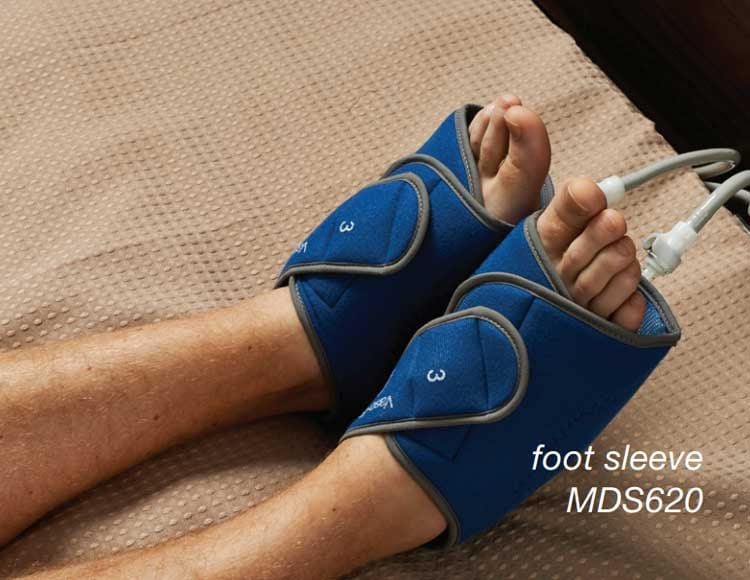

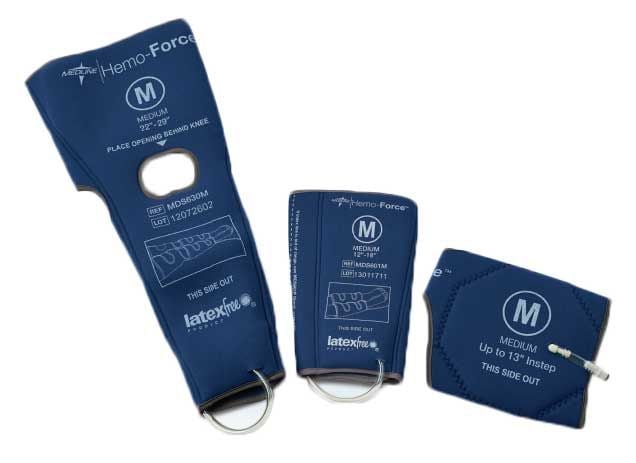

Click for more information about Hemo-Force Calf Sleeves, including Thigh and Foot Sleeves.
Product Videos
DVT Prophylaxis Review Video (5:46 minutes)
Hemo-Force DVT Pump Use Instructions Video (6:41 minutes)
