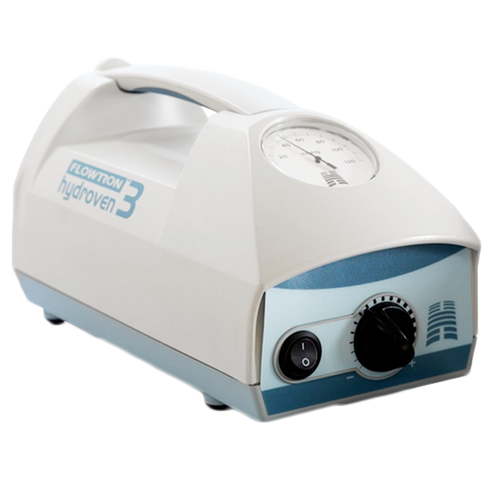

Huntleigh Flowtron Hydroven 3 Lymphedema Pump

Flowtron Hydroven 3 is a lightweight compression pump designed for the treatment of a wide variety of vascular or lymphatic conditions including lymphedema, venous insufficiency, venous stasis ulcers, and localized edema following trauma or dependent edema. Medical Compression Therapy pumps assist blood and fluid flow which has been inhibited by impairment or injury. These inflatable sleeves are sold separately with two sleeve types available which are sold separately to fit the leg or arm. The Single Chamber Garments provide uniform compression to the limb and the 3-Chamber Garments offer graduated sequential compression therapy. By applying intermittent compression to a limb via specially designed garments, blood flow is increased and extra-cellular fluid is cleared. Flowtron Hydroven 3 Pump is simple to use with preset cycles and adjustable pressure settings.

The Flowtron Hydroven 3 pump is manufactured by Huntleigh, a leader in medical grade compression pumps. This Lymphedema Pump system is ideal for safe compression therapy in hospitals, nursing homes, treatment clinics and the home. Hospitals can benefit from purchasing the inserts to fit a variety of limb circumferences. The insert provides true circumferential compression of larger limbs without the need to purchase additional garments when treating larger limbs.

The Huntleigh Flowtron Hydroven 3 Compression Pump has an adjustable pressure range of 30-100mmHg for the treatment of various types of lymphedema. The Huntleigh Flowtron Hydroven 3 Lymphedema Compression Pump is designed with two snap-lock air ports so you can easily operate two garments at once without the need for an adapter.

Features & Benefits

• Easy snap lock connectors.
• Automatic detection of single or dual garment.
• Choice of single or three chamber compression.
• Adjustable pressure to meet individual needs.
• Inflatable insert pieces for larger limbs.
• Lightweight pump for easier portability.
• Ergonomically designed handle for better grip.
• Cable retention system for easy storage.
• Lightweight and durable leg and arm garments.
• Quiet, vibration free pump for fewer disturbances.
• Horizontal or vertical pump orientation allowing easy access to controls.

Product Specifications

• Width: 5.5”
• Length: 10.6”
• Depth: 5.5”
• Weight: 5.25 lbs.
• Pressure Range: 30 to 100 mmHg.
• Cycle Time: 90 seconds inflation; 90 seconds deflation.
• Power: 110 – 120V AC 60Hz.
• Warranty: 1 year.

Manuals and Documents

•    Brochure

Huntleigh also manufactures the Flowtron FPR Compression Pump. Many feel the Flowtron FPR and Hydroven 3 compression pumps are equally effective at treating varying types of lymphedema. Deciding over one or the other is primarily a physician's preference, though many feel they are equally effective. The Flowtron Hydroven 3 Lymphedema Pump System has been ergonomically designed for efficient use in many different situations from the clinic to the home. The controls, indicators, and connectors are simple to use and can be accessed with ease. Thoughtful design features mean the compression pump can be handled, transported and stored safely and easily. Huntleigh Flowtron FPR Compression Pump therapy offers three chamber non-gradient sequential therapy. The Hydroven 3 has a shorter inflate (length of compression time) over the Hydroven FPR and longer deflate time. This provides an equal squeeze compression time (90 seconds) and equal rest period (90 seconds) between inflations. The comparitive chart below displays the attributes of both Huntleigh Compression Pump options.

Comparing the Flowtron Hydroven 3 to the Flowtron Hydroven FPR

Hydroven 3 Garment Options

Huntleigh provides a wide selection of arm and leg sleeves, including half leg, full leg, half arm and full arm options. Each of these options is available in various sizes (garment length and circumference) to better match the needs of individual compression therapy patients. A Huntleigh compression garment sizing guide is available at the following link: Huntleigh Flowtron Hydroven 3 Garment/Sleeve Sizing Guide.

Hydroven 3 Garments provide gradient sequential compression utilizing multi-chambers for a 10% reduction in pressure in each chamber distally to proximally.

1 Chamber Garments Features & Benefits (5101***)

• Single chamber uniform compression.
• Patented garments are designed for maximum comfort.
• Soft and pliable for greater patient comfort.
• Prevents chafing and pinching.
• Full length zippers for ease of use.
• Washable.
• Lightweight, portable pump features pressure gauge, pressure regulator dial, 90 seconds inflation / 90 seconds deflation.
• Bilateral compression capability.

Hydroven 3 Garment Features & Benefits (5103***)

• Three chamber gradient sequential therapy augments extra-cellular fluid drainage.
• Reduces swelling and enhances wound healing.
• Patented garments are designed for maximum comfort.
• Unique valve system decreases pressure by 10% in each chamber distally to proximally.
• Bilateral compression capability.
• Lightweight, portable pump features pressure gauge, pressure regulator dial, 90 seconds inflation / 90 seconds deflation.

Single or dual leg option: Offers flexibility to use one or two garments.

• Automatic detection of single or dual garment attachment.
• Ensures system is simple to set up.
• Offers facility to treat bilateral limb conditions at the same time.

Inflatable foot section: Comfortable, snug fit.

• Ensures pressure is distributed evenly around entire foot.

Lightweight, yet durable fabric garments: Ensures comfort.

• Soft pliable inner lining.
• Conforms to leg shape.
• Massages all contours of limb.

Choice of three or single chamber leg or arm garments: Available in a variety of lengths offering choice to the clinician.

• All operated by single pump.
• Garment range offers flexibility to suit patient's needs.
• Correct sizing ensures patient comfort and concordance.

Unique inflatable insert pieces: Provides true circumferential compression of larger limbs.

• Inflate in tandem with garment on limb.
• Prevents need to purchase additional garments when treating larger limbs.
• May be removed when circumference of limb is reduced.

Selecting Garment/Sleeve Size

Simply measure 2" below groin to heel for leg sleeve or 2" below underarm to fingertips for arm sleeve. Inserts can be purchased if your arm or leg circumference is greater than the circumference for your particular length of sleeve. *Note when selecting sleeve length the total sleeve length should never encroach within 1 1/2 inches of your groin or underarm or circulation can be impeded.

If you have the original Flowtron or Flowplus pumps and are concerned you have to replace your whole system. You need not worry. The old garments of the Flowtron and Flowplus pumps will attach to the new Flowtron Hydroven 3 by aid of a converter. The new garments of the Hydroven 3 will also attach to the old Flowtron and Flowplus pumps by aid of a converter. For more information about the converters please contact customer service at 800-397-5899.

Simplicity

Single or dual leg option

• Offers flexibility to use one or two garments.
• Automatic detection of single or dual garment attachment.
• Ensures system is simple to set up.
• Offers facility to treat bilateral limb conditions at the same time.

Cable retention system

• Convenient for storage.
• Compact and easy storage of mains cable while pump is not in use.

Secure single tube snap lock connection

• Secure connection of garments to pump.
• Promotes easy set up.
• Prevents accidental disconnection.

Lightweight pump design (2.4kg) and ergonomically designed handle

• Convenient for handling and every day usage.
• Allows for safe system handling.
• Fully portable system.

Comfort and Concordance

Inflatable foot section

• Comfortable, snug fit.
• Ensures pressure is distributed evenly around entire foot.

Quiet, vibration free pump

• Minimizes patient disturbance.
• Encourages patient concordance.
• Allows system to fit comfortably into patient's lifestyles.

Lightweight, yet durable fabric garments

• Ensures comfort.
• Soft pliable inner lining.
• Conforms to leg shape.
• Massages all contours of limb.

Flexibility

Choice of three or single chamber leg or arm garments

• Available in a variety of lengths offering choice to the clinician.
• All operated by single pump.
• Garment range offers flexibility to suit patient's needs.
• Correct sizing ensures patient comfort and concordance.

Adjustable pressure control

• Provides option to adjust pressure delivered to limb.
• Pressure can be altered to suit individual patients.
• Encourages patient concordance.

Unique inflatable insert pieces

• Provides true circumferential compression of larger limbs.
• Inflate in tandem with garment on limb.
• Prevents need to purchase additional garments when treating larger limbs.
• May be removed when circumference of limb is reduced.

Horizontal or vertical pump orientation

• Pump can be used with ease in a variety of environments including home and clinic.
• System controls can be easily accessed by patient, caregiver or clinician.

If you have the original Flowtron or Flowplus pumps and are concerned you have to replace your whole system. You need not worry. The old garments of the Flowtron and Flowplus pumps will attach to the new Flowtron Hydroven 3 by aid of a converter. The new garments of the Hydroven 3 will also attach to the old Flowtron and Flowplus pumps by aid of a converter. For more information about the converters please contact customer service.
