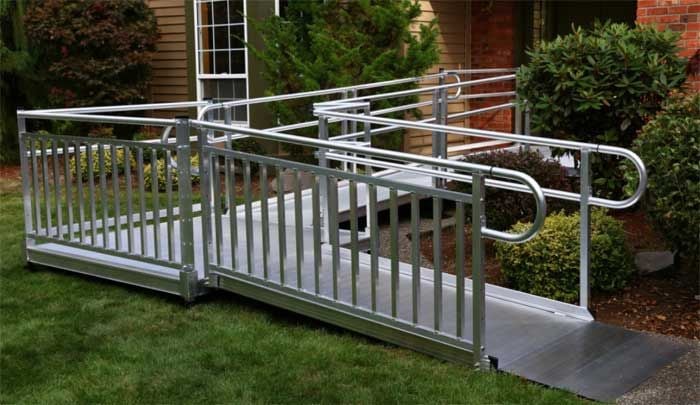

EZ-ACCESS PATHWAY 3G Modular Access System is a durable, all-weather access ramp designed for both wheelchairs and scooters. They are ideal when mobility needs exceed what a portable ramp can provide. The modular design allows for multiple configurations to fit unique space requirements, including options for different lengths, surfaces, and handrails. Platforms and stairs can be added for turns or alternate access points. These modular access ramps are quick to assemble and easy to reconfigure or move if needed. Made from corrosion-resistant aluminum, they offer long-lasting performance with minimal maintenance. The PATHWAY 3G Modular System provides a stable, permanent access solution that can also be relocated if living arrangements change.

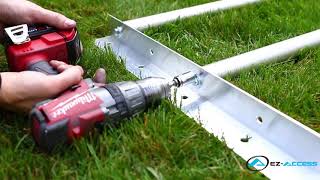

PATHWAY 3G Modular Access System meets ADA specifications and are designed for fast, efficient installation. Each ramp has a high weight capacity to support most wheelchairs and scooters. EZ-ACCESS, the manufacturer, offers a complete system for planning, ordering, and assembling configurations to match individual access needs. The streamlined design uses fewer parts and less hardware, reducing installation time. A 24-foot ramp system with handrails can be set up in under 30 minutes.
How to Customize Your Pathway 3G Modular Ramp
Step 1: Select the Surface

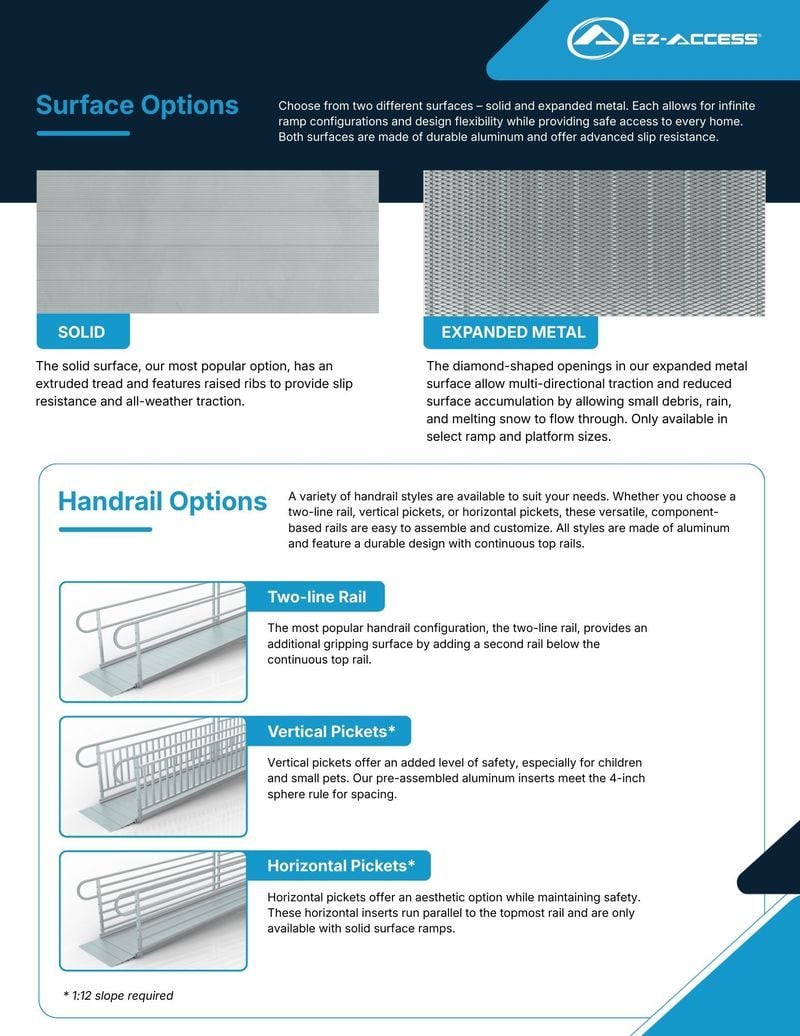

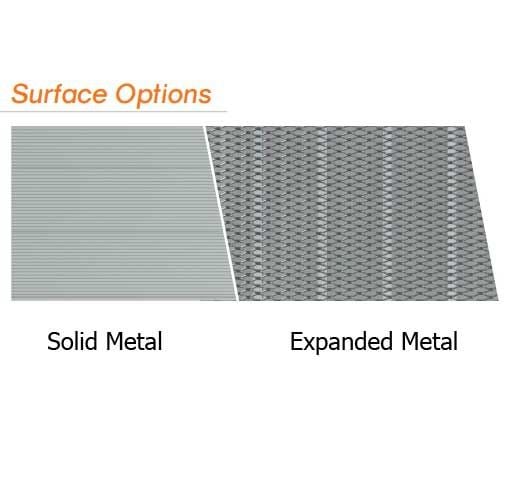

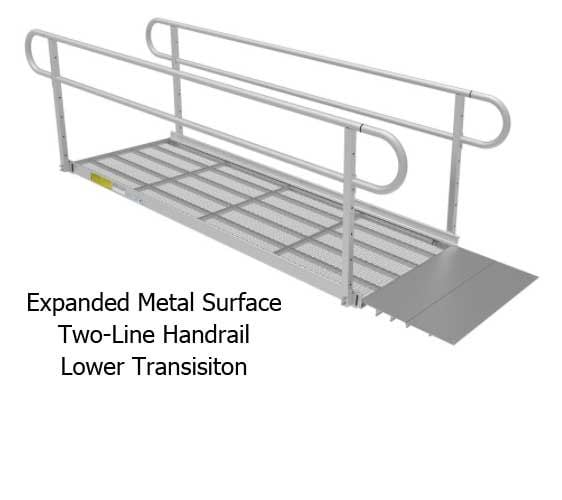

There are two surface styles—Solid Metal and Expanded Metal. Both are made from lightweight, durable aluminum with a slip-resistant finish. The Solid Metal Surface is the most popular choice. The Expanded Metal Surface is often selected in colder regions because it allows water to drain and helps reduce snow and ice buildup.
Step 2: Select Handrail Type

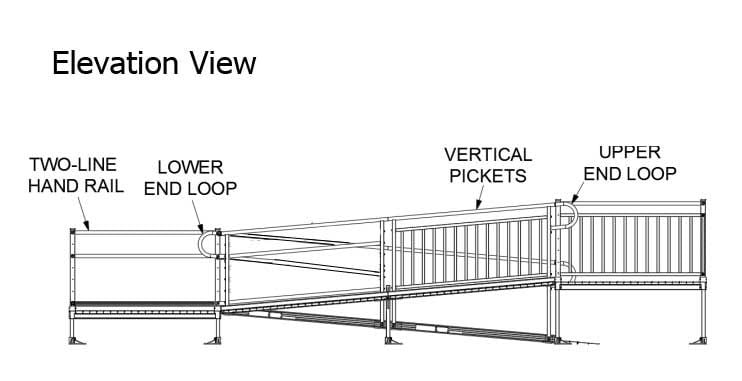

Select between two handrail options—Two-Line or Vertical Picket.

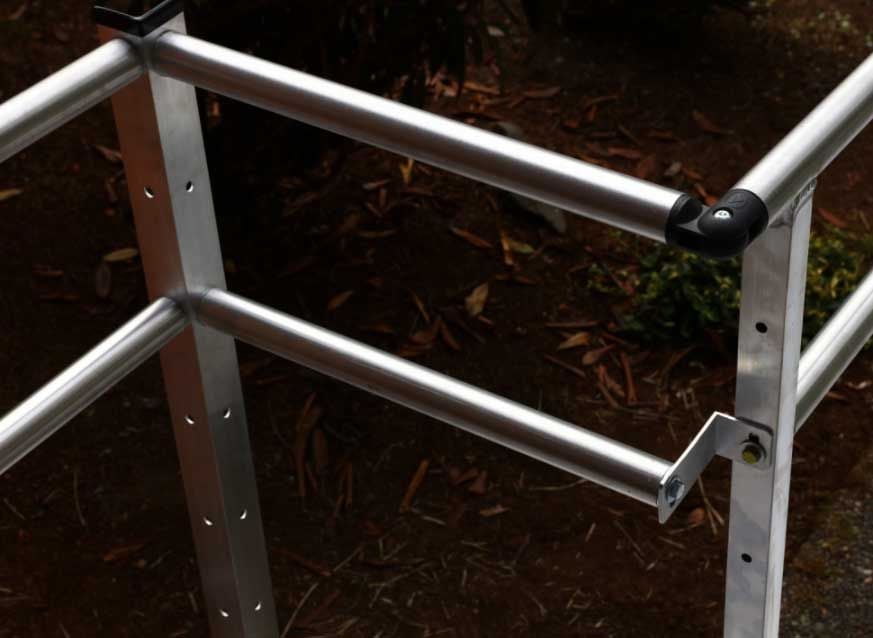

The Two-Line Handrail features two horizontal safety bars spaced 10.5 inches apart. The upper rail stands 34.5 inches above the ramp deck. This option is more affordable than the Vertical Picket Handrail and helps keep mobility devices and users securely within the access ramp boundaries.

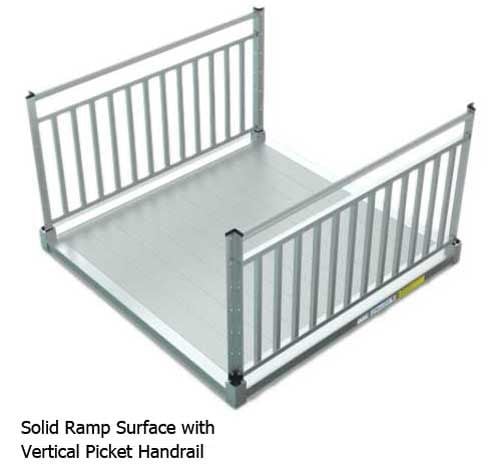

The Vertical Picket Handrail has a picket-fence design for a more refined look. The vertical pickets are spaced 4 inches apart, offering added protection—especially for young children and pets.
Step 3: Select Modular Ramp Length
The Americans with Disabilities Act (ADA) recommends a 1:12 slope ratio, or about 4.8 degrees. This means that for every inch of vertical rise, 12 inches—or one foot—of ramp length is required. For example, a 24-inch rise from the ground to the entryway needs a 24-foot ramp. An 8-inch rise would need an 8-foot ramp. Some local building codes may differ, so it's important to confirm the access ramp requirements in your area.

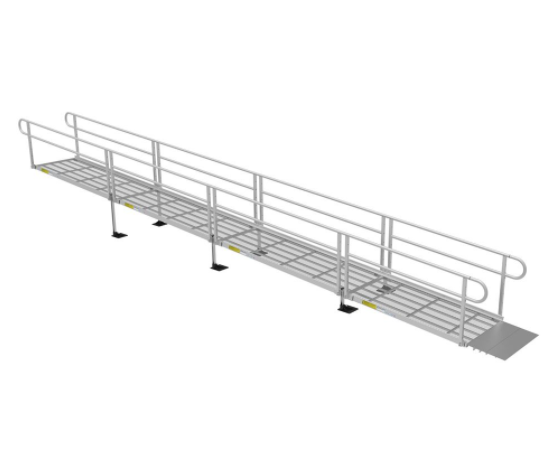

The ramp lengths are available in 2-foot increments, ranging from 4 to 30 feet. Ramps can be joined together to meet specific height or slope needs. The sections do not need to match in length; for instance, a 4-foot ramp can connect to a 10-foot ramp to create a 14-foot span. Ramps are linked using connectors and supported with adjustable legs.
Step 4: If Needed, Select a Platform with Matching Surface and Handrails

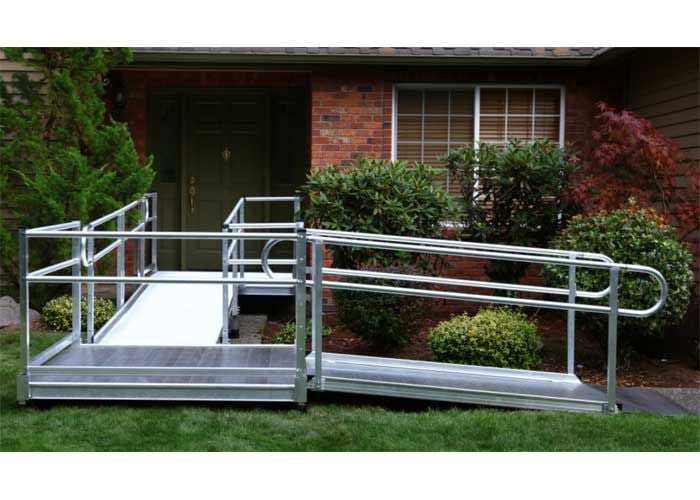

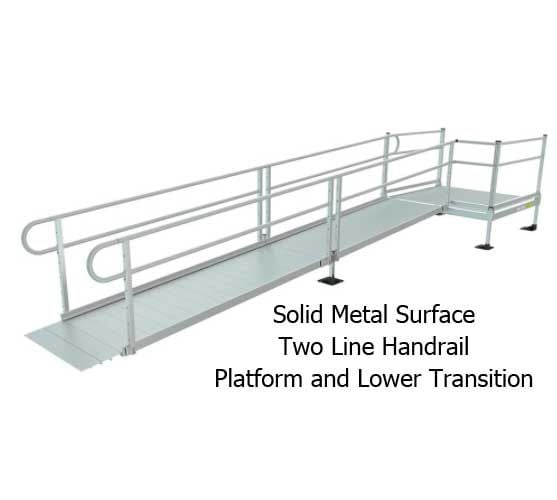

When space is limited in areas like a yard or garage, platforms may be needed to create turns instead of using one long straight ramp. The shape or layout of a porch or deck can also require a platform for a proper transition. The 3G Series include a 5-by-5-foot platform that provides usable space for turning or moving between ramps, or between a ramp and a porch or deck. Each platform is available with either surface style and handrail option to match the rest of the system.
Step 5: If Needed, Add-On Stairs
Stairs can be added to a platform to create an alternate access point. For longer ramp systems, stairs offer a convenient option for individuals who are not using a wheelchair or scooter. Seven stair sizes are available, with climbing heights ranging from 8 to 59 inches.
Step 6: If Needed, Select Landing Pad

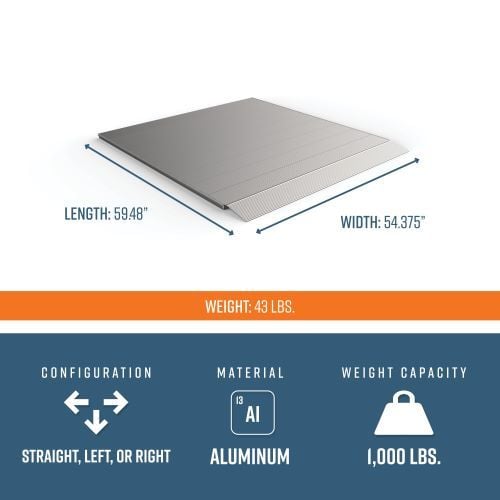

A solid landing pad can be placed at the end of a ramp that leads to grass, gravel, or other soft surfaces. This eliminates the need to pour a concrete pad. The landing pad measures 59.48 inches long by 54.37 inches wide and provides a stable, secure surface at the base of the ramp.

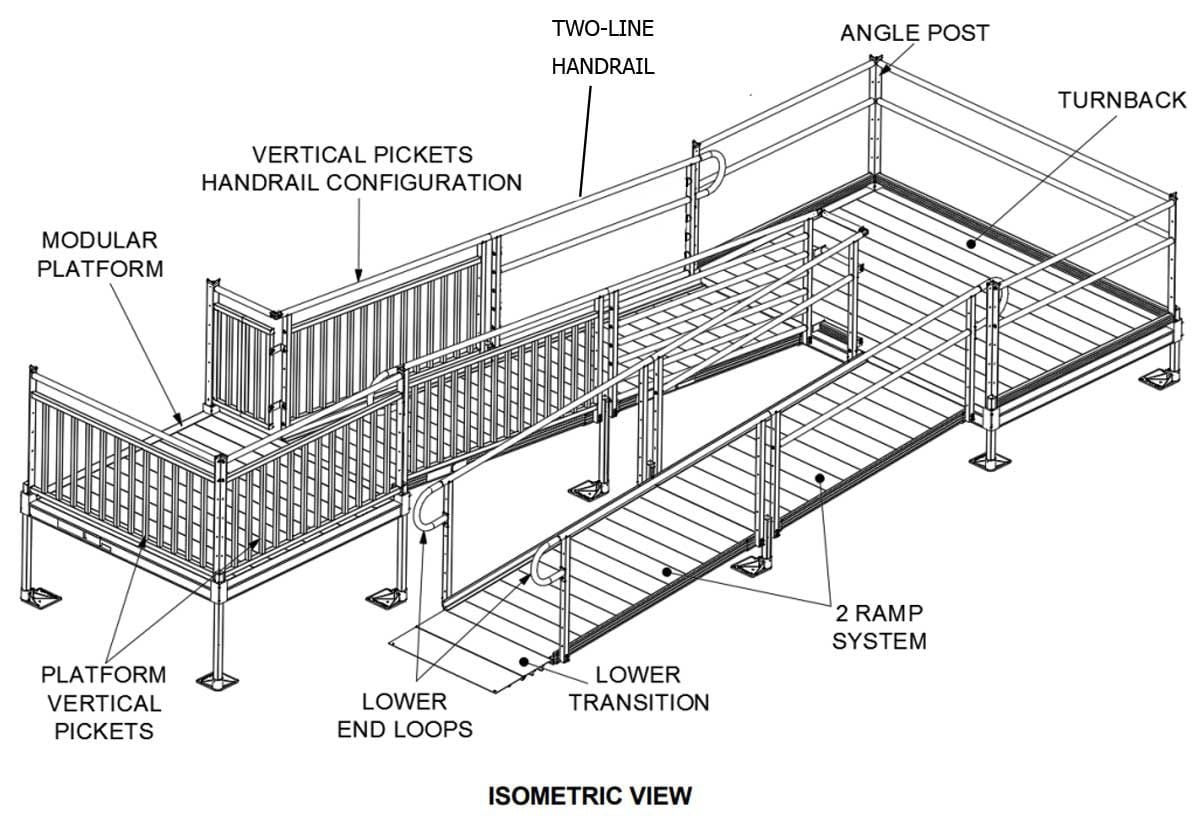

Typical PATHWAY Modular Access Ramp Components
- Ramp
- Handrail
- Upper Transition
- Ground Transition
- Ramp Legs
- Ramp to Ramp Connector (for ramps over 8 feet)
- 10 to 52 Inch Leg Set (for ramps over 8 feet)
EZ-ACCESS PATHWAY 3G Features & Benefits
- Modular ramp system for flexible configurations

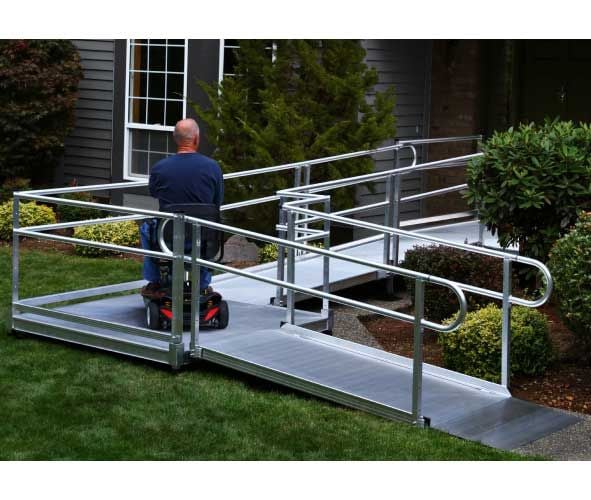

- Supports both wheelchairs and scooters
- Heavy-duty aluminum supports available in 12 height options
- Double-locking adjustment for added stability
- No exposed hardware in the ramp surface
- Quick and easy installation process
- Pre-assembled ramps, handrails, and platforms
- Installs up to 24 feet of ramp with handrails in under 30 minutes
- Minimal tools required for setup
- Modern, clean architectural design
- Low-maintenance aluminum construction
- More durable than traditional wood ramps
- No painting, sealing, or refinishing needed
- Options for permanent or semi-permanent installation
- Will not warp, rust, peel, mold, or corrode

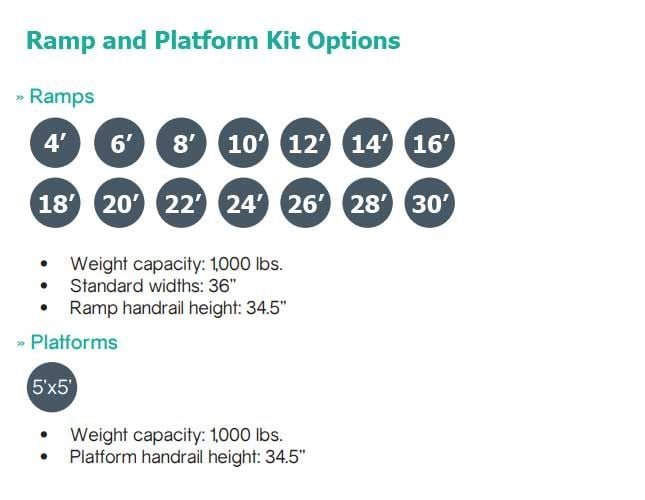

Ramp System Specifications
- Standard width: 36 inches
- Optional width: 48 inches (special order; call 800-397-5899)
- Available lengths: 4 to 30 feet, in 2-foot increments
- Weight (approximate): Solid surface – 7–8 lbs. per foot; Expanded surface – 7.5–8.5 lbs. per foot
- Weight capacity: 1,000 lbs.
- Custom sizes available (call 800-397-5899 for assistance)
- Material: Aluminum
- ADA compliant
- Made in the U.S.A.
- Lifetime warranty
Two-Line Handrail Specifications
- Handrail Diameter: 1.5 Inch
- Lower Handrail Height: 24 Inch
- Upper Handrail Height: 34.5 Inch
- Minimum Platform Height: 3.5 Inch
- Weight: 23.6 lbs. for Platform Area
Vertical Picket Handrail Specifications
- Handrail Diameter: 1.5 Inch
- Lower Handrail Height: 24 Inch
- Upper Handrail Height: 34.5 Inch
- Minimum Platform Height: 3.5 Inch
- Weight: 28.4 lbs. for Platform Area
Ramp Length, Surface and Handrail Options
Ramp Surface and Handrail Options
PATHWAY 3G Ramp Accessories
Additional hardware and accessories are available to support specific ramp setups. Popular options include stairs, platforms, and connection components. For product descriptions, pricing, and purchasing details, visit the PATHWAY Ramp Accessories and Replacement Parts page.
Stairs to accommodate non-wheelchair access.
- Width: 36 Inch
- Weight Capacity: 850 lbs.
- Material: Aluminum
- Slip-resistant surface
Platforms with Solid Metal Surface for pathway turns.
- Inner Dimensions: 60 x 60 Inch
- Outer Dimensions: 65.5 x 65.5 Inch
- Minimum Height: 3.5 Inch
- Weight (5 x 5 Foot): 72 lbs.
- Weight Capacity: 1,000 lbs.
Platforms with Expanded Metal Surface for pathway turns.
- Inner Dimensions: 60 x 60 Inch
- Outer Dimensions: 65.5 x 65.5 Inch
- Minimum Platform Height: 3.5 Inch
- Weight: 80.2 lbs.
- Weight Capacity: 1,000 lbs.
Other Accessories and Replacement Parts
- Connector – Platform to Platform (PPPC): Connects two platforms together.
- Connector – Ramp to Ramp (PRRC): Connects two ramps together.
- Lower Transition Plate (PRLT): Provides a smooth transition from ramp to ground.
- Upper Transition Plate (PRUT): Provides a smooth transition from ramp to porch.
- Ground Transition Ramp (PRGT): Creates a smooth entry from ramp to grass or gravel surfaces.
- Handrail End Cap (PHREC): Replaces missing or damaged handrail end caps.
- Lightning Ground Rod Kit (PLGRK): Grounds the ramp in areas prone to lightning strikes.
- Tie Strap (PPTS): Secures the ramp to the ground for added stability.
- Tie Down Kit (PTDK): Anchors the ramp system in high-wind areas.
- Platform to Step Closure with Two-Line Handrail (PPSCTL): Functions as a safety gate for stair access.
Note: Required supports, brackets, and hardware are sold separately. For details on what is needed for your specific ramp setup, refer to the additional materials section below.
Manuals and Documents
Explore the EZ-ACCESS Comparison Chart to see all available ramp styles. Vitality Medical carries a wide range of EZ-ACCESS products, including the Transition Modular Entry Ramp, Trifold Ramp, and Portable Suitcase Ramp. For accessories and replacement parts, visit the PATHWAY SOLO Ramp Kits Accessories and Replacement Parts page.
