EZ-ACCESS Suitcase Ramp — Advantage Series

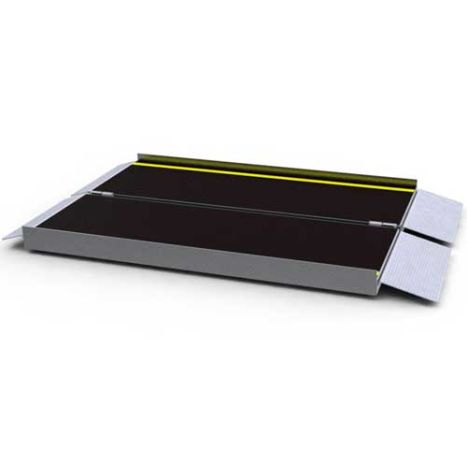

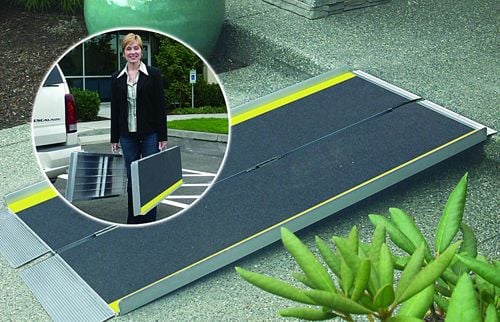

EZ-ACCESS SUITCASE Advantage Series Ramp is manufactured to serve as a Wheelchair Ramp or a Scooter Ramp. The EZ-ACCESS SUITCASE Ramp has a single fold design, offering a simple and convenient solution for wheelchairs and scooters to access steps, vehicles, and raised landings with ease. This ultra-strong ramp provides the safety and strength required while remaining light and portable. This EZ-ACCESS Ramp can be separated, making it even easier to use, carry, and store. By simply removing two hinge pins, the Suitcase Advantage Series ramp quickly separates into two lightweight sections, each with their own carrying handle. The ramp features high-quality skid-resistant tape with yellow safety strips and a self-adjusting bottom transition plate for easy conversion from ramp to ground. The suitcase ramp unfolds to a 29 wide platform. The ramp is manufactured of welded aircraft-grade aluminum and features an 800 pound weight capacity.

The Advantage Series Suitcase Ramp has an optional top lip extension (TLE) that increases the reach of the Wheelchair Ramp by extending the lip for the standard 3 inch length to 9 inches. The EZ-ACCESS TLE can be added or removed as needed for the specific application. This optional add-on device eliminates the need for a large ramp inventory. The TLE option is shipped as a pack of 2.

EZ-ACCESS Suitcase Ramp Advantage Series Features and Benefits

• Constructed with tough heavy duty aluminum.
• Non-skid surface to help prevent accidents.
• Built-in carrying handle for ease of use.
• Suitable for manual wheelchairs, power wheelchairs and scooters.
• EZ-ACCESS Advantage Series Suitcase Ramp Warranty: Limited 5 years.

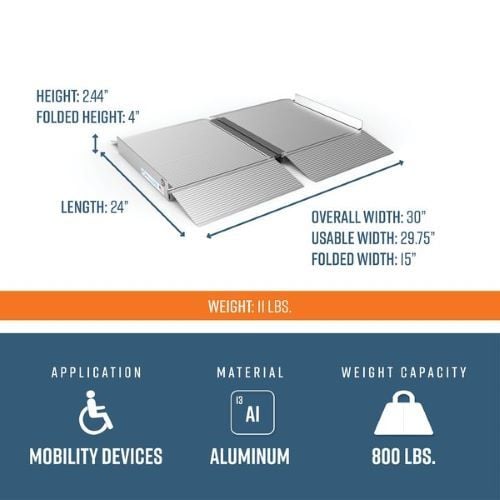

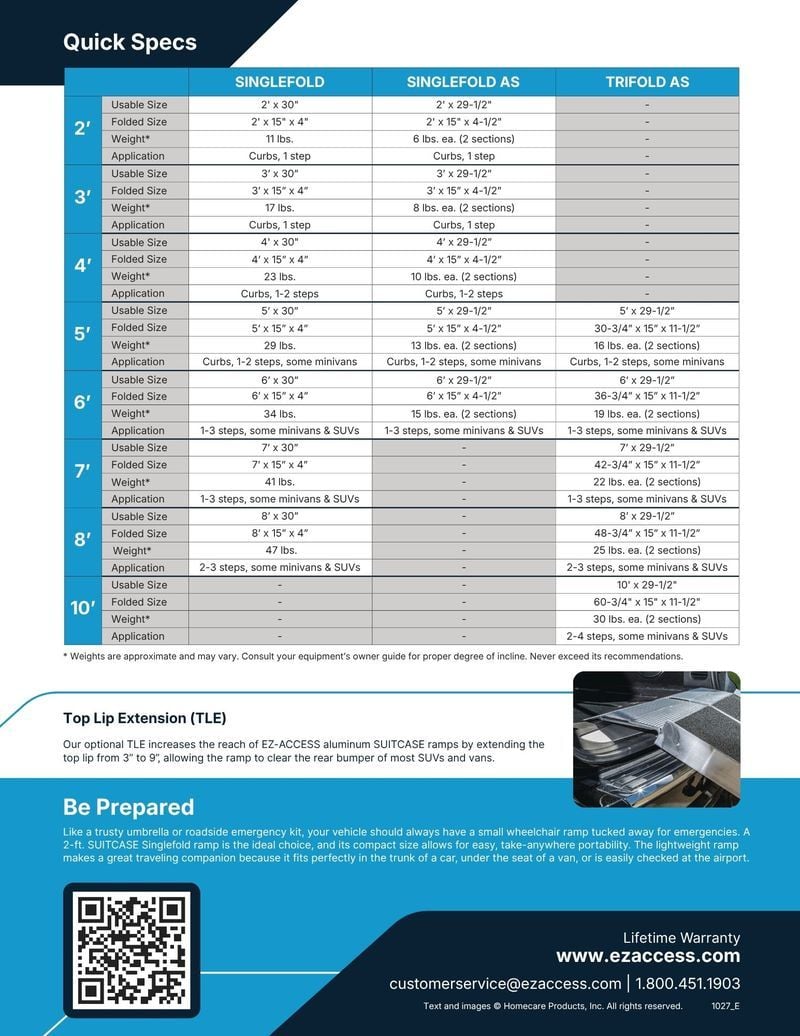

EZ-ACCESS Advantage Series Suitcase Ramp Specifications

Ramp Variations	Usable Size (inches)	Folded Size (inches)	Weight per section / set (pounds)	Weight Capacity (pounds)	Usage Guidelines
SUITCASE AS2	24 x 29	24 x 15.5 x 3.5	6 / 12	800	curbs, 1 step
SUITCASE AS3	36 x 29	36 x 15.5 x 3.5	8 / 16	800	curbs, 1 step
SUITCASE AS4	48 x 29	48 x 15.5 x 3.5	10 / 20	800	curbs, 1-2 steps
SUITCASE AS5	60 x 29	60 x 15.5 x 3.5	13 / 26	800	curbs, 1-2 steps some minivans
SUITCASE AS6	72 x 29	72 x 15.5 x 3.5	15 / 30	800	1-3 steps some minivans & SUV's
TLE	8.5 x 13.785 x 2.375	NA	5 (set of 2)	500*	add or remove as needed

* Intended for unoccupied use only.
Consult your EZ-ACCESS equipment owner guide for proper degree of incline. Never exceed its recommendations.

EZ ACCESS Suitcase Advantage RAMP Video
