SUITCASE® TRIFOLD® Overview

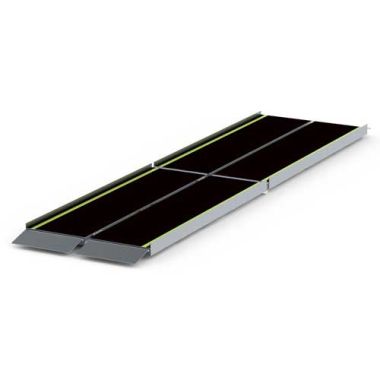

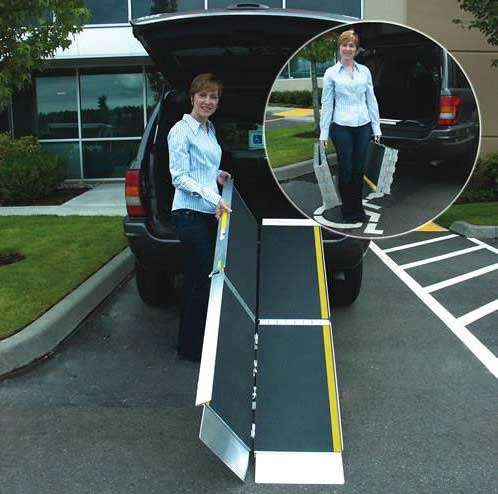

EZ-ACCESS SUITCASE® TRIFOLD® Advantage Series Ramp is a portable wheelchair and scooter ramp with a unique 3-fold design, and it offers the length required for wheelchairs and scooters to access steps, vehicles, and raised landings. It is designed to be used and carried as a set but can be quickly separated into two individual sections by removing two hinge pins, making it easier to use, carry, and store.
The TRIFOLD® ramp has a slip-resistant texture, allowing mobility devices to retain traction in all weather conditions, and has a self-adjusting bottom transition plate for easy transitions from ground to ramp. Featuring side rails, they are a safety feature to help keep mobility devices from driving off the edge of the ramp.
This ramp is also proudly made in the USA.
Vitality Medical carries a wide variety of Wheelchair Ramps in stock. Find the perfect mobility aid today!
Features and Benefits
-
Manufactured With Aircraft-Grade Aluminum
-
Size options 5, 8, and 10 Foot Lengths
-
High 800-lbs Weight Capacity
-

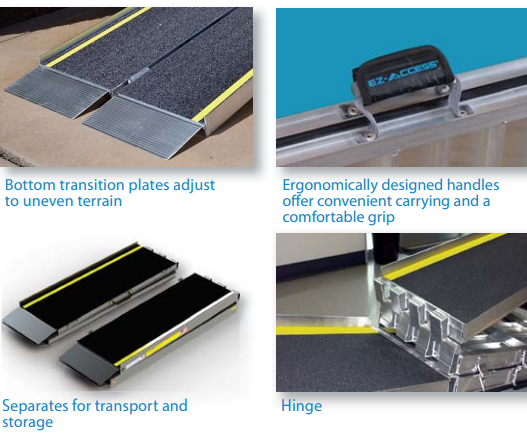

Slip-Resistant Surface With Self-Adjusting Bottom Transition Plates
-
Limited Lifetime Warranty
-
Durable, Ergonomically Designed Carrying Handles
- Each Section Can Be Carried, Assembled, and Stored Separately
Resources

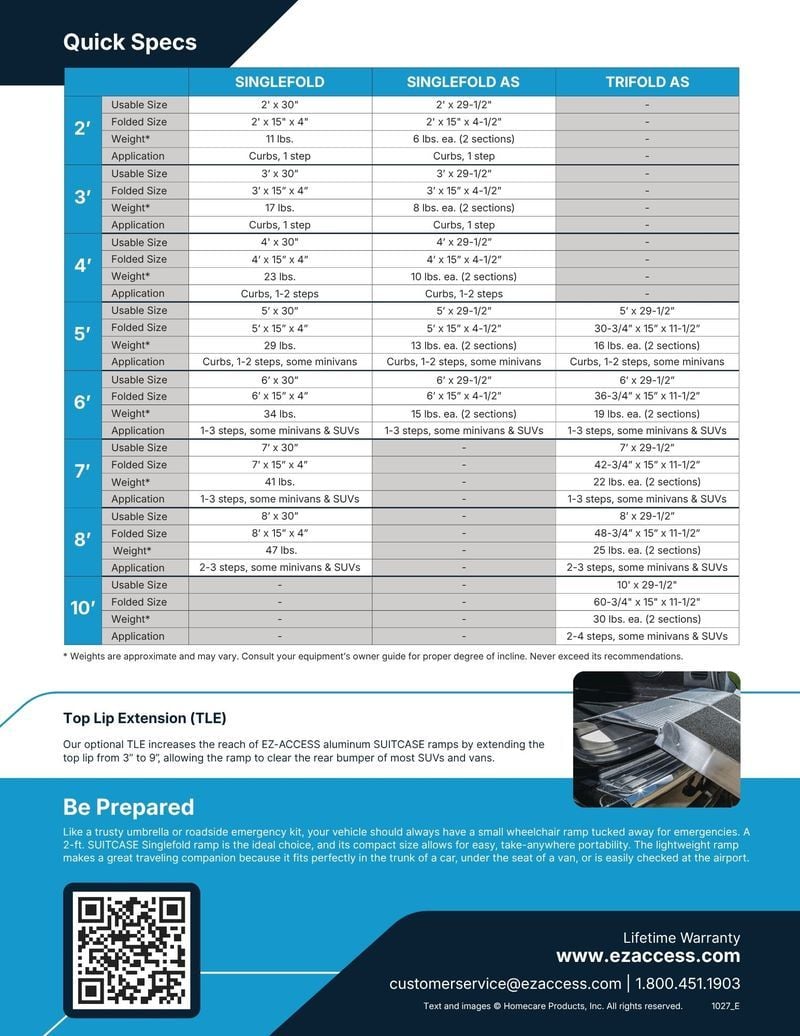

Specifications
- TRIFOLD® 5 Dimensions/Weight
- Usable Size: 5' x 29" x 3.5"
- Folded Size: 30.75" x 15.5" x 9"
- Ramp Weight: 16 pounds x 2
- Weight Capacity: 800 Pounds
- Usage Guidelines: Curbs, 1-2 steps, some minivans.
- TRIFOLD® 6 Dimensions/Weight
- Usable Size: 6' x 29" x 3.5"
- Folded Size: 36.75" x 15.5" x 9"
- Ramp Weight: 19 pounds x 2
- Weight capacity: 800 Pounds
- Outside Width: 29 3/4"
- Usage Guidelines: Curbs, 1-3 steps, minivans
- TRIFOLD® 7 Dimensions/Weight
- Usable Size: 7' x 29" x 3.5"
- Folded Size: 42.75 x 15.5" x 9"
- Ramp Weight: 22 pounds x 2*
- Weight Capacity: 800 Pounds
- Outside Width: 29 3/4"
- Usage Guidelines: 1-3 steps, minivans, & full-size vans
- TRIFOLD® 8 Dimensions/Weight
- Usable size: 8' x 29" x 3.5"
- Folded Size: 48.75 x 15.5" x 9"
- Ramp Weight: 25 Pounds x 2
- Weight Capacity: 800 Pounds
- Outside Width: 29 3/4"
- Usage Guidelines: 2-3 steps, minivans, & full-size vans
- Trifold 10 Dimensions/Weight
- Usable Size: 10' x 29" x 3.5"-
- Folded Size: 54.75" x 15.5" x 9"
- Ramp Weight: 30 Pounds x 2
- Weight Capacity: 800 Pounds
- Outside Width: 29 3/4"
- Usage Guidelines: 2-4 steps, minivans, & full-size vans
