Detecto Portable Bariatric Wheelchair Scale is designed for heavy-duty use. This Portable Wheelchair Scale can be moved to accommodate the needs of the patient. With a capacity of 1000 pounds, this Bariatric Scale accommodates manual wheelchairs, power wheelchairs, dialysis patients and walk-on patients. Manufactured by Detecto, these scales are made with clinical-grade construction, this Bariatric Scale provides a low profile platform that allows wheelchair entry from two directions. Easy access ramps are built into the scale platform to provide easy wheelchair loading and off-loading. The platform size is spacious, measuring 40 x 30 inches to serve oversized bariatric wheelchairs. This portable wheelchair scale has wheels integrated into the lightweight frame for easy moving from room to room. Built-in carry handles also make this Wheelchair Scale easy to carry with you. This bariatric wheelchair scale features the most level surface for weighing because it has stainless steel load cells and self-aligning feet.
Detecto BRW1000 Scale
This Bariatric Wheelchair Scale uses MedVue weight indicator. It provides weight, height and body mass index (BMI) for any bariatric patient. The measurement data may be outputted to EMR or HER software through a standard RS232 Serial port or USB ports. An optional Wi-Fi Ethernet connection is also available. The Detecto Bariatric Wheelchair Scale also interfaces with a personal computer or printer. This Portable Bariatric Wheelchair Scale stores up to 99 tare weights to compensate for the weight of the wheelchair. This Bariatric Scale has a Hold/Release button to retain weight after the patient leaves the scale platform.
Detecto 6600 Scale

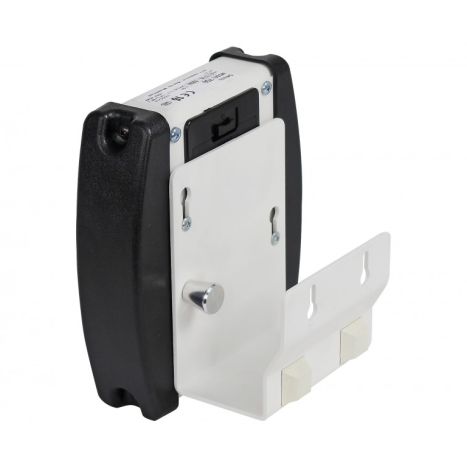

The 6600 scale is also a bariatric wheelchair scale that supports up to 1000 pounds. It has a 2-way access ramp. A black rubber mat offer better traction. This scale uses the Model 750 weight indicator that provides basic weighing functions, including BMI calculation, RS232 serial port, and big bold LCD digits. It uses 6 AA batteries.
Additional scales manufactured by Detecto that may be of interest to you include the Wall Mount Wheelchair Scale, the Roll-A-Weigh Scale and the Mechanical Staionary Wheelchair Scale.
Product Features & Benefits
- Accommodates new extra-wide wheelchairs up to 40 inches wide.
- Stores weight of wheelchair (tare) for quick patient weight calculation.
- Two-way easy access ramps.
- BMI calculations.
- EMR and MHR ready.
- Integrated carrying handle makes portability easy.
- Integrated wheels provides mobility from room to room.
- Wi-Fi and Ethernet capability can be added as an option - MedVue Analyzer. (MedVue Analyzer is displayed with the Bariatric Scale above)
BRW1000 Specifications
- Product Number: BRW1000.
- Width: 40 Inch.
- Depth: 30 Inch.
- Platform Dimensions: 40 W x 30 D Inch.
- Weight: 75 lbs.
- Weight Capacity: 1000 lbs.
- Measurement Increments: 0.2 lbs.
- Color: White with Black Base.
- Display Type: LCD Digital.
- Display Functions
- Weight: 5-digit, 7/8 inch.
- Height: 4-digit, ½ inch.
- Keyboard: Membrane with 19 keys.
- Materials: Aluminum.
- Power Supply: 6 x C Batteries (Alkaline, Ni-Cad or NiMH). (batteries not included)
- AC Power Supply may be special ordered.
- Platform Type: Platform.
- Prop 65: No.
- Application: To measure weight and body mass index.
- Made in U.S.A.
- Manufacturer: Detecto.
- UPC Code: 809161139303.
- HCPCS Code: E1639.
6600 Specifications
- Product Numbers: 6600.
- Platform Size: 32 x 36 x 2.2 Inch.
- Ramp Size: 36 W x 7.9 L Inch.
- 750 Weight Indicator Dimensions: 6.1 W x 6.8 H x 1.8 D Inch.
- Weight: 117 lbs.
- Shipping Weight: 127 lbs.
- Capacity: 1,000 lb / 450 kg.
- Power: 6 "AA" batteries or AC adapter. (batteries not included)
- Connectivity: RS232 serial, USB, Ethernet.
- Cable Length (from scale to indicator): 6 Foot.
- Transport Wheels: 2.
- Guide Handles: 2.
- Keypad Functions: ON/OFF, ZERO, UNITS, LOCK/RELEASE, BMI/ENTER, PRINT, arrow keys.
- Application: To measure weight and body mass index.
- UPC Code: 809161302509.
- Manufacturer: Detecto.
Manuals and Documents
Detecto BRW1000 Operating Instructions presents information for the correct use of this weight scale.- Detecto 6600 Scale Operating Instructions provides detailed instruction for setup and use of this portable scale.
- MedVue User Manual provides instructions for using this electronic weight indicator.
- Portable Wheelchair Scale Ramp Instructions offers information to safety use the scale ramp.
- Material Data Safety Sheet for BRW1000 contains MSDS information.
Detecto Bariatric Portable Wheelchair Scale Video (2:14 minutes)
