MedVue Analyzer Medical Weight Analysis - Detecto MV1

MedVue Analyzer Medical Weight Analysis - (Detecto MV1) Overview

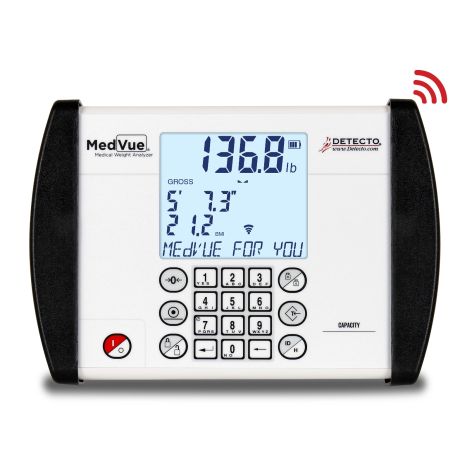

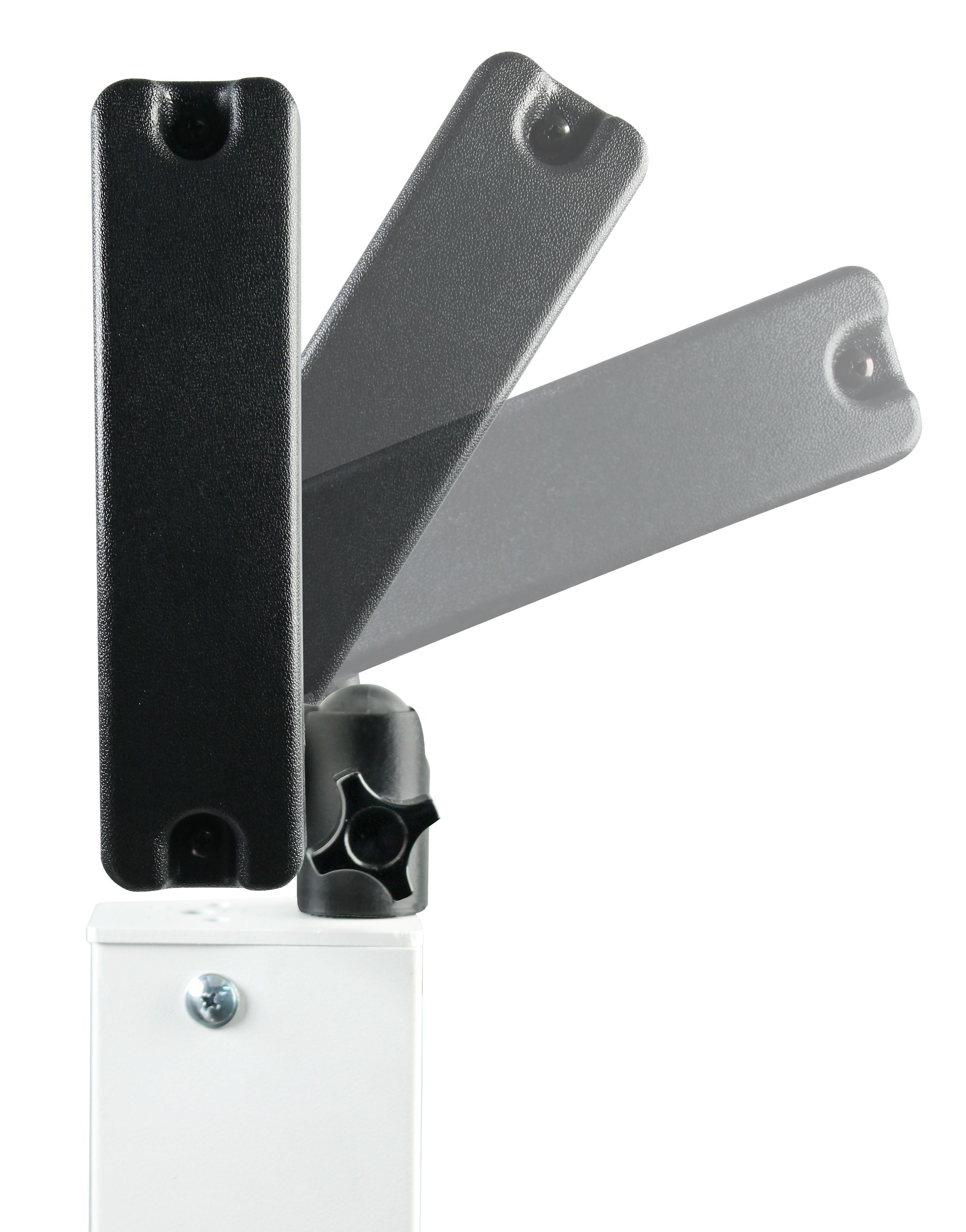

The Detecto MV1 MedVue Digital Weight Indicator provides weight, height, and Body Mass Index Measurements simultaneously on an easy-to-read 3.5 x 3-inch backlit LED display screen. Digital readouts are nearly 1-inch high so they are easy to view and read. A 350-degree pivoting bracket also makes it very easy to read and record measurements from various angles. This also means it is easy to conceal protected patient data from passersby. In addition to these benefits, a fourteen-digit patient id can be used and entered into the simple, 19 key keypad for proper record keeping. This device weighs in both pounds and kilograms, has four different language setting options, and is made from durable, long-lasting, painted steel.

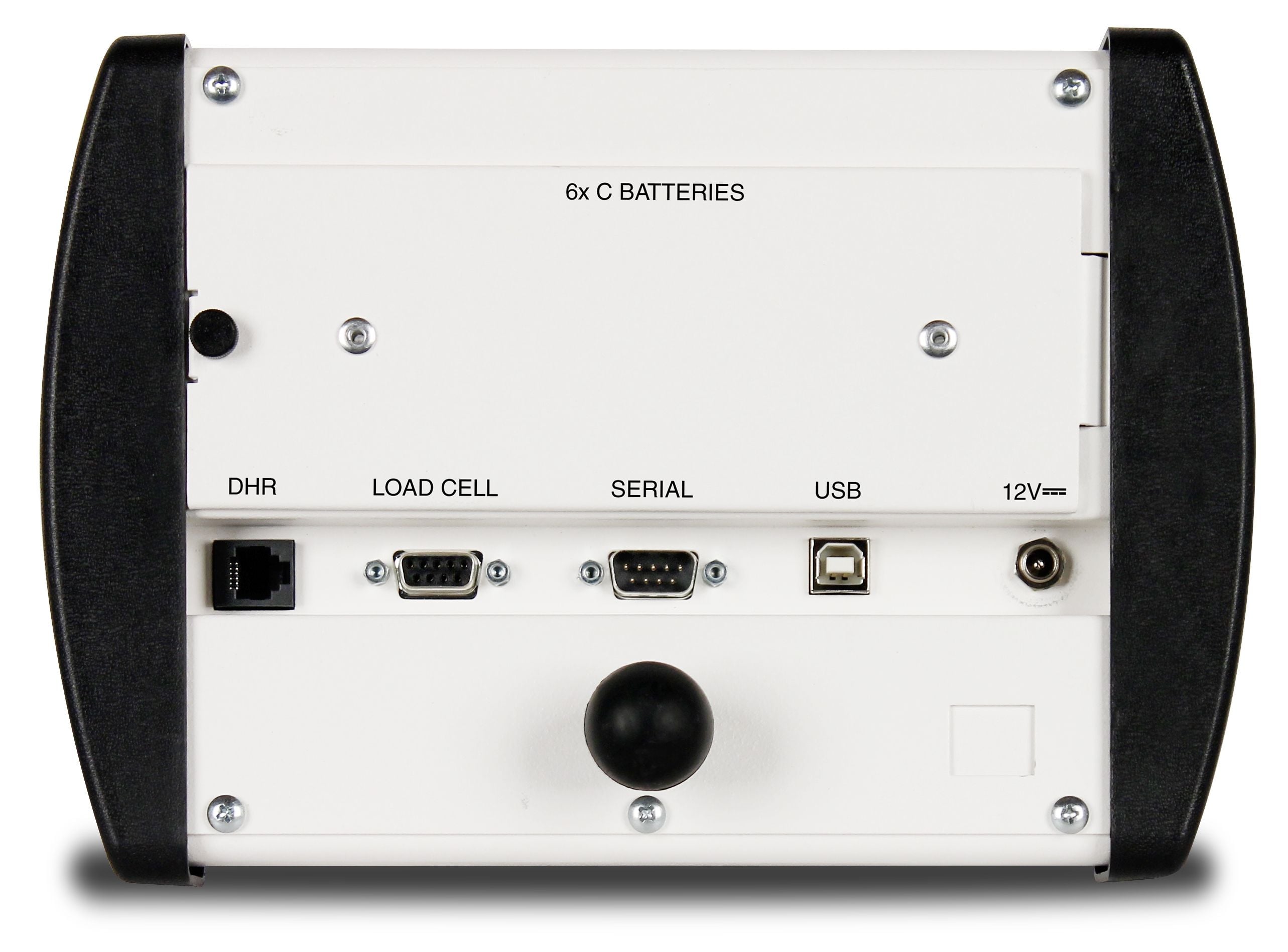

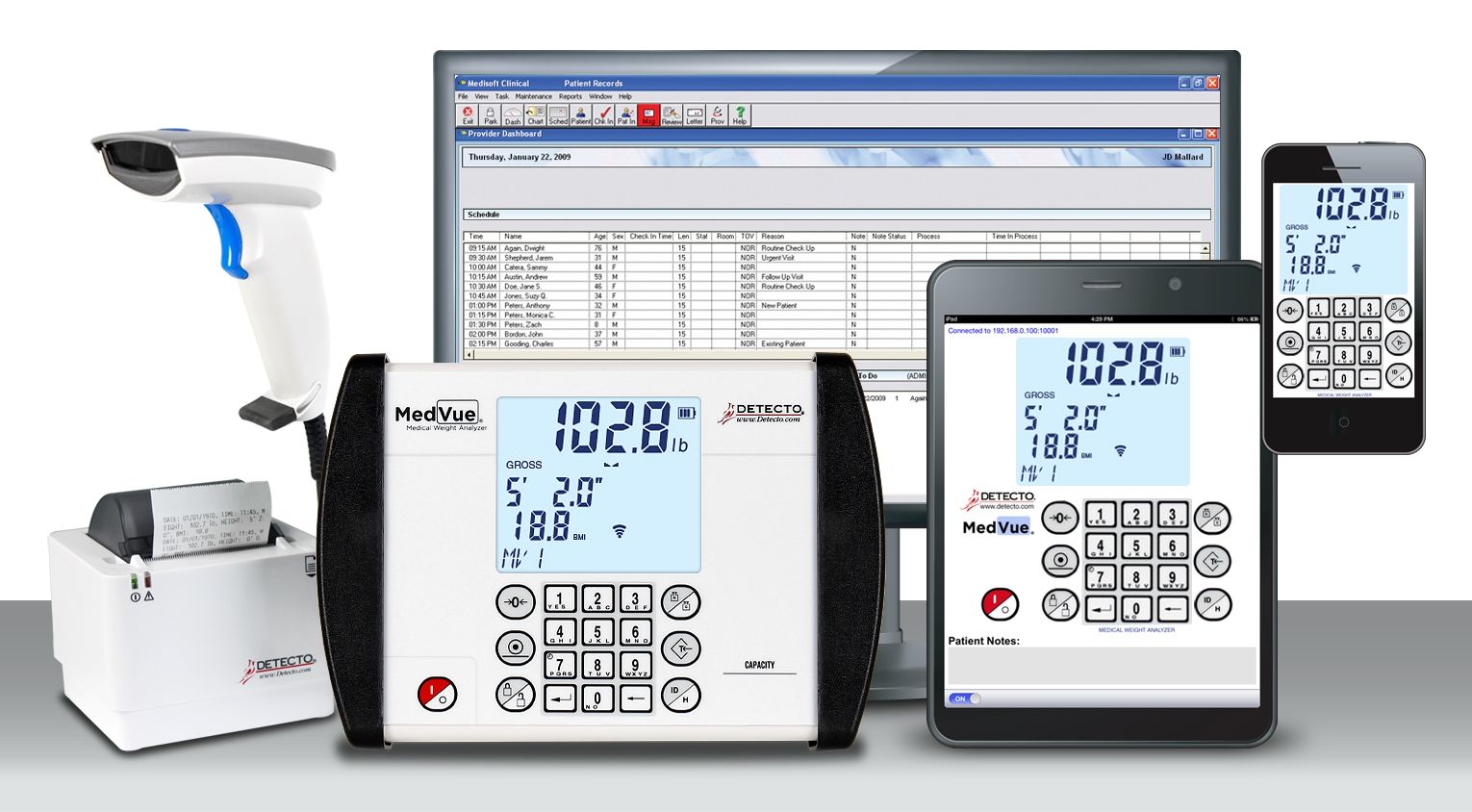

The Detecto medical weight analyzer is designed for both medical office and in-home use and its operation is simple and intuitive. Its basic operation is completely automatic, so there are no key sequences to memorize. The patient simply steps onto the scale and raises the height rod into position and their weight, height, and BMI are all shown on the digital screen simultaneously. It also conveniently connects to printers, personal computers, networks, tablets, bar code scanners, and mobile phones through its RS232 serial and USB ports and can store up to 200 transactions or 999 tare weights.

Detecto and Vitality Medical provide several Optional Accessories for the Detecto MedVue Digital Weight Indicator that can be purchased separately. For example, an optional Ethernet and Wi-Fi card can also be purchased for wireless connectivity and fast and efficient EMR/EHR data recording. Power supplies and mounting brackets are also available.

Features and Benefits

• All-in-One Scale
• Weight, Height, BMI, and ID Measurement
• 350-Degree Pivoting Mounting Bracket
• Simple, Intuitive Set Up
• Four Language Options
• Computer, Tablet, Smart Phone Compatible
• Data Storage Up to 200 Transactions
• Data Storage Up to 99 Tare Weight
• EMR and EHR Ready
• Automatic Measurement and Reading
• No Key Sequences to Memorize
• LED Display Screen
• Made from Durable Steel
• 14-Digit Patient ID
• Measures in Pounds and Kilograms
• RS232 Serial and USB Ports Standard
• 19 Key Keypad
• Serial I/O (Input/Output)
• Wireless Ethernet Card Available
• Printer, Network, Bar Code Scanner Compatible

Optional Features

• MVIP Ethernet Option
• 12VDC AC Power Adapter
• MVWIFI Wireless Option
• Welch Allyn WAConnect
• Detecto DHR (Digital Height Rod)



Product Guide




Who Will Find this Product Useful?

This product is ideal for use on users who:

• May be over or underweight and need their BMI measured
• Are able to stand steadily as their weight is measured and do not need a chair or bed scale to be weighed
• Are looking for a home height, weight, and BMI measuring scale
• Who have come to a doctor's office for weight, height, and BMI measurements
• Need their measurements recorded digitally for future reference



Related Products

• Health-O-Meter Digital Medical Scale (500KL): An alternative body mass index scale. This scale is made out of aluminum instead of robust steel. It can be purchased with or without a height rod.
• Detecto Bariatric Scale (6854DHR): A bariatric scale with a height rod and optional handrails.
• Detecto In Bed Scale (IB800): A chair scale that allows patients with poor balance, who have disabilities, who are on dialysis, or who are frail sit down for weight measurement. This item has fold-up footrests and lift-away armrests.
• Detecto Chair Scale (475): A chair scale that allows patients who have trouble standing (for example, patients on dialysis or who have disabilities, frailties, or poor balance) sit down for weight measurement. This item has fold-up footrests and lift-away armrests.



Frequently Asked Questions

How do I reset my Detecto Medvue Weight Analyzer scale?
The zero (->0<-) key will reset the displayed measurement to zero.

How do you calibrate a Detecto digital scale?


1. Power the scale down if it is not already turned off.
2. Locate the right end cap. Unscrew it and remove it.
3. Find the calibration switch. It can be found and accessed through a hole near the top of the side panel.
4. Power the scale back on. The device will show software and model information. It will then switch to Gross weight mode.
5. With the device still powered on, hold the calibration switch in until the word "SEtup" displays on the display screen.
6. Release the calibration switch and use the display prompts to calibrate the scale. See the user manual provided near the bottom of this page for a full list of instructions and navigation key descriptions.

How do I determine my ideal weight?
Ideal weight depends on age, gender, and height. Ideal body weight charts and calculators can be accessed through a quick search engine search.

What is a normal BMI?
Most of the time, a healthy BMI for an adult lay between 18.5 and 24.9.



Product Videos



DETECTO MedVue Indicator Calibration Demo (8:23 minutes)






Warranty Information

This product comes with a limited manufacturer's warranty. If returned with a manufacturer's defect in the first ninety days, the item will be repaired free of charge. After the first ninety days, the owner is required to pay for travel requirements and labor expenses.



Manuals and Documents

•    Product Brochure contains product features and benefits.
•    Detecto Medvue MV1 Service Manual contains use and care instructions.
•    Detecto Medvue MV1 Service Manual contains use and care instructions.
