SR Smith Splash! Spa Lift

By SR Smith
Fast Shipping! Secure Shopping Easy Returns

    Availability: In stock

  • Safe Transfers
  • Intelligent Control
  • Rechargeable Battery
  • Molded Seat
  • High Degree of Rotation
Item# Description Size Price
375-0000

Lift w/ Anchor

Each

$7,575.18

$5,827.06
375-0000K

Lift w/ Anchor and Activation Key

Each

$7,730.72

$5,946.71
375-0000KN

Lift w/ Activation Key w/o Anchor

Each

$7,495.16

$5,765.51
375-0000N

Lift w/o Anchor

Each

$7,339.61

$5,645.85
395-0000

Lift Extended Reach w/ Anchor

Each

$7,854.42

$6,041.86
395-0000KN

Lift Extended Reach w/ Activation Key w/o Anchor

Each

$7,774.43

$5,980.33
395-0000N

Lift Extended Reach w/o Anchor

Each

$7,618.86

$5,860.66

Customers Also Bought

Description

Details

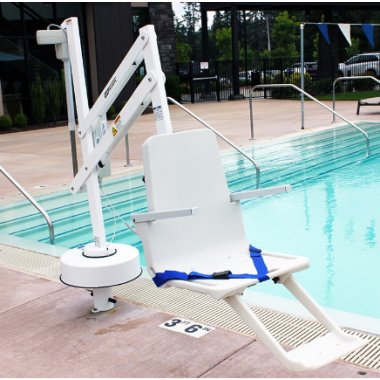

Splash!™ Spa Lift is specifically designed to lift up to 400 pounds for an above ground spa up to 48 inches above the deck. This provides safe access to water therapy for countless people with mobility limitations. Manufacturer SR Smith offers additional Splash! Spa options including anchor, Extended Reach to accommodate unusual gutter configurations and an optional Activation Key adding operation security. All of SR Smith's pool lifts are third party tested and verified to comply with the Americans with Disabilities Act.

The Splash! Spa features a LiftOperator Intelligent Controller with waterproof hand control. The lift can operate from either control and rotate 356 degrees to ensure safe transfers into the spa. On one battery charge it can complete approximately 30 lifts. The lift is semi-permanent and can be removed from the anchor as needed. It's made of durable materials constructed out of powder-coated stainless steel and aluminum. The seat is molded plastic with footrest and integrated armrests and comes with a safety seat belt assembly.

Check out Splash! Lift accessories to add a protective cover or purchase a mobility caddy. You may also want to check out pool mobility aids such as pool access chairs when pools have built-in access ramps.

Splash!™ Lift Includes:

  • LiftOperator Intelligent Control
  • Water-Resistant Hand Control and Cover
  • 24 Volt Rechargeable Battery with Charger
  • Secure Seat Belt Assembly

Features:

  • Easy Removal from Deck
  • Intelligent Control System
  • Accommodates for Above Ground Pool or Spa
  • Dual Operational Controls
  • Supports up to 400 Pounds
  • Safe Transfers
  • High Degree of Rotation
  • Rechargeable Battery
Manuals and Documents

Product Videos



Splash! Pool Lift Basic Troubleshooting Video (3:28 minutes)






Additional Information

Additional Information

Dimensions/Capacity
  • Mast Height
    66.25 Inch
  • Base Dimensions
    19.25 Inch
  • Length- Extended
    90 Inch
  • Length- Retracted
    68.75 Inch
  • Length- w/o Footrest
    40 Inch
  • Unit Weight
    160 lbs
  • Power
    24V DC
  • Battery Life
    30 Cycles
  • Noise Level
    Below 50 dB(A)
  • Lifting Capacity
    400 lbs
  • Anchor Reaction Load- Vertical
    430 lbs
  • Torque (Splash! ER)
    1875 ft lb
Range of Motion
  • Lifting
    44 to 58 Inch travel from highest to lowest point
  • Rotation
    359 Degrees Continuous
  • Seat Depth
    18 - 20 Inch
Materials and Finish
  • Frame
    Powder Coated Stainless Steel
  • Housing
    Vacuum Formed ABS Plastic
  • Arms
    Powder Coated Stainless Steel
  • Support Arm
    Powder Coated Stainless Steel
  • Mast
    Powder Coated Stainless Steel
  • Seat Assembly
    Rotomolded Plastic
  • Cover
    Urethane Coated Nylon
Actuator
  • Lifting
    Screw Type Mechanical Actuator
  • Max. Thrust
    1680 lb
  • Voltage
    24V DC
  • Max. Amp
    9
  • Max. Speed
    0.59 Inch
Warranty
  • Frame
    5 Years
  • Electronic and Motor
    2 Years
  • Battery
    1 Year
  • Lighting
    3 Years
  • Fiber Optic
    1 Year
