Choose from the list of optional accessories for added stability during a transfer and to keep your pool lift protected from the elements. All of these options are compatible with the Splash! Pool Lift and the entire Splash! line including models 300, Hi/Lo, Spa, and Extended Reach. Please note that the caddy and stability options work with other S.R. Smith pool lifts. More information is provided below as well as the Accessory Data Sheet.

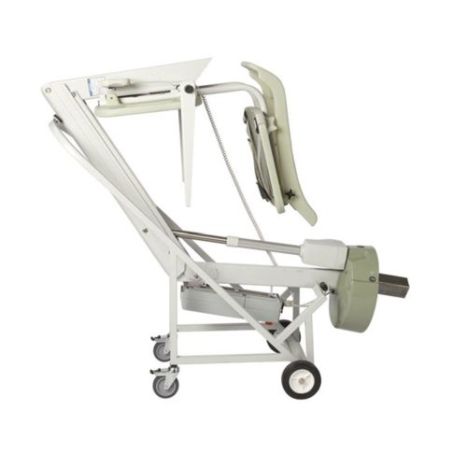

Caddy- The pool lift caddy makes transporting and storing the Splash! or aXs pool lift easier to manage. The caddy simplifies insertion and removal of the connector shaft into the pool deck. It's constructed out of powder coated steel for surface protection and durability.
Seat Belt Assembly- This seat belt is compatible with all lift models. It comes with the lift but is available for purchase if a backup is needed or to replace the original assembly.

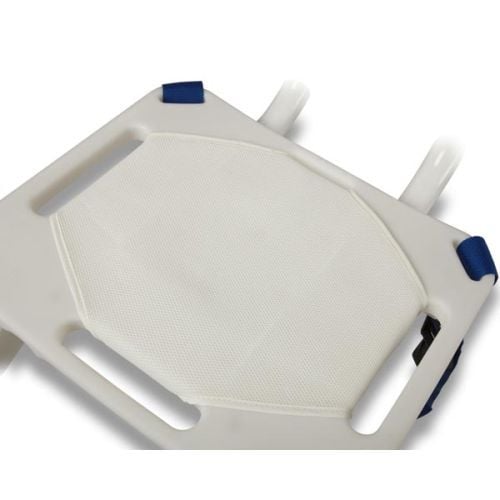

Seat Pad- The waterproof seat pad covers the Splash! chair and is designed to enhance comfort and minimize potential skin damage that could occur during transfer.
Stability Strap- This strap facilitates the transfer of individuals with limited or no independent upper body or trunk stability. The strap is compatible with all models of S.R. Smith pool lifts manufactured after June 2016.
Mast Cover- can be used on all Splash! Pool Lift models, and is designed to protect just the mast of the lift. The mast cover can be used in conjunction with the Seat Saver.

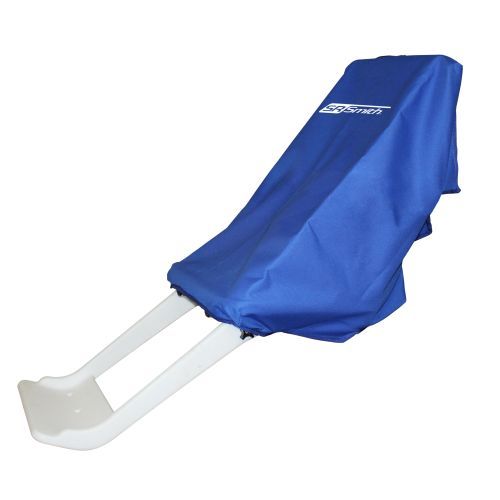

Seat Saver Cover- The seat cover works with all S.R. Smith pool lift models and ensures the seat stays clean in between use and always keeps it protected from the elements.

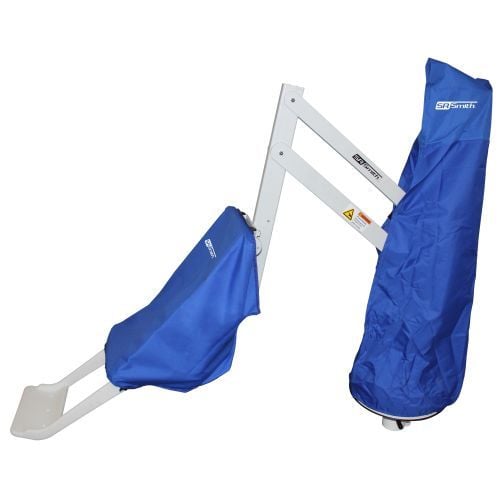

Mast Cover and Seat Saver Cover Combo- Purchase both covers for additional savings as well as pool lift protection.

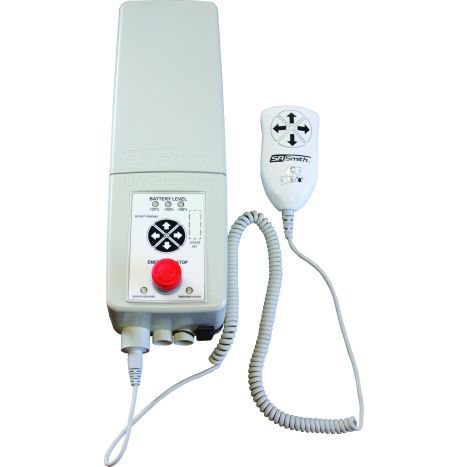

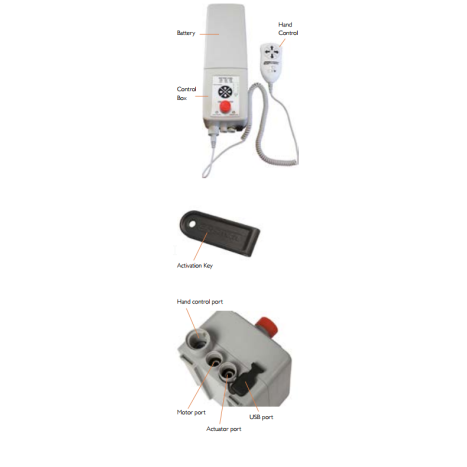

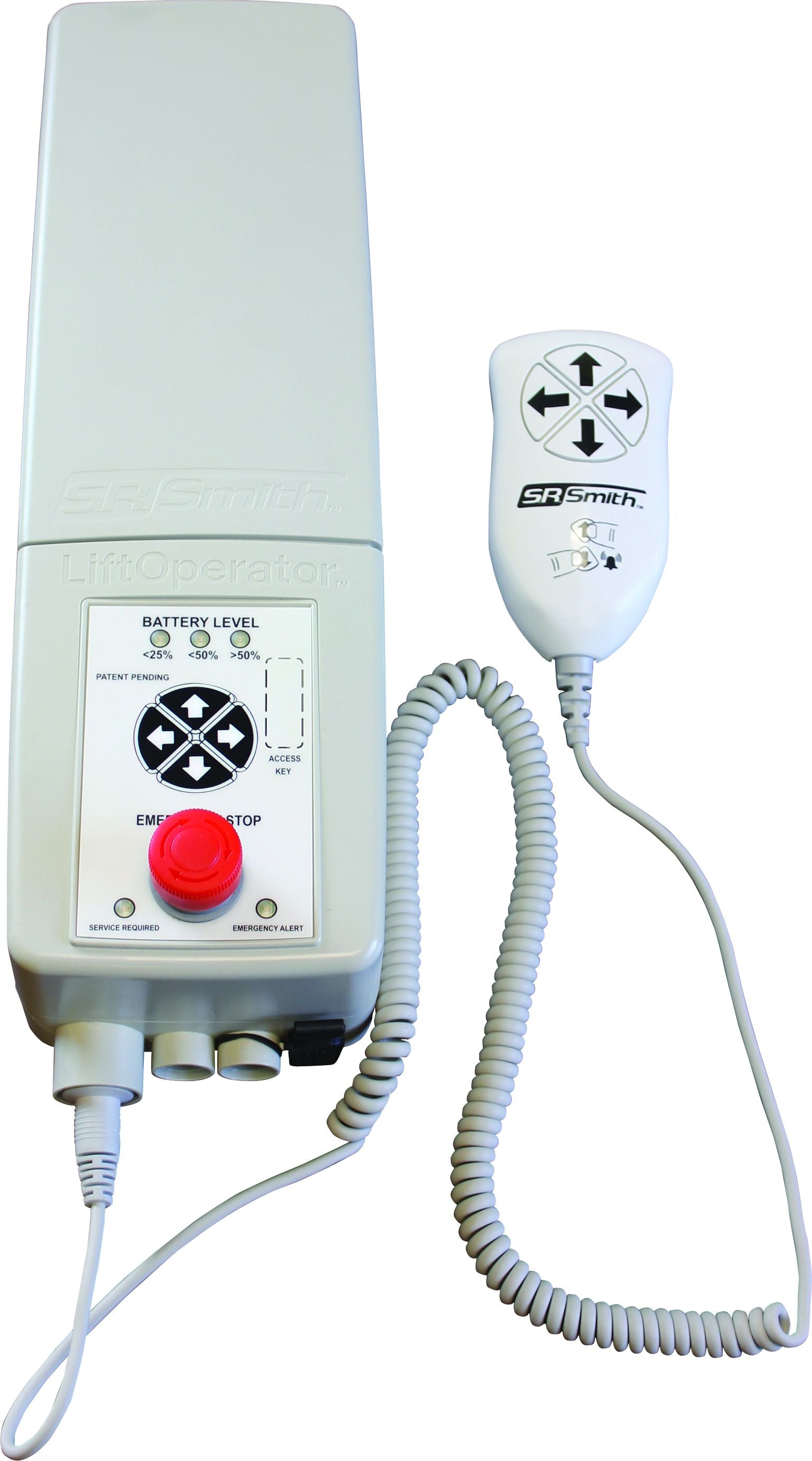

LINAK Upgrade to LiftOperator- The LiftOperator is an upgrade from the LINAK operating system used to function the lift. The upgrade includes: mounting plate, lock, battery, charger and LiftOperator control unit. And can be used on all SR Smith Lifts. Upgrade Kit is for older pool lifts using the LINAK system.
Manuals and Documents
- Additional Information
Range of Motion
- Overall Height66.25 Inch
- Base Dimension19.25 Inch
- Total Weight160 lbs
- Overall Length Fully Extended w/ Footrest90 Inch
- Overall Length Fully Retracted w/ Footrest68.75 Inch
- Overall Length in Stored Position, No Footrest40 Inch
- Power24V DC
- Battery Life (Charged)30 Cycles
- Lifting Capacity400 lbs
- Vertical Anchor Reaction Load430 lb
- Torque Anchor Reaction Load1280 ft lb
- Seat Width23 Inch
Materials and Finish
- Lifting44 - 58 Inch travel from highest to lowest point
- Rotation359 Degrees
- Seat Depth18 - 20 Inch
- FramePowder Coated Stainless Steel
- HousingVacuum Formed ABS Plastic
- ArmsPowder Coated Aluminum
- MastPowder Coated Stainless Steel
- Seat AssemblyRotomolded Plastic
- Seat Assembly FramePowder Coated Stainless Steel
- CoverUrethane Coated Nylon
- LiftingScrew Type Mechanical Actuator
- Max. Thrust1680 lb
- Voltage24V DC
- Max. Amp9
- Max. Speed0.59 Inch
- Frame5 Years
- Electronic and Motor2 Years
- Battery1 Year
- Lighting3 Years
- Fiber Optic1 Year
