SR Smith Splash! Extended Reach Pool Lift

By SR Smith
Fast Shipping! Secure Shopping Easy Returns

    Availability: In stock

  • ADA Compliant
  • Model Accommodates for Unusual Gutter Configurations
  • 300 Pound Lifting Capacity
  • High Rotation
  • Made withDurable Materials
Item# Description Size Price
370-0000

Extended Reach Pool Lift w/ Anchor

Each

$7,533.02

$5,794.63
370-0000K

Extended Reach Pool Lift w/ Anchor and Activation Key

Each

$7,685.76

$5,912.12
370-0000KN

Extended Reach Pool Lift w/ Activation Key w/o Anchor

Each

$7,454.47

$5,734.21
370-0000N

Extended Reach Pool Lift w/o Anchor

Each

$7,301.74

$5,616.72
390-2000

Extended Reach Pool Lift Package w/ Anchor, Mast Cover and Caddy

Kit

$8,293.38

$6,379.52
Description

Details

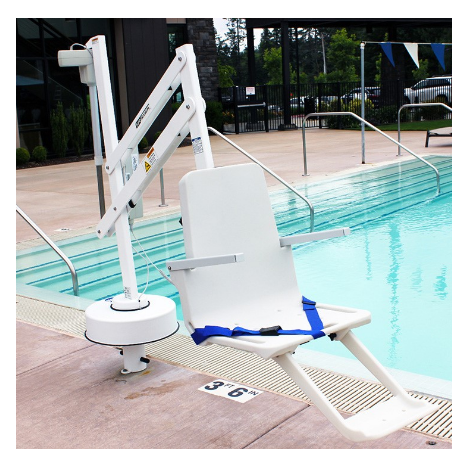

Splash!™ Extended Reach Pool Lift has all the great features of the original Splash! but is designed with a longer reach to work with pools with unusual gutter configurations. The ER version does reduce Splash! Pool Lift's 400 pound lifting capacity to 300 pounds.

Manufacturer SR Smith offers a variety of Splash! Pool Lift options to ensure all pool and spa designs are accessible. In addition, each pool lift is third party verified to comply with the Americans with Disabilities Act. There is also a variety of options when purchasing the Splash! ER model. Choose the lift with or without an anchor or with an optional Activation Key for operation security. There is also a package option that includes anchor, activation key and transport caddy or you can select separate accessories to customize your Splash! Lift.

The Splash! ER Pool Lift features a LiftOperator Intelligent Controller with waterproof hand control. The buttons on either control will power the chair safely into the water. The lift has a rotation of 356 degrees for a high degree of accessibility. It operates on a 24V rechargeable battery that can complete approximately 30 lifts per charge. SR Smith uses durable, hard-wearing materials to withstand the elements. The frame, arm and mast are constructed out of stainless steel and aluminum and then given a gray mist powder-coating for extra protection. The seat is made of molded plastic with an attached footrest, integrated armrests and safety seat belt assembly. When the lift isn't in use for a season, it's semi-permanent to be removed for storage.

You may also want to check out Splash! Hi/Lo Pool Lift when the pool or spa is above ground. It also offers extended reach options as well.

Splash!™ Lift Includes:

  • LiftOperator Intelligent Control
  • Water-Resistant Hand Control and Cover
  • 24 Volt Rechargeable Battery with Charger
  • Stainless Steel Anchor Socket with Cover
  • Footrest and Armrests
  • Secure Seat Belt Assembly
  • Kit Includes Mast Cover and Caddy

Features:

  • Semi-Permanent for Easy Removal
  • Intelligent Control
  • Water-Resistant Hand Control
  • Supports up to 300 Pounds
  • Provides Safe Transfers for Individuals with Limited Mobility
  • High Degree of Rotation
  • Rechargeable Battery
Manuals and Documents

Product Videos



Splash! Pool Lift Basic Troubleshooting Video (3:28 minutes)






Additional Information

Additional Information

Dimensions/Capacity
  • Mast Height
    66.25 Inch
  • Base Dimensions
    19.25 Inch
  • Length- Extended
    90 Inch
  • Length- Retracted
    68.75 Inch
  • Length- w/o Footrest
    40 Inch
  • Unit Weight
    160 lbs
  • Power
    24V DC
  • Battery Life
    30 Cycles
  • Noise Level
    Below 50 dB(A)
  • Lifting Capacity
    300 lbs
  • Anchor Reaction Load- Vertical
    430 lbs
  • Torque
    1875 ft lb
  • Seat Width
    23 Inch
Range of Motion
  • Lifting
    44 to 58 Inch travel from highest to lowest point
  • Rotation
    359 Degrees Continuous
  • Seat Depth
    18 - 20 Inch
Materials and Finish
  • Frame
    Powder Coated Stainless Steel
  • Housing
    Vacuum Formed ABS Plastic
  • Arms
    Powder Coated Stainless Steel
  • Support Arm
    Powder Coated Stainless Steel
  • Mast
    Powder Coated Stainless Steel
  • Seat Assembly
    Rotomolded Plastic
  • Cover
    Urethane Coated Nylon
Actuator
  • Lifting
    Screw Type Mechanical Actuator
  • Max. Thrust
    1680 lb
  • Voltage
    24V DC
  • Max. Amp
    9
  • Max. Speed
    0.59 Inch
Warranty
  • Frame
    5 Years
  • Electronic and Motor
    2 Years
  • Battery
    1 Year
  • Lighting
    3 Years
  • Fiber Optic
    1 Year
