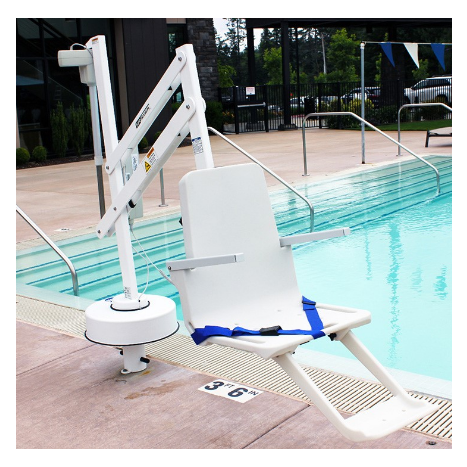

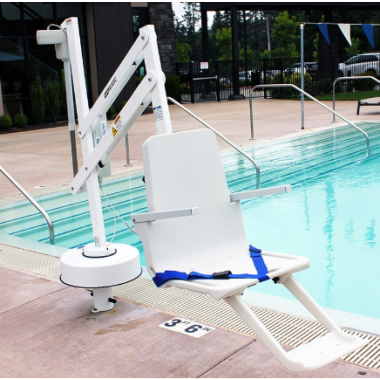

SR Smith Splash! Hi/Lo Pool Lift

By SR Smith
Fast Shipping! Secure Shopping Easy Returns

    Availability: In stock

  • Safe Transfers
  • Intelligent Control
  • Rechargeable Battery
  • Molded Seat
  • High Degree of Rotation
Item# Description Size Price
350-0000

Hi/Lo Lift w/ Anchor

Each

$11,995.87

$9,227.59
350-0000K

Hi/Lo Lift w/ Anchor and Activation Key

Each

$12,242.19

$9,417.07
350-0000KN

Hi/Lo Lift w/ Activation Key w/o Anchor

Each

$12,088.99

$9,299.22
350-0000N

Hi/Lo Lift w/o Anchor

Each

$11,838.06

$9,106.20
385-0000

Extended Reach, Hi/Lo Lift w/ Anchor

Each

$12,716.31

$9,781.78
385-0000K

Extended Reach, Hi/Lo Lift w/ Anchor and Activation Key

Each

$12,967.20

$9,974.77
385-0000KN

Extended Reach, Hi/Lo Lift w/ Activation Key w/o Anchor

Each

$12,587.28

$9,682.52
385-0000N

Extended Reach, Hi/Lo Lift w/o Anchor

Each

$12,336.34

$9,489.49

Customers Also Bought

Description

Details

Create a splash at your facility by installing the Splash!™ Hi/Lo Aquatic Pool Lift for individuals with limited mobility. The Hi/Lo model creates versatility by working with either above or below ground pools or spas. This Hi/Lo option also comes in Extended Reach to accommodate facilities with unusual gutter configurations. The Splash!™ Pool Lift is made with powder-coated stainless steel aluminum and comes with or without an anchor. The seat is molded plastic for comfort and comes with a footrest and integrated armrests. The 356 degree rotation design assists in easy mounting of the lift for safe and smooth transfers to the pool.

SR Smith pool lifts are third party verified to meet the Americans with Disabilities Act. Splash! stands out from other pool lifts supporting a high weight capacity of 400 pounds.

The Splash!™ Hi/Lo model features SR Smith's LiftOperator Intelligent Controller with hand control. The lift can be positioned using either controller. It's powered with a 24 volt rechargeable battery and will complete approximately 30 lifts per charge. The LED light indicator always provides battery level to alert when battery needs to be charged.

Add additional security to the Splash!™ Hi/Low pool lift by selecting the model with Activation Key that only allows the control to work when key is present. The Hi/Low lift is semi-portable and can be removed for storage. You may also want to check out Splash! accessories to purchase a cover or caddy to transport the lift for storage. SR Smith also manufactures other models such as the aZs2 Pool Lift that offers a smaller foot print for compact deck space.

Splash!™ Lift Includes:

  • LiftOperator Intelligent Control
  • Water-Resistant Hand Control and Cover
  • 24 Volt Rechargeable Battery with Charger
  • Secure Seat Belt Assembly

Features:

  • Versatile Function for Above or Below Ground Pools or Spas
  • Comfortable Footrest and Integrated Armrests
  • Dual Operational Controls
  • Supports Users Up to 400 Pounds/300 Pounds w/ ER
  • Safe and Controlled Transfers
  • High Degree of Rotation
  • Rechargeable Battery
  • Intelligent Control System
Manuals and Documents

Product Videos



Splash! Pool Lift Basic Troubleshooting Video (3:28 minutes)






Additional Information

Additional Information

Dimensions/Capacity
  • Mast Height
    66.25 Inch
  • Base Dimensions
    19.25 Inch
  • Length- Extended
    90 Inch
  • Length- Retracted
    68.75 Inch
  • Length- w/o Footrest
    40 Inch
  • Unit Weight
    160 lbs
  • Power
    24V DC
  • Battery Life
    30 Cycles
  • Noise Level
    Below 50 dB(A)
  • Hi/Lo Lifting Capacity
    400 lbs
  • Hi/Lo ER Lifting Capacity
    300 lbs
  • Anchor Reaction Load- Vertical
    525 lbs
  • Torque
    1820 ft lb
Range of Motion
  • Lifting
    44 to 58 Inch travel from highest to lowest point
  • Rotation
    359 Degrees Continuous
  • Seat Depth
    18 - 20 Inch
Materials and Finish
  • Frame
    Powder Coated Stainless Steel
  • Housing
    Vacuum Formed ABS Plastic
  • Arms
    Powder Coated Stainless Steel
  • Support Arm
    Powder Coated Stainless Steel
  • Mast
    Powder Coated Stainless Steel
  • Seat Assembly
    Rotomolded Plastic
  • Cover
    Urethane Coated Nylon
Actuator
  • Lifting
    Screw Type Mechanical Actuator
  • Max. Thrust
    1680 lb
  • Voltage
    24V DC
  • Max. Amp
    9
  • Max. Speed
    0.59 Inch
Warranty
  • Frame
    5 Years
  • Electronic and Motor
    2 Years
  • Battery
    1 Year
  • Lighting
    3 Years
  • Fiber Optic
    1 Year
