What Comes in the Box?
What Comes In The Box?

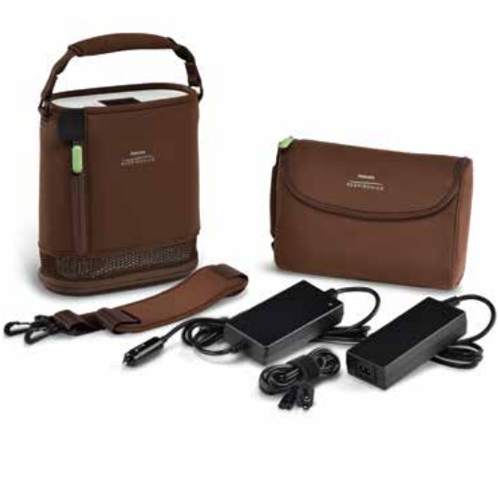

- SimplyGo Mini Concentrator
- Carrying Case
- Rechargeable Lithium Ion Battery
- DC Power Cords
- AC Power Cords
- Accessory Bag
- User Manual

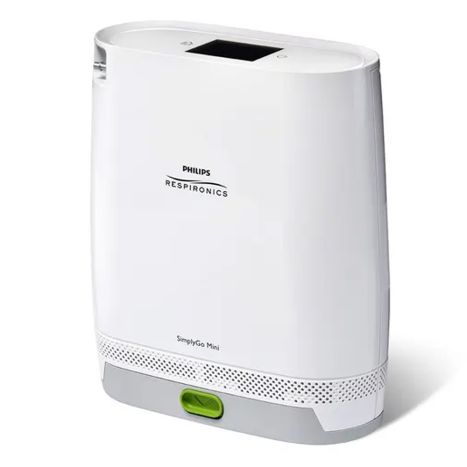

SimplyGo Mini Portable Oxygen Concentrator Product Numbers 1113601 and 1113602
Simply Go Mini Portable Oxygen Concentrator is the smallest and most lightweight portable oxygen concentrator that Respironics manufactures. This oxygen concentrator is controlled by an easy to use and easy to see touch screen LCD. Weighing as little as 5 pounds with the standard battery installed or 6 pounds with the extended duration battery, the SimplyGo Mini produces a minimum of 87% and a maximum of 96% pulse flow oxygen concentration. Maximum oxygen output is 1,000 mLPM at setting 5 with a breath rate of 20 BPM.
Select from the following Bundles:
1. Lightweight Bundle with one STANDARD rechargeable battery. (5 pounds with 4.5 hours duration time)
2. Lightweight Bundle PLUS with TWO STANDARD rechargeable batteries. (6.1 pounds with 9 hours duration time)
3. Extended Battery Bundle with one EXTENDED rechargeable battery. (6 pounds with 9 hours duration time)
4. Combo Bundle with one STANDARD and one EXTENDED rechargeable battery. (7.1 pounds with 15.5 hours duration time)
5. Travel Bundle with TWO EXTENDED rechargeable batteries. (8.1 pounds with 18 hours duration time)
Respironics SimplyGo Mini can operate off of AC or DC current. With two battery options, it can operate up to 9 hours on the extended battery and 4.5 hours on the standard battery. The standard battery weighs 1.1 pounds. For double the battery life, the extended battery weighs an addition pound over the standard battery. When operating off of AC power, the Mini requires 120 watts while charging the battery.

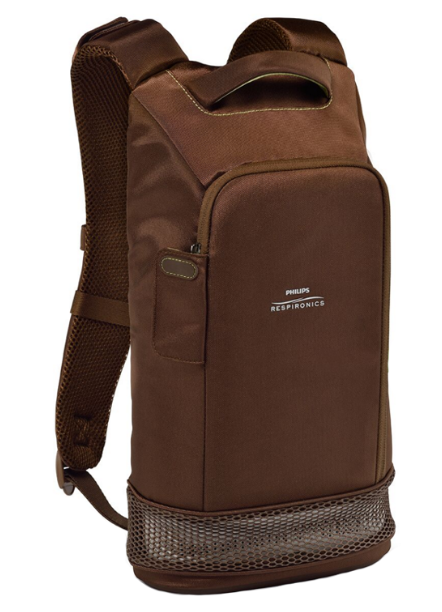

The SimplyGo Mini Portable Concentrator has a sleek and low-profile design to "fit-in" wherever you go. This machine does not draw attention to itself. A stylish case is included for a comfortable way to carry the device by hand or over your shoulder. You also have the option to go hands-free with an optional backpack specifically designed for the SimplyGo Mini.
Product Features & Benefits
- Lightweight at only 5 or 6 pounds, depending upon battery choice.
- Small profile size provides easy portability.
- Offers up to 1,000 mLPM of pulse flow oxygen.
- Durable design translates into longer product life.
- Attractive and sleek design.
- Easy to remove and exchange external battery.

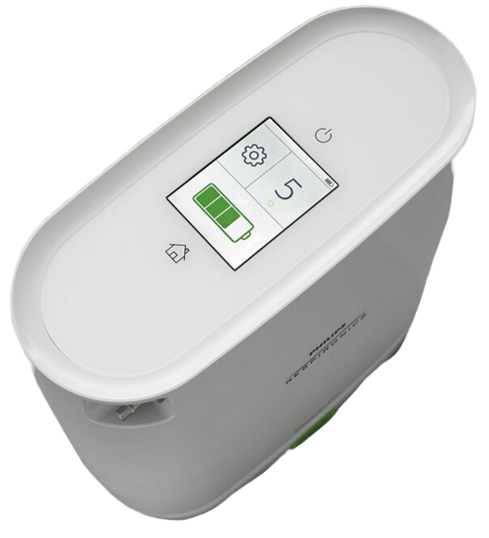

- Intuitive and easy-to-read screen.
- Durable and comfortable carry case.
- Low noise.
- Low power consumption.
- Accommodates from 100 to 240 VAC.
- Two battery options.
- Long warranty.
- Respironics SimplyGo Mini is FAA-approved for air travel.
Respironics SimplyGo Mini Portable Concentrator Specifications
- SimplyGo Mini Product Numbers: 1113601, 1113602, 1113601x2, 1113602x2, 1113601Plus.
- Width: 8.3 Inch.
- Length: 9.4 Inch with lightweight battery, 10.2 Inch with extended duration battery.
- Depth: 3.6 Inch.
- Weight: 3.9 pounds.
- Weight of lightweight battery: 1.1 pounds.
- Weight of extended duration battery: 2.1 pounds.
- Oxygen Output (maximum): 1,000 mLPM.
- Oxygen Concentration Levels: 87 to 96%.
- Outlet Pressure: 20 psig.
- Maximum Operating Altitude: 10,000 feet above sea level.
- 43 dBA typical at setting 2 with 20 BPM
- 46 dBA typical at setting 5.
- Power Requirements
- AC Input: 100 to 240 VAC, 50/60 Hz.
- AC Output: 19 VDC, 6.3 A max.
- Power Consumption: 120 watts while charging.
- DC Input: 12 – 16 VDC.
- DC Output: 19 +/- 5% BDC, 6.3 Amp.

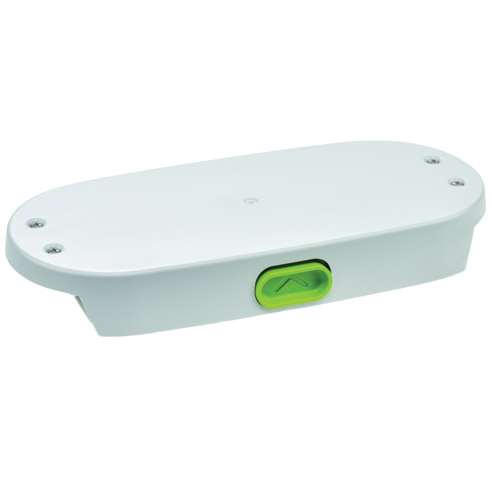

- Battery: Lithium Ion, 14.4 VDC (nominal).
- Battery Options: Standard battery or extended battery (equals two standard batteries).

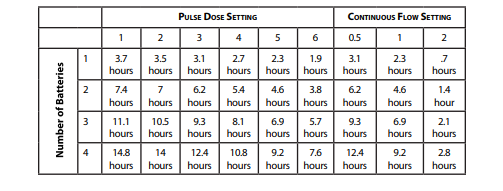

- Battery Duration (typical) Battery duration times are based on new, fully charged batteries used with a new SimplyGo Mini System. Battery duration times will degrade with battery age, environmental operating conditions, use over time, and operational conditions.
- Standard: up to 4.5 hours.
- Extended: up to 9 hours.
- Alarms: No breath, low oxygen concentration, high breath rate, technical fault, low battery, no flow, depleted battery, external power failure.
- FAA approved for commercial flights.
- Manufacturer: Phillips Respironics.
- Brand: SimplyGo Mini.
- HCPCS Code: E1390
- Standard: 3-year system, 1-year sieve warranty.
- Extended: 3-year system, 3-year sieve warranty.
- Extended: 2-year sieve warranty extension.
