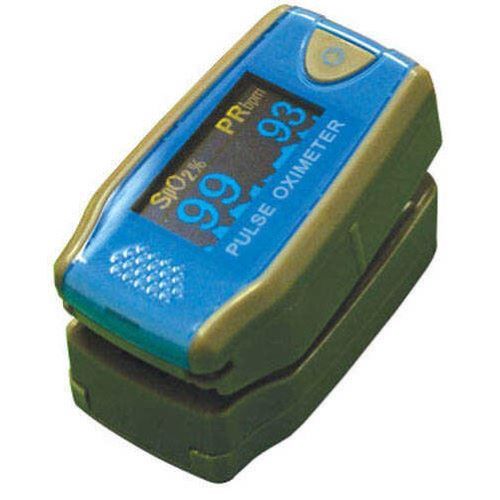

The Oximeter Plus C5 is designed to measure SpO2, pulse rate, pulse bar, and plethysmogram readings in a compact device sized for pediatric use. Its high-resolution dual-color OLED screen includes six display modes and 10 brightness settings to support easier viewing from different angles during routine spot checks.
This child pulse oximeter uses two AAA alkaline or rechargeable batteries and provides about 30 hours of typical operation. A low-battery indicator helps monitor power status, and the lightweight design includes a hard case and protective sleeve for storage and transport.
Features and Benefits
- Built for pediatric use
- Displays SpO2 and pulse rate
- Shows pulse bar and plethysmogram
- High-resolution OLED display
- Six display modes
- Ten brightness settings
- Automatic power off
- Low-battery indicator
- Compact lightweight design
- Includes case and sleeve
Specifications
- Application: Fingertip pulse oximeter
- User: Pediatric
- Display: Dual-color high-resolution OLED
- Displayed parameters: SpO2, pulse rate, pulse bar, plethysmogram
- Display modes: 6
- Brightness settings: 10
- SpO2 measurement range: 70% to 100%
- SpO2 resolution: 1%
- Pulse rate measurement range: 30 to 235 bpm
- Pulse rate resolution: 1 bpm
- Pulse rate accuracy, 30 to 100 bpm: +/- 2 bpm
- Pulse rate accuracy, 101 to 235 bpm: +/- 2%
- Power source: 2 AAA alkaline or rechargeable batteries
- Typical battery life: Approximately 30 hours
- Dimensions: 2.3 x 1.3 x 1.3 inches
- Weight: 0.06 pounds without batteries
- Warranty: 2-year limited
