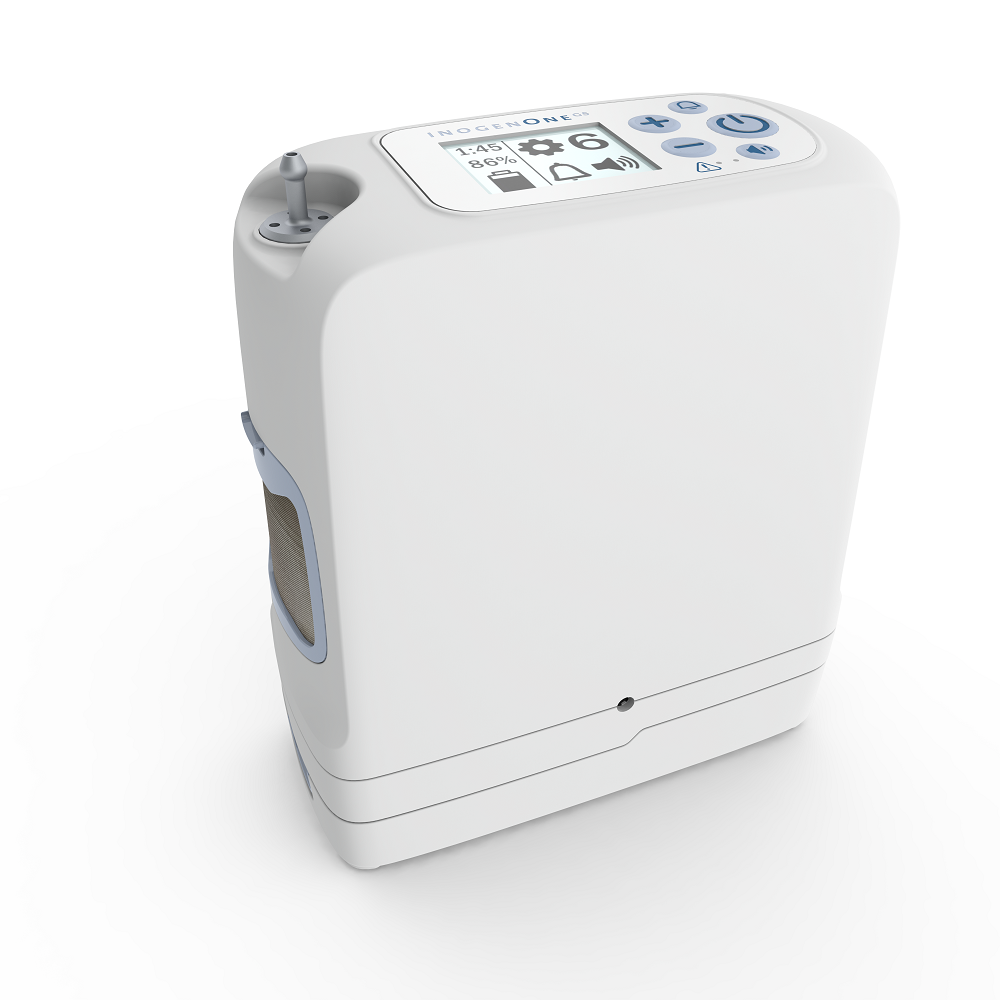

Inogen One G5 Portable Oxygen Concentrator Overview
The Inogen G5 Portable Oxygen Concentrator provides supplemental 24/7 oxygen service in a compact, lightweight form so it’s easy to live life with independence.
This unIt weighs less than 6.5 pounds with the carry bag and the single-size battery. It powers from three sources – battery, AC, and DC power – to add to its travel-friendly use when traveling in a car, boat, or RV. The battery options allow users to stay out and enjoy life rather than being tethered to a cumbersome oxygen tank.
Inogen G5 Oxygen Concentrator offers pulse flow oxygen with six flow settings. It features Intelligent Delivery Technology® that senses the user's oxygen needs and matches it to the setting, even while sleeping. This means users can use one oxygen concentrator unit instead of investing in a stationary unit for sleeping. Its quiet operation produces 38 decibels of noise, the sound level close to a whisper, to not keep users up at night.
Vitality Medical offers a wide variety of portable oxygen concentrators by top brands.
Inogen One G5 Portable Concentrator Features and Benefits

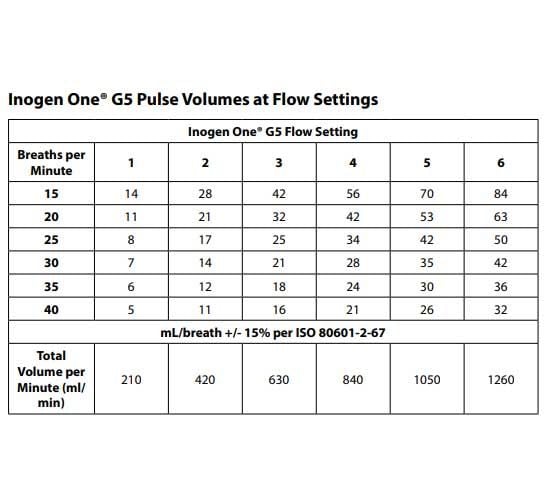

- 6 Pulse Dose Settings Deliver up to 1260 mL of Medical-Grade Oxygen
- Designed for 24/7 Operation To Increase User Independence
- Compact and Lightweight Design Is Easy To Take Anywhere
- Intelligent Delivery Technology Detects and Automatically Adjusts to User Breathing Rate
- Single or Double Battery Options Provide Hours of Use
- Quiet Operation—38 Decibels at Setting 2
- Easy User Interface for Simple Operation
- Runs on Battery, AC Power, or DC Power for Travel-Friendly Versatility
- Meets FAA Requirements for On-Board Flight Use
- Bluetooth System Lets Users Monitor POC With Inogen Connect Mobile App
What Comes in the Box?
- Inogen G5 Concentrator

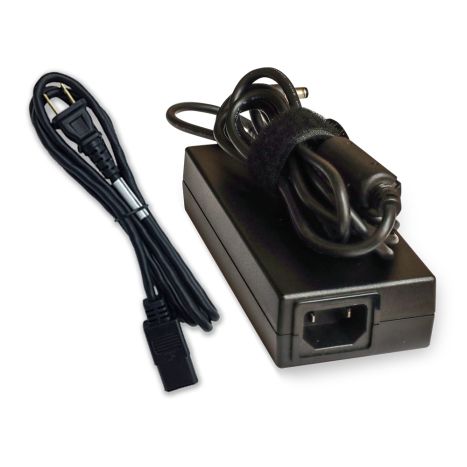

- AC power supply

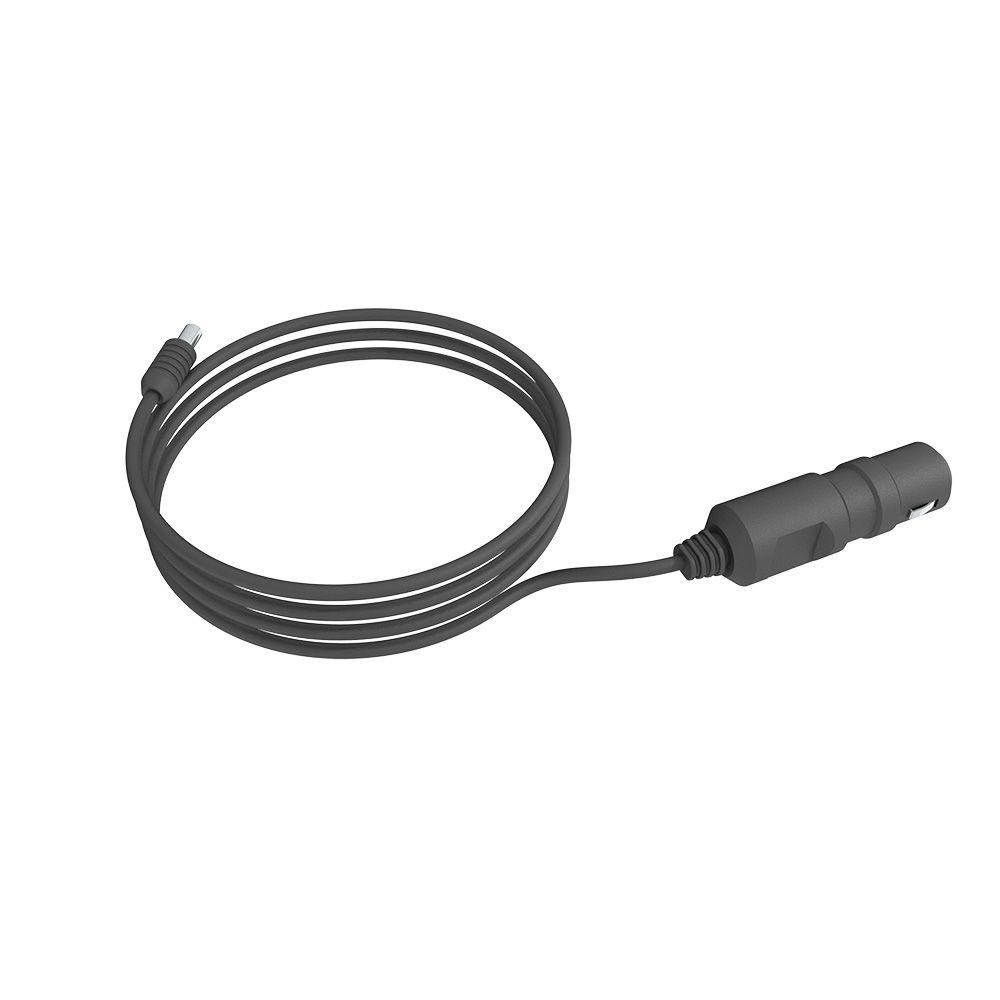

- DC power supply
- One single-size battery
- Inogen carry bag
- Inogen user manual

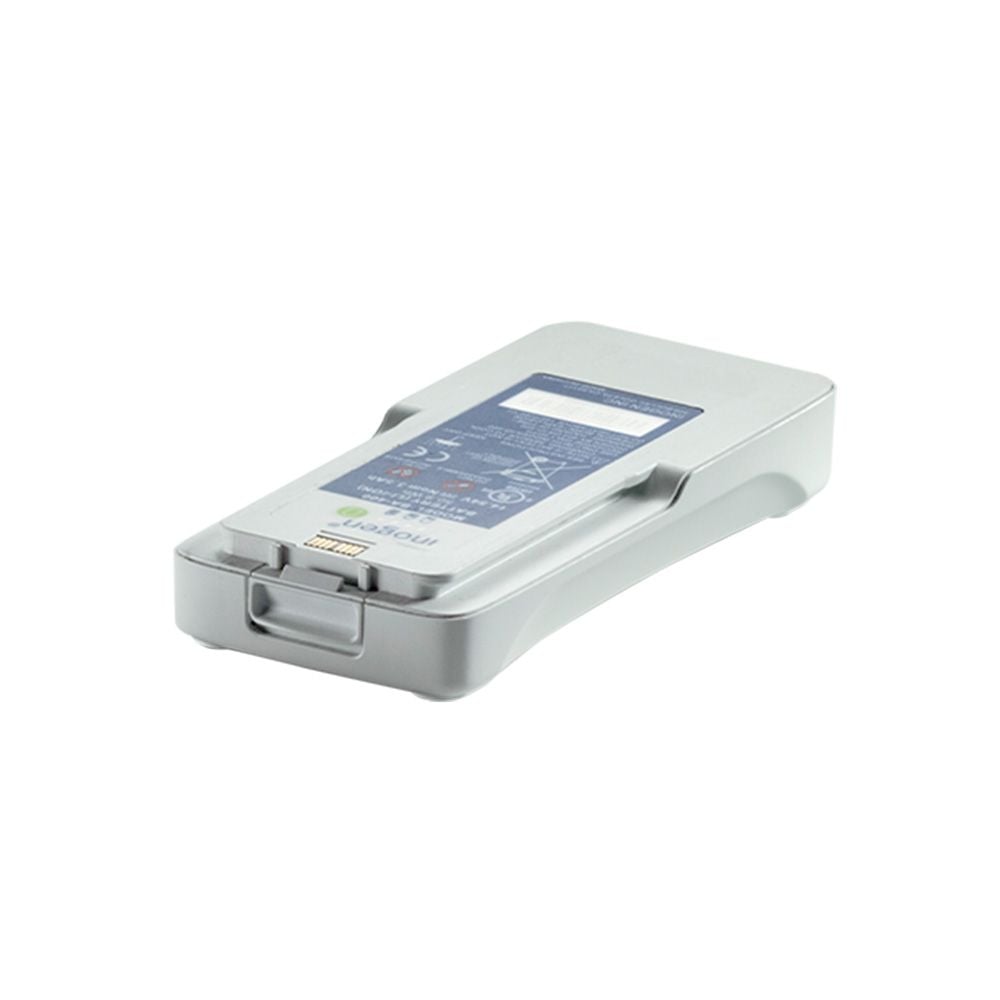

Battery Options
G5 With One Single Battery (IS-500-NA8)
- Carry Weight: 6.48 pounds with concentrator, single-battery, and carry bag
- Battery Duration (Setting 2): 4 hours when fully charged
- Battery Recharge Time: 3 hours

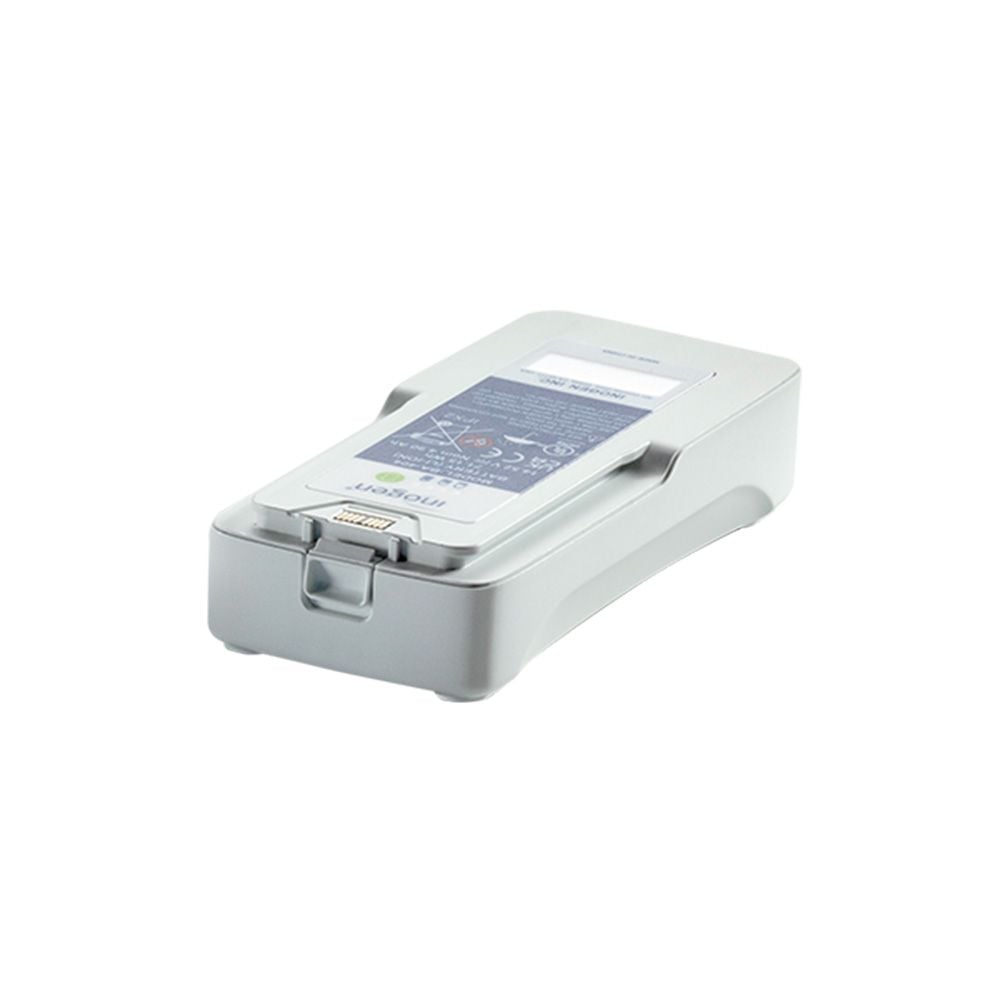

G5 With One Double Battery (IS-500-NA16)
- Carry weight: 7.47 pounds with concentrator, double-battery, and carry bag
- Battery duration (setting 2): 10 hours with fully charged
- Battery recharge time: 6 hours
G5 With One Single Battery and One Double Battery (S-500-NA16 + BA-500)
- Carry weight: 8.66 pounds with concentrator, two batteries, and carry case
- Battery duration (setting 2): 15 hours when fully charged
- Battery recharge time: 9 hours
Travel-Friendly With An Easy User Interface
This travel oxygen concentrator is designed for user independence as a wearable concentrator that is compact and lightweight. The concentrator's size with the carrying bag makes it discreet to tote around. It's smaller than comparable portable oxygen concentrators that offer the same performance.

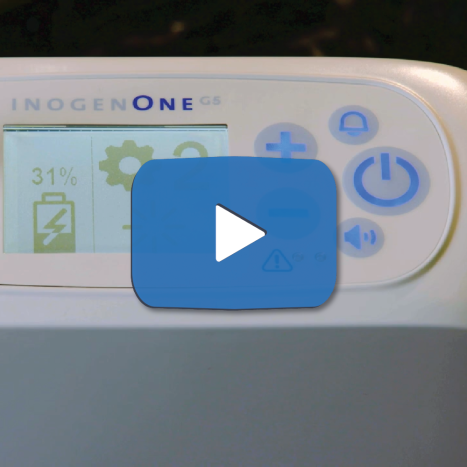

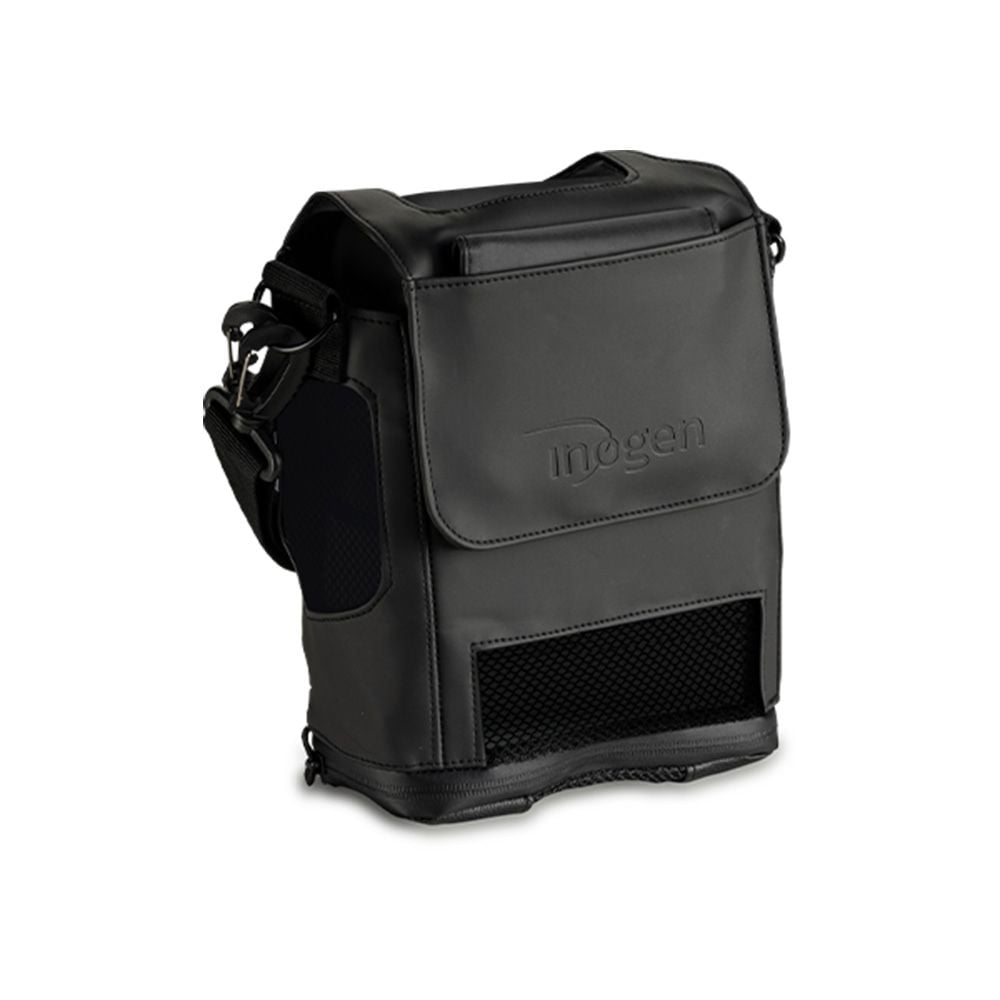

The carrying bag fits the concentrator perfectly, with a flap to view the LCD screen and access the control buttons. The interface is easy to read and understand, with push buttons to power the unit, update flow settings, and more.
Compatible Accessories and Replacement Parts

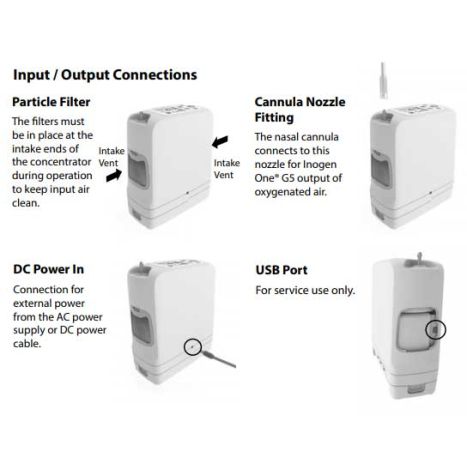

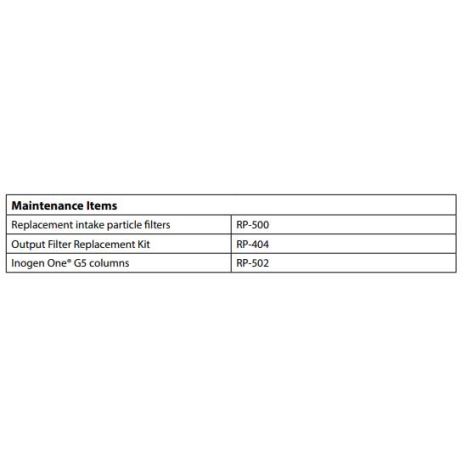

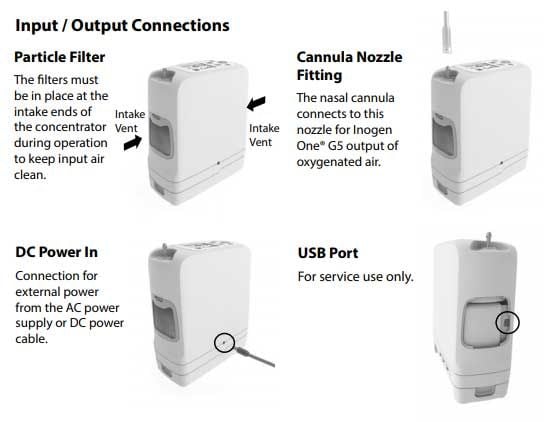

Vitality Medical supplies a complete line of G5 replacement parts and accessories from optional backpacks to rechargeable batteries. There are also consumable items, including filters and sieve beds to keep the concentrator at peak performance. These parts are easily accessible so users can replace them without taking the unit to a technician, saving time and money. Below is the filter and sieve column information with their product number for easy reference.

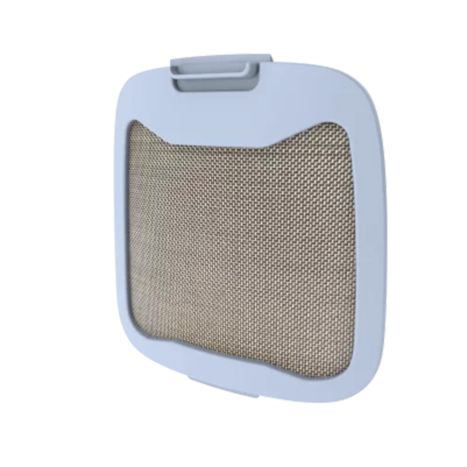

- Intake Particle Filter (RP-500)
- Output Filter Replacement Kit (RP-404)

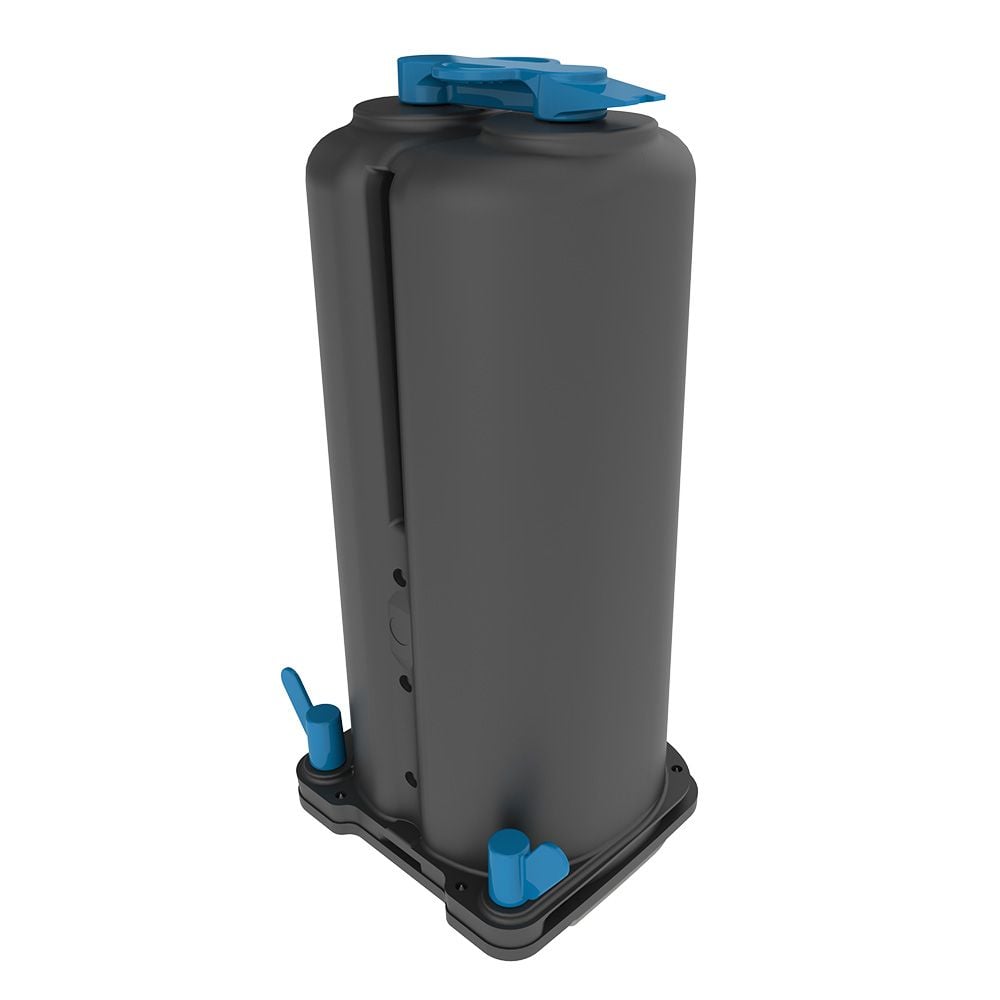

- Inogen G5 Sieve Bed Columns (RP-502)
Tracking With Inogen Connect App
Users wanting to use its smart features can monitor their G5 from their smartphone or tablet. The concentrator's Bluetooth system syncs with the Inogen Connect App. This monitors performance so users always know the oxygen purity or when maintenance is required. It also gives access to troubleshooting tips, FAQs, and a digital user manual.
Monitoring Functions
Product Specifications
- Manufacturer: Inogen
- Product Numbers: IS-500-NA8, IS-500-NA16, IS-500-NA16+BA-500
- Weight:
- With 8-Cell Battery: 4.7 Pounds
- With 16-Cell Battery: 5.7 Pounds
- Dimensions:
- Length: 7.19 Inches
- Width: 3.26 Inches
- Height: 8.15 Inches (Single Battery); 9.03 Inches (Double Battery)
- Oxygen Delivery: Pulse Dose
- Liters per Minute (LPM): 1.25
- Maximum Oxygen Output: 1260 mL/Minute
- Maximum Bolus Output: 0.084 L Pulse
- Pulse Dose Settings: 1-6
- Oxygen Concentration: 87 to 96%
- Noise Level: 38 Decibels
- Operating Altitude: 0–10,000 Feet
- FAA-Compliant: Yes
- Display: LCD
- Power Options
- AC Power: 100-240V, 50-60Hz
- DC Power: 13.5-15.0VDC,10A Max.
- Rechargeable Lithium-Ion Battery: 12.0 to 16.8 VDC (±0.5V)
- Battery Duration
- 8-Cell Battery: Up to 6.5 Hours
- 16-Cell Battery: Up to 13 Hours
- Re-Charge Time
- 8-Cell Battery: Up to 3 Hours
- 16-Cell Battery: Up to 6 Hours
- Warranty
- Unit: 3 Years
- Sieve Beds: 1 Year
Manuals and Documents
Sieve Bed Replacement Guide contains steps on how to replace the sieve bed columns.
Travel Tips highlights helpful tips when traveling with an Inogen One concentrator.
Frequently Asked Questions (FAQ)
Is the Inogen Connect App available on Apple and Android products?
Yes.
Does the G5 concentrator deliver continuous flow and pulse flow?
The G5 is only a pulsed flow unit, which detects the user’s breathing pattern to deliver pulse dose oxygen.
Can the G5 be used during international flights?
The unit is FAA approved for flights within the United States. Check with the airline before planning an international flight.
Can the G5 be used while sleeping?
Yes. It is designed to be used 24 hours a day, 7 days a week. The pulse dose Intelligent Delivery Technology detects the user’s breath, even while sleeping.
