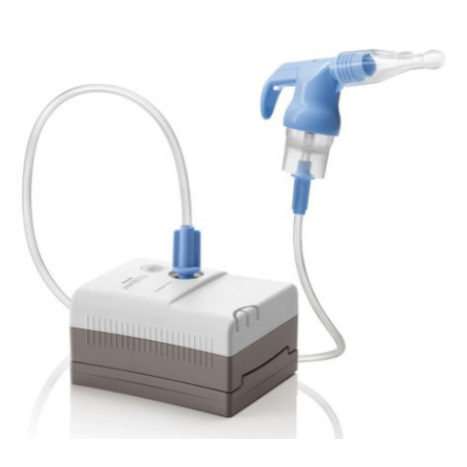

InnoSpire Mini Compressor Nebulizer

The InnoSpire Mini Compressor Nebulizer is a compactly designed nebulizer for medication that can be administered in a car with an AC power cord supply or battery operated. The small design of the nebulizer makes it a portable solution that can be discreetly transported, measuring at 4.5-inches in length, 3.5-inches in width, and 2.1-inches in height it can be used by multiple power options. The nebulizer can be powered by a regular DC outlet for home use, a battery can also be used to power the equipment enabling it transportable; or you can connect it to your cars AC outlet, no matter which method is used to power the nebulizer compressor you will get the same rate of up to 30 pounds per square inch (PSI).

A recessed holder for the nebulizer is included on the machine which you can use to place your nebulizer if you must set it down while the medication is still inside. There is a changeable filter inside the compressor that can be replaced with ease, no tools required, simply twist the filters cap and replace with a new one.

Mouthpieces are interchangeable, you can use the one provided to you inside the box and purchase additional mouthpieces as necessary. If you have a preferred mouthpiece style, you can attach your own and utilize it. Tubing is provided as well as 4 filters, a filter cap, a rechargeable battery, AC/DC power cords, 1 sidestream plus nebulizer, and a carrying case.

The functionality of the nebulizer is straightforward, the controls provided to you are simple and easy to use, only utilizing the necessary connections and on/off switch. Everything else is set standard by the manufacturer, making it an easy compressor to set-up and use.

Product Features and Benefits

• Compact Design for Easy Storage
• Power by DC/AC or Battery Operated
• Up To 30 Pounds per Square Inch
• Recessed Nebulizer Holder
• Includes Tubing and Nebulizer
• Replaceable Air Filter

Product Specifications

• Manufacturer: Respironics
• Brand: InnoSpire Mini
• Product SKU: 1109289, 1109290
• Application: Compressor Nebulizer System
• Nebulizer Type: Small Volume
• Oxygen Tube Length: With Tubing
• Patient-Device Interface: Mouthpiece
• Reservoir Capacity: 8 Milliliters
• Reservoir Solution: Unfilled
• Usage: Single Patient Use
• User: Universal
• Nebulization Rate: 0.2 Milliliters/Minute
• Nebulization Capacity: 8 Milliliters
• Mass Median Diameter (MMD): ~ 5.0 m
• Maximum Pressure of Compressor: 30 PSI
• Maximum Liter Flow of Compressor: ~ 8 Liters/Minute
• Average Flow Rate of Compressor: 3.4 Liters/Minute
• Compressor Weight: 0.93 Pounds
• Battery Weight: 0.4 Pounds
• Compressor Size:
• Length: 4.5 Inches
• Width: 3.5 Inches
• Height: 2.1 Inches
• Battery Size:
• Length: 4.5 Inches
• Width: 3.5 Inches
• Height: 0.8 Inches
• Electrical Requirements for Compressor: 12V DC, 1250 mA
• Electrical Requirements for Battery: 12V DC, 1700 mAh
