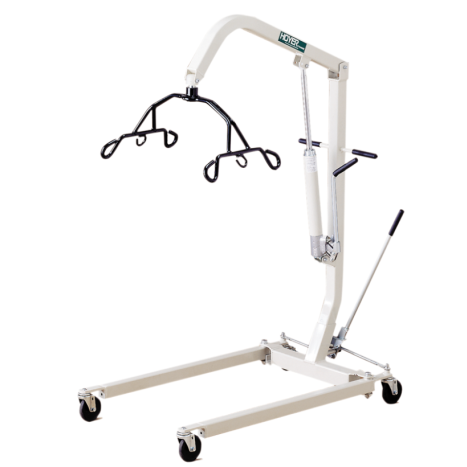

Hoyer® Manual Hydraulic Lift

Hoyer Manual Hydraulic Lift with 6 Point Cradle is constructed with patient comfort in mind by Joerns, a respected manufacturer of Patient Lift Help medical equipment. The angular design of the Hoyer Manual Lift comes with a non-sway cradle to provide for extra stability.

The Hoyer Manual Hydraulic Patient Lift with 6 point Cradle has a full travel height range, which allows lifting from the floor, and the easy-to-adjust base legs lock securely into position.

The Hoyer Manual Hydraulic Lift with 6 point Cradle disassembles for easy storage. It has a 440 pound weight capacity and an adjustable base, which allows the caregiver to position it around bedsides, commodes, and wheelchairs. The base fits under most homecare and hospital beds.

Hoyer also manufactures an assortment of Lift Slings for Hoyer Lifts. 6 Point Hoyer Slings can be viewed at Hoyer Professional Slings and Hoyer Single Patient Disposable Slings are also available.

Hoyer Manual Hydraulic Patient Lift Features & Benefits

• Contemporary painted design.
• Ergonomically placed hydraulic pump handle is easy to use.
• Pump handle rotates, allowing operation from either side of lifter.
• Adjustable U-legs for easier seating or toileting.
• Disassembles for easy storage.
• 400 pound resident capacity.

Hoyer Manual Hydraulic Patient Lift Specifications

• Width Range: 24 - 40.5 Inches
• Length: 43 Inches
• Height: 24 - 42 Inches
• Ground Clearance: 4.7 Inches
• Weight: 136.4 Pounds
• Safe Workig Load: 440 pounds
• Hoyer Manual Lift Warranty: 2 Years on Parts - Limited.

Hoyer Lift Comparison Chart

Hoyer Lift Features	Manual Hoyer Lift	Advance Manual Hoyer Lift	Advance Electric Hoyer Lift	Presence Hoyer Lift	Elevate Hoyer Lift	Stature Hoyer Lift
Width (max / min inches)	40.5 / 24	39.4 / 21.7	39.4 / 21.7	40.1 / 26.4	39.1 / 24.8	53.5 / 29.9
Length (max / min inches)	NA	66.5 / 17.7	66.5 / 17.7	57.5 / 55.1	43.3 / 41	54.7 / 50.8
Height (max / min inches)	NA	25.6 / 13.8	25.6 / 13.8	81.3 / 57.5	65.5 / 48.4	83.8 / 76.6
Weight (pounds - lbs.)	NA	@ 65	69.7	88	136.4	162
Top Features	low price	portablity folding - storage weight capacity	portability folding - storage weight capacity	weight capacity	compact	lifting range weight capacity
Working Weight (maximum safe lbs.)	400	341	341	500	440	500
Battery volts / ampere	none	none	24V / 3.2A	24V / 3.2 A	24V / 3.2A	24V / 3.2A
Turning Radius	NA	55.9	55.9	64.2	48.2	61
Warranty	limited 1 yrs.	limited 2 yrs.	limited 2 yrs.	limited 2 yrs.	limited 2 yrs.	limited 2 yrs.
Price	$982.80	$1,244.70	$2,357.10	$4720.95	$5,258.25	$5,555.25
