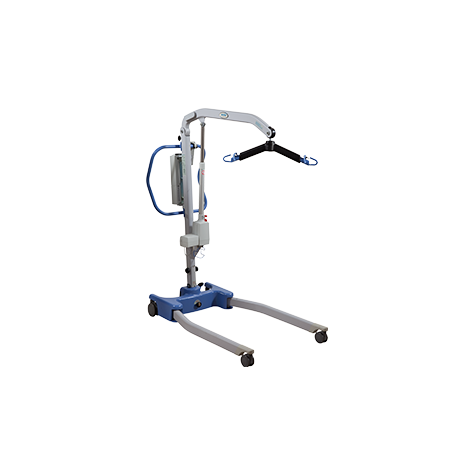

Hoyer Advance Professional Manual Patient Lift

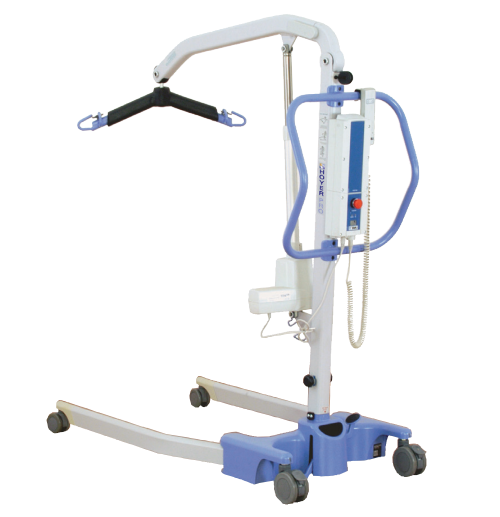

Hoyer Advance Professional Patient Lift is a Lightweight Patient Lift that is powerful and portable. Manufactured by Joerns, this Portable Hoyer Lift comes in two options--as either a Manual-Hydraulic Patient Lift or as a Battery Powered Electric Lift, the superior design of the Hoyer Advance Lift makes it a portable, versatile, and hard-working patient lift a true step forward in both design and performance. The Advance's unique Swan neck leg design allows the lift to get close to wide obstacles. The Swan neck design also ensures that the patient feels safe and secure during the transfer. By using the very latest design and manufacturing technologies, Hoyer ensures that the Advance is the most functional and stylish lift in its class today.

Hoyer Advance Professional Patient Lift is available in both a Manual Lift and a Electric Lift -

Manual Lift:
On the manual version the pump is very easy to use and does not take a lot of muscle. The hydraulic pump is smooth, easy to operate and lowers the patient smoothly.

Powered Lift:
The power version has a nice coiled cord to the hand control and uses a rechargeable battery. The Advance Electric Hoyer Lift comes with one battery and the charger is built-in. Plug it in anytime to recharge.

The Advance Hoyer Lift is compact with a narrow base width of 22" so it will fit through most doorways. Despite the advanced compact design, the Hoyer Advance Professional Patient Lift is able to perform an outstandingly wide range of transfers, such as toileting, standing, and point-to-point transfers. The Hoyer Advance is nimble and highly maneuverable. This is a great advantage in environments where space and storage are at a premium.

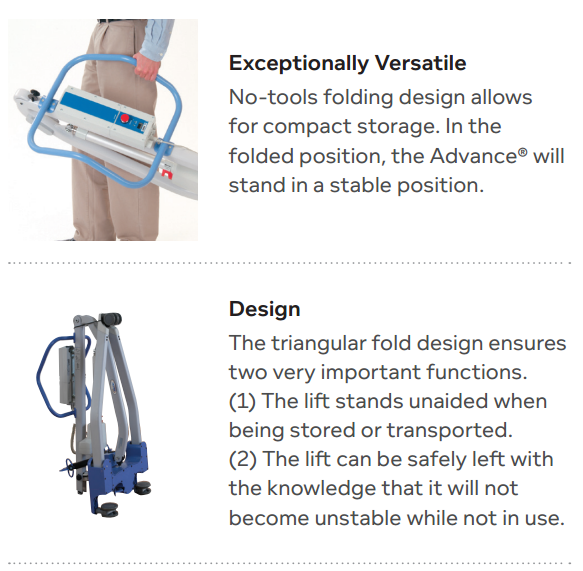

The Advance Hoyer Portable Lift is also a Folding Lift. This patient lift can be folded, or separated for transportation. The Hoyer Advance Lift doesn't require any tools or special attachments to achieve its compact/folded position or to set it up in the new location.

Advance Hoyer Lift Specifications (Imperial / Metric)
Safe Working Load..................................... 341 lbs...........155 kg
Maximum Overall Length.............................. 51.2"...... 1300 mm
Minimum Overall Length............................... 49.2"...... 1250 mm
Maximum Overall Height............................... 73.2"...... 1860 mm
Minimum Overall Height................................ 53.5"...... 1360 mm

Folded Dimensions (Imperial / Metric)
Height............................................................ 17.7"........ 450 mm
Depth............................................................. 46.5".......1180 mm
Width............................................................. 21.7"........ 550 mm
Spreader Bar Max. Height ............................ 66.5"...... 1690 mm
Spreader Bar Min. Height (usable) ............... 15.4"........ 390 mm
Height at Maximum Reach ........................... 46.1".......1170 mm
Reach at Maximum Height ........................... 25.6"........ 650 mm
Reach at Minimum Height ............................ 13.8"........ 350 mm
Maximum Reach* ......................................... 32.9"........ 835 mm
Turning Radius ............................................. 55.9"...... 1420 mm
Legs Open - Internal Width .......................... 39.4"...... 1000 mm
Legs Closed - External Width ....................... 26.4"........ 670 mm
Overall Height of Legs .................................... 4.5".........115 mm
Ground Clearance .......................................... 1.2".......... 30 mm
Front Twin Casters ......................................... 3.0".......... 75 mm
Rear Braked Casters ...................................... 4.0"........ 100 mm

* Reach = center of spreader bar to the front of the mast.

Weights (Imperial / Metric)
Total .......................................................... 69.7 lbs..........31.7 kg

Electric Shock Protection
Charger – Class II
Lift – Internal power source.

Degree of Shock Protection
Charger – Type B.
Lift – Type B.
Intended operating environment: >+5˚C <+40˚C - Outside this environment functionality and safety may be compromised.

Electrical Specifications
Battery – 24vDC rechargeable sealed lead acid type.
Battery capacity – 3.2A Ampere hours.
Charger rated input – 100-240V AC 24 VDC 50/60Hz.
Charger rated output – 29.5 VDC, Max. 19 W.

Hoyer Advance Lift Warranty: 2 Years on Parts - Limited.

Hoyer Lift Comparison Chart

Hoyer Lift Features	Manual Hoyer Lift	Advance Manual Hoyer Lift	Advance Electric Hoyer Lift	Presence Hoyer Lift	Elevate Hoyer Lift	Stature Hoyer Lift
Width (max / min inches)	40.5 / 24	39.4 / 21.7	39.4 / 21.7	40.1 / 26.4	39.1 / 24.8	53.5 / 29.9
Length (max / min inches)	NA	66.5 / 17.7	66.5 / 17.7	57.5 / 55.1	43.3 / 41	54.7 / 50.8
Height (max / min inches)	NA	25.6 / 13.8	25.6 / 13.8	81.3 / 57.5	65.5 / 48.4	83.8 / 76.6
Weight (pounds - lbs.)	NA	@ 65	69.7	88	136.4	162
Top Features	low price	portablity folding - storage weight capacity	portability folding - storage weight capacity	weight capacity	compact	lifting range weight capacity
Working Weight (maximum safe lbs.)	400	341	341	500	440	500
Battery volts / ampere	none	none	24V / 3.2A	24V / 3.2 A	24V / 3.2A	24V / 3.2A
Turning Radius	NA	55.9	55.9	64.2	48.2	61
Warranty	limited 1 yrs.	limited 2 yrs.	limited 2 yrs.	limited 2 yrs.	limited 2 yrs.	limited 2 yrs.
Price	$982.80	$1,244.70	$2,357.10	$4720.95	$5,258.25	$5,555.25
