GATEWAY 3G Solid Surface Portable Ramp Kits

EZ-ACCESS - Authorized Distributor
  • Fast Delivery
  • Easy Returns
$297.99
In stock
MPN :
Gateway3G
Without Rails Solid Metal Surface with Two-Line Handrail Solid Ramp Surface with Vertical Picket Handrail Ramp w/o Rails Without Rails Left Ramp with TLE Two-Line Handrail Front Two-Line Handrail Profile Two-Line Handrail Right Front Two-Line Handrail Parts Two-Line Handrail End Loops Vertical Picket Front Vertical Picket Profile Gateway3G 2-Line Closeup Vertical Picket Parts Vertical Picket Handrail Options Ramp Only Ramp with 2-Line Handrails Vertical Picket with End Loops Dimensions - Without Rails Dimensions - Two-Line Handrail Dimensions - Vertical Picket Surface Ramp Incline Ramp Types Weight Capacity 1000 lbs. Solid Metal Surface with Texture Two-Line Hand Rail Residential Wheelchair Ramp Scooter Ramp Built-in Transition Plate Closeup Ramp with Two-Line Rail Two-Line Rail with Loops Two-Line Rail Residential Use Vertical Picket Closeup Lifetime Warranty Made In USA Product Logotype EZ-ACCESS Logo Product Overview - GATEWAYâ„¢ 3G Solid Surface Portable Ramp | EZ-ACCESS

Description

How To Select the Right Modular Ramp Kit

SizesWheelchair Ramp Rise/Length Ratio Chart



Step 1: Select Ramp Length

First, select the length of the ramp that you will need. According to the Americans with Disabilities Act (ADA), the ramp length standard is a 1:12 ratio or a 4.8-degree slope. This ratio means that for every inch of elevation, you need 12 inches or 1 foot of ramp length. Therefore, a rise of 6 inches from the sidewalk to the entrance requires a ramp length of 6 feet. A rise of 10 inches requires a ramp length of 10 feet. Some local ordinances or city codes may require different specifications, so be sure to check for the correct local standards.

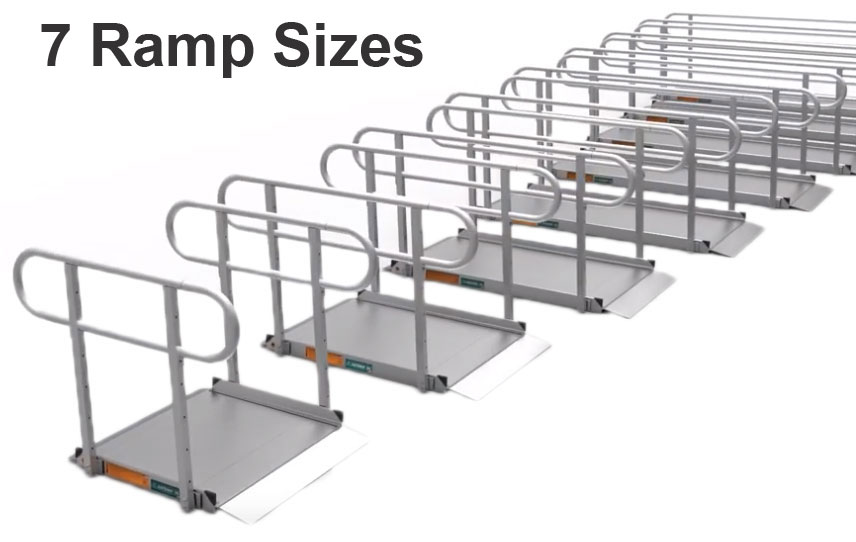

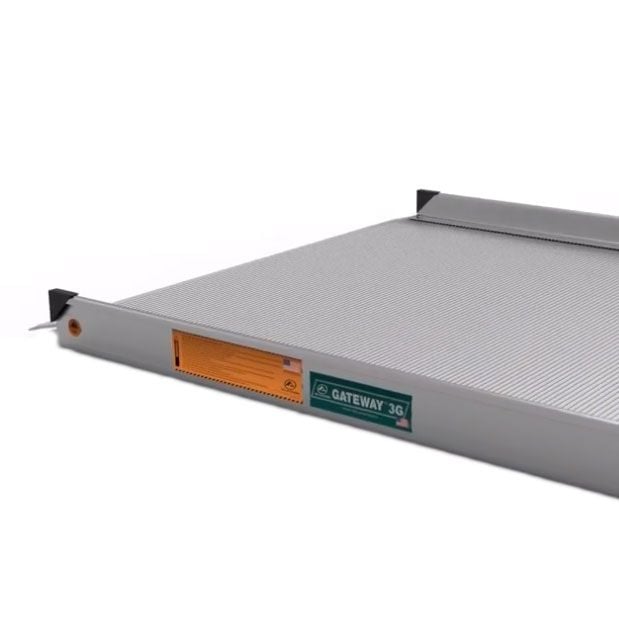

Gateway 3G Ramp lengths are selectable in 1-foot increments from 3 to 10 feet. Each ramp comes with an attached transition plate on each end that is adjustable to fit the adjacent surface. A raised safety edge on each side of the ramp helps to keep wheelchairs and scooters from veering off of the ramp. Add optional handrails for additional safety. (See below for handrail information.)



Step 2: Select Handrail Type

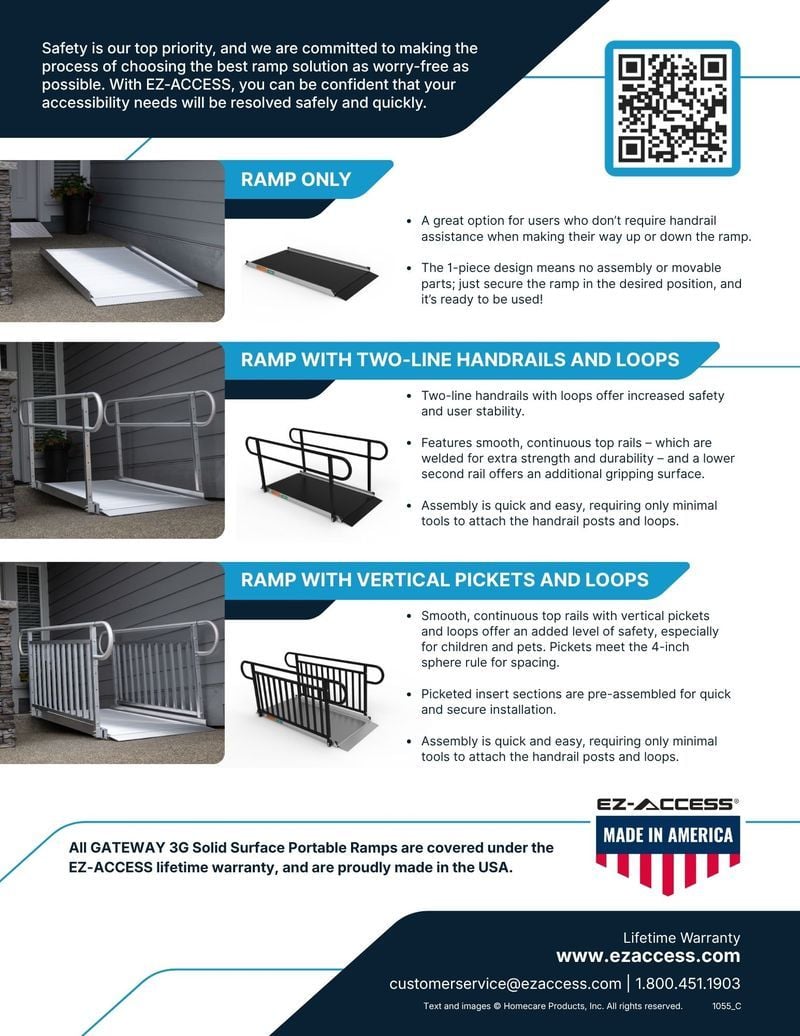

On Step 2, there are three options. Select between No Handrail, Two-Line, or Vertical Picket Handrail.

  • The No Handrail option is only viable for short ramp lengths and for users who do not need to use handrail assistance.

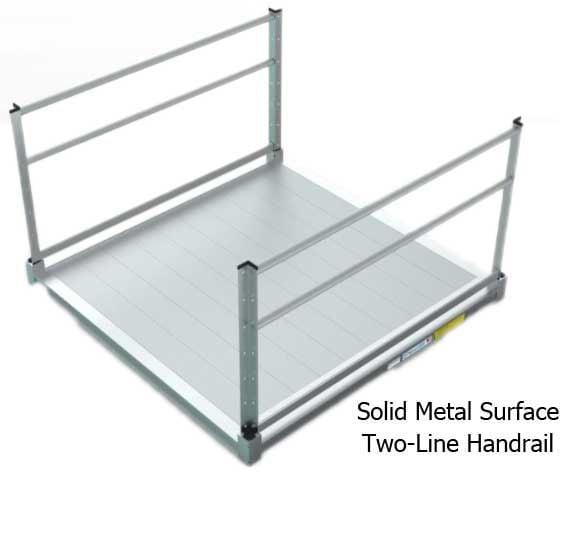

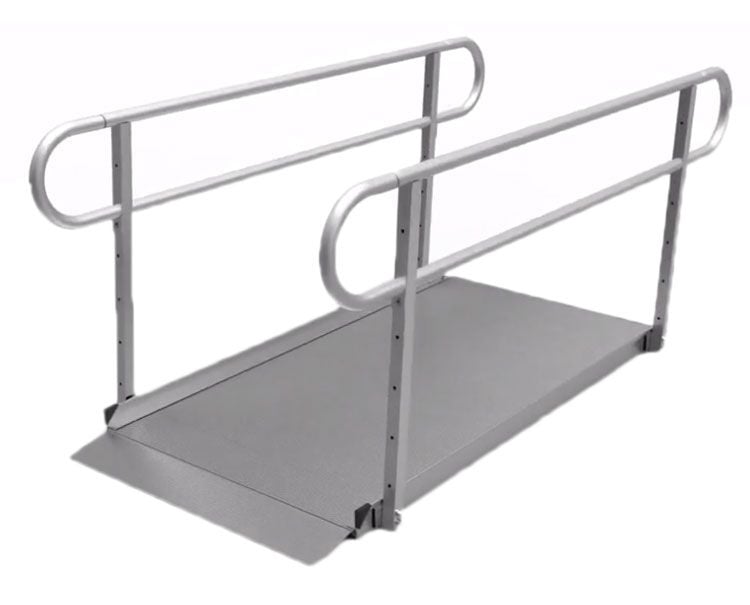

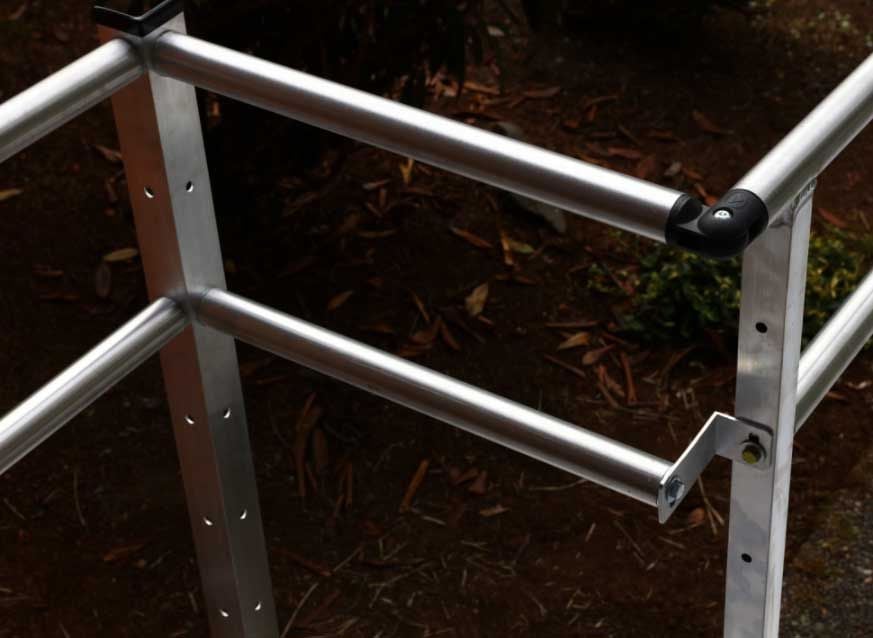

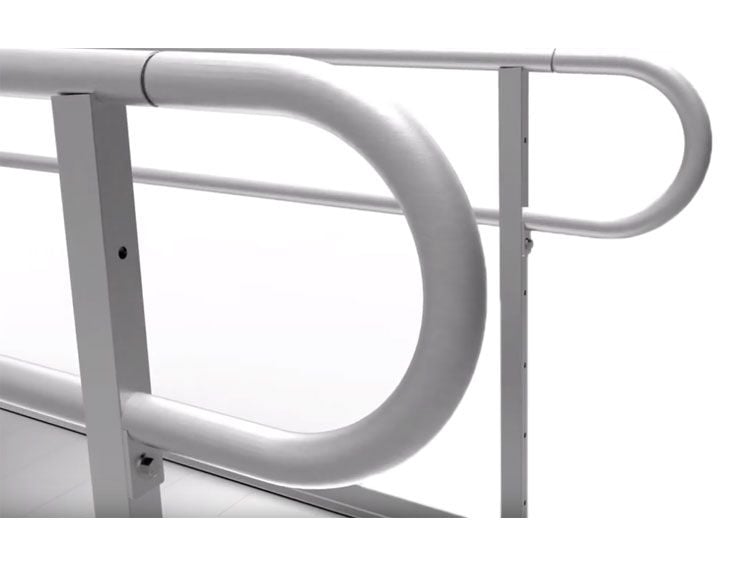

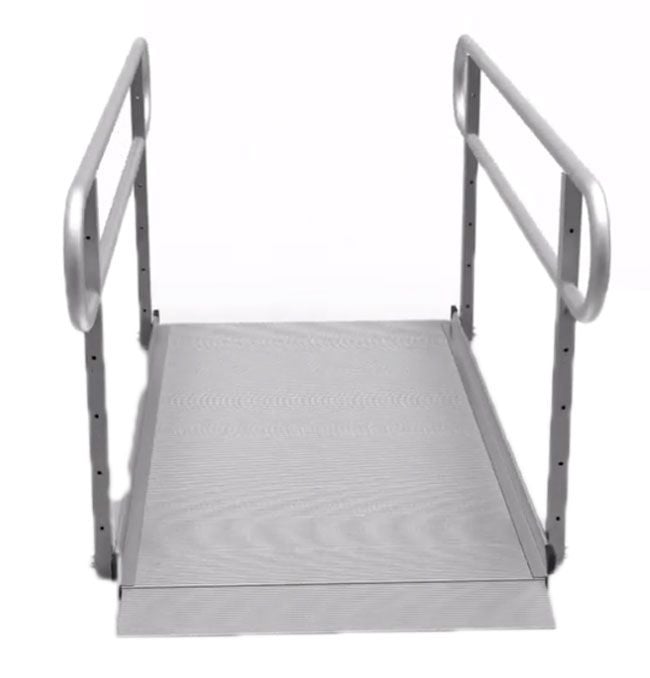

  • The Two-Line Handrail offers two horizontal safety bars that are 10.5 inches apart. The upper handrail is 34.5 inches high from the deck of the ramp. It provides safety by keeping the wheelchair or scooter and the mobility patient within the confines of the ramp. It also offers stability as a handrail for non-wheelchair users of the ramp. This option is less expensive than the Vertical Picket Handrail option described below.

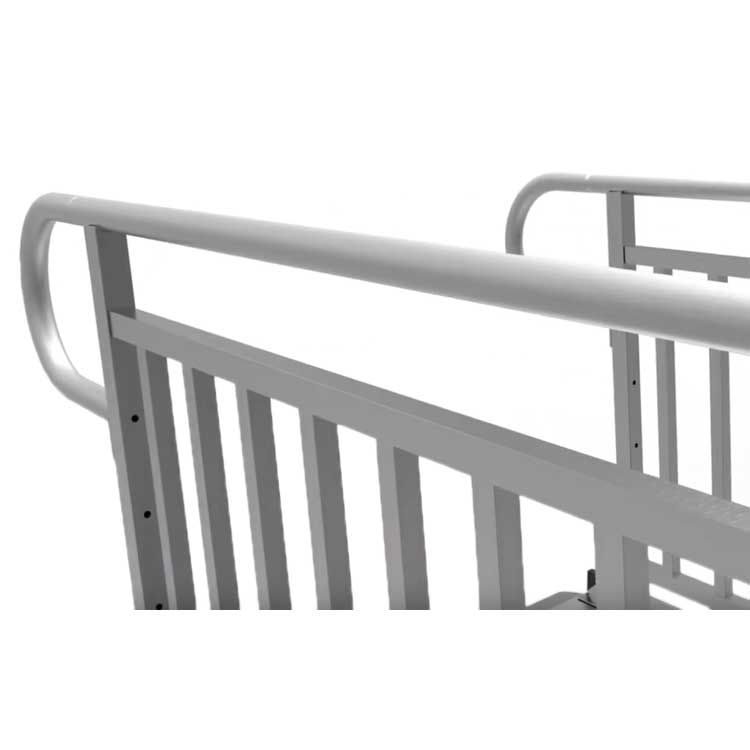

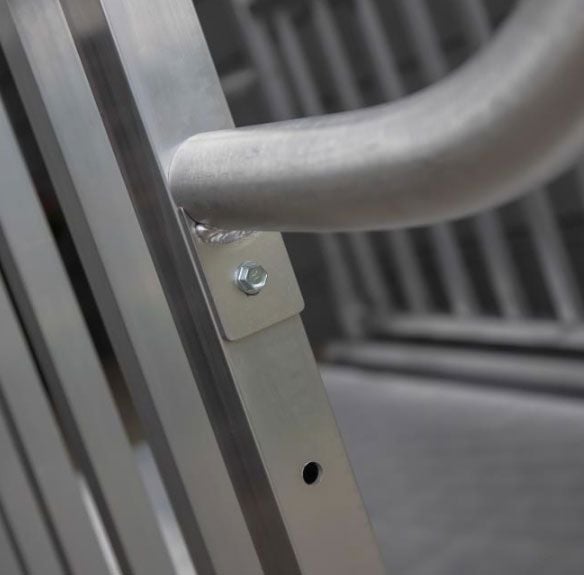

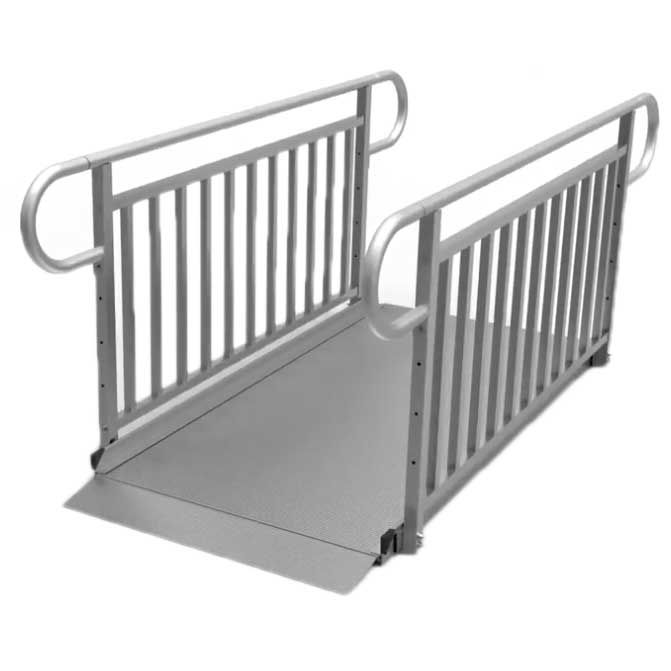

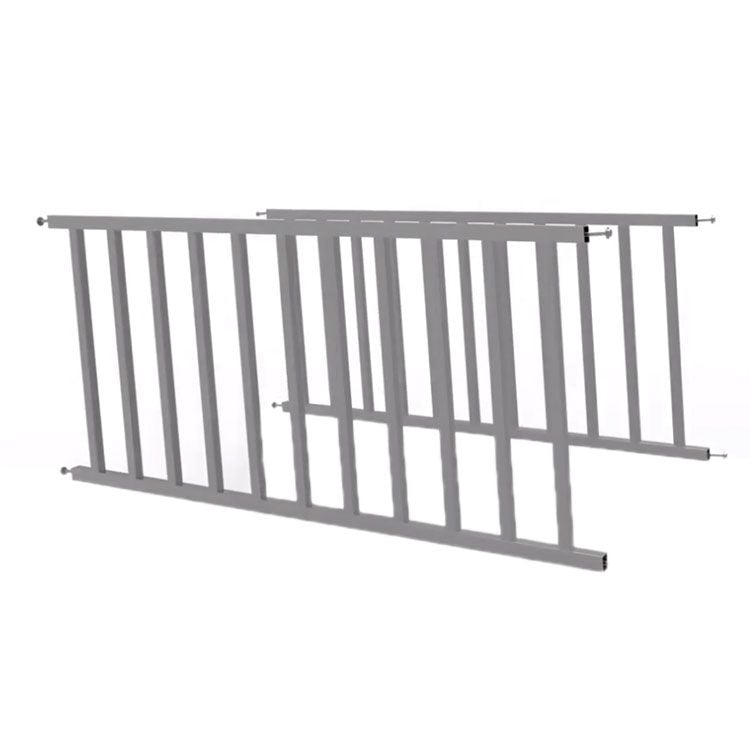

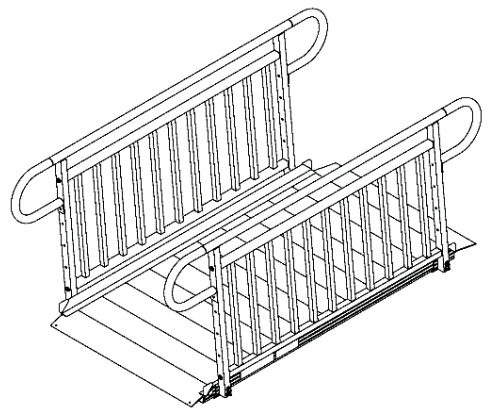

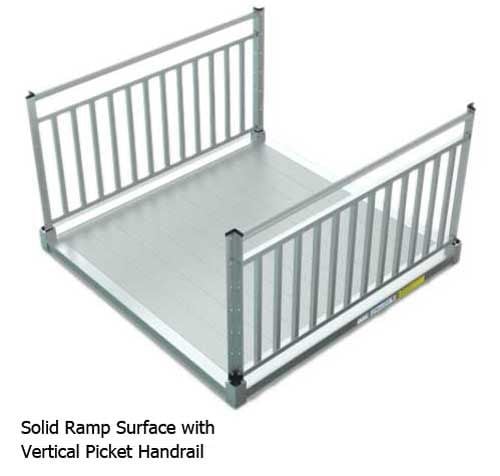

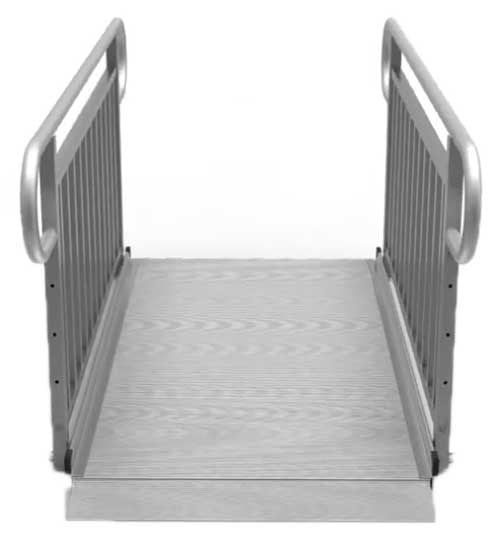

  • The Vertical Picket Handrail offers an upscale appearance with a "picket-fence" style. Pickets are spaced every 4 inches and provide an added level of safety for small children and pets.

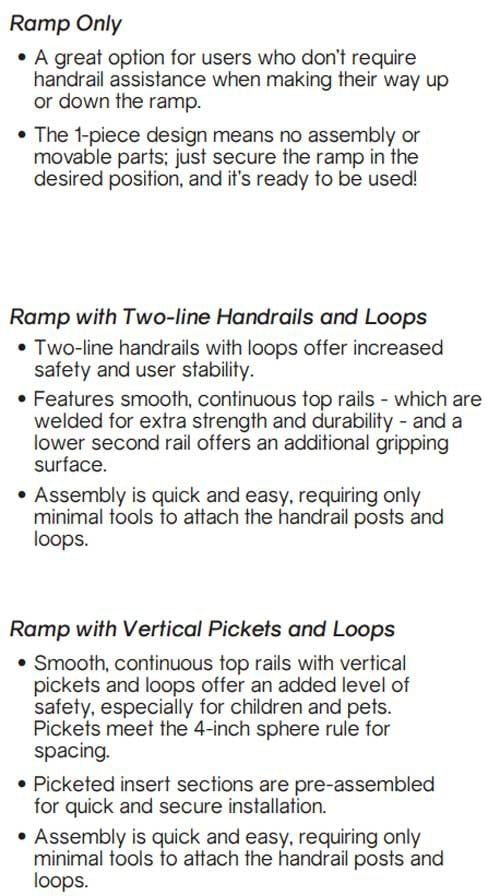

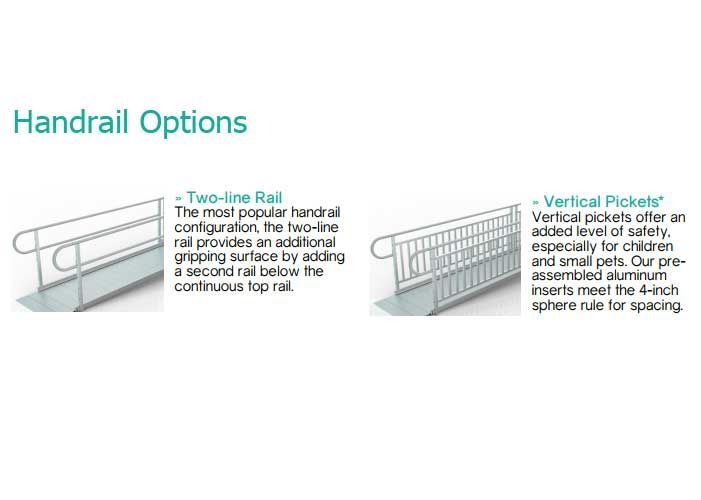

Handrail Options

What Are Gateway Modular Ramps?

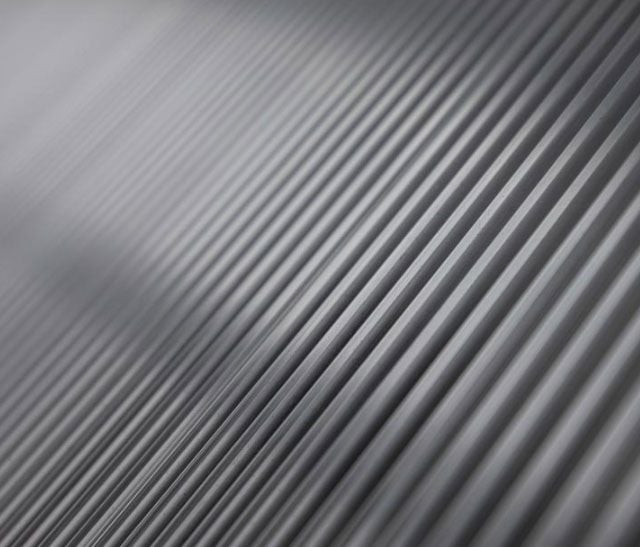

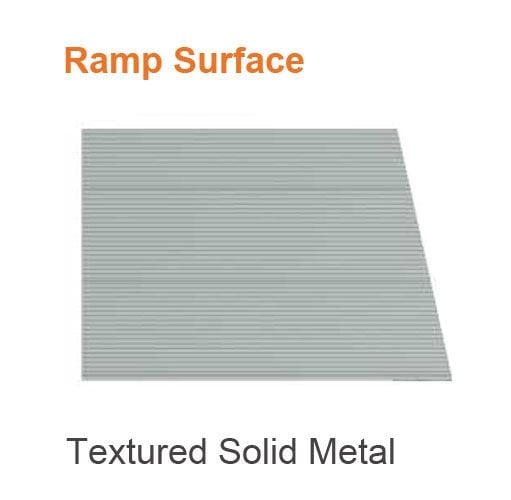

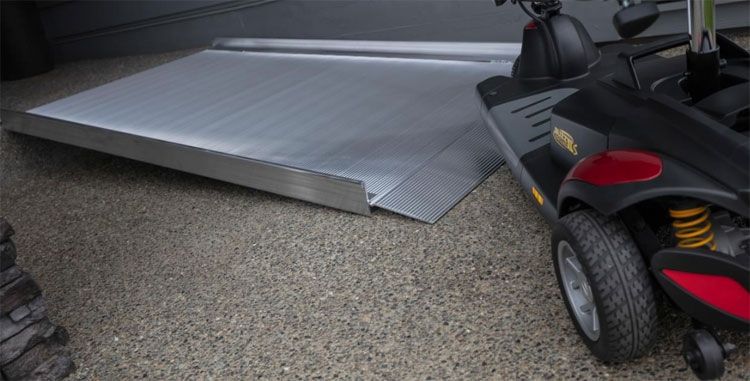

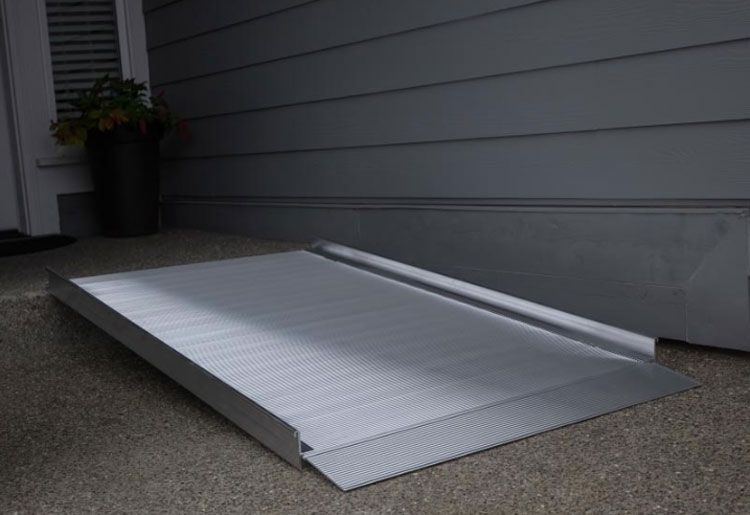

EZ-ACCESS Gateway Wheelchair Ramps are durable scooter ramps for mobility patients. The surface of the ramp is solid metal with an extruded slip-resistant surface to reduce risks. Gateway ramps are lightweight and portable, allowing them to be used for temporary access or as semi-permanent home access. That means when you move from one home to another, your ramp can go with you. All-metal construction offers strength, supporting up to 1,000 pounds. These ramps withstand outdoor weather and seasonal changes. They last for life and come with a lifetime warranty.

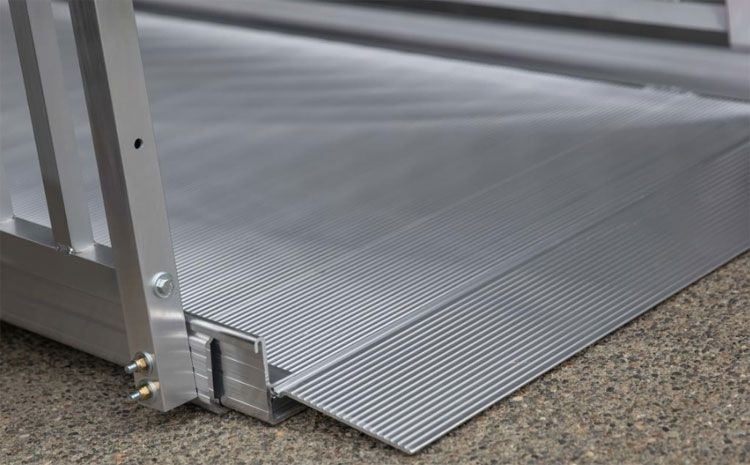

The ramp's design supports scooters, wheelchairs, or walkers. The ramp utilizes a one-piece design, so there is no assembly or seams. If you select handrails, they are pre-assembled and attached to the ramp with minimal tools. Ground transitioning plates on both ends of the ramp make it easy to roll on and roll off. These plates automatically adjust to the angle of the adjacent surface. The manufacturer, EZ-ACCESS, makes this product in the USA.

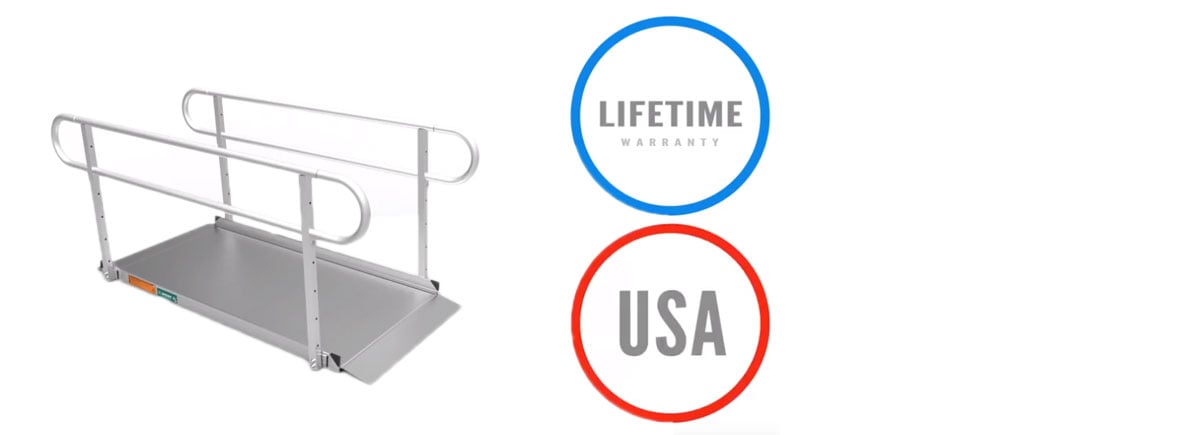

Made in the USA



Gateway 3G Ramps offer quick and easy installation and removal. They have a weight capacity of 1,000 pounds to support most wheelchairs and scooters, and they meet all ADA specifications.

Vitality Medical carries many wheelchair ramps from EZ-ACCESS, including Pathway Ramps, Transition Modular Entry Ramps, Trifold Ramp, and the Portable Suitcase Ramp.



Kit Components

  • Ramp
  • Attached Upper Transition
  • Attached Ground Transition
  • Optional Handrails



Product Features and Benefits

  • Ramps Employ a One-Piece Design
  • Wheelchair Ramp That Also Supports Scooters
  • Portable for Transferring From Home to Home
  • Lightweight Design
  • No Hazardous Nuts or Bolts Are Protruding Into Usable Ramp Area
  • Easy Installation
  • Ramps and Handrails Are Pre-Assembled
  • Heavy Duty Aluminum Construction
  • Requires Minimal Tools if Installing Handrails
  • Architecturally Designed for a Clean and Modern Appearance
  • Low Maintenance
  • More Durable Than Wood
  • No Painting or Sealing Required
  • Permanent or Semi-Permanent Installation
  • Will Not Warp, Corrode, or Peel
  • Will Not Rust, Mold, or Rot
  • Slip-Resistant Surface
  • Lifetime Warranty



Gateway 3G Highlights

Highlights



Product Specifications

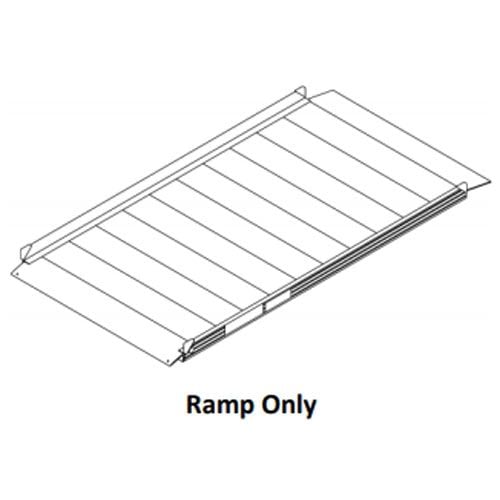

Ramp Only Specifications

  • Width: 36 Inches
  • Lengths: 3, 4, 5, 6, 7, 8, 9, or 10 Foot
  • Weight (Approximate): Solid Surface - 6 to 8 Pounds per Foot

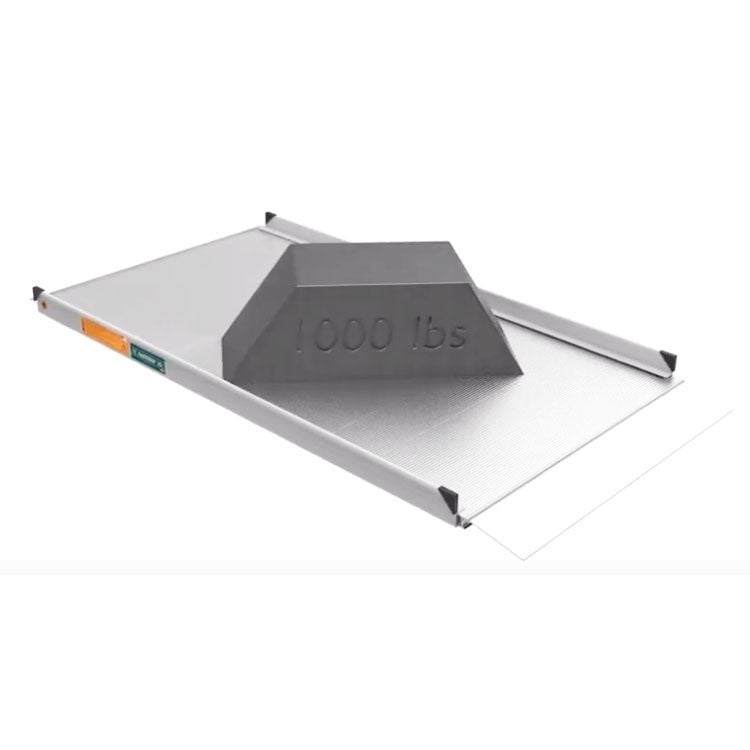

  • Weight Capacity: Ramps - 1,000 Pounds
  • Material: Aluminum
  • ADA-Compliant
  • Manufactured in the USA
  • Lifetime Warranty
  • Manufacturer: EZ-ACCESS
  • Brand: Gateway 3G

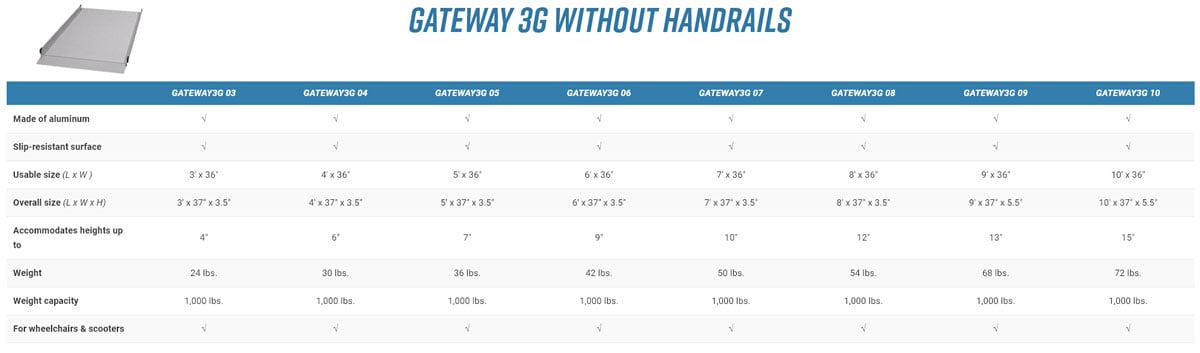

Dimensions w/o Handrails

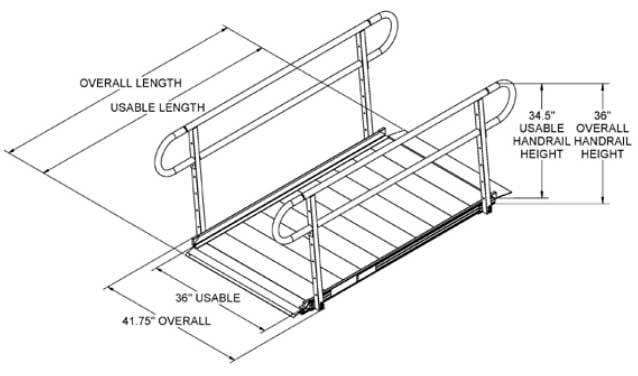

Ramp with Two-Line Handrail Specifications

  • Handrail Diameter: 1.5 Inches
  • Lower Handrail Height: 24 Inches
  • Upper Handrail Height: 34.5 Inches
  • Weight: 44, 52, 60, 68, 74, 82, 96, 106 Pounds Depending upon Length





Dimensions w 2-Line Handrails

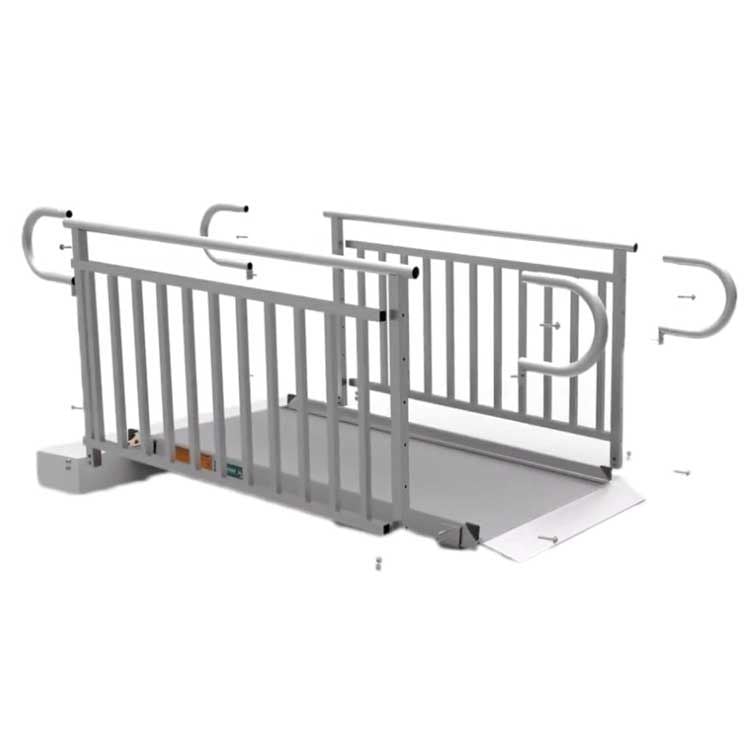

Ramp with Vertical Picket Handrail Specifications

  • Handrail Diameter: 1.5 Inches
  • Lower Handrail Height: 24 Inches
  • Upper Handrail Height: 34.5 Inches
  • Weight: 46, 58, 68, 78, 90, 98, 118, 128 Pounds Depending upon Length



Dimensions w/ Vertical Picket Handrails





Manuals and Documents

PDF Logo    Instruction Manual contains product styles and components and setup information.

Product Video



Product Overview- GATEWAY 3G Video (3:32 minutes)






Additional Information

More Information
Manufacturer EZ-ACCESS
