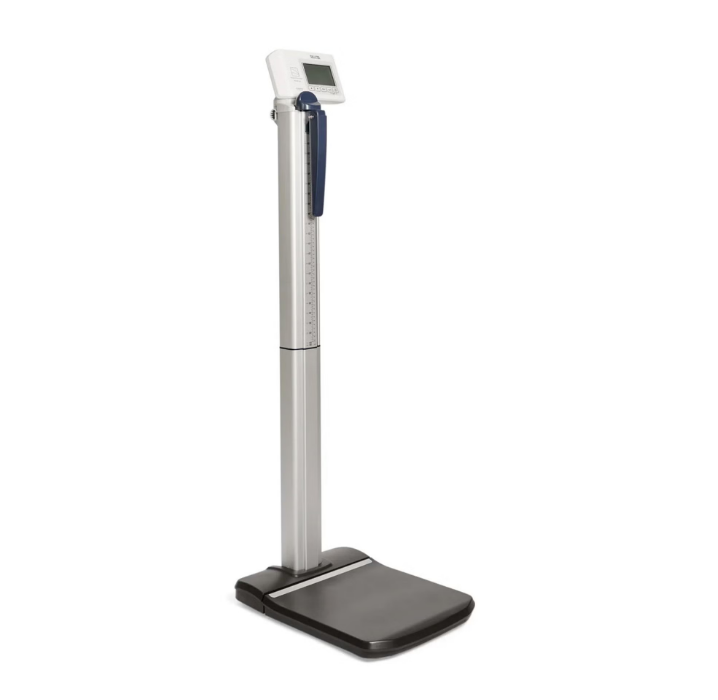

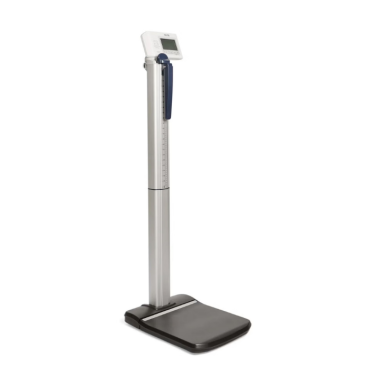

TANITA WB-800H Plus Digital Weight Scale With Height Rod

The TANITA WB800H Plus is a column scale that combines high-capacity digital weighing, height measurement, and BMI calculation in one professional station. It has a 660 lb weight capacity and is designed for clinics, medical practices, gyms, and health assessment facilities.

An integrated mechanical height rod measures the height of pediatric or adult users. A large digital display is mounted to a column and rotates 90 degrees. Casters on the bottom of the scale make it easier to move.

This is not a wheelchair scale. Users must be able to stand on their own or with assistance.

Features and Benefits

• X-Large touchscreen LCD is easily readable
• Stadiometer measures adult and pediatric heights
• Casters facilitate transportation
• RS-232 and USB outputs are compatible with TANITA HealthWare Software (sold separately)

Measurements

• Weight
• Height
• Body mass index (requires manual height data input)

Maintenance and Safety Information

Routine Maintenance Checks

Daily

• Scale is on a flat, sturdy surface that is not thick carpet

Weekly

• Display, cables, cords, or connector ends are not damaged, dirty, or contaminated
• Safety labels are clearly visible and legible
• Sensors, electrodes, and other accessories are free of wear or damage

Monthly

• Screws on scale are securely tightened

Temperature and Humidity Conditions

Use

• Temperature: 41-95 Degrees Fahrenheit (5-35 Degrees Celsius)
• Relative Humidity: 30-80% Without Condensation

Storage

• Temperature: 14-122 Degrees Fahrenheit (-10-50 Degrees Celsius)
• Relative Humidity: 10-90% Without Condensation

Do not store the scale in areas with

• Direct sunlight
• Fluctuating temperatures
• Water or moisture
• Dust
• Close proximity to fire
• Flammable gas
• High amounts of concentrated oxygen

Warnings

• Do not touch the power plug with wet hands
• Do not modify equipment
• Do not use double adapters
• Do not jump on the scale
• Do not lean or put pressure on the display
• Disinfect the scale after every use
• Always help scale users with disabilities
• Always check equipment for any needed repairs
• Always unplug the scale from power sources for transportation or storage
• Always place the scale on a flat surface for weighing
• Keep fingers away from holes or gaps

Specifications

• Manufacturer: TANITA
• Product Number: WB-800H PLUS
• Application: Digital Scale
• Display: Column-Mounted LCD With 90-Degree Rotation
• Power Source: AC Adapter (Included), Batteries (Not Included)
• Outputs: RS-232C, USB
• UNSPSC Code: 42182805

Dimensions

• Weight: 25 lbs
• Weight Capacity: 660 lbs (300 kg)
• Weighing Increments: 0.2 lbs (100g)
• Platform Length: 15.3 Inches
• Platform Width: 15.6 Inches
• Display Position: Approximately 45 Inches Above Floor
• Display Adjustment: 90-Degree Rotation

Manual
