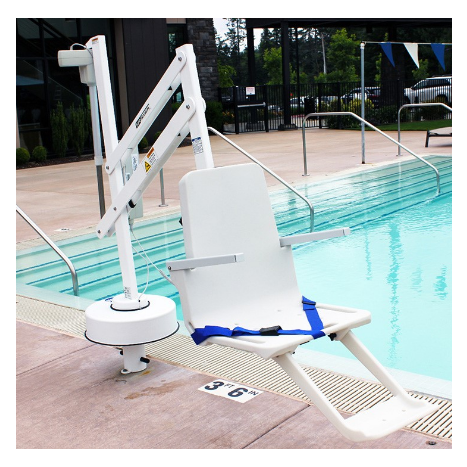

SR Smith Splash! 300 Hi/Lo Pool Lift

By SR Smith
Fast Shipping! Secure Shopping Easy Returns

    Availability: In stock

  • Dual Control
  • Safe Transfers
  • 359 Degree Rotation
  • 300 lb Lifting Capacity
  • Rechargeable Battery
Item# Description Size Price

Lift w/ Anchor




Lift w/ Anchor and Activation Key




Lift w/ Activation Key w/o Anchor




Lift w/o Anchor




Customers Also Bought



SR Smith Splash!™ 300 Hi/Lo Pool Lift provides safe access to a pool or spa for individuals with disabilities and mobility impairments. It is a variation of the original Splash! with a couple modifications with the addition of the Hi/Lo feature to accommodate both in-ground pools and raised spas. The Splash! 300 Series has a lower lifting capacity at 300 pounds but is easier to install because it doesn't require additional footings if mounted to a standard 4-inch deck floor.

SR Smith guarantees its pool lifts are third-party tested and verified to be compliant with the Americans with Disabilities Act. SR Smith is a leader in ADA compliant pool lifts with innovative designs to achieve safe lifts each and every time. Its 359 degree rotation does just that to offer universal access. All of the lifts use SR Smith's exclusive LiftOperator Intelligent Controller. The same buttons are found on the main control as well as the hand control with safety features and audible alerts. An optional Activation Key can be purchased and add security by preventing the lift from working without the key present.

The Splash! 300 series is semi-permanent and can be removed as needed or for end of season storage. You may also want to check out other Splash! Accessories with cover and transport caddy options.

Splash!™ Lift Includes:

  • LiftOperator Intelligent Control
  • Water-Resistant Hand Control with Cover
  • Rechargeable Battery
  • Battery Charger
  • Stainless Steel Anchor Socket with Cover
  • Footrest and Armrests
  • Secure Seat Belt Assembly


  • Semi-Permanent Design
  • Versatile Lifting
  • Easier Installation
  • Battery Operated Controls
  • Supports up to 300 Pounds
  • Safe Design
  • Created Inclusion
  • High Degree of Rotation
Manuals and Documents

Product Videos


Splash! Pool Lift Basic Troubleshooting Video (3:28 minutes)



Additional Information

Additional Information

  • Overall Height
    66.25 Inch
  • Base Dimension
    19.25 Inch
  • Total Weight
    160 lbs
  • Overall Length Fully Extended w/ Footrest
    90 Inch
  • Overall Length Fully Retracted w/ Footrest
    68.75 Inch
  • Overall Length in Stored Position, No Footrest
    40 Inch
  • Power
    24V DC
  • Battery Life (Charged)
    30 Cycles
  • Lifting Capacity
    400 lbs
  • Vertical Anchor Reaction Load
    430 lb
  • Torque Anchor Reaction Load
    1280 ft lb
  • Seat Width
    23 Inch
Range of Motion
  • Lifting
    44 - 58 Inch travel from highest to lowest point
  • Rotation
    359 Degrees
  • Seat Depth
    18 - 20 Inch
Materials and Finish
  • Frame
    Powder Coated Stainless Steel
  • Housing
    Vacuum Formed ABS Plastic
  • Arms
    Powder Coated Aluminum
  • Mast
    Powder Coated Stainless Steel
  • Seat Assembly
    Rotomolded Plastic
  • Seat Assembly Frame
    Powder Coated Stainless Steel
  • Cover
    Urethane Coated Nylon
  • Lifting
    Screw Type Mechanical Actuator
  • Max. Thrust
    1680 lb
  • Voltage
    24V DC
  • Max. Amp
  • Max. Speed
    0.59 Inch
  • Frame
    5 Years
  • Electronic and Motor
    2 Years
  • Battery
    1 Year
  • Lighting
    3 Years
  • Fiber Optic
    1 Year
