SR Smith PAL - Portable Aquatic Lift

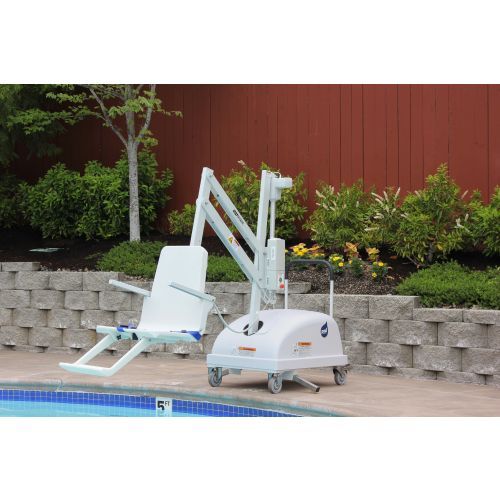

The PAL (Portable Aquatic Lift) from SR Smith is without a doubt the most convenient way to provide assistance with entering the pool for those with limited mobilities. Defined by its mobility, the PAL offers what very few pool lifts can, easy assist with a portable design. The same motors working the pool lifts from SR Smith's line, such as the stationary multiLift Pool Lift and aXs2 Pool Lift are the same ones working the PAL system. A sturdy base with keeps an even level to the ground, not tilting to an angle that can cause a serious injury. Weights are included. when assembling the pool lift, weights are provided along with purchase, there is no need to fill up with sand or water, the provided weights counteracts the weight of the person using it for a smooth transition into the water and has a lift capacity of up to 300 pounds, set into motion by the 24-volt battery. Rubber caster wheels are made of heavy-duty material, they will not budge, bend or break with multiple usages, they were made to last and stay tough. You have your freedom, offer the same opportunities to your family members or friends. Don't accept limitations on pool parties or family time because a family member cannot access the pool.

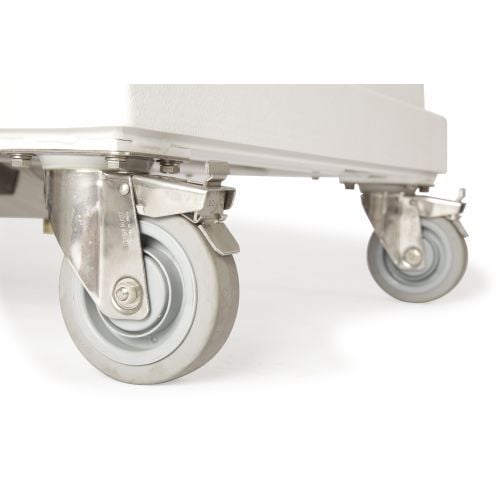

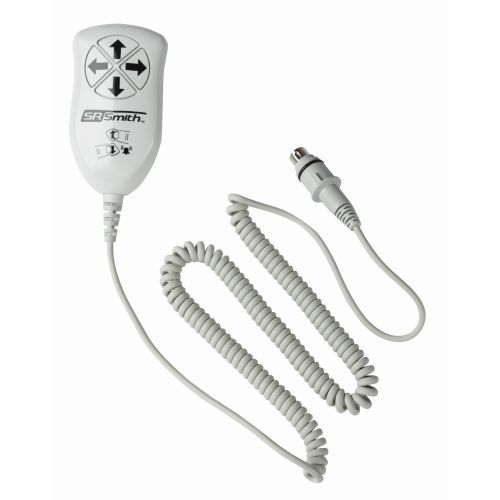

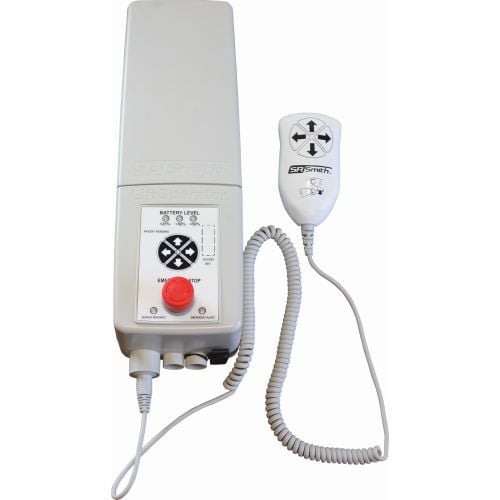

Safety is always important, the bottom of the base includes just that, safety. Provided with two stability legs in order to maintain a sturdy motion while transferring, combined with the locking mechanism of the caster wheels provides the most reliable, secured assistant in pool lifts out there. For key activation, you can choose to allow the PAL pool lift to be operated only if the key is inserted. Simple operating from the included LiftOperator has a 4 button control that maneuvers the pool lift in a left, right, up and down motion. Living alone does limit you to the experience of your pool. The extendable handset includes the same 4 button controls and has a sound alert function as well that can be used by pressing the Up and Down buttons at the same time in the case where assistance is needed. Not all pool lifts are created equal, and the PAL from SR Smith makes example of that statement by being portable, sturdy, and powerful. Adding more than just assistance, independence too.

All PAL Lifts Include

• Console/Battery Cover - Protects Battery and Control Unit from Exposure to Moisture
• Seat Belt Assembly - Nylon Water-Resistant Belt for Added Security
• Battery/Charger – 24-Volt Rechargeable Battery

Features

• ADA Compliant
• Rotate 240 Degrees Left to Right
• Stability Legs
• Caster Wheels
• 4 Button Function
• Powder Coated Finish
• Ability to be Anchored Down
• 300 Pound Capacity
• Adjustable Seat Height
• Activation Key
• Liftable Armrest
• Saftey Strap
• Footrest

Specifications

• Dimensions/Capacity
• Overall Height 66 Inches
• Base Dimensions:
• 22.5 Inches Height
• 37.5 Inches Length
• 27.5 Inches Width
• Overall Length with Footrest: 106 Inches, Fully Extended
• Overall Length without Footrest: 91 Inches, Fully Extended
• Overall Length of Stored position: 61 Inches, Fully Raised
• Total Weight: 1009 Pounds
• Power: 24-volt DC
• Battery Life (Charged): 30 Approximate Cycles
• Lifting Capacity: 300 Pounds
• Maximum Deck Slope: 2 Degrees
• Seat Width: 23 Inches
• Color: Gray Mist
• Product SKU: 200-0000, 200-0000K, 250-0000, 250-0000K, 275-0000, 275-0000K, 290-0000, 290-0000K

Warranty

• 5 Year Warranty on Frame (excludes powder coated finish)
• 2 Year Warranty on Electric and Motor Components (except batteries)
• 100 Percent Battery Coverage on First 90 Days
• 50 Percent of Battery Coverage Between day 91 and day 365
