SR Smith aXs2 Pool Lift

Click to Order By Phone
Fast Shipping! Secure Shopping Easy Returns

    Availability: In stock

  • Rechargeable
  • ADA Compliant
  • Intelligent Control
  • Electronics Console Cover Provided
  • Safer Transfers
Item# Description Size Price

Anchor w/ Cap




aXs2 with Anchor




aXs2 w/o Anchor




LiftOperator 4 Button, Replacement Kit w/o Battery




LiftOperator 4 Button Keyed Replacement Kit w/o Battery



Out of Stock
Anchor w/ Cap - Each
SKU: 300-6200L


aXs2 with Anchor - Each
SKU: 310-0000


aXs2 w/o Anchor - Each
SKU: 310-0000N


LiftOperator 4 Button, Replacement Kit w/o Battery - Each
SKU: 400-7000


LiftOperator 4 Button Keyed Replacement Kit w/o Battery - Each
SKU: 400-7000K


Out of Stock

Customers Also Bought

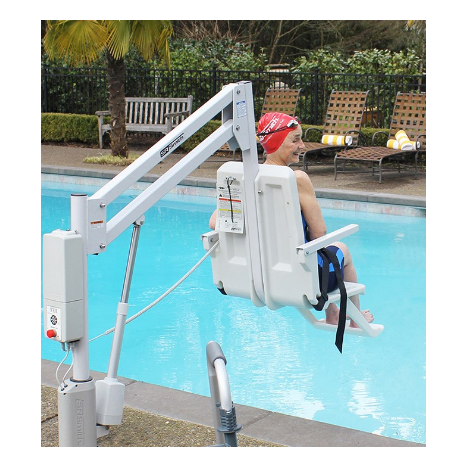

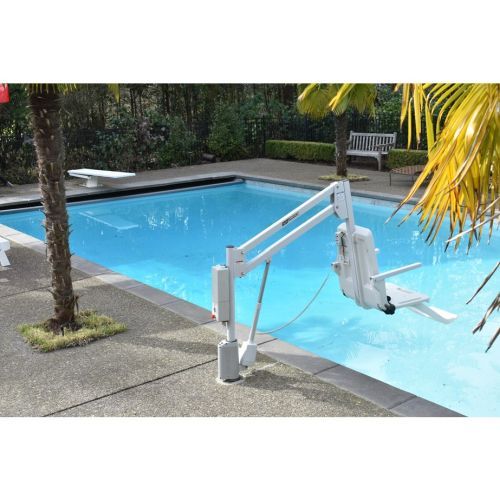

The aXs2 Pool Lift, by S. R. Smith, offers a smaller footprint compared to other pool lift models. Its compact arm design requires less deck space making it ideal for community pools or hotel pools. The pool lift is certified to be ADA compliant. Choose from two aXs2 options that differ by purchasing the lift with or without a locking anchor. It's made with durable, weather-resistant stainless steel and aluminum and then powder-coated in gray mist finish that adds a clean and non-intrusive aesthetic to any pool.

The zXs2 features a sturdy lifting arm that rotates 360 degrees and will support up to 300 pound lifting capacity. This rotation promotes safe transfers in conjunction with a wide rotomolded seat with integrated armrests and seat belt assembly. It's simple to maneuver using the handset and control box LiftOperator Intelligent Controller. The system also comes with a rechargeable 24V battery.

Individuals with limited mobility may also like to access the pool in a Pool Access Chair when a pool ramp is available.

aXs2 Lift Includes

  • Lift-Operator
  • Deck Anchor and Cap 310-0000 Model
  • 24 V Battery
  • Battery Charger
  • Seat Belt Assembly
  • Electronics Console Cover


  • Safe Pool Entry and Exit
  • Intelligent Control System
  • Comfortable, Rotomolded Seat
  • High Degree of Rotation
  • ADA Compliant
  • Small Footprint
Manuals and Documents

Product Videos


aXs Pool Lift Basic Troubleshooting Video (3:28 minutes)



Additional Information

Additional Information

  • Mast Height
    45.1 Inch
  • Height-Arm Raised
    63.2 Inch
  • Seat Width
    23 Inch
  • Overall Length-Extended
    75.9 Inch
  • Storage Length-w/o Chair
    47 Inch
  • Unit Weight
    120 lbs
  • Unit Weight-w/o Chair
    106 lbs
  • Power
    24v DC Battery
  • Noise Level
    Below 70 dB(A)
  • Battery Life
    30 Cycles
  • Lifting Capacity
    300 lbs
  • Anchor Reaction Load-Vertical
    420 lbs
  • Anchor Reaction Load-Moment
    340 lbs
Range of Motion
  • Vertical Travel
    46 Inch
  • Rotation
    360 Degrees Continuous
  • Widest Arc- w/ Chair & Footrest
    76 Inch
  • Narrowest Arc- w/ CHair & Footrest
    63.5 Inch
Materials and Finish
  • Frame
    Powder Coated Stainless Steel
  • Motor Enclosure
    Vacuum Formed ABS Plastic
  • Actuator Arm
    Powder Coated Stainless Steel
  • Support Arm
    Powder Coated Stainless Steel
  • Mast
    Powder Coated Stainless Steel
  • Seat and Footrest
    Rotomolded Plastic
  • Cover
    Urethane Coated Nylon
  • Frame
    5 Years
  • Electronic and Motor
    2 Years
  • Battery
    1 Year
  • Lighting
    3 Years
  • Fiber Optic
    1 Year
