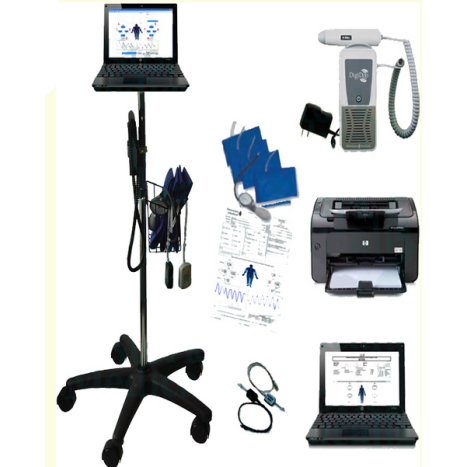

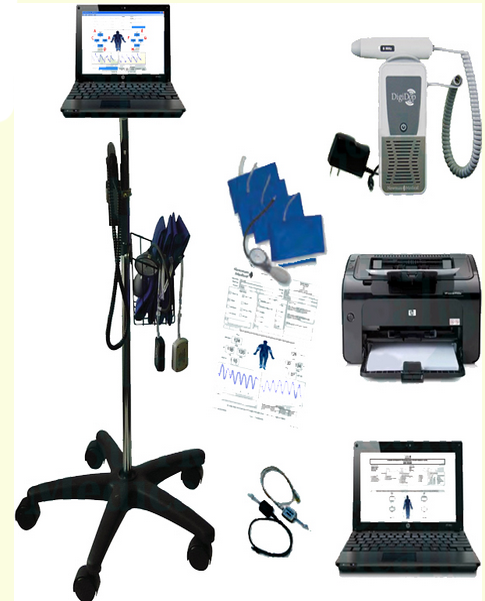

Simple ABI Kit with Manual Cuffs, manufactured by Newman Medical, is an ankle-brachial index (ABI) and vascular testing diagnostic system designed for single level ABI and toe-brachial index (TBI) studies in clinics and vascular labs. The system uses simpleABI software that can be updated to reflect current ICD coding and coverage policies, helping practices keep studies aligned with documentation requirements.

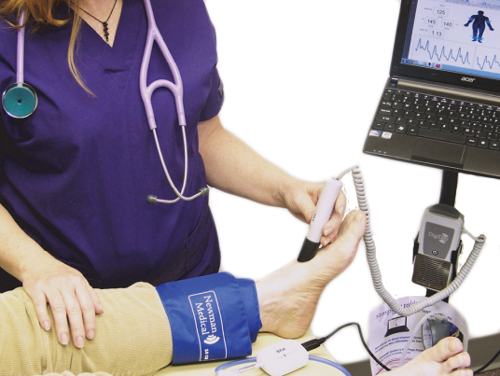

The manual simpleABI system uses a handheld arterial Doppler, manual cuffs, and PC-based software to guide single level ABI and TBI testing from one cart or exam room. The system supports Peripheral Artery Disease (PAD) screening by recording segmental pressures and pulse volume recording (PVR) waveforms, which can help identify patients who may need further vascular evaluation.
Because the kit relies on manual inflation and a compact Doppler, it can be used in primary care offices, outpatient clinics, and mobile screening events. Practices can export and review reports electronically, which supports consistent documentation and easy sharing with referring or treating specialists. Compared to larger vascular systems, simpleABI manual kits are structured to offer ABI and PAD testing capabilities at a lower upfront cost for practices that do not need a full vascular lab platform.
Features and Benefits
- ABI and TBI testing for PAD screening
- Sensitive 8 MHz arterial Doppler for peripheral signals
- PC-based simpleABI software with printable and savable reports
- PVR waveforms to support interpretation of limb perfusion
- Portable configuration for use in multiple exam rooms or sites
- Manual inflation for flexible control of cuff pressure
- Supports single level stress and resting examinations

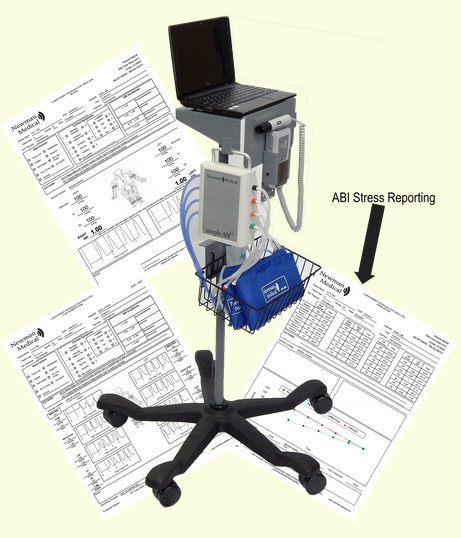

- Standardized reporting format across simpleABI systems
- Menu-driven interface to reduce dependence on memorized protocols

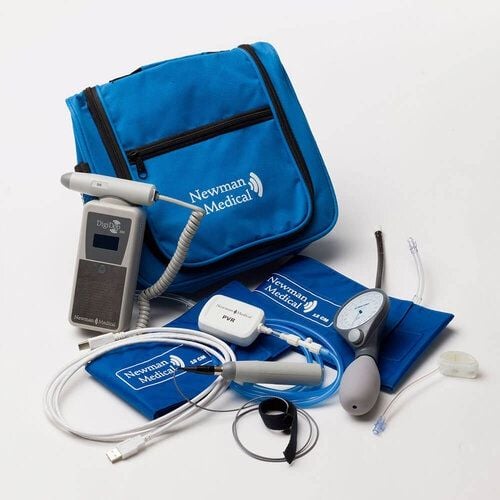

What Comes in the Box?
- Single level ABI and toe-brachial index (TBI) testing capability
- Sensitive 8 MHz vascular Doppler
- PVR waveform recording
- Four limb cuffs (two 10 cm, two 12 cm)
- Manual aneroid inflation system
- Mobile carry bag for transport and storage
Specifications
- Product numbers: 93922
- System height (cart configuration): 42 inches
- Approximate system weight: 12 pounds
- System type: Manual, PC-based system for single level examinations
- Software: simpleABI 300CL reporting software
- Doppler: Sensitive 8 MHz Doppler
- Waveforms: Pulse volume recording (PVR) waveforms
- Cuffs included: Four cuffs (two 10 cm, two 12 cm)
- Inflation device: Manual cuff inflator
- Electrical shock protection: Type B applied part, Class II equipment
- Standards: IEC60601-1, IEC60601-2, IEC60601-2-37
- Battery life: Approximately 10 hours
Simple ABI Additional Information
- Measurement and Interpretation of the Ankle-Brachial Index: A Scientific Statement from the American Heart Association. Circulation, November 2012.
- Daigle, R. J., The Pocket Guide to Physiologic Arterial Testing, p. 104. Summer Publishing, 2013.
- User Manual for vascular diagnostics.
- PAD Testing Protocol for simpleABI PAD testing.
- PAD Screening Report form for conducting and recording test results.
- ABI Chart displaying highest brachial pressure with corresponding highest ankle pressure.
Product Videos
General information – intro, usage, wrapping, and more (5:12)
ABI study with cuff-link (5:27)
ABI with toe study (3:17)
