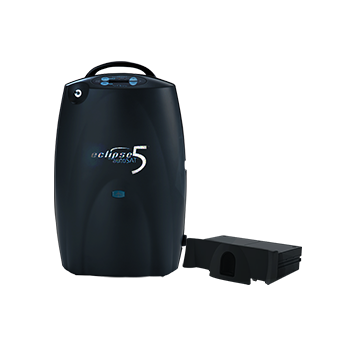

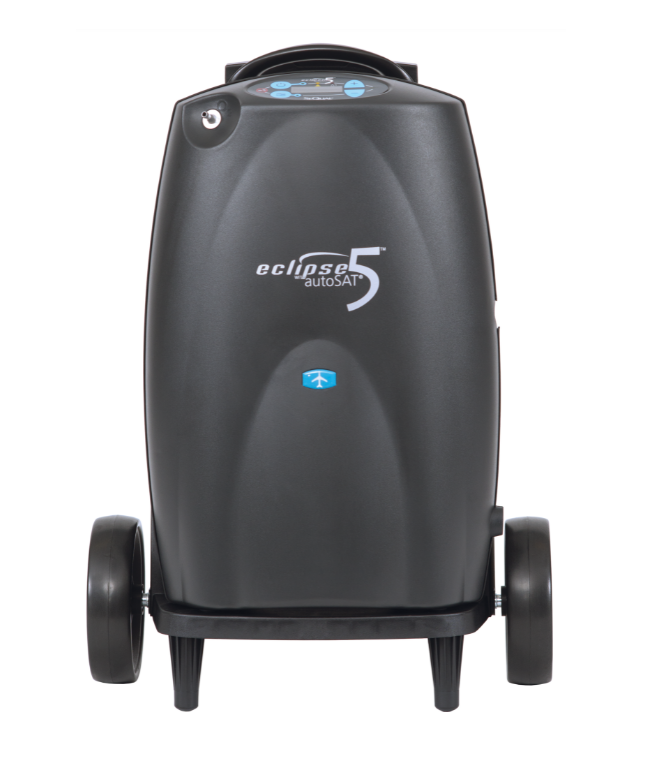

Sequal Eclipse 5 Portable Oxygen Concentrator with autoSAT

The Sequal Eclipse 5 Portable Oxygen Concentrator is a portable oxygen machine that sleekly and deftly replaces the Eclipse 3. The Eclipse 5 Basic Bundle includes a 3-liter portable oxygen machine that can charge from a DC power source such as a car, boat or recreational vehicle while simultaneously delivering oxygen. The Sequal Eclipse 5 is designed with both a continuous flow oxygen output option as well as a pulse volume option. The Eclipse continuous flow unit provides doses from 0.5 to 3.0 liters per minute (LPM), which allows users more flexibility for patients to participate in daily activities and to maintain their active lifestyle. Lightweight and sleek, the Eclipse 5 replaces the Eclipse 3 with the added functionality of being able to charge from a DC power source such as a car, boat or recreational vehicle, while simultaneously delivering oxygen. This portable oxygen machine is easy to operate and control and designed to offer low-maintenance requirements. The SeQual Eclipse 5 offers a continuous flow oxygen output as well as a pulse volume option. The continuous flow option provides doses from 0.5 to 3.0 liters per minute (LPM), which allows users more flexibility for patients to participate in daily activities and to maintain their active lifestyle.

Images: Copyright 2022 CAIRE Inc. Used with permission, all rights reserved.

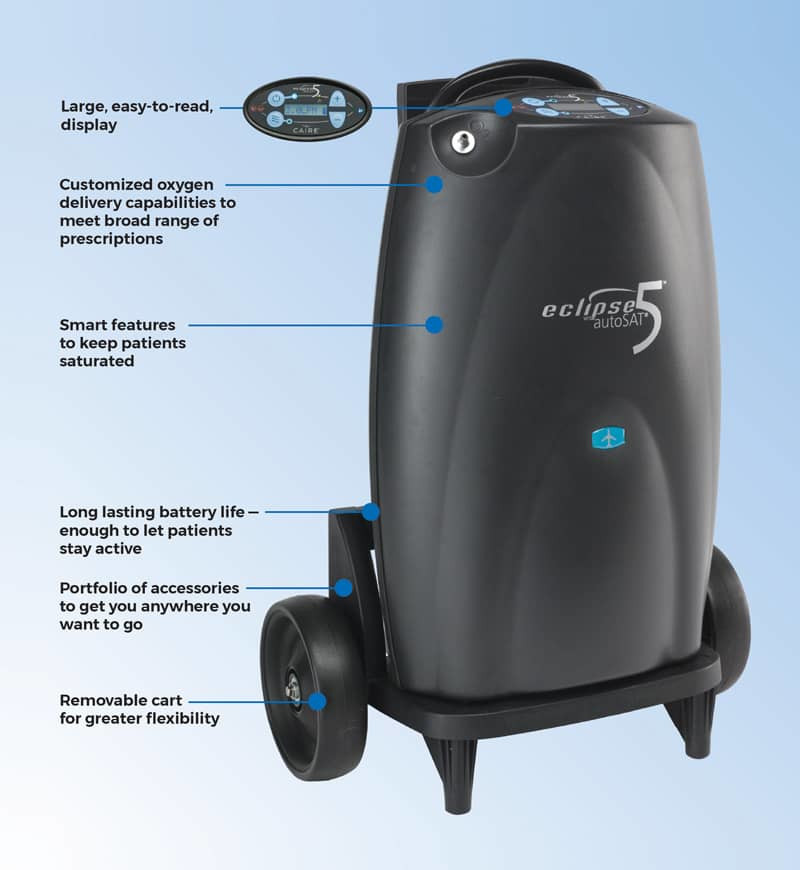

Features and Benefits

• Breath detection technology searches for a breath every 15 seconds
• While in pulse mode if a breath is not detected the oxygen concentrator will activate continuous flow

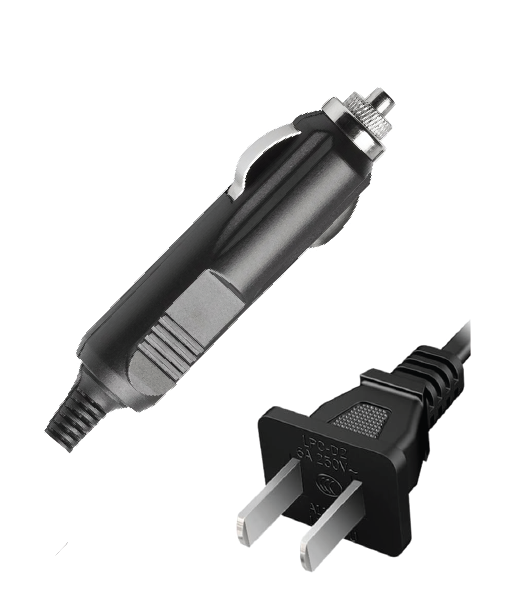

• AC/DC and better power options extend therapy time and patient travel.
• Accessory options support an active lifestyle.
• Eclipse 5 replaces the old Eclipse 3 Portable Oxygen Concentrator.
• Lightweight and small to accommodate easier travel.
• Long battery life with 2 to 5 hour recharge time.
• Longer service intervals with lower maintenance costs.
• Low noise output for less disturbance.
• 02 Concentrator offers both continuous flow and pulse volume options.
• Portable concentrator provides for stationary, ambulatory and travel oxygen needs.
• Settings for both pulse volume and continuous flow.
• Simplifies the patients' continuum of care with one device.
• The only system on the market that can be upgraded in the field as new technology becomes available.

Product Specifications

• Concentrator Weight (without battery): 15 lbs.
• Power Cartridge (Battery) Weight: 3.4 lbs.
• Concentrator Weight (with Battery): 18.4 lbs.
• Battery Life (single battery) at 2 Pulse Flow Setting: 5.2 Hours.
• Width: 7.1 Inches.
• Length: 12.3 Inches.
• Sleep Surface: 36 W x 80 L.
• Height: 19.3 Inches.
• Noise: 40 dBA at setting 3 pulse volume, 48 dBA at setting 3 Continuous Flow.

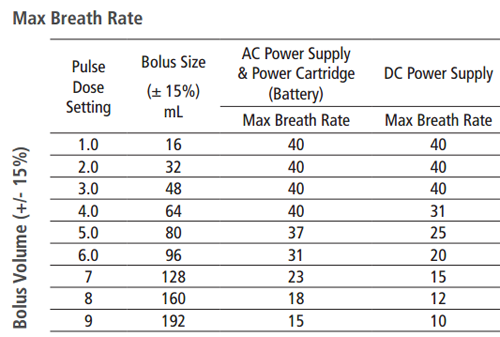

• Maximum Oxygen Output: Continuous Flow - 3 LPM, Pulse Volume - 16-96 mL, 128 mL, 192 mL.
• Oxygen Outlet Pressure: 5 PSIG.
• AC Power Connection: 100-240 VAC/ 50-60 Hz.
• DC Power Connection: 12 V.
• Average Power Consumption
  • 1.0 LPM Continuous Flow: 52 Watts.
  • 3.0 LPM Continuous Flow: 145 Watts.
  • 1 Pulse Volume Setting: 45 Watts.
  • 6 Pulse Volume Setting: 95 Watts.

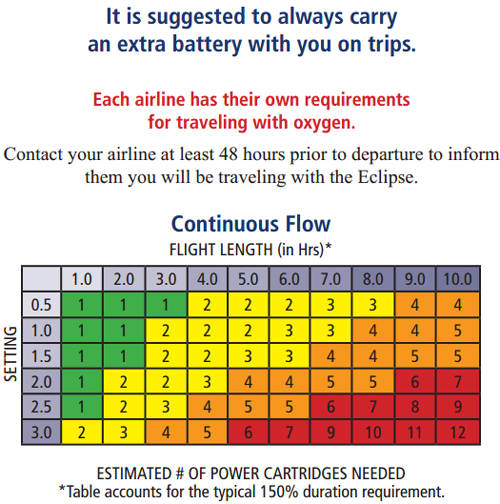

• Power Cartridge Operating Time
  • 2.0 LPM Continuous Flow: 2 hours.
  • 3.0 LPM Continuous Flow: 1.3 hours.
  • Pulse Flow Setting 1: 5.2 hours.
  • Pulse Flow Setting 6: 3.5 hours.
• Power Cartridge Recharge Time: 1.8 to 5 hours.
• Operating Altitude: 0 to 13,123 feet above sea level.
• FAA Approval: Yes.
• SeQual Eclipse 5 Warranty: 3 years limited.
• Manufacturer: SeQual.
• HCPCS Codes: E1390 and E1392.
