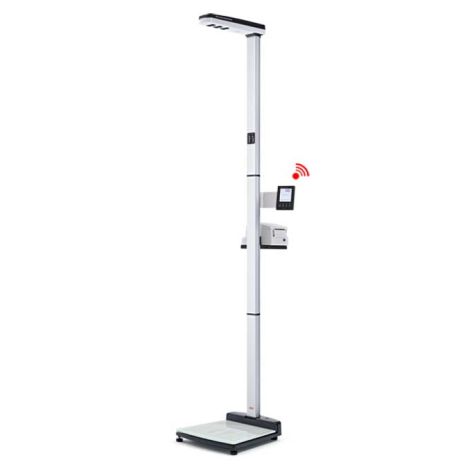

Seca 286 Wireless Ultrasonic Measuring Station

Seca Wireless Ultrasonic Measuring Station (286) Overview

Seca 286 Wireless Ultrasonic Measuring Station is an electronic scale that provides wireless measurements. This Seca scale offers precise measurements for height and weight. This ultrasonic scale or measuring station uses advanced technology to perform measurements quickly and easily. A voice guidance system may be enabled for an individual or series of measurements. The scale is a revolutionary device for intelligent measurement with voice guidance.

It offers unparalleled precise measurements for weight and height with three pairs of ultrasonic sensors that measure and record the patient’s height in milliseconds. A digital evaluation algorithm ensures precision measurements. The device may direct print or wirelessly transmit to an EMR system. Using medical measurements in kilograms, this ultrasonic measuring device has a 300 kg capacity and 50 g fine graduation to accommodate a wide variety of patients.

Features & Benefits

• Electronic scale.
• Uses ultrasonic technology.

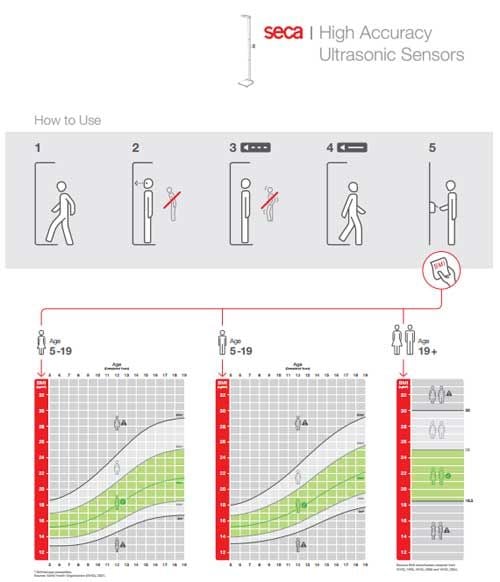

• Voice guidance capable for fully automated measurement.
• Three pairs of sensors and constant auto-calibration (3 receivers, 3 transmitters).
• A wide variety of output options for measurement results.
• Ensures precise results.
• Unrivaled digital evaluation algorithm eliminates imprecision for the highest measurement accuracy.
• Constant auto-calibration balances temperature fluctuations.
• Ultrasonic signals perform 10 measurements in 200 milliseconds.
• Measuring station may be networked using 360 degree wireless technology.
• Weight scale has a non-slip tread made of easy-to-clean safety glass.
• LED light in measuring head.
• Durable.

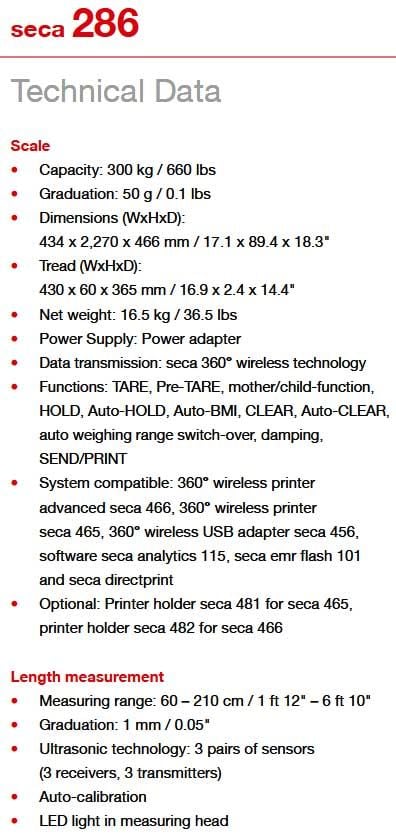

Specifications

• Product Number: 2861300009.
• Width: 17.1 Inch.
• Height: 89.4 Inch.
• Depth: 18.3 Inch.
• Weight: 36.5 lbs.
• Weight Capacity: 660 Pounds.
• Weight Graduation: 50 g / 0.1 lbs.
• Height Measuring Range: 60 – 210 cm / 1 Foot 12 Inch – 6 Foot 10 Inch
• Height Measuring Graduation: 1 mm / 0.05 Inch
• Power Supply: AC power adapter.
• Data transmission: Seca 360° wireless technology.
• Functions: PRINT, Auto-PRINT, Transport casters, TARE, Auto-clear, Auto. Weighing range switch-over, Clear, Patient data input, BFR (Body Fat Rate), Pre-TARE, Mother/Child function, HOLD, Auto-HOLD, BMI, Auto-BMI, Calibration, Auto. Calibration, Automatic switch-off, Wireless interface, SEND, RESET, Acoustic signals can be activated, Backlighting, cm/inch-switch-over, Damping, User-defined zero setting, Auto-SEND.
• System compatibility: 360° wireless printer, advanced Seca 466 - 360° wireless printer, Seca 465, 360° wireless USB adapter Seca 456, software Seca analytics 115, Seca EMR Flash 101, and Seca directprint
• Optional Accessories: Printer holder Seca 481 for Seca 465, printer holder Seca 482 for Seca 466.
• Made in Germany.

Seca Scales Additional Information

• Product Sheet discusses the features and benefits for this electronic column scale.
• User Manual offers instructions for set up, operation and care.
• Seca Declaration of Conformity regarding wireless transmission and electromagnetic compatibility.
