Pari Trek S Portable Compressor Nebulizer Aerosol System

Please note that the Pari Trek S Deluxe - with Li-ION Rechargeable Battery is on a manufacturer back order with no ETA. Please order the standard model if you require this device right away.

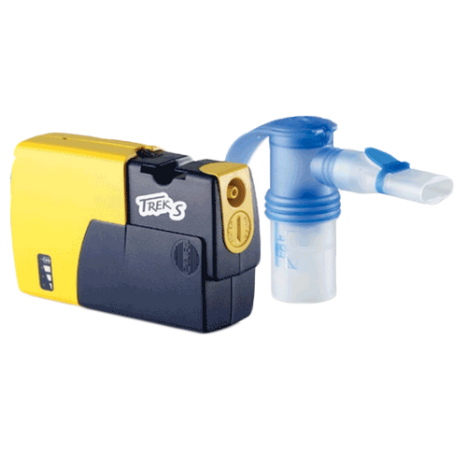

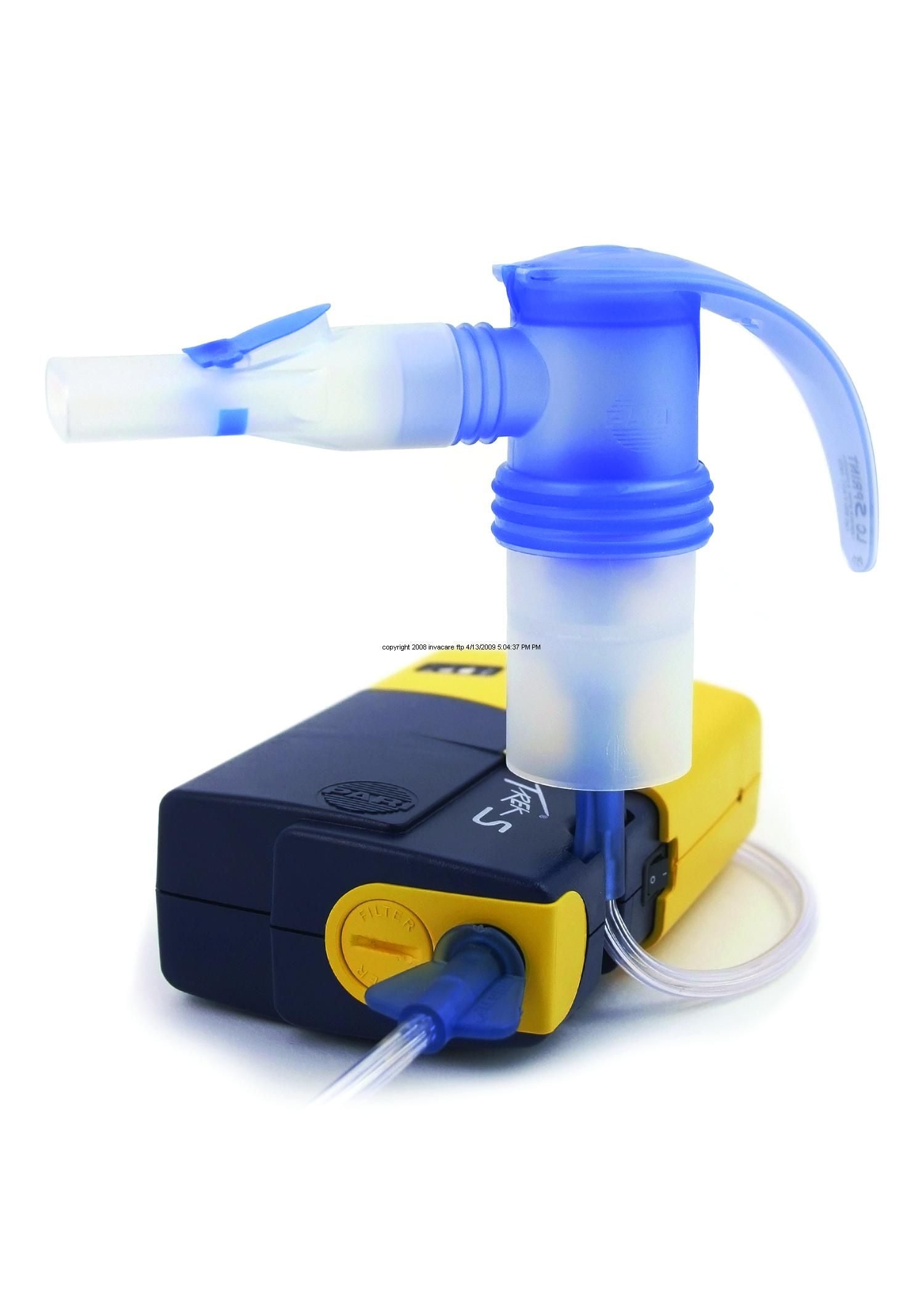

Pari Trek S Portable Compressor Nebulizer Aerosol System provides treatments for nebulizer patients on the go. The device has a lightweight nebulizer design weighing less than 1 pound making traveling with the compressor nebulizer very easy. PARI TREK S Portable Nebulizer Compressor includes both AC and 12V DC adapters. Pari Trek S Portable Compressor Nebulizer 12 volt automobile adapter works with cars or boats. The Deluxe Pack model comes with a rechargeable battery which permits patients the freedom to take aerosol treatments away from home. A handy carrying case provides the freedom to take aerosol treatments anywhere, anytime. Equipped with the PARI LC Sprint reusable nebulizer, the Pari Trek S Nebulizer delivers powerful performance and shorter treatment times. Included are the patented PARI Wing Tip tubing and the exclusive PARI Timestrip to remind patients to replace their PARI reusable nebulizer.

Included with the Purchase of the PARI Trek S Portable Nebulizer

• PARI Trek S Compact Compressor
• Two PARI Reusable Nebulizers
• Timestrip
• Wing-Tip tubing
• AC Adapter
• 12V DC Adapter
• Instructional DVD
• Deluxe Carrying Case
• Additionally, the Deluxe Model includes a Li-Ion rechargeable battery

Product Features and Benefits

• Portable Nebulizer for nebulizer patients on the go
• Lightweight design
• Fast, efficient aerosol treatments
• Average treatment time is 5-6 minutes

Product Specifications

• Trek S Nebulizer Product Numbers: 47F35LCS, 47F45LCS
• Weight: 0.8 lbs
• Maximum Air Flow: 8.5 LPM
• Maximum Operating Pressure: 35 PSI
• Nominal Operating Pressure: 14.5 PSI
• Maximum Liter Flow: 8.5 LPM
• Nominal Air Flow 4 LPM
• Rechargeable Battery Charge Life (Deluxe Model): 50 minutes
• Rechargeable Battery Charge Time (Deluxe Model): 2 hours
• HCPCS Codes: E0571
• Warranty: 3 years
• PARI Trek S Battery Warranty: 6 months

Getting Started with Your Portable Compressor Nebulizer

• Make sure the Trek S Portable Aerosol System is turned “off”
• Plug the device into a wall outlet, vehicle outlet or ensure rechargeable battery is fully charged
• Make sure device has been cleaned, disinfected and reassembled properly
• Place compressor on a flat surface free of cushion, carpet or other fabric
• Connect tubing snugly into the compressor
• Open lid to add medication as prescribed- 8 mL max
• Connect the mask or mouthpiece according to preference
• Connect loose end of the tubing to bottom of the nebulizer

Aerosol System Operation Instructions

• Make sure the user is in a comfortable sitting position and turn on the device
• Place the nebulizer in the mouth, over the tongue with lips firmly closed around it
• If using a mask, place securely over the nose and mouth
• Inhale and exhale slowly
• Continue slow, deep breaths until medication is gone or you hear a “sputtering” sound signifying the medication is no longer entering the tube

Cleaning and Disinfection Guidelines:

Cleaning:

• Disconnect tubing and hang with open ends down to dry

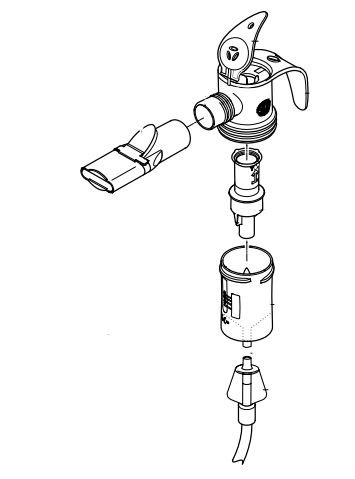

• Disassemble nebulizer mouthpiece as shown
• Wash all pieces except for tubing in warm water with dish soap
• Rinse with warm water
• Lay out to air dry, or hand dry with a clean cloth with no lint
• Reassemble parts once dry and put away
• Parts can also be washed on the top rack of a dishwasher

Disinfection:

• After cleaning as described above, soak in 1 part white vinegar and 3 parts hot water for 1 hour
• Rinse with warm water
• Another option is to boil in clean water for 5 minutes
• Allow parts to air dry on a lint free, clean cloth

Needed Maintenance:

• Replace nebulizer every 6 months
• Filter needs to be changed when grey or every 6 months

Indications:

• Cystic Fibrosis
• COPD
• Asthma
• Other: Doctor Recommendation

Warnings:

• Only to be used with medication prescribed by a physician
• Clean thoroughly after each use to reduce bacteria growth
• Disinfect or sterilize after each use
• Do not use while drowsy or sleeping
• Make sure an adult is present if using to treat a child
• Check all pieces for secure connection
• Do not use if nozzle is clogged
• Keep away from water
• Uncover device for use
• Keep away from hot surfaces
• Do not use in or near oxygen treatments
• Not for use while operating a vehicle
• Keep battery away from metal to avoid “short circuit”
• Replace nebulizer cup every 6 months
• Single patient use only- do not share

Product Information and Documents

• Home Nebulizer Treatment Study – survey of patients with chronic lung disease
• Nebulizer COPD Treatment Study – quality of life improvements for COPD patients

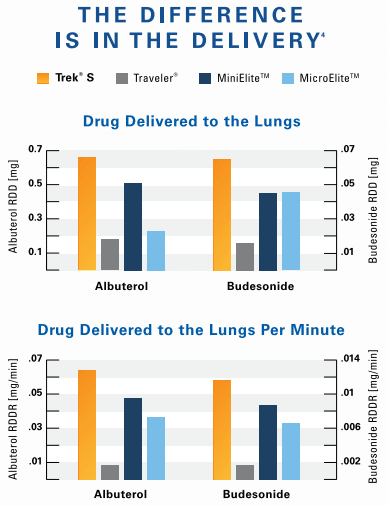

• Pari White Paper on Portable Jet Nebulizers – comparative testing results for portable nebulizers
• Pari Trek S Brochure provides features, benefits and components information
• Trek S Nebulizer Instructions offers setup, maintenance, warranty and specification information in English and Spanish

Product Video (7:06 minutes)
