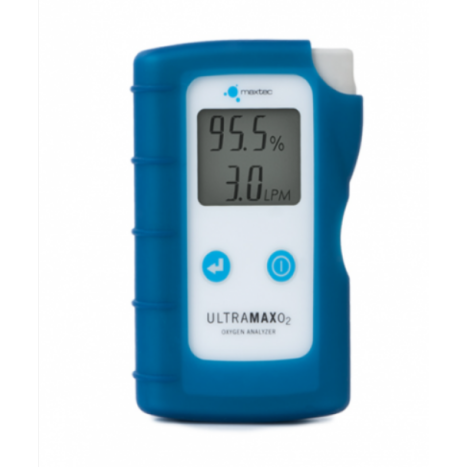

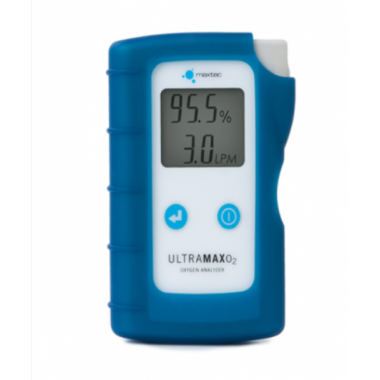

Maxtec UltraMax O2 Analyzer
Maxtec
- Authorized Distributor
Product Highlights
- Quickly analyzes oxygen concentration
- Handheld, lightweight design
- Uses a long-lasting ultrasonic sensor
- Checks O2 levels, flow accuracy, and outlet pressure
- No in-field calibration required
- Clear LCD screen for easy reading
- Fast Delivery
- Easy Returns
MPN :
O2 Analyzer - Each - #R221P11
List Price: $691.01
You Save: $76.01 (11%)
$615.00
Description
Who Uses This Product? Oxygen concentrator service technicians that want a single device to verify the efficiency of the oxygen concentrator.
Why They Love It? The handheld UltraMax O2 Analyzer features a built-in ultrasonic oxygen sensor, an integrated pressure monitor, and flow measurement capability. By combining these functions into a single device, technicians don't need additional equipment such as a traditional electrochemical sensor to garner accurate readings, helping them save time and money.
Overview: UltraMax O2 Analyzer by Maxtec
The UltraMax O2 Analyzer is designed to analyze and measure oxygen concentrators' oxygen purity, outlet pressure, and flow accuracy. This compact, handheld device is easy to transport, operate, and store for optimal user convenience. The LCD screen display is easy to read, with fast results in a large, bold font that allows for a much quicker setup time. This oxygen analyzer eliminates the need for oxygen sensor replacements by using a built-in ultrasonic sensor designed to last throughout the device's lifespan. The small, palm-sized device comes with a silicone casing that protects it during transportation and use.
Features and Benefits
- Calibration Verification Button – No Need for In-Field Calibration
- Ultrasonic Sensor Lasts for the Lifespan of the Analyzer
- Easy-To-Read LCD Screen
- Measures Flow, Oxygen Purity, and Outlet Pressure in One Device
- Eliminates Dependence on Additional Equipment or Accessories
- Compact Design Makes Transporting and Storing the Device Easy
- Low Maintenance and Low Cost of Ownership
- Protective, Impact-Resistant Silicone Case
Small but Durable
This oxygen analyzer is compact to fit in the palm or a back pocket. It weighs only 0.4 pounds and is roughly 5 inches in length. Its size makes transporting the device convenient. Even though the device is lightweight, it is made with durable materials and covered with a silicone case.
Eliminate In-Field Calibration
The UltraMaxO2 has a calibration verification button that verifies that the device is running properly. When the button is held down, the screen displays "cal ver" to confirm calibration depending on the product's specifications. If a problem occurs during calibration, such as internal debris, the device sends an error code that alerts the service technicians.
The gas is already calibrated within the device because it is an ultrasonic solution. The calibration button eliminates in-field calibration because it doesn't require users to set their analyzers to 100% O2 the way other products may require.
Outlet Pressure Check
This O2 analyzer has an integrated pressure monitor that is paired with %O2 and flow measurement. This makes checking outlet pressure incredibly simple so that readings are easily accessed using one device. For further convenience, once a finger covers the outlet port, the device switches to %O2 and flow rate readings to display the pressure of an O2 concentrator. The pressure unit display is interchangeable between pounds per square inch or kilopascal.
Frequently Asked Questions (FAQ)
Is this device battery operated?
Yes, it uses AA alkaline batteries.
Can this be exposed to 50 PSI or higher?
No, using it at 50 PSI or higher can cause leaks in the device and affect the overall performance.
Can this product be used in humid areas?
Yes, the device can withstand 0 to 95% noncondensing humidity.
Is there anything that can affect the accuracy of readings?
Yes, gasses, humidity, temperature, and low flow can alter the analyzer's accuracy.
Product Specifications
- Manufacturer: Maxtec
- Product Numbers: R211P11
- Dimensions:
- Length: 5.1 Inches
- Width: 3.39 Inches
- Depth: 1 Inch
- Weight: 0.4 Pounds
- Batteries: 2 AA Alkaline Batteries
- Battery Life: Roughly 16,500 Read Cycles
- Oxygen Measurement Range: 20.95 to 96%
- Warm-Up Time: <1 Second
- Operating Temperature: 59° to 104° Fahrenheit
- Storage Temperature: 5° to 140° Fahrenheit
- Warranty: 3 Years
- Application: Oxygen Analyzer
Manuals and Documents
Instructions for Use covers product indications, warranty information, warnings, and more.
Specifications Sheet has information about the oxygen, flow, and pressure.
Product Sheet provides an overview of the product and its features.
