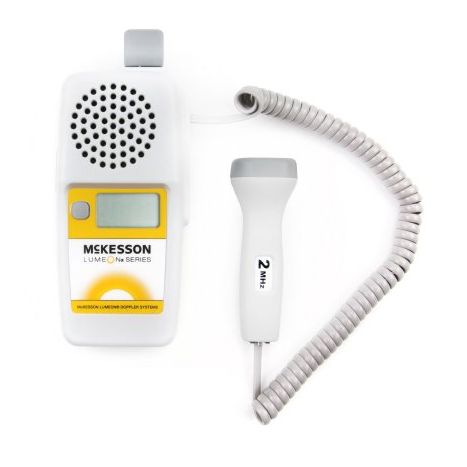

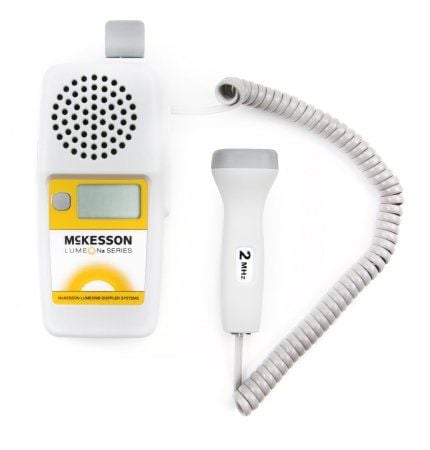

A McKesson Lumeon Series Doppler is for targeting and measuring fetal vascular targets. Perfect for smaller doctors offices or birthing centers, hand-held McKesson Lumeon Doppler units offer an extended battery life and 2MHz (McKesson 1156) or 3MHz (McKesson 1157) options. Plus, the Lumeon series can be interfaced with a 5MHz transvaginal obstetrical probe. It's also latex-free so you don't have to worry about causing patients allergic reactions. Because it's small, it can be used for home visits as well as around the office. Older doppler machines cost thousands of dollars and were large and bulky, not the case with the McKesson Lumeon Series doppler unit. So, if you're a small clinic but want to provide this service for your patients, then this unit is the right option for you. Also, don't forget to stock up on Liquasonic Ultrasound Gel with your order.
How to Use
- Prepare Patient with Application of Ultrasound Gel
- Turn Unit on by Pressing the On/Off Button
- Apply Probe to Patient's Skin and Search for Fetal Heartbeat
- Once Complete, Clean off Probe with a Damp Clean Cloth
- You may Also Clean with a Product like McKesson's Alcohol Wipes
- To Disinfect, Use an EPA Registered Spray or Wipe Disinfectant
Troubleshooting
Reason for Poor Sound Quality When Device is in Use
- Inadequate Gel Use
- Inadequate Probe Placement
- Improper Probe Frequency
- Interference from Other Equipment
- Probe Coiled Cable or Battery Contacts Intermittent
- Debris in Speaker
- Device is Damaged from Drops
Heart Rate is Inaccurate
- Try to Relocate Probe
- Ensure Maternal Sounds are Not Mixing with Fetal Sounds
- Manually Count Average BPM
Battery Indicator Flashing
- Replace Batteries
- Probe Frequency does not Match Connected Probe
- Check Probe Connection
Probe Frequency is 0.0
- No Probe is Attached
- Batteries are Low
- Battery Voltage is Low
Product Features and Benefits
- Built-In Display
- Extended Battery Life
- Doppler Systems Available in 2 and 3MHz
- Can Interface with 5MHz OB Probes
- Measure Heartrates from 50-220 BPM
- Small and Easy to Transport
- Little Maintenance Necessary
Product Specifications
- Item Number: 1156, 1157
- Manufacturer: McKesson
- Width: 2-3/4 Inches (7cm)
- Length: 1-2/5 Inches(3.5cm)
- Depth: 5-1/2 Inches (14cm)
- Frequency: 2MHz, 3MHz
- Battery Type: 3 AA
Manuals and Documents
Product Brochure contains product information.
- Product Manual contains operational instructions.
