Tracer SX5 Wheelchair

Invacare - Authorized Distributor
  • Flip-Back Desk-Length Arms
  • Silver Vein Finish
  • Dual Embossed Upholstery
  • No-Flex Wheels
  • Owner's Manual
  • Heavy-Duty Inner Liners
  • 5 Year Limited Warranty
  • Fast Delivery
  • Easy Returns
Grouped product items
Item# Description Size Price
TRSX56FB 16 W x 16 D Inch Seat - Flip-Back Desk-Length Fixed Arms - No Front Riggings - Ships Free! Each
TRSX58FBP 18 W x 16 D Inch Seat - Flip-Back, Desk-Length, Fixed Arms - No Front Riggings - Ships Free! Each

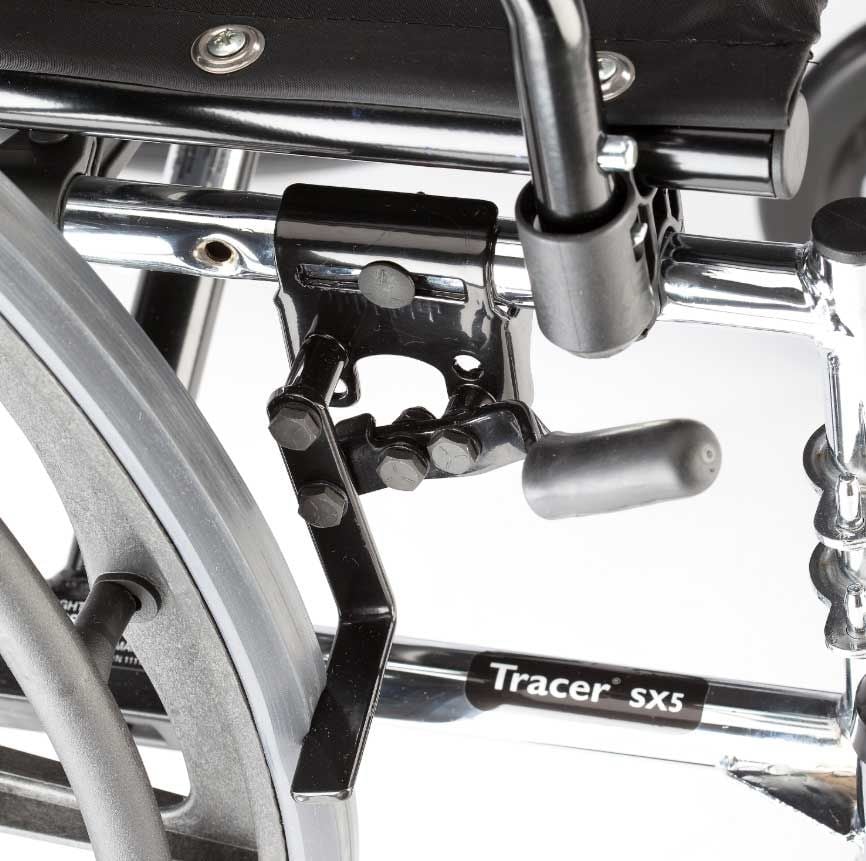

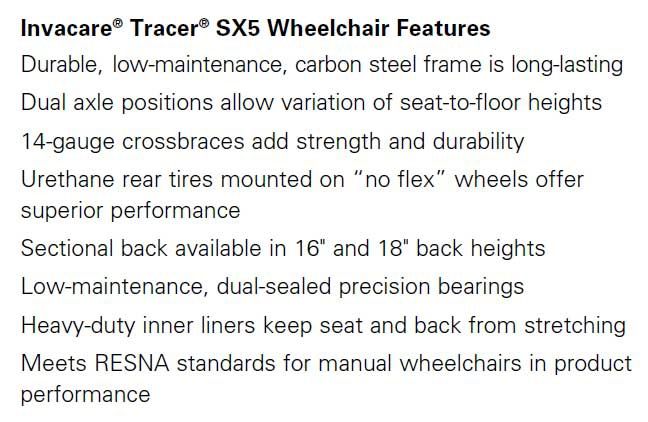

SX5 Front Tracer SX5 Wheelchair with Footrest Front View with Elevated Legrests Front View with Elevated Legrests Front View with Elevated Legrests Front Right View with Elevated Legrests Front Right View with Footrests Rear View with Anti-Tippers Rear Wheel Brake Caster Wheel Mobility Features Summary Features Specifications Chart Specifications Comparison Chart Armrests Legrests Product Logotype Invacare Logo


Invacare Tracer SX5 Wheelchair has a lightweight frame weighing less than 36 pounds which makes this chair perfect for long or short term use. The Tracer SX5 now combines the design and technology of the 9000 series wheelchairs making it possible to interchange components. The Tracer SX5 offers sectional back and seat-to-floor heights by utilizing the dual axle position frame base.

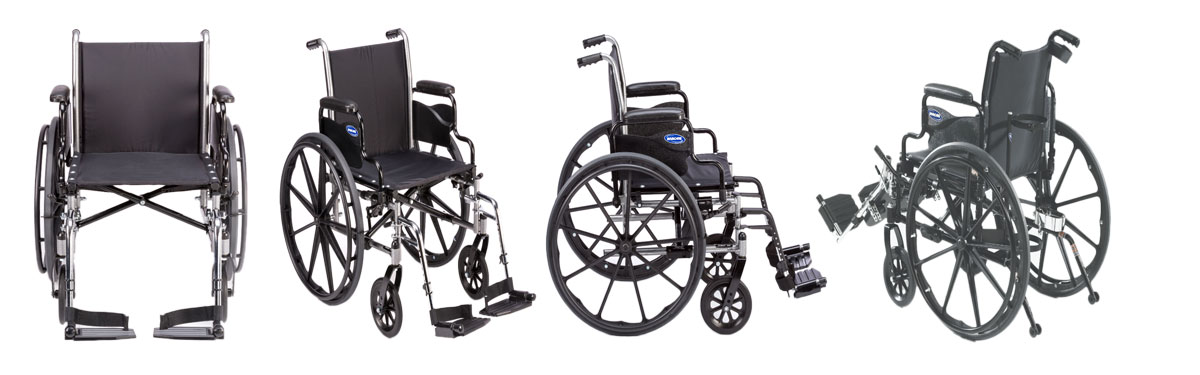

Wheelchair Profile

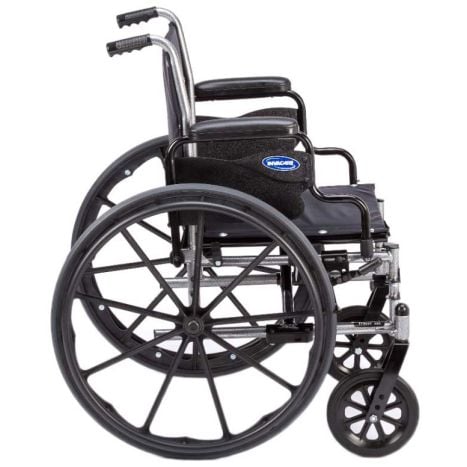

Tracer SX5 Profile

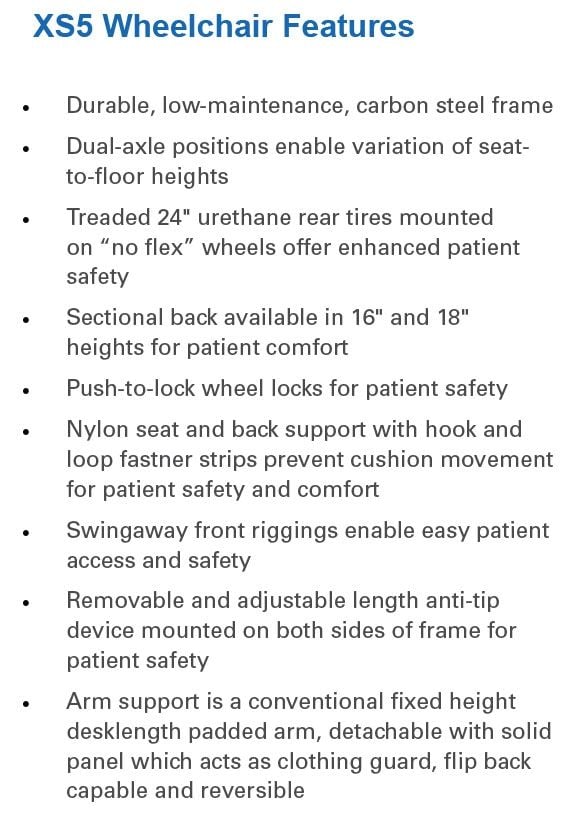

Product Features & Benefits

  • Lightweight frame
  • Designed for long-term use
  • Durable
  • Flip-back desk-length arms
  • Heavy-duty inner liners keep seat and back from stretching
  • Attractive, silver vein finish
  • Urethane rear tires mounted on "no flex" wheels for superior performance
  • 14-gauge cross-braces add durability and strength
  • Dual-embossed upholstery for added reinforcement

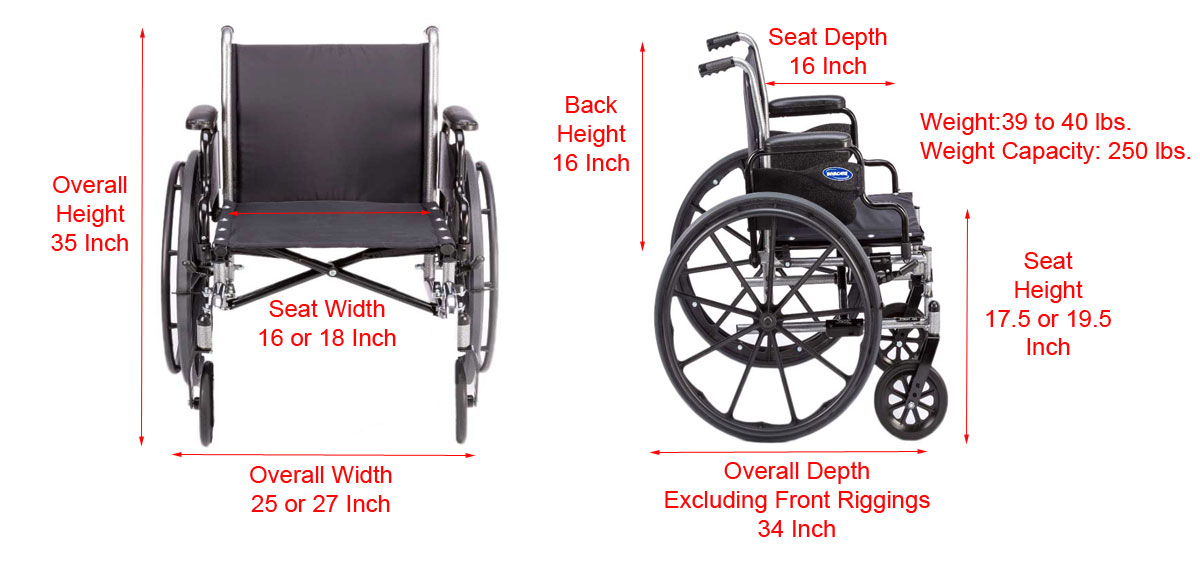

Product Specifications



Specifications List

  • Product Numbers: TRSX56FB, TRSX58FB
  • Seat Width: 16 or 18 Inch
  • Seat Depth: 16 Inch
  • Back Height: 16 Inch
  • Weight: 40 lbs.
  • Weight Capacity: 250 lbs.
  • Shipping Product Weight: 43 lbs.
  • Color: Silver Vein
  • Arm Style: Desk Length, Fixed Height, Flip Back
  • Material: Carbon Steel
  • Carton Dimensions: 32 x 13 x 37 Inch
  • Meets RESNA standards
  • HCPCS Code: K0003
  • Manufacturer: Invacare
  • Warranty: Limited Warranty - 5 Year

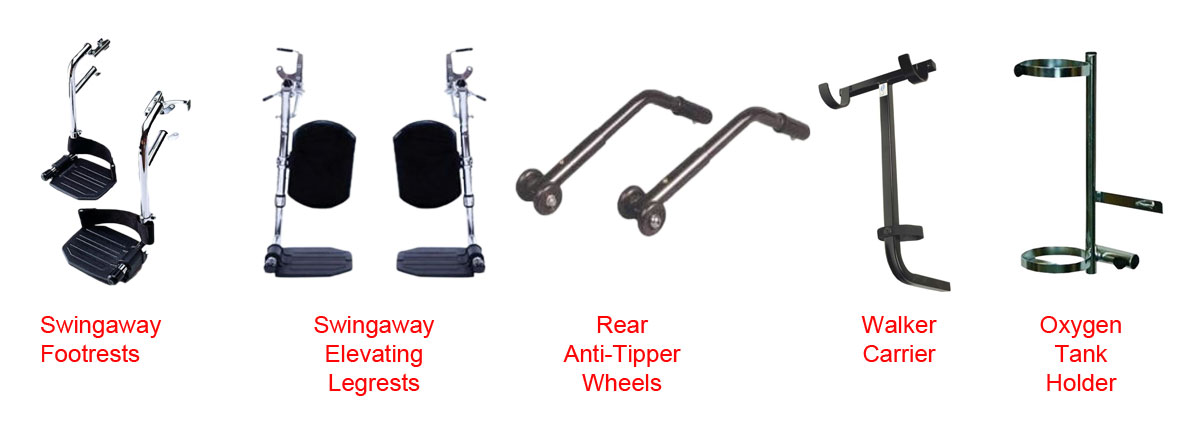

SX5 Wheelchair Accessories

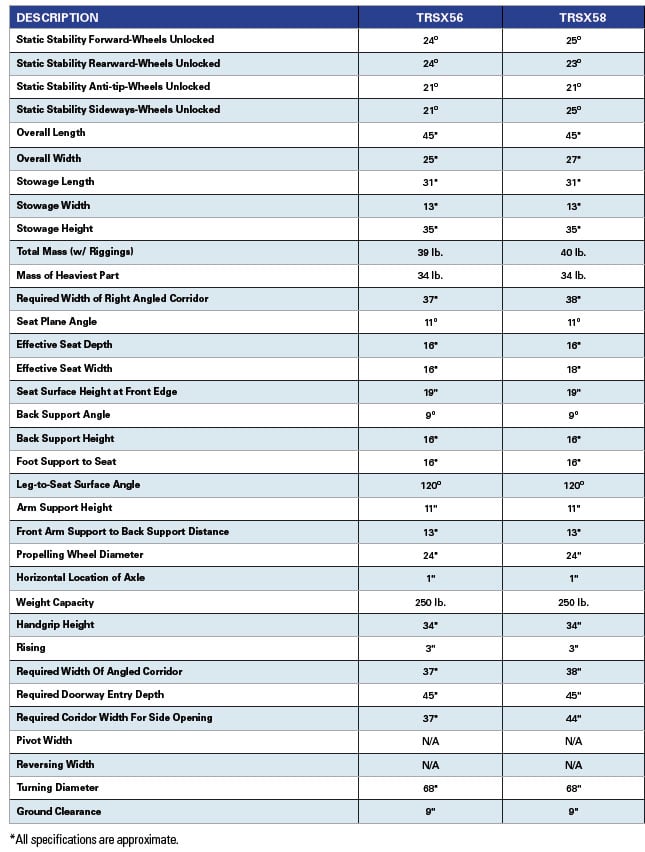

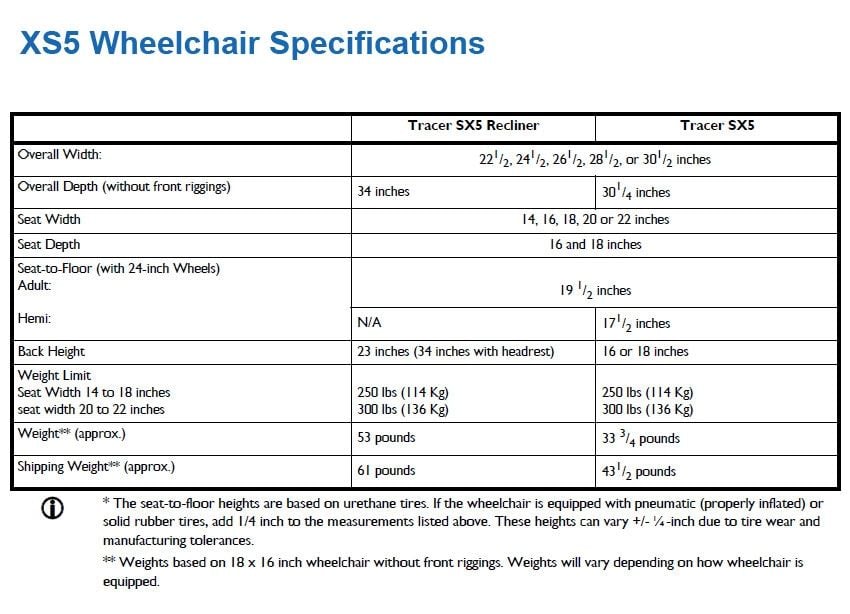

Detailed Specifications

The SX5 Series wheelchairs do not come with front riggings or other items you may need with your wheelchair. Footrests, elevating legrests and other items are sold separately. Below are links to accessory products you may want to consider adding to your wheelchair.


Detailed Specifications

Detailed Specifications

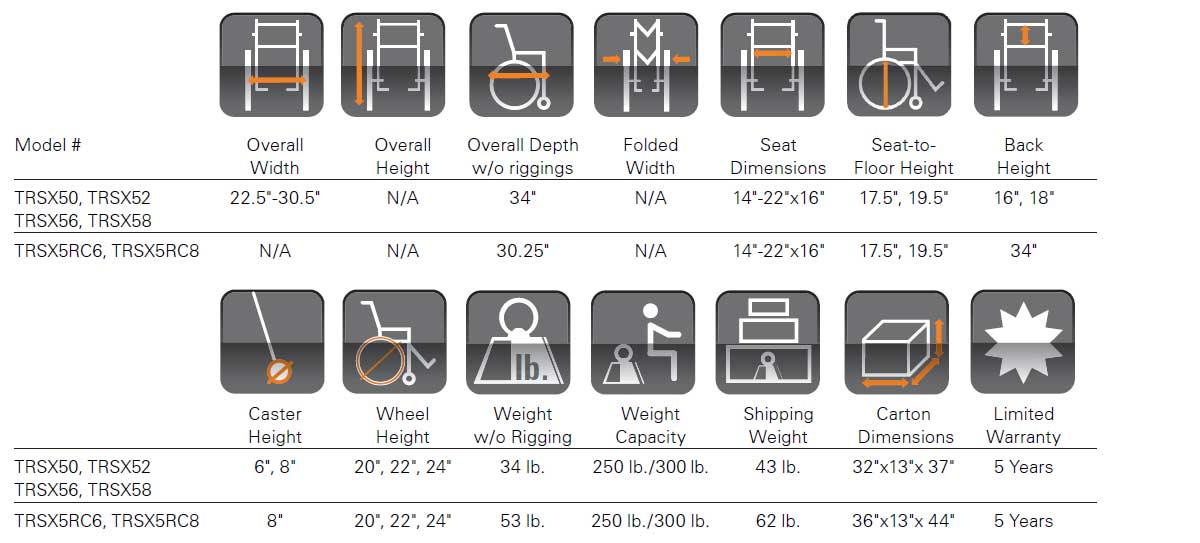

XS5 Comparison Chart

XS5 Comparison Chart




Product Logotype



Additional Information

More Information
Manufacturer Invacare

Product Comparison

Bundle: 731.06

Tracer SX5 Wheelchair


Invacare 9000 SL Wheelchair Fixed Height


Invacare 9000 XDT Heavy-Duty Wheelchair

Seat Width Size16 or 18 Inch18 or 20 Inch16, 18 or 20 Inch
Weight40 Pounds40 Pounds36.5 Pounds
Weight Capacity250 Pounds250 Pounds350 Pounds
FrameCarbon SteelSteelCarbon Steel
Arm StyleDesk Length, Fixed Height, Flip BackDesk Length, Fixed HeightDesk-Length, Fixed
HCPCS CodeK0003K004K0007
Warranty5 Year LimitedLifetime5 Years Limited
