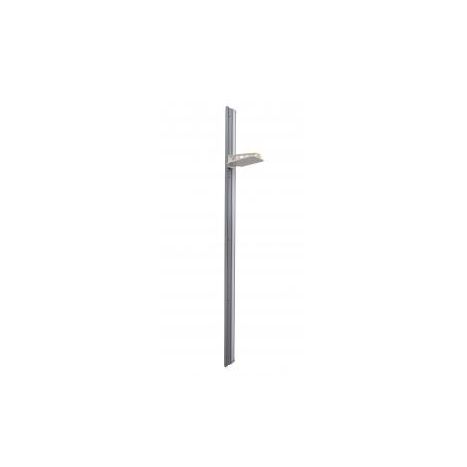

High-Strength Wall Mounted Height Rod

Overview

The Health o Meter Height Rod (Health o Meter 205HR) is a high-strength height-measuring rod that is easy to use. Made out of robust polymers, this height rod will last years as it will withstand pressure and bending. Because this polymer high-strength wall-mounted height rod is made out of quality, sturdy materials, users can be assured that the headpiece will consistently slide smoothly. The headpiece with an easily read indicator locks into place, so there is little room for error.

A versatile item, the Health o Meter Wall-Mounted Height Rod's measurement range can conveniently be adjusted for specificity of practice. With a maximum height range of over 55 inches, practitioners can adjust this height rod to both adult and child height ranges. In addition, users can choose between a feet, inches, and centimeters option or a centimeters-only option as a result of this item's double-sided measuring tape.

Step-by-step instructions with photos make mounting this item a simple task. The tools used to install this product are simple household tools. All hardware needed for a quick and easy installation process is included.

Product Features and Benefits

Made with High-Strength Polymer

Durable and Long-Lasting

Adaptable for Both Adults and Children

Versatile Units of Measurement Options

Quick and Easy Mounting Process

All Necessary Hardware Included

ISO 13485:2003 Certified

TAA Compliant



How to Use the Health o Meter Wall-Mounted Height Rod

For more information, please refer to the user manual on this page under the "Manuals and Documents" heading for mounting guidelines.

• Step 1: Loosen the black knob (it is located on the right side of the headpiece). Slide the headpiece up to the desired height (above the height of the patient to be measured).
• Step 2: Instruct the patient to position their back against the height rod with their heels touching the wall. Check that the patient is standing upright with their back as flat against the wall as possible. Slide the headpiece down to the level of the patient's head. Once the headpiece is resting on the patient's head, tighten it by turning the black knob mentioned above.
• Step 3: Find the clear indicator on the right side of the headpiece. Read the value on the measuring tape closest to the line on the clear indicator. This value indicates the patient's height.

How to Clean and Maintain the Health o Meter Wall-Mounted Height Rod

Cleaning this polymer high-strength wall-mounted height rod is straightforward. To ensure a long lifespan, users should clean this product often.

Do not use Isopropyl Alcohol or any other solution that is not recommended by the manufacturer. Wipe the height rod with a clean, damp cloth (mild, non-abrasive antibacterial or antimicrobial soap and water solution optional).

Maintenance of the Health o Meter Wall-Mounted Height Rod not mentioned in the user manual on this page should only be done by qualified service personnel.



Product Specifications

Product Number: 205HR

Manufacturer: Health o meter

Measurement Range: 55.5 Inches

Graduation: 1/16 Inch

Measuring Tape: 0 - 90 Inches

Height: 60 Inches

Depth: ¾ Inch

Width: 2.625 Inches

Headpiece Depth: 8 Inches

Weight: 5 Pounds

Shipping Dimensions: 61 x 5 x 4.5 Inches

Warranty: 2-Year (Limited)

Operating Temperatures: 41° F - 104° F (5° C - 40° C)

Storage Temperatures: 32° F - 122° F (O° C - 50° C)

TAA Compliant: Yes

UPC Code: 854896003696



Manuals and Documents

•    Product Manual contains use and care instructions.

•    Product Spec Sheet contains product specifications.
