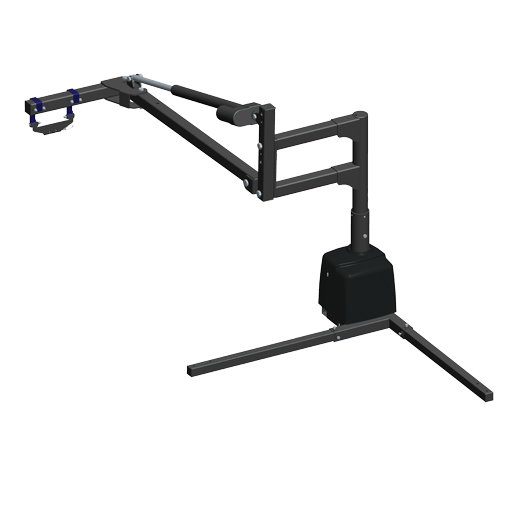

Harmar Pickup 350 HD - AL835

Harmar AL835 Pickup 350 HD is the ideal lift for owners of pickup trucks with heavier power chairs. This lift offers wide clearance and extended reach to accommodate truck beds and lowered tailgates. Harmar Pickup 350 HD features one less motor than the competition which makes this lift easier to operate with fewer buttons. An anti-rotate strap system and low-profile base improves its fit in the truck bed. Harmar Lift for Pickup Trucks effortlessly loads most any mobility device into the bed of your truck and delivers it next to the passenger or driver side door. The AL835 is available with a wireless remote control, making this lift fully functional right from within the cab of your truck.

Vitality Medical also offers an array of Mobility Scooter Accessories for those who are interested.

Product Features and Benefits

• Brings Chair Close to the Driver or Passenger Side Door
• Features Powered Lifting and Rotation
• Features Only Two Motors for Simpler Operation
• Remote Hand Control
• Mounts to Either Side of Vehicle
• Docking Device Included

Product Specifications

• Manufacturer: Harmar
• Item Number: AL835
• Application: Lift Compatible with Standard and Extended Cab Trucks
• Mobility Device: Power chairs and Scooters
• Adjustable Boom Height: 34 Inches - 41 Inches
• Adjustable Boom Length: 28.75 Inches - 46.5 Inches
• Weight Capacity: 350 Pounds
• Product Weight: 116 Pounds
• Docking Device Included: Yes
• Warranty: 3-Year Transferable

Safety and Maintenance

The Harmar 3-Axis Tailgate Lift has been engineered to provide you with years of trouble-free use, but as with any mechanical device, regular care and maintenance is essential for keeping the machinery in optimal working condition

Check the lifting strap before each use and while using the lift; If you observe any wear or damage, DO NOT USE! Contact your dealer or installer for repairs. Failure to act may result in serious injury or damage.

Schedule preventative maintenance inspections with your dealer at least once a year for motors, lift frame, wiring harnesses and all moving parts.

Check paint for chips and touch up any bare metal with a gloss black enamel or lacquer to inhibit rust. It may be necessary to perform this more often if the lift is subject to salt air or road salt.

Keep the remote hand control unit inside the vehicle whenever possible. If your lift is installed in the bed of a pick-up truck, unplug the hand control after each use and put it inside the cab. The hand control should not be submerged in water as this may cause unit failure.

Manuals and Documents

•    Sell Sheet

•    Product Manual
