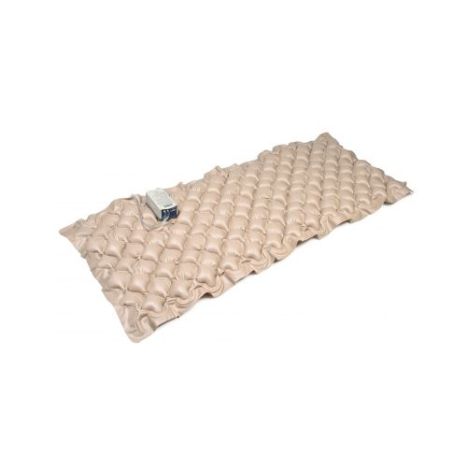

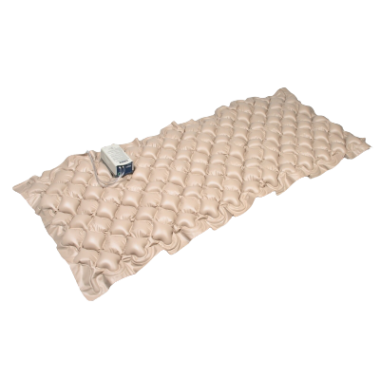

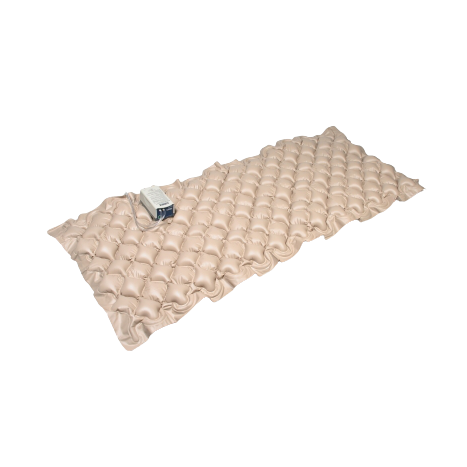

Lumex Alternating Pressure Bubble-style Pad and Pump System

Fast Shipping! Secure Shopping
Item# Description Size Price

Standard Pump and Bubble-style Pad




Standard Pump only



Out of Stock

Deluxe Variable Pressure Pump and Bubble-style Pad



Out of Stock

Replacement Pad for AQ1000 and AQ2000




Deluxe Variable Pressure Pump only



Standard Pump and Bubble-style Pad - Each
SKU: AQ1000


Standard Pump only - Each
SKU: AQ1000-2


Out of Stock
Deluxe Variable Pressure Pump and Bubble-style Pad - Each
SKU: AQ2000


Out of Stock
Replacement Pad for AQ1000 and AQ2000 - Each
SKU: AQ2000-1


Deluxe Variable Pressure Pump only - Each
SKU: AQ2000-2



Customers Also Bought



Lumex Alternating Pressure System is ideal for home care or in a long-term care setting. The system is comprised of a bubble-style pad and a variable pressure pump. The cycles of pressure are for the treatment, prevention, and management of pressure ulcers. The pump regulates pressure cycles every five minutes to take the stress and weight off regions of the body susceptible to pressure ulcers and keeps blood flowing to improve circulation. The pad supports a weight capacity of 275 pounds. It's made of a heavy-gauge, latex-free vinyl that's easy to clean and has antibacterial and flame retardant properties.

Choose from two Graham Field models, the standard AQ1000 pump and deluxe AQ2000 pump. The system is easy to use. First, the pump needs to be secured to the bed with the provided built-in mounting bracket. The clear PVC tubing hooks from the pump to the pad. Simply press the green button that will illuminate for powered mode. This system is small and transportable. When needing a larger surface area and higher weight capacity, the Med-Air Alternating Pressure Mattress System is another great option.


Features and Benefits:

  • Treats and Prevents Pressure Ulcers
  • Easy-to-Use
  • Easy-to-Clean
  • Antibacterial Vinyl
  • Automatic Pressure Cycles
  • Transportable


  • Manufacturer: Graham-Field
  • Brand: Lumex
  • Item Numbers: AQ1000, AQ2000 (System)
  • Replacement Item Numbers: AQ1000-2, AQ2000-1, AQ2000-2
  • Inflated Pad Dimensions: 78 X 34 X 2.5"
  • Cycle Time: 5 Min
  • Weight Capacity: 275 lbs
  • Pump Warranty: 1 Year
  • Pad Warranty: 90 Days
  • Power Cord Length: 10 Ft
  • Bubble Material: 14 GA Antibacterial, Flame Retardant Vinyl
  • Latex-Free
  • Tubing: (2) 5 Ft Clear PVC

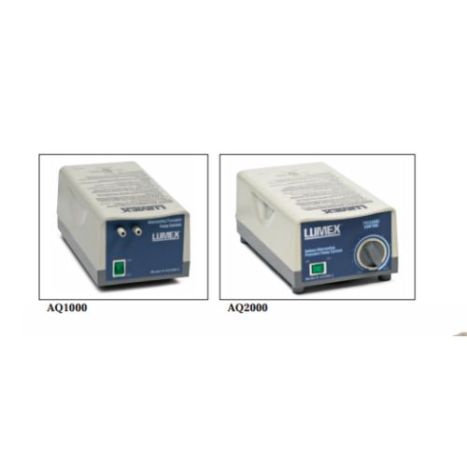

Standard AQ1000

  • Power Supply: 120V AC, 60 Hz, 1A
  • Pressure: 1.9 psi
  • Pump Unit Size: 9.75" x 5.12" x 3.88"
  • Pump Weight: 2.9 lbs

Deluxe AQ2000

  • Power Supply: 120 V AC, 50 Hz, 7W
  • Pressure: 1-2 psi
  • Pump Size: 8.5" x 4.25" x 3.62"
  • Pump Weight: 3.5 lbs

StockCode - Description



Air Output

Cycle Time

Power Cord Length

Pump Size

Pump Weight

Standard Pump
Bubble-style Pad

120 Volt
60Hz, 1 Amp

1.9 psi

4.5 liters/min

5 min.

10 ft

8 1/2" x 4 1/4"
x 3 5/8"

2.9 lb

Deluxe Variable Pressure Pump with Bubble-style Pad

120 Volt
60Hz, 1 Am

1 - 2 psi

4.5 liters/min

5 min.

10 ft

9 3/4" x 5 1/8"
x 3 7/8"

2.5 lb


Notice: For the health and safety of our customers we cannot accept a return on a mattress once it has been used.
