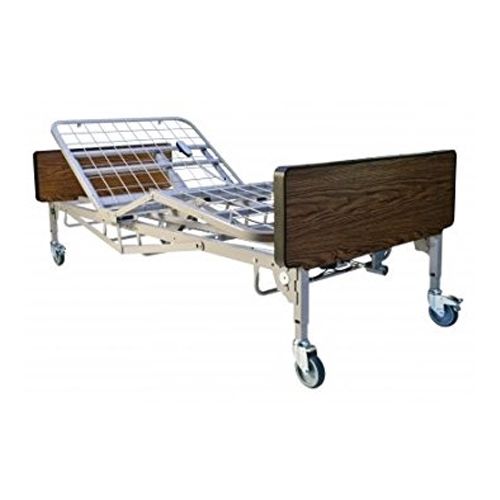

Graham-Field Bariatric Bed with Trendelenburg Positioning - ABL-B700

As low as: $1,418.16

Price as configured: $0.00

5 1
Free Shipping! Secure Shopping Easy Returns
Bariatric Trendelenburg Bed - 42 x 80 Inch with Walnut Veneer Headboard and Footboard   +$1,418.16

* Required Fields

Customers Also Bought



Graham-Field ABL-B700 Bariatric Bed Heavy Duty Homecare Bed with Trendelenburg Positioning

Bariatric Full Electric Homecare Hospital Bed

Reverse Trendelenburg Positioning

Graham-Field Bariatric Bed has heavy-duty construction built to be sturdy and to support up to 700 pounds. Designed with Trendelenburg positioning, this heavy-duty frame can provide treatment for individuals with circulatory or respiratory illnesses. Your physician should be consulted for the proper use of Trendelenburg positioning. This heavy-duty frame is fully electric with a three-function operation to elevate the sleep surface, head section or lower leg. This bariatric sleep surface is manufactured with a split frame with removable ends for easy transport. The sleeping deck is designed with a heavy-duty grid. The frame has a height range of 17 to 27 inches. Overall dimensions for the frame are 46.5-inches in width (with rails) and 87-inches in length. The frame weighs 295 pounds and is easy to assemble without the need for any special tools. The frame is finished with a durable powder-coated finish. The manufacturer provides a two-year warranty for defects in workmanship and materials of mechanical components, frame, and electronics. During the warranty period, defective items will be repaired or replaced at manufacturer's option.

This manufacturer also makes Low Hospital Frames and Bariatric Beds. This manufacturer also provides hospital accessories, including Safety Rails, Mattresses, Overbed Tables and Hospital Trapeze.

If you need assistance moving and setting up your new bed, make sure to select the White Glove Delivery option before choosing " Add to Cart." With White Glove Delivery from Vitality Medical, you will have one to two highly skilled technicians that will move everything into your home, assemble it, ensure that it works properly, demonstrate its functionality and how to use it, and will remove any excess packaging upon leaving your home. Background checks have been done on every technician, so you can always rest assured that you're in safe hands.

White Glove Delivery is available by appointment in most states. Once you have placed your order, we will have an associate contact you to arrange a time that complements your schedule for the delivery and set up of your new bed.

***Disclaimer: White glove delivery is available in most states not including North Dakota. Please allow an additional 1-3 weeks for completion of white glove delivery.***

Bookmark Links

Features & Benefits

  • Trendelenburg positioning functions.
  • Swing-down style trigger release rail (optional).
  • DC electronics for quite and faster Hi-Lo function than traditional DC.
  • High-strength, steel-reinforced, truss frame for heavy-duty use.
  • Heavy-duty grid sleep deck.
  • Durable powder-coated finish for longer life.
  • Self-wrenching nut: assembled for easy part replacement.
  • Ball-screw head/footer ends.

Key Specifications

  • Product Number: ABLB700
  • Weight Capacity: 600 lbs.
  • Bed Dimensions: 87L x 46.5W x 27 to 27H Inches
  • Frame/Weld Warranty: 2 year
  • Mechanical Warranty: 2 year
  • Electrical Warranty: 2 year


  • Frame with 35 x 80 Sleep Surface
  • Walnut Veneer Head & Foot Boards
  • Hand Pendant

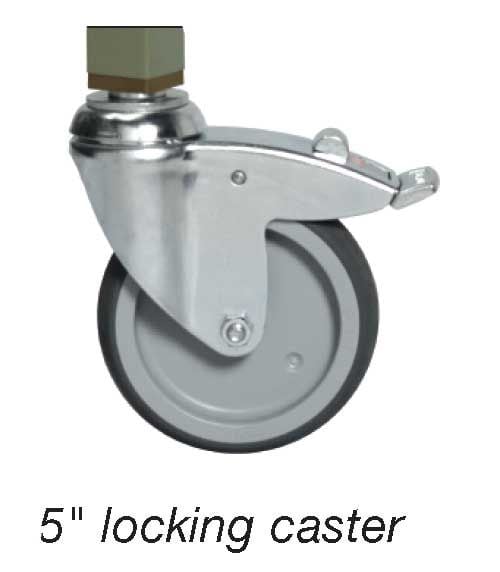

  • Caster Wheels


Head/Footboard Options


Headboard and Footboard

Walnut Veneer Headboard and Footboard

The walnut veneer head/footboard is a fiberboard product with a walnut veneer finish. This matching set is an attractive complement to your bedroom.

  • Product Number: ABL-B700.
  • HCPCS Code: E0301.
  • No special tools required for assembly.


Mattress Options

Gold Care Foam Mattress

Gold Care Foam Mattress

This long-term care mattress has four separate anatomically matched support zones to enhance patient comfort while reducing tissue interface pressures. Designed with DPM and a heel slope to reduce pressure against your heel. It offers an effective method for prevention and treatment of stage I pressure ulcers. A breathable top cover moves with the patient to reduce shearing and is bacteria resistant, flame retardant, fluid-resistant, anti-fungal, anti-static, and non-allergenic. The cover has near 0% vapor transmission and is easy to clean.

  • Product Number: 4198042PH-1633.
  • Dimensions: 42 x 80 x 6 Inch.
  • Weight: 20.5 lbs.
  • Weight Capacity: 400 lbs.
  • Foam Core: Antimicrobial, Medical Grade, 100% Polyurethane.
  • Meets 16 CFR 1633 requirements.
  • Latex free.
  • HCPCS Code: E0184.
  • Warranty: 5 years limited.
51980-1633N Platinum Foam Mattress

Platinum Care Foam Mattress

This premium Foam Mattress comes with a bacteria resistant, anti fungus, non-allergenic cover that is also fluid resistant. The Platinum Care Mattress is designed with both DPM and Heel Slope, offering support for pressure reduction and redistribution. The foam on the heel section of the mattress employs smaller cells to provide better pressure reduction and pressure redistribution.

  • Product Number: 5198042PH-1633N.
  • Dimension: 42 x 80 x 6 Inch.
  • Weight: 24.5 lbs.
  • Weight Capacity: 425 pounds.
  • HCPCS Code: E0184.
  • Nylon and vinyl cover.
  • Antimicrobial.
  • Latex free.
  • Warranty: 5 year limited.
Bariatric Care Therapuetic Foam Mattress for Homecare

Bariatric Care Therapeutic Foam Mattress

Bariatric Care Foam Mattress provides comfort and durability for the bariatric patient. This heavy-duty mattress is a therapeutic mattress meeting 16 CFR 1633 requirements. The mattress is constructed with a high-density foam base to provide a firm, supportive foundation for bariatric patients. It comes with a cover that is made with soft and durable Chemlux II and is bacteria resistant, flame retardant, fluid-resistant, anti-fungal, anti-static, and non-allergenic. The mattress cover is zippered and removable for easy cleaning.

  • Product ID: 650-1501-1633.
  • Dimensions: 42 x 80 x 7 Inch.
  • Weight Capacity: 600 lbs.
  • Near 0% vapor transmission, and easy to clean
  • HCPCS Code: E1399.
  • Warranty: 2 years limited.
Altadyne XD Alternating Pressure Low Air Loss Mattress

AltaDyne XD AP Low Air Loss Mattress

AltaDyne XD Low Air Loss mattress system includes a pump, mattress, and 2-inch foam base. This technology wicks moisture away from the patient to keep the patient dryer and more comfortable. The air mattress provides six options for mattress pressure and an optional static mode. Equipped with a patented cell-in-cell, this mattress prevents air loss in the event of a power failure. A quilted PU nylon top cover is vapor permeable and fluid resistant comfort levels to optimize therapeutic support. Adjustable alternating cycle time can be programmed to the needs of the individual. A 2 inch pocket at the bottom of the mattress provides space for a foam base for additional safety.

  • Product Numbers: 774200A and 763400F.
  • Dimensions: 42 x 78.7 x 10 Inch mattress, 42 x 78.7 x 2 Inch foam base.
  • Weight: 9.9 lbs pump.
  • Weight Capacity: 800 lbs.
  • Air Output: 16 LPM.
  • Cycle Time: 5 - 20 minutes in 5 minute increments.
  • Latex free.
  • HCPCS code: E0277.
  • Warranty: 2 years limited control unit, 1 year limited mattress.


Side Rail Options

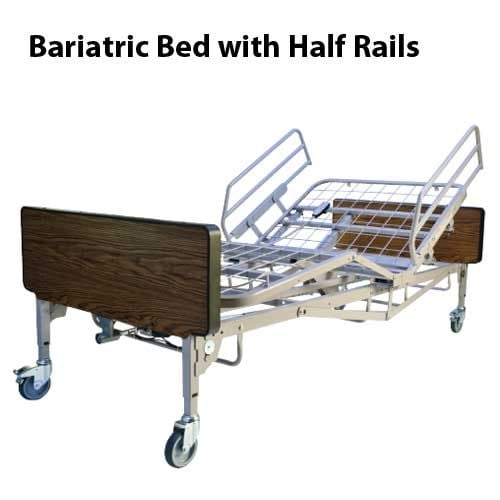

Half-Length Rail

Swing Away Half Side Rail

The Half Rail is about 26 inches long and is useful as a safety rail or assist rail for getting in and out of bed. Equipped with an Eze-Lok system, this rail swings away to allow easy access to the patient. This rail adheres to the FDA Hospital Bed System Dimensional Guidance to Reduce Entrapment and the Hospital Safety to reduce entrapment.

  • Product Number: A8540.
  • Length: 26 Inch.
  • Color: Gray.
  • Swing Away style.
  • Eze Lok system.

Accessory Options


GF8902 Economy Overbed Table

Economy Overbed Table

Economy Overbed Table has a height adjustment ranging from 28 to 44 inches. The steel tubular frame has an attractive chrome finish. Walnut wood grain laminate finish on the tabletop with plastic edge molding provides a great look and smooth working surface. Caster wheels provide excellent mobility. Two of the four caster wheels are locking to keep the table in place. This economy overbed table comes with a 1-year warranty.

  • Product Number: GF8902.
  • Dimensions: 30 x 15.2 Inch.
  • Height: Adjustable 28 to 44 Inch.
  • Weight: 22 lbs.
  • Weight Capacity: 30 lbs.
  • HCPCS Code: E0274.
  • Warranty: 1 year.
Tilt Table

Deluxe Overbed Tilt Table

Deluxe Tilt Overbed Table comes with chrome plating for an attractive finish. Constructed of tubular steel, this overbed table is durable and sturdy. The oak wood-grain tabletop tilts and adjusts up to 13 inches in height. The casters are ball-bearing loaded for easy maneuvering. This deluxe overbed table has a warranty of 3 years.

  • Product Number: GF89051A.
  • Dimensions: 30 x 15.2 Inch.
  • Height: Adjustable 30 to 43.8 Inch.
  • Weight: 21 lbs.
  • Weight Capacity: 30 lbs.
  • HCPCS Code: E0274.
  • Warranty: 3 years.
Lumex Heavy Duty Trapeze

Lumex Bariatric Trapeze

Lumex Heavy Duty Trapeze is available in two weight capacity options--450 or 600 pounds. These bariatric trapezes offer safe patient transfer into or out of hospital or homecare beds. Bariatric patients may also use the trapeze to reposition themselves. The handlebar location is adjustable. A floor stand comes with the trapeze for a sturdy base.


  • Product Numbers: 2940B, 2960B.
  • Height 2940B: 76-7/8 Inch.
  • Height 2960B: 80-5/8 Inch.
  • Weight 2940B: 72 lbs.
  • Weight 2960B: 90 lbs.
  • Weight Capacity 2940B: 450 lbs.
  • Weight Capacity 2960B: 600 lbs.
Hospital Sheet Set

Hospital Sheet Set

Manufactured by ReliaMed, this three-piece hospital sheet set comes with a mattress sheet, top sheet, and pillowcase. This sheet set is designed for standard hospital beds. The top sheet is larger than a standard top sheet for easy bed making. The mattress sheet is a fitted bottom sheet to provide a snug fit upon the mattress.

  • Product Number: 6615631.
  • Bottom Sheet Dimensions: 36 Inch Width x 80 Inch Length x 8 Inch Deep
  • Top Sheet Dimensions: 66 Inch Width x 104 Inch Length
  • Standard Pillow Case: 20 Inch Width x 30 Inch Length
  • HCPCS Code: A9270


Vitality Medical has a wide range of options for hospital beds in case this product doesn't match the desired specifications.

Additional Information

Additional Information

What's in the Box?
  • Bed
  • Walnut Veneer Headboard & Footboard
  • Hand Pendant
  • Caster Wheels
  • Manual
  • Width
    46.5 Inch
  • Length
    87 Inch
  • Height Range
    17 to 27 Inch
  • Sleep Surface Dimensions
    Width 42 Inch, Length 80 Inch
  • Weight
    295 Pounds
  • Weight Capacity
    700 Pounds
  • Maximum Back Angle
    60 Degrees
  • Maximum Knee Angle
    30 Degrees
  • Frame and Welds
    5 Years
  • Mechanial
    2 Years
  • Electrical
    3 Years
  • Other Durable Components
    2 Years

Shipping & Returns

Shipping Information

Leaves Warehouse: 1-3 Weeks. Products are made to order. If white glove shipping is selected, this may affect lead-times. - More details
Economy Shipping: Guaranteed 7-10 business days

Returns Information
Refer to our returns policy for more information.
Manuals & Documents

Manuals and Documents




Product Comparison

Product Comparison


GF Lumex Patriot Full-Electric Hospital Bed - US0458


Graham-Field Bariatric Bed with Trendelenburg Positioning - ABL-B700


GF Patriot LX Full Electric Hospital Bed

Sleep Surface Dimensions35 x 80 InchWidth 42 Inch, Length 80 InchWidth 35 Inch, Length 80 Inch
Height Range9.5 to 23.5 Inch17 to 27 Inch10 to 20 Inch
Weight178 Pounds295 Pounds125 Pounds
Weight Capacity450 Pounds700 Pounds450 Pounds
Maximum Back Angle60 Degrees60 Degrees60 Degrees
Maximum Knee Angle30 Degrees30 Degrees30 Degrees
Warranty2 Years5 Years5 Years
