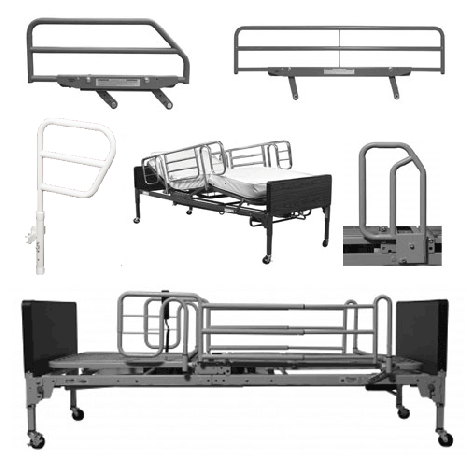

Graham-Field Bed Rails

Bed Rails are used in hospitals, nursing homes and homecare to protect patients from fall injuries and to assist patients with a steady grab or hold to safely exit or enter the bed. Graham-Field carries an assortment of rails for beds, including hospital bed rails, homecare bed rails, long term care bedrails and bariatric bed rails. Sizes include full bed rails, 3/4 bed rails, half bed rails, 1/4 bed rails and bed assist rails. Brand names include Patriot Bed Rails, Liberty Bed Rails, and Lumex Safety Rails. Graham-Field also manufactures a special featured bed rail call the Swing-A-Way Bed Rail. These home bed rails are available at Vitality Medical and are discussed in more detail below.

Swing-A-Way Half Side Rail

The Graham-Field Swing-A-Way Half Side Rails may be positioned at the head or foot section of the bed. These half rails fit the Eze Lok, Flex, Alpha and Bariatric Beds manufactured by Graham-Field. The Swing-A-Way bed rail comes with a convenient trigger type release that allows caregivers and patients to raise and lower the bed side rail with a unique retracting action. This half length bed rail has an epoxy finish for durability and longer life.

Graham-Field Swing-A-Way Half Side Rail Specifications

• Swing-A-Way Half Side Rail (product ID # A7040)
• Width: 1” tubing.
• Length: 35".
• Height: 14" (from the bed to the top of the rail).
• Half Side Bed Rail may be positioned at the head or foot to meet individual needs.
• Shipping Product Weight: 25 lbs.
• Graham-Field Swing-A-Way Bed Rail Warranty: 1 Year Limited.

Swing-A-Way Three Quarter Length Side Rail

The Swing-A-Way 3/4 Side Rails fit the Eze Lok, Flex and Alpha Beds manufactured by Graham-Field. The Swing-A-Way bed rail has a swing down feature that allows the rail to easily move out of the way to allow the patient to get in and out of bed. This feature of the bed side rail is activated by a convenient trigger type release that allows caregivers and patients to raise and lower the bed rail with a unique retracting action. This 3/4 length bed rail has a durable epoxy finish.

Graham-Field Swing-A-Way 3/4 Side Rail Specifications

• Swing-A-Way 3/4 Side Rail (product ID # A7060)
• Width: 1" tubing .
• Length: 54".
• Height: 14".
• Shipping Product Weight: 27 lbs.
• Graham-Field Three Quarter Bed Rails Warranty: 1 Year Limited.

Graham-Field Foot Section Half Rails

Bariatric Bed Foot Section Half Rails are designed to fit the Eze Lok, Flex, Alpha and Bariatric beds manufactured by Graham-Field. These half side rails swing away to allow the patient or caregiver access to the hospital bed.

Foot Section Half Rail Specifications

• Bariatric Bed Foot Section Half Rails (product ID # A7510)
• Width: 1" tubing.
• Length: 35".
• Height: 14".
• Shipping Product Weight: 25 lbs.
• Graham-Field Bed Rails Warranty: 1 Year Limited.

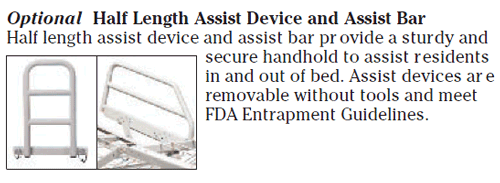

Graham-Field Patriot Assist Bar

The Assist Bar is designed exclusively for the Patriot™ bed. It is a true assist device, designed as a secure handhold and support for active patients who need assistance getting in and out of bed on their own. It is bolted directly to either side of the bed frame to support the split frame when a patient enters or exits the bed.

It can also assist patients capable of grasping the bar and maneuvering themselves with rotating and turning in bed. It is not a bed rail and cannot be lowered, nor is it intended to provide protection from falling out of bed. The Assist Bar is recommended for active patients not requiring bed rails, facilities not able to use side rails, assisted living environments, and those using the Patriot as a low-height bed.

Graham-Field Assist Bar Features & Benefits

• Designed to be used specifically with the Patriot and WhisperLite™ II full-electric beds that are commonly used as standard-height or low beds
• Heavy-duty steel construction
• Rails are powder-coated with an environmentally-friendly, long-lasting hammertone finish and secure gripping surface
• Tool-free installation

Graham-Field Patriot Assist Bar Specifications

• Bed Assist Bar (product ID # GF6500B1)
• Width: 12.5".
• Length: 15.5".
• Height: 9.
• Shipping Product Weight: 8 lbs.
• HCPCS: E0310
• Graham-Field Bed Rails Warranty: 3 Years Limited.

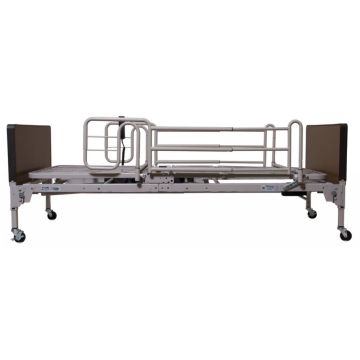

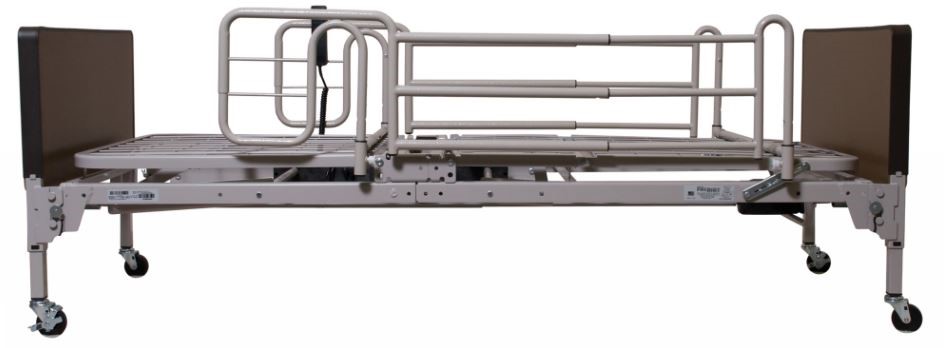

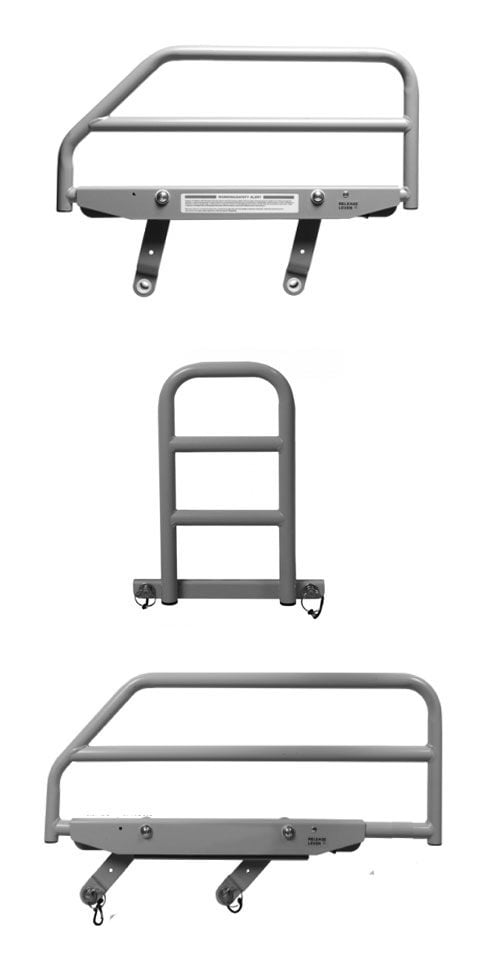

Liberty Full Length Bed Rails

Liberty Full Length Rail is a nominal, telescoping full length rail that provides maximum perimeter coverage. This full bed rail is intended for use by patients requiring maximum length rail and maximum perimeter protection. Designed to offer added protection, the Lumex Liberty Rails follow the FDA Hospital Bed System Dimensional Guidance to Reduce Entrapment and the Hospital Bed Safety Workgroup and FDA Dimensional Test Methods for Bed System Zones 1-4 to reduce bed entrapment.

Graham-Field Liberty Full Length Bed Rails Features & Benefits

• Improved rail design decreases the spacing between the crossbars, thus reducing the risk of entrapment
• New bed rail length closes open areas that can occur during full bed articulation
• Rails now mount in fixed patent pending rail slots on Patriot bed deck to prevent sliding and moving. Easy installation saves delivery and setup time and ensures proper rail placement
• Spring-loaded, self-adjusting cross braces feature safety tabs that prevent accidental disengagement when bumped or during application of side pressure
• Patriot Liberty Bed Rails have been tested to the highest Medical Bed System standards
• Designed to be used specifically with the Patriot and WhisperLite II full-electric beds that are commonly used as standard-height or low beds
• Heavy-duty steel construction
• Rails are powder-coated with an environmentally-friendly, long-lasting hammertone finish and secure gripping surface
• Tool-free installation

Graham-Field Liberty Full Length Bed Rails Specifications

• Liberty Full Length Bed Rails (product ID # GF6570B1)
• Width: 1 1/8" tubing.
• Length: adjustable to 62".
• Height: 13.5" fully extended.
• Weight: 21.5 lbs.
• Shipping Weight: 23.75 lbs.
• HCPCS Code: E0310
• Graham-Field Liberty Full Length Bed Rail Warranty: 3 Years Limited.

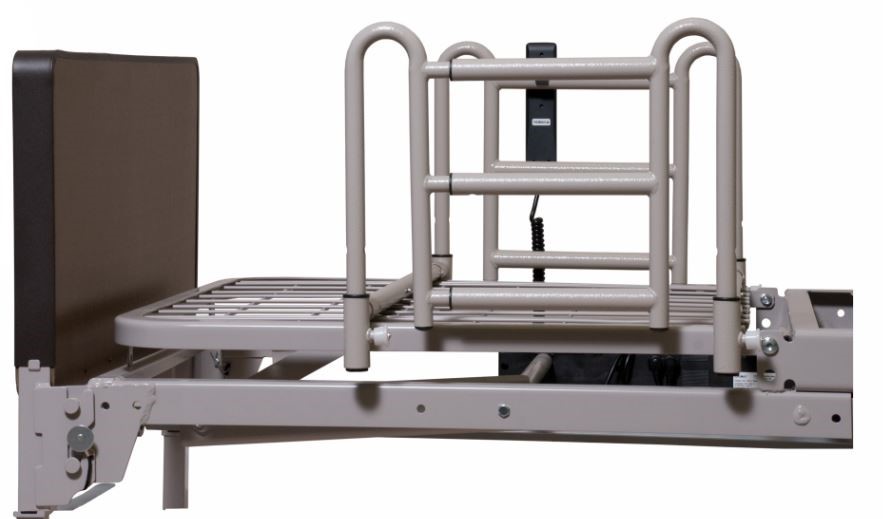

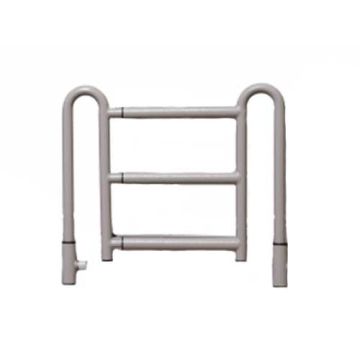

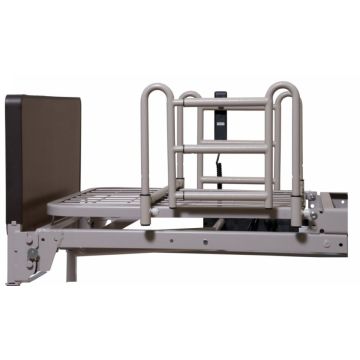

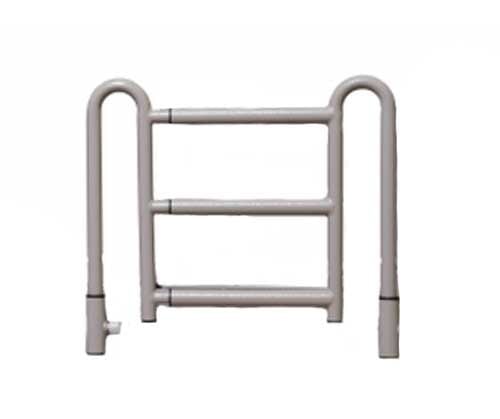

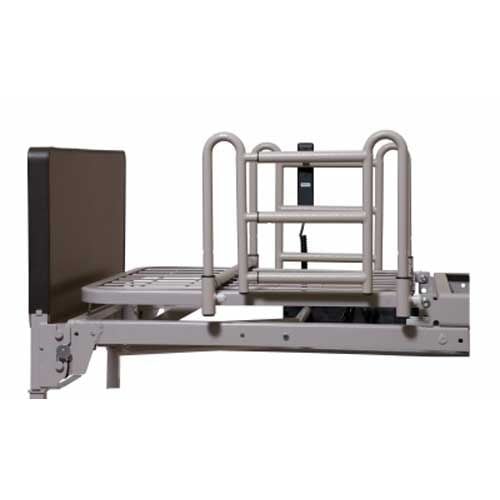

Liberty Quarter Length Bed Rail

Liberty 1/4 Bed Rail is approximately 18 inches in length when mounted on the Patriot bed. This versitile bed rail can be used as a head assist, head rail, or foot rail. The rail provides minimal rail coverage and gives assistance when entering or exiting the bed. The Quarter Rail’s non-telescoping inner and outer tubes overlap in conjunction with the Patriot mounting system, resulting in a very sturdy rail.

Graham-Field Liberty Quarter Length Bed Rail Features & Benefits

• Improved rail design decreases the spacing between the crossbars, thus reducing the risk of entrapment
• New bed rail length closes open areas that can occur during full bed articulation
• Rails now mount in fixed patent pending rail slots on Patriot bed deck to prevent sliding and moving — easy installation saves delivery and setup time and ensures proper rail placement
• Spring-loaded, self-adjusting cross braces feature safety tabs that prevent accidental disengagement when bumped or during application of side pressure
• Patriot Liberty Bed Rails have been tested to the highest Medical Bed System standards
• Designed to be used specifically with the Patriot and WhisperLite II full-electric beds that are commonly used as standard-height or low beds
• Heavy-duty steel construction
• Rails are powder-coated with an environmentally-friendly, long-lasting hammertone finish and secure gripping surface
• Tool-free installation
• The Quarter Rail can be mounted on the bed’s foot and the GF6590B1 mounted on the bed’s head to create the Patriot split rail system.

Graham-Field Liberty 1/4 Length Bed Rail Specifications

• Liberty Quarter Length Bed Rail (product ID # GF6580B1)
• Width: 1 1/8" tubing.
• Length: 18".
• Height: 13.5".
• Weight: 12.75 lbs
• Shipping Weight: 14.65 lbs
• HCPCS Code: E0310
• Graham-Field Quarter Length Bed Rail Warranty: 3 Years Limited.

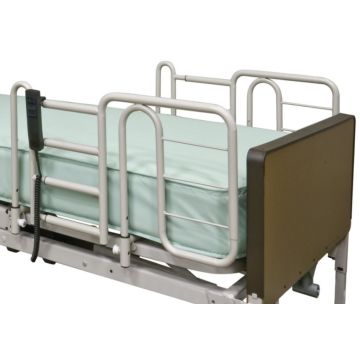

Liberty Half Length Bed Rail

Liberty Half BedRail for the bed's head section provides full head coverage of 31.5 inches and extends to eliminate the gap between the head board and the end of the rail. The non-telescoping tube overlap results in a very sturdy rail that can be used as a secondary handle and support.

Graham-Field Liberty Half Bed Rail Features & Benefits

• Improved rail design decreases the spacing between the crossbars, thus reducing the risk of entrapment
• New bed rail length closes open areas that can occur during full bed articulation
• Rails now mount in fixed patent pending rail slots on Patriot bed deck to prevent sliding and moving. Easy installation saves delivery and setup time and ensures proper rail placement
• Spring-loaded, self-adjusting cross braces feature safety tabs that prevent accidental disengagement when bumped or during application of side pressure
• Patriot Liberty Bed Rails have been tested to the highest Medical Bed System standards
• Designed to be used specifically with the Patriot and WhisperLite II full-electric beds that are commonly used as standard-height or low beds
• Heavy-duty steel construction
• Rails are powder-coated with an environmentally-friendly, long-lasting hammertone finish and secure gripping surface
• Tool-free installation
• The Half No Gap can be mounted on the bed’s head and the GF6580B1 mounted on the bed’s foot to create the Patriot split rail system

Graham-Field Liberty Half Bed Rail Specifications (product ID # GF6590B1)

• Liberty Half BedRail (product ID # GF6590B1)
• Width: 1 1/8" tubing.
• Length: 31.5".
• Height: 13.5 ".
• Weight: 16.75 lbs.
• Shipping Weight: 17.85 lbs.
• No gap bed rail.
• HCPCS Code: E0305.
• Graham-Field Liberty Half Length Bed Rail Warranty: 3 Years Limited.

Lumex Safety Rail - Institutional Grade Bed Rail

Lumex Safety Rail offers assistance to the patient/resident for getting in and out of bed where traditional bed rails often fall short. This institutional grad rail can be rotated a full 360 degrees and then firmly locked into place, offering comfort, mobility and flexibility to the patient. The Lumex Safety Rail is lightweight, strong and easy to clean. This bed assist rail is ideal for those who need a little extra assistance or a firm hold to steady themselves when re-positioning. This safety assist rail fits twin-size beds only.
