EZ-ACCESS U-Shaped PATHWAY Modular Wheelchair Ramp System
Product Highlights
- Made of highly durable aluminum
- Quick and easy to assemble
- Built-in slip-resistant tread
- 1,000-pound weight capacity
- Withstands rust and deterioration
- Made in the United States
If the slope necessitates a different configuration, refer to the following EZ-ACCESS Pathway Ramp kits:
- Fast Delivery
- Easy Returns
Item# | Description | Size | Price |
---|---|---|---|

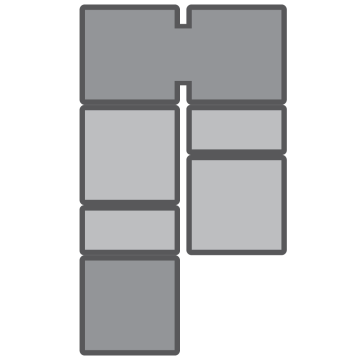

PS20U44TTS | 20 Ft. Ramp, 4 Ft. Top and Turn Platforms | Each |
List Price: $6774.99
Price:
$5,961.99
You Save: $813.00 (12%)
|

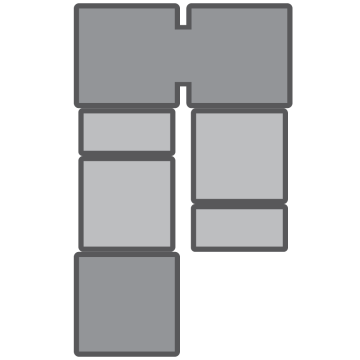

PS20U55TTS | 20 Ft. Ramp, 5 Ft. Top and Turn Platforms | Each |
List Price: $7271.58
Price:
$6,398.99
You Save: $872.59 (12%)
|

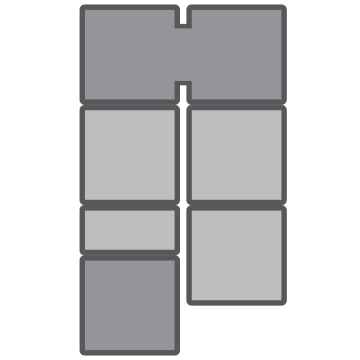

PS22U44TTS | 22 Ft. Ramp, 4 Ft. Top and Turn Platforms | Each |
List Price: $6918.17
Price:
$6,087.99
You Save: $830.18 (12%)
|

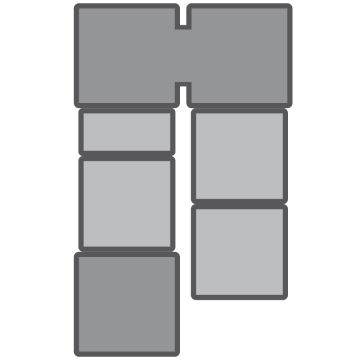

PS22U55TTS | 22 Ft. Ramp, 5 Ft. Top and Turn Platforms | Each |
List Price: $7413.63
Price:
$6,523.99
You Save: $889.64 (12%)
|

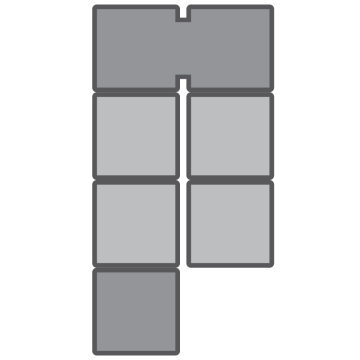

PS24U44TTS | 24 Ft. Ramp, 4 Ft. Top and Turn Platforms | Each |
List Price: $7278.40
Price:
$6,404.99
You Save: $873.41 (12%)
|

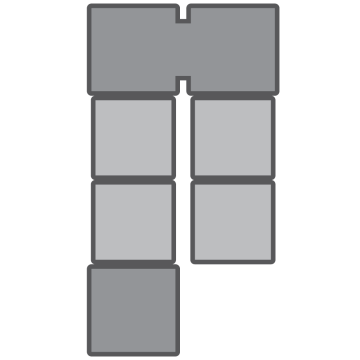

PS24U55TTS | 24 Ft. Ramp, 5 Ft. Top and Turn Platforms | Each |
List Price: $7774.99
Price:
$6,841.99
You Save: $933.00 (12%)
|

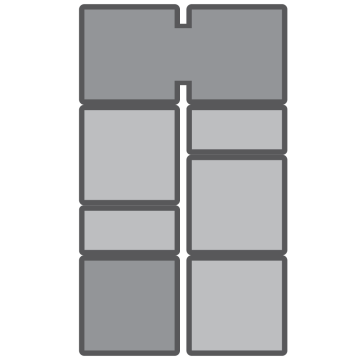

PS26U44TTS | 26 Ft. Ramp, 4 Ft. Top and Turn Platforms | Each |
List Price: $7869.31
Price:
$6,924.99
You Save: $944.32 (12%)
|

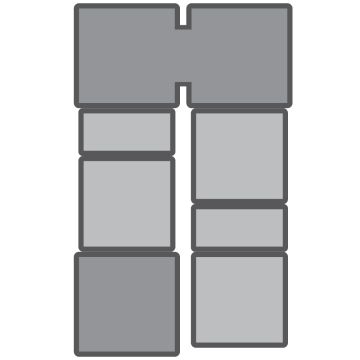

PS26U55TTS | 26 Ft. Ramp, 5 Ft. Top and Turn Platforms | Each |
List Price: $8367.03
Price:
$7,362.99
You Save: $1004.04 (12%)
|

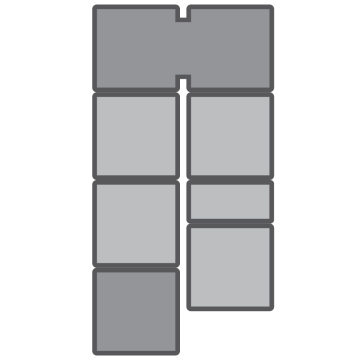

PS28U44TTS | 28 Ft. Ramp, 4 Ft. Top and Turn Platforms | Each |
List Price: $8193.17
Price:
$7,209.99
You Save: $983.18 (12%)
|

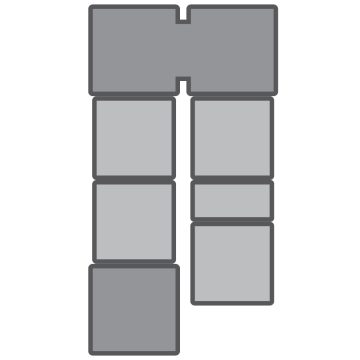

PS28U55TTS | 28 Ft. Ramp, 5 Ft. Top and Turn Platforms | Each |
List Price: $8689.76
Price:
$7,646.99
You Save: $1042.77 (12%)
|

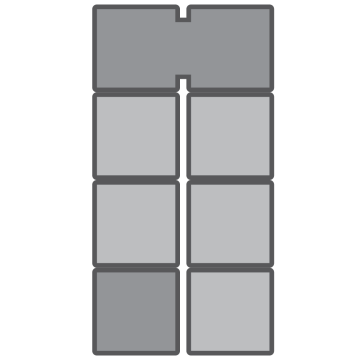

PS30U44TTS | 30 Ft. Ramp, 4 Ft. Top and Turn Platforms | Each |
List Price: $8336.35
Price:
$7,335.99
You Save: $1000.36 (12%)
|

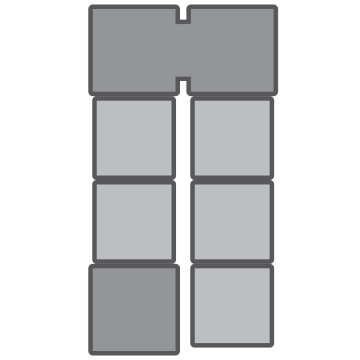

PS30U55TTS | 30 Ft. Ramp, 5 Ft. Top and Turn Platforms | Each |
List Price: $8832.94
Price:
$7,772.99
You Save: $1059.95 (12%)
|
Description
Who Uses This Product? EZ-ACCESS U-Shaped Pathway Modular Access System is used by individuals who want to make their residence accessible to wheelchairs and scooters, especially those whose needs go beyond what portable ramps can offer.
Why They Love It: It offers a highly durable, long-term accessibility solution that has minimal long-term impact on the home and yard. All that's required is simple installation—no poured footers, no construction, and no permits needed. The ramp is so easy to put together that it can be used the same day it arrives! The maintenance-free, high-strength aluminum holds up to the elements, ensuring the ramp will not corrode for years of safe use.
Product Resources
Manufacturer's Lifetime Warranty
Fast Shipping & Handling Most orders are processed and shipped within 24 hours!

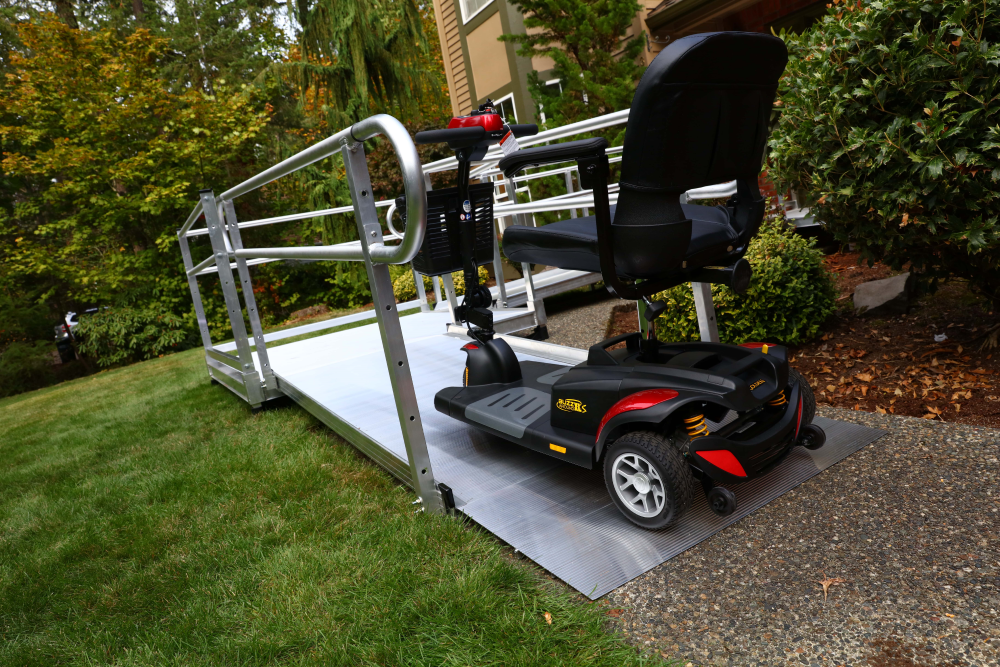

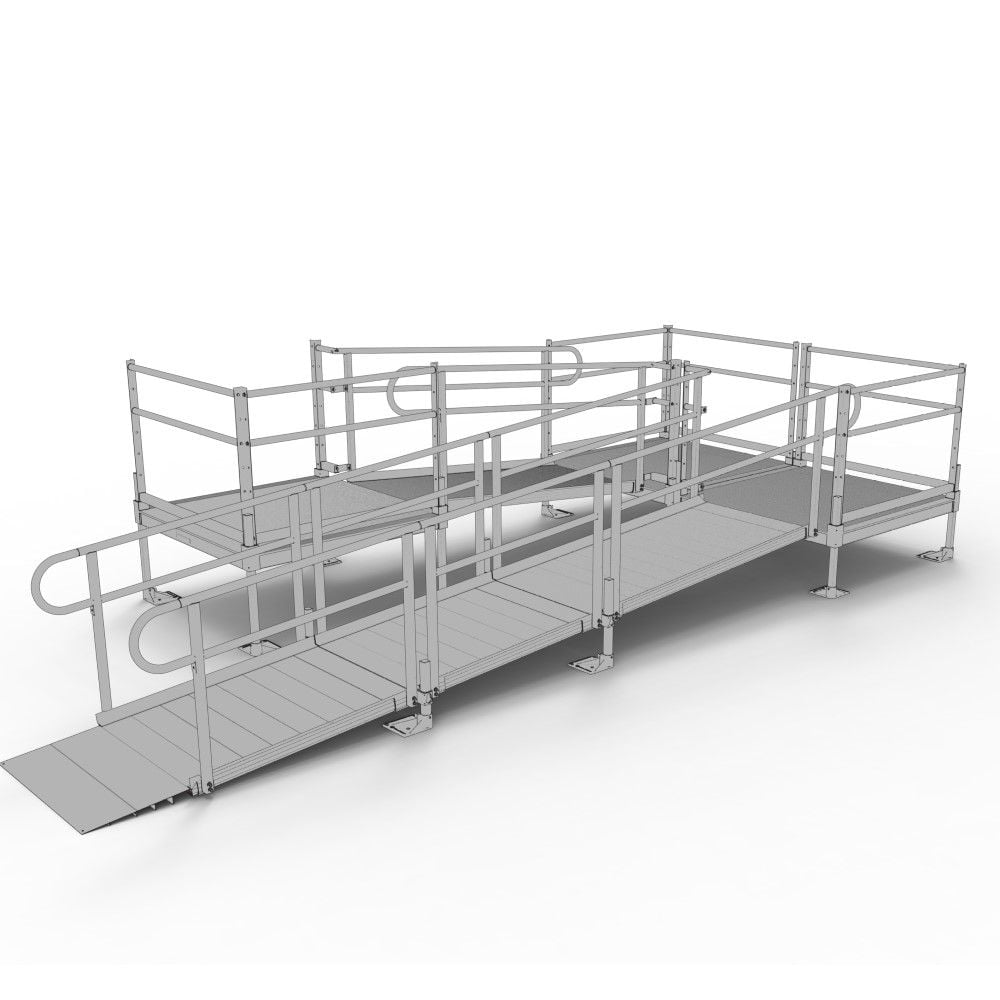

U-Shaped PATHWAY Modular Ramp System Overview
PATHWAY U-Shaped Aluminum Wheelchair Ramp Kits come with all the necessary components for safe, long-term access to an elevated doorway, passage, and porch. The modular ramps are quick and easy to install, with no need to add to or alter the structure of the residence. The attractive American-made ramps feature an all-aluminum design that resists rust and deterioration for lasting durability. Safety features include a slip-resistant surface, two-line handrail, and flush, finished sides. The ramps have a weight capacity of 1,000 pounds and accommodate slopes from 1:8 to 1:14. They are available in a variety of lengths and configurations to suit a range of user needs and home requirements.
Vitality Medical offers a variety of home wheelchair ramps and other mobility aids. Get reliable residential accessibility by purchasing a U-Shaped EZ-ACCESS PATHWAY Ramp Kit today!
Key Features

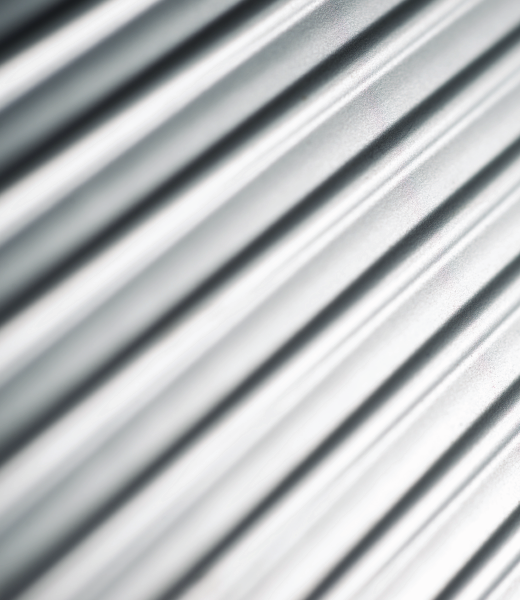

Made of High-Strength Aluminum
Durable all-aluminum construction has a 1,000-pound weight capacity.
Built To Withstand the Elements
Ramp is resistant to rust and deterioration to provide years of use.

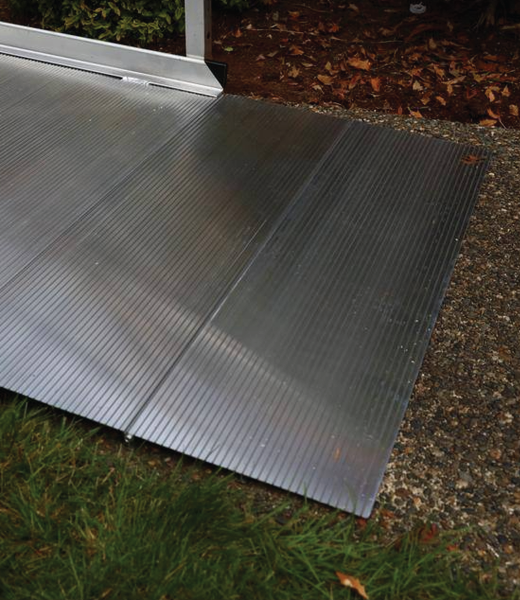

Slip-Resistant Extruded Tread
Solid surface with raised ribs offers exceptional slip resistance.

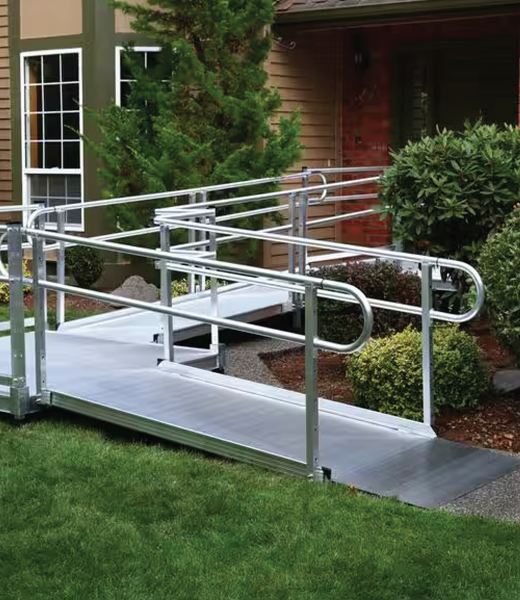

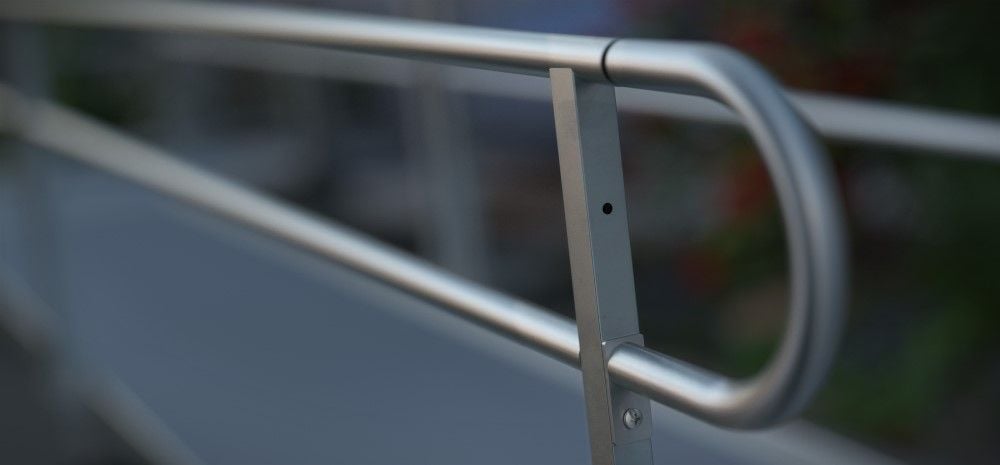

Two-Line Handrail for Safety
Two gripping surfaces for stability: a continuous top rail and a lower rail.
Product Information
Additional Features
- Inclusive Modular Kits Contain All the Necessary Components for Ramp
- Quick, Simple Assembly Requires Only Tools—No Construction or Poured Concrete
- Top Platform Can Be Configured for Straight, Right, or Left Entry
- Independently Adjustable Legs Allow for Easy Leveling and Slope Selection
- Ground Transition Plate Creates Smooth Transfers
- Finished, Flush Sides With No Hazardous Protruding Nuts or Bolts
- 36-Inch Usable Width Accommodates Most Wheelchairs and Scooters
What's Included
Each assembled ramp comprises multiple 4-foot and/or 6-foot ramp pieces; two 4- or 5-foot turn platforms; and one 4- or 5-foot top platform. In addition to the following listed components, each kit includes all other necessary pieces for assembly, including supporting legs, ground transition, connectors, hangers, braces, and end brackets. Refer to the Kit Components document found in the Additional Resources section.
Product Specifications
- Manufacturer: EZ-ACCESS
- Product Numbers:
- Ramps With 4-Foot Platforms: PS20U44TTS, PS22U44TTS, PS24U44TTS, PS26U44TTS, PS28U44TTS, PS30U44TTS
- Ramps With 5-Foot Platforms: PS20U55TTS, PS22U55TTS, PS24U55TTS, PS26U55TTS, PS28U55TTS, PS30U55TTS
- Usable Width: 36 Inches
- Weight Capacity: 1,000 Pounds
- Slope Range: 1:8 to 1:14
- Material: Aluminum
- Warranty: Lifetime
- Country of Origin: United States
- Application: Wheelchair Ramp
Product Details
Tools/Hardware Typically Required for Assembly
- #2 Phillips screwdriver
- 1/4” masonry drill bit (if installed to concrete)
- 1/8” drill bit
- 5/16” drill bit
- 5/16” socket or 5/16” wrench
- 9/16” socket or 9/16” wrench
- 1/2” socket or 1/2” wrench
- 5/32” Allen wrench
- 3/16” Allen wrench
- 25’ tape measure
- Box knife
- Construction adhesive
- Digging tools (if an obstacle needs to be removed)
- File
- Hacksaw
- Hammer
- Level
- Pliers
- Power drill
- Rubber mallet

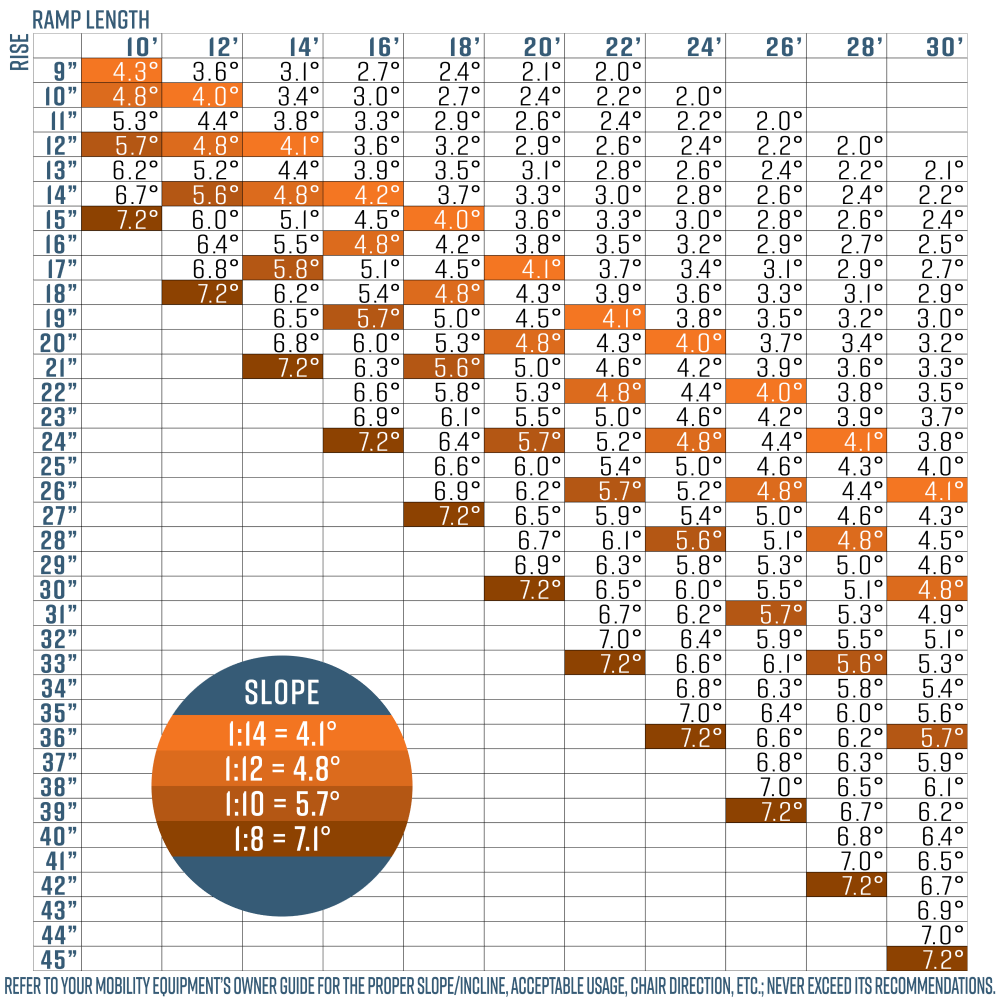

Proper Slope/Incline
EZ-ACCESS Ramp systems have an ideal slope of 1:12 (approximately 5 degrees), which is also the maximum slope called for in ADA guidelines. However, the system can be installed at slopes ranging from 1:14 to 1:8, or approximately 4 to 7 degrees. Do not attempt to install the ramp at an incline outside of this designated slope range.
Frequently Asked Questions (FAQs)
Do the kits contain all the tools needed to assemble the ramp?
No. The kits contain all the required ramp components; however, you will need to provide your own tools.
Does Vitality Medical sell EZ-ACCESS ramps and platforms without handrails?
Because EZ-ACCESS designs its ramps with safety in mind, handrails are standard on platforms.
How should ice and snow removal be handled?
After snow is shoveled and the tread surface is swept clean, magnesium chloride may be used to melt snow and ice accumulation on the ramp. Once snow and ice are no longer a concern, clean the tread surface with mild soap and water to remove residue. Please refer to the user manual for complete snow removal and de-icing instructions.
Can this ramp be installed at a business?
No, this ramp is intended for residential use only.
Additional Resources
Assembled Ramp Specifications Sheet contains dimensions and weights for fully assembled ramps.
Ramp & Platform Specifications Sheet contains technical specifications for the individual ramps, platforms, and other components that make up each kit.
What's Included List details the components comprised by each ramp kit.
