Who Uses the EZ-ACCESS® PATHWAY® L-Shaped Modular Wheelchair Ramp System? Those who need to make their homes wheelchair accessible with an L-shaped ramp when their residential access extends beyond a straight ramp.
Why They Love It: The EZ-ACCESS® PATHWAY® Ramp provides the next step when portable ramps no longer fit users' needs. The PATHWAY® Ramp system is a long-term, maintenance-free solution to safely getting in and out of the home on a wheelchair or scooter. No prep work is required - the ramp can be assembled in one day using the easy-to-follow instructions.
Resources
Manufacturer Lifetime Warranty
Fast Shipping & Handling Most orders are processed and shipped within 24 hours!

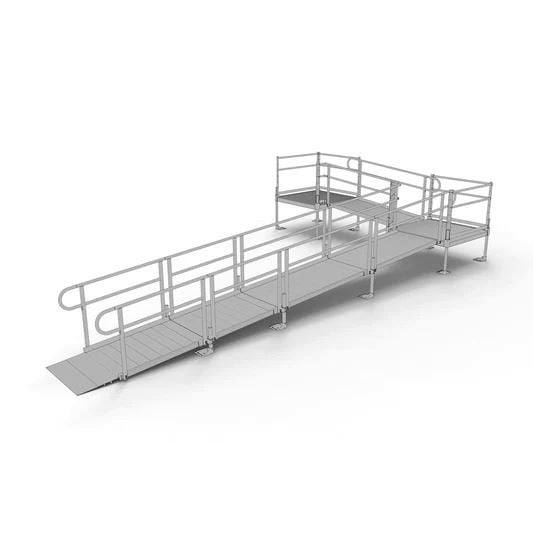

L-Shaped PATHWAY® Modular Wheelchair Ramp System Overview
The L-Shaped PATHWAY® Modular Wheelchair Ramp System Kits are available in a variety of configurations to meet each user's specific accessibility needs and to provide access to an elevated doorway, path, or porch. The PATHWAY® Ramp Kits are available in other configurations, including straight and u-shaped to achieve the desired slope. These kits are installed without pouring footings or altering the residence, so the ramp can be ready to use the same day it arrives.
The PATHWAY® Ramp has been designed to stand the test of time with its durable aluminum construction that holds up to 1,000 pounds. Slip-resistant ribbed treads and double handrails increase traction and provide overall stability and security.
Vitality Medical provides many types of wheelchair ramps for the home. Check out the EZ-ACCESS® Comparison Chart to view all ramp styles and uses. Get better residential access with a wheelchair ramp today!
Key Features

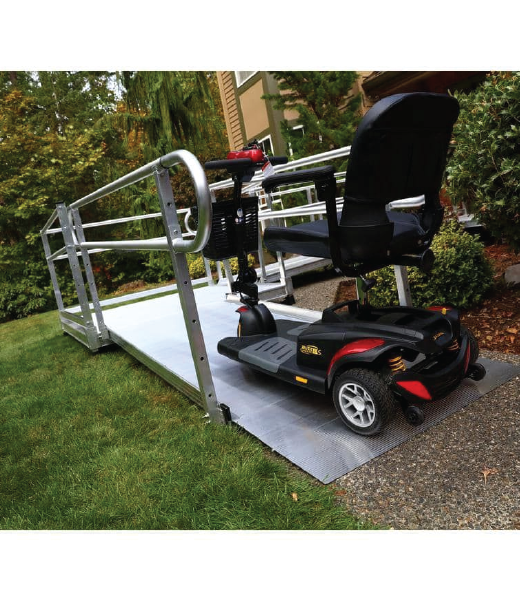

Made of High-Strength, Durable Aluminum
Constructed with rust-resistant aluminum for long-lasting performance that stands up to the elements and regular wear and tear.

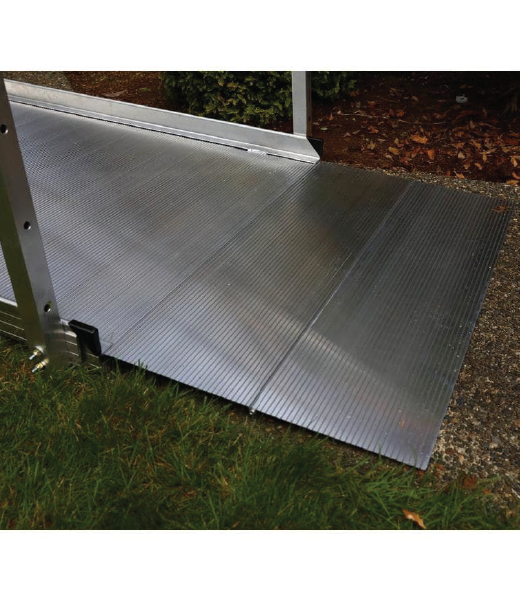

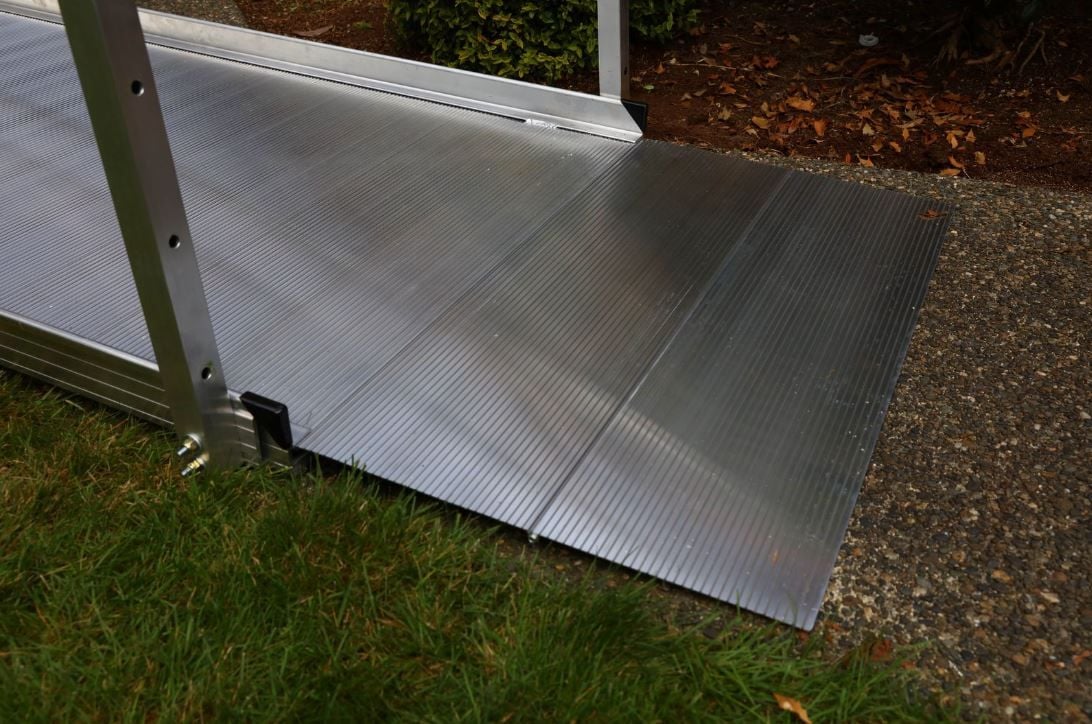

Extruded Tread Surface Prevents Slipping
The built-in, ribbed tread improves traction and provides slip resistance in all conditions.

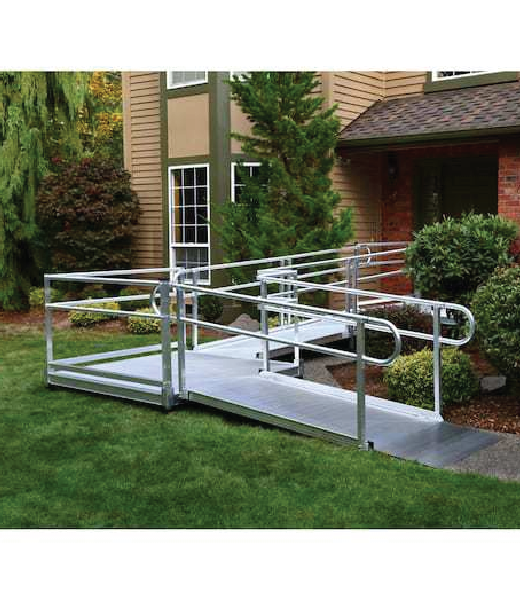

No Construction Required - Only Assembly
No concrete pouring or poured footers required - the ramp can be assembled and ready to use the same day.

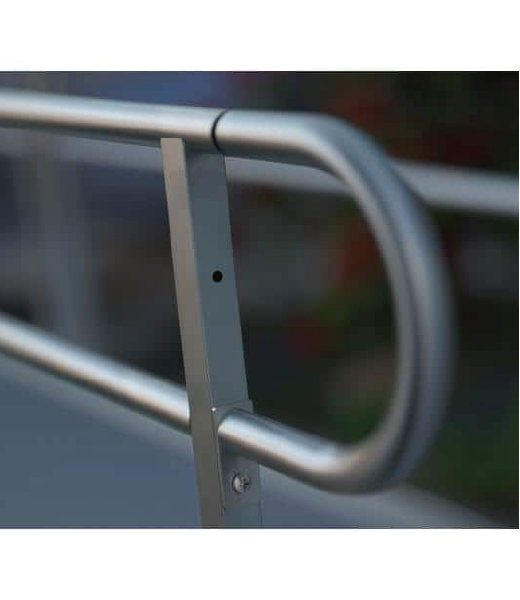

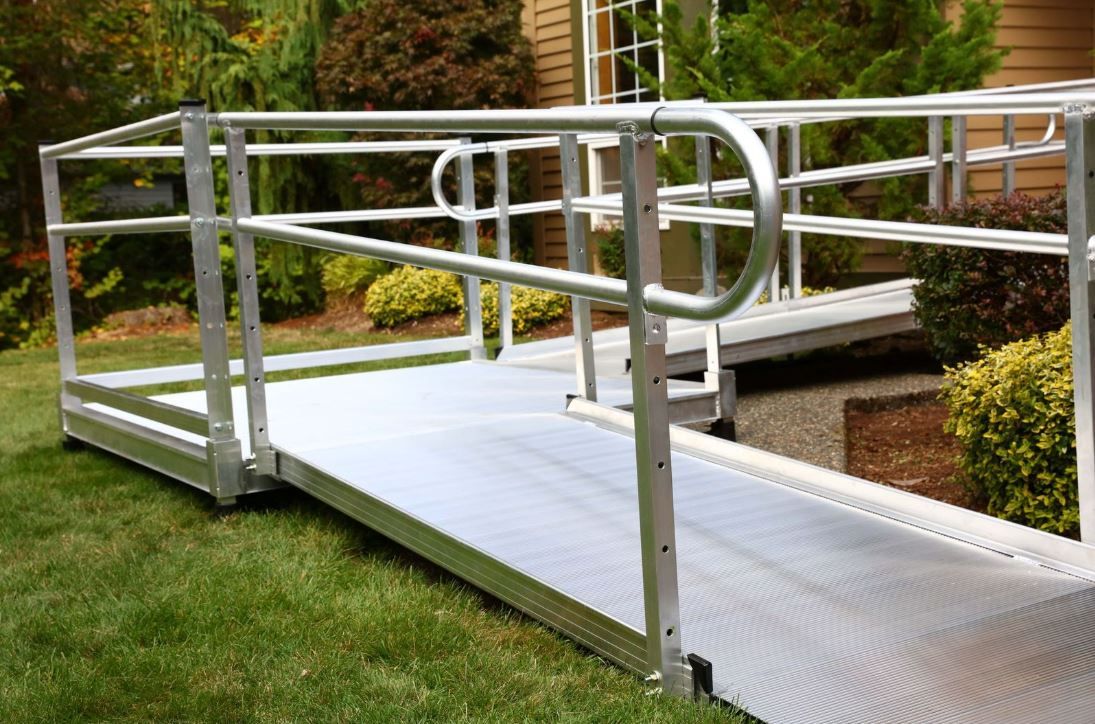

Two-Line Handrail for Extra Secure Grip
A continuous top and lower rail on both sides provide extra security and stability.
Product Information
Additional Features
- Turn Platform Can Be Configured for Right or Left Orientation
- Flush and Finished Sides With No Dangerous Nuts or Bolts

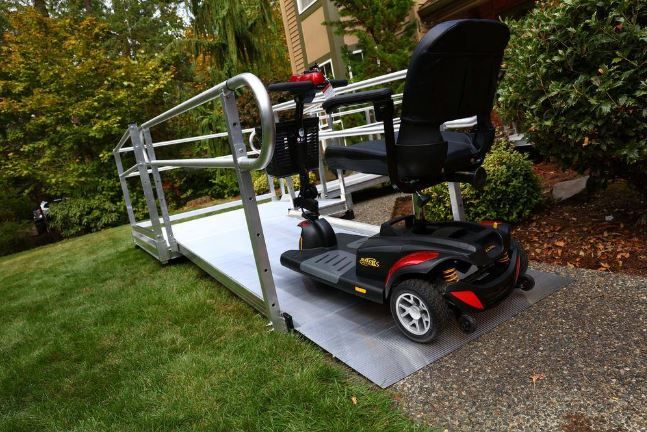

- Ground Transition Plate Enables Gentle and Easy Transfers
- High Weight Capacity Accommodates Most Users and Their Wheelchairs
- Independently Adjustable Legs Enables Easy Leveling to the Needed Slope

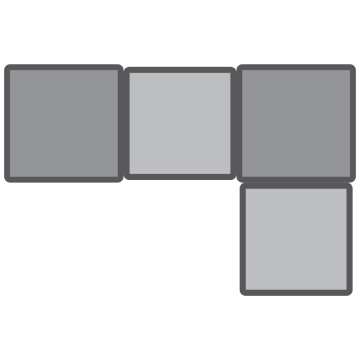

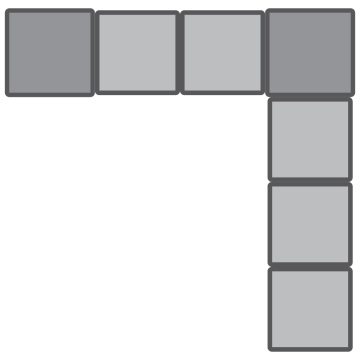

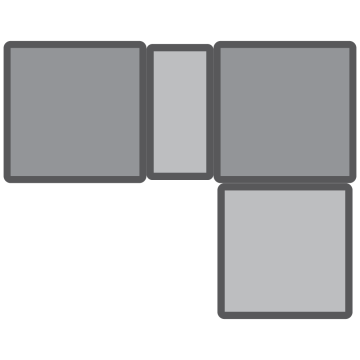

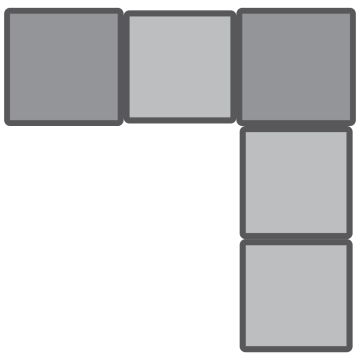

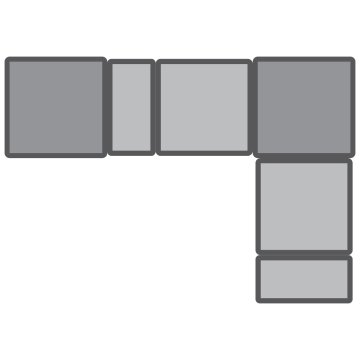

- Multiple Configurations Available To Accommodate Various Home Types
What's Included?
Each kit includes multiple 4-foot ramps and 6-foot ramps (depending on the ordered length), one 4- or 5-foot turn platform, and one 4- or 5-foot top platform. It also has all the necessary components for assembly, including supporting legs, ground transition, end brackets, connectors, hangers, and more. For specific ramp counts in each kit, please refer to the What's Included document in Additional Resources.
Product Specifications
- Manufacturer: EZ-ACCESS®
- Brand: PATHWAY®
- Product Numbers:

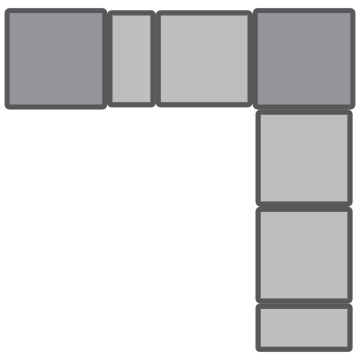

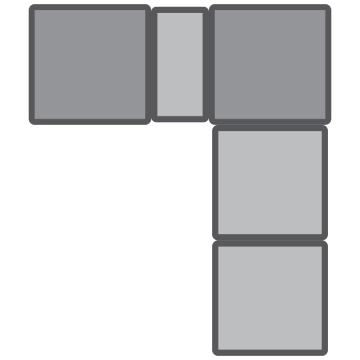

- Ramps With 4-Foot Platforms:PS10L44TT, PS12L44TT, PS14L44TT, PS16L44TT, PS18L44TT, PS20L44TT, PS22L44TT, PS24L44TT, PS26L44TT, PS28L44TT, PS30L44TT

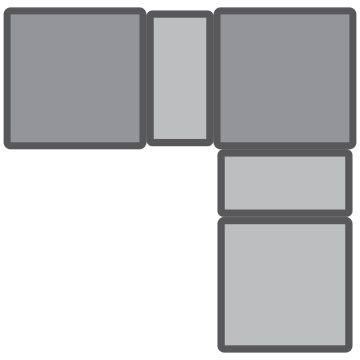

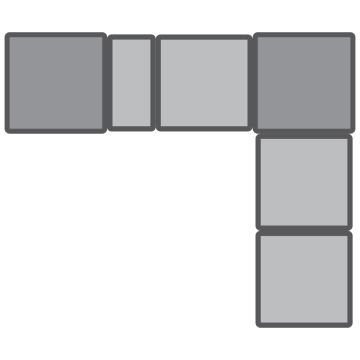

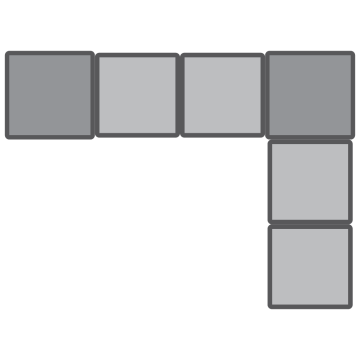

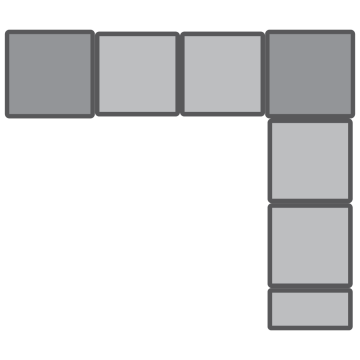

- Ramps With 5-Foot Platforms: PS10L55TT, PS12L55TT, PS14L55TT, PS16L55TT, PS18L55TT, PS20L55TT, PS22L55TT, PS24L55TT, PS26L55TT, PS28L55TT, PS30L55TT
- Usable Width: 36 Inches
- Slope Range: 1:8 to 1:14
- Weight Capacity: 1,000 Pounds
- Material: Aluminum
- Application: Wheelchair Ramp
- Country of Origin: United States
- Warranty: Lifetime
Product Details
Tools Typically Needed for Assembly
- ½ inch socket or wrench
- 9/16 inch socket or wrench
- 5/16 inch socket or wrench
- Power drill
- #2 Phillips screwdriver
- Pliers
- ⅛ inch drill bit
- 5/16 inch drill bit
- 5/32 inch Allen wrench
- 3/16 inch Allen wrench
- Box knife
- Hammer
- Level
- File
- Rubber mallet
- ¼ inch masonry drill bit (if installing on concrete)
- Digging tools (if obstacle removal is needed)
- Hacksaw
- 25 foot tape measure
- Construction adhesive
Ramp Length and Proper Slope
The EZ-ACCESS® PATHWAY® Ramps accommodate slopes ranging from 1:8 to 1:14 (4 to 7 degrees). For a slope to be considered ADA-compliant, it cannot exceed 1:12. Do not install the ramp at a slope that exceeds the ramp range of 1:14.


Frequently Asked Questions
Do the kits include everything needed to assemble the ramp?
All necessary ramp components are included in the kit, but you will need to provide the tools listed above.
Does Vitality Medical provide installation services for this ramp?
Unfortunately at this time, Vitality Medical does not provide installation services. However, the kit comes with helpful instructions on how to assemble the ramp.
Can this work for an office or a school?
This ramp is intended for residential use - it is not OSHA-approved.
Additional Resources
Assembled Ramp Specifications contains specifications for ramps when fully assembled.
Technical Specifications contains usable and overall dimensions of the ramp kits.
What's Included contains details about the components of each kit.
