Etac Molift Smart 150 Portable Patient Lift

By Etac

PRODUCT HIGHLIGHTS

  • Battery-powered patient lift
  • Simple two-button control
  • Lifts up to 66.1 inches
  • Advanced, built-in safety features
Fast Shipping! Secure Shopping Easy Returns
Item# Description Size Price
N10200

Molift Smart - Ships Free!

Each

$5,373.81

$4,133.70
Options
Molift Smart - Each
SKU: N10200

$5,373.81

$4,133.70

Customers Also Bought

Description

Details

The Molift Smart 150 Portable Patient Lift has an innovative design that allows for a broad hoisting range and comfortable positioning. The hoist uses a 4-point sling suspension to provide plenty of room for the patient as they are being lifted. The Molift Smart 150 Lift is capable of hoisting people who are positioned on the floor and has a hoist range of 10.6 to 66.1 inches. Molift Smart 150 lift compact design makes it easy to maneuver through tight spaces or around corners. This innovative lift is lightweight and easily transported. It can be folded down into a compact position without the use of any tools. The compact folded position makes the unit convenient to store, ideal for home care. The lift is made of sturdy, durable aluminum and steel and has been awarded for design excellence by the Norwegian Design Council. The Molift Smart 150 Patient Lift is battery powered and can be fully charged in just three hours. You may also be interested in a manual 4-point hoist such as the Hoyer Manual Hydraulic Lift.

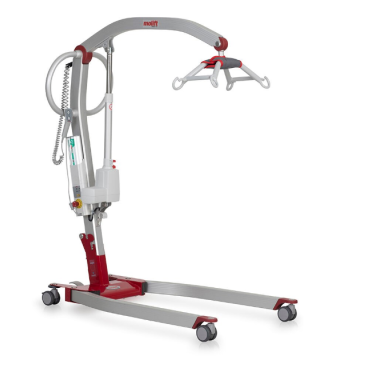

Etac Molift Smart 150 Patient Lift

Using the Etac Molift Smart 150 Portable Patient Lift

  • Choose the Appropriate Sling
  • Maneuver the Sling under the Person
  • Wheel the Lift into Position
  • Attach the Corners of the Sling to the Suspension Hooks
  • Lift the individual from the Floor, a Wheelchair, their Bed, or the Toilet
  • Swing the Individual to Where You Are Transferring Them to
  • Lower the Individual
  • Detach the Corners from the Hooks
  • Push the Smart Lift Out of the Way
  • Remove the Sling from under the Body



Product Accessories

Proper Use Training for the Hoist

  • Practice Lifting a Coworker
  • Get Lifted Yourself
  • Practice Using all of the Different Slings with all the Movements You May Need to Perform
  • Learn What Each Type of Sling is for and How to Use Based on Individual Size, Weight, and Type of Disability.



Product Safety Precautions

  • Verify That the Molift Smart 150 Lifter and all The Accessories Are in Good Working Order
  • Make Sure That all Safety Devices and Equipment are all Completely Operational and in Place
  • If You Find any Faults or Errors in the Lifter or Accessories, Take Them out of Service at once Until the Faults or Errors Can be Corrected
  • Do Not use the Device Beyond its Lifetime of 10 Years or 30,000 Lifts at Max Load
  • Only Allow Authorized Personnel to Remove Covers
  • Do Not Use in a Manner Inconsistent with its Instructions
  • Make Sure to Maintain the Device Properly
  • Do Not Exceed the Maximum Load Limit
  • Use only Authorized Personnel to Do Repairs on the Unit or its Parts
  • Never Lift or Move any Objects with the Unit
  • Do Not Run for More Than 2 Minutes at a Time
  • Allow the Unit to Rest at Least 18 Minutes Between Uses
  • Stand to One Side When Using the Unit and Make Sure that all Arms, Legs, Etc., are clear of the Unit
  • Keep Portable and Mobile Communications Equipment at Least 10 Inches from the Electronics
Molift Smart 150 Portable Patient Lift Battery Pack



Assembling the Molift Smart 150 Lift

Inspect the Molift Smart 150 hoist to make sure there is no damage. If any damage is present, contact your dealer. Make sure that the battery is disconnected. Remove the transport elastic and spread the legs to their working position. Raise the lifting column and slide it into the bracket on the chassis, making sure that the pins slide to the bottom of the bracket. Once the column is in place, pushing the locking handle down and make sure the column is firmly attached. Put the battery into the battery holder and verify that the emergency stop button isn’t activated. Run the lifting arm up and down without a load to check for accuracy of motion. Make sure that there are no loose parts and that the legs stay locked into position. Go over the checklist to make sure that the device works properly before using it.



Disassembling the Molift Smart 150 Patient Lift

Run the lifting arm down while holding the suspension arm up toward the lifting arm. Place the suspension are into the transport hook. Remove the battery to keep it from falling out. Disconnect it from the unit to avoid draining the battery. Open the locking handle and lift the column up. Fold the column down to the transport position. Fasten the hand control to the driving handle. Push the legs back together and secure them with the transport elastic. Put the unit into its bag.

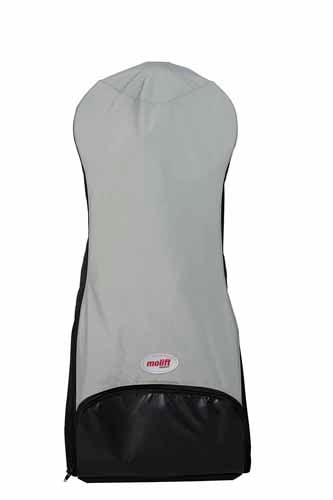

Soft Carrying Case for theEtac Molift Smart 150 Portable Patient Lift

How to Properly Store Your Lift

Make sure that the battery is removed and that the emergency stop button is activated. Store in pressure of 70 – 106 kPA, with humidity of 15 – 93%, and a temperature of between -25 – 70 degrees Celsius.



Built-in Safety Devices of the Molift Smart 150 Lift

  • An Overload Sensor Prevents Operation When the Working Load is Over 150 kg
  • A Safety Feature that Prevents the Lifting Arm and Suspension from Squeezing a User if it is Lowered Too Far. The Actuator Stops Producing Force in Downward Movements
  • Its Legs Fold Together to Make the Unit as Small as Possible for Transport
  • A Safety Feature Prevents the Lifting Column from Being Attached if the Legs are out of Position
  • The Electronics Get Disabled if the Temperature Rises to a Critical Limit. If This Happens, Wait Until the Lifter has Cooled Down Before Using it Again

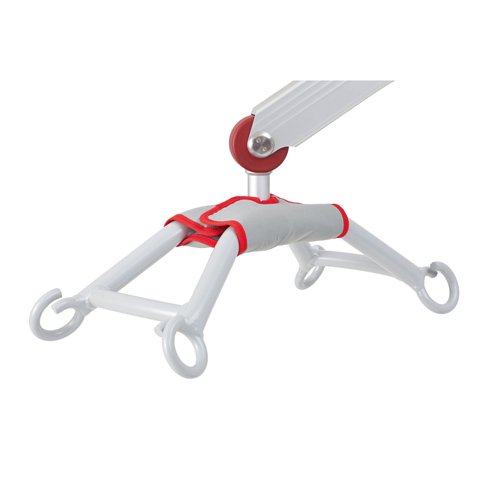

4 Hook Suspension Device



How to Operate Your Portable Lift

The Molift Smart 150 has two buttons built-in to its hand control. One is for up and lifts individual, the other is down and lowers the individual. The handle has a built-in diode which lights up if the battery needs to be recharged. You can adjust the legs by using pedals that are located on the chassis. The unit also has an electrical emergency lowering button in case of system failure. In the event of total failure, use the manual lowering button.

Position the suspension so that its longest part runs perpendicular to the body. Make sure that all four hooks are connected to the suspension hooks so that the individual doesn’t slide around or fall out. Place the user as low as possible, with their feet resting on the chassis where possible. Spread the legs as wide as possible for maximum stability.

Use caution while moving the individual as they may swing during turns, stops, and starts. Be away of surroundings as you move the individual to avoid collisions.



How to Clean Unit

  • Disinfect Your Unit with Isopropyl Alcohol
  • Wash Your Unit with a Damp Cloth and a pH-neutral Detergent. Do Not Use Solvents or Strong Liquids
  • Remove Hair and Pile from Castors and Verify that the Castors Can Rotate Freely
  • Clean Regularly



Inspect Your Patient Lift at Least Once a Month

  • Check the Lifter for
  • Damage
  • Loose Parts
  • Lifting Column is Sturdy
  • Locking Handle is Tight
  • Legs Move Only While in Working Position
  • Suspension is Released from Transport Hook
  • Emergency Stop Button is Not Activated
  • Lifter is Functioning
  • Sufficient Battery Charge
  • Service Light is Green
  • Clean the Lifter
  • Verify that the Contacts of the Hand Control and Charger are Firmly in Place
  • Verify that all Cables are in Place
  • Run the Lifter up and down, Checking for Smooth Operation without any Unusual Noise
  • Take the Lifter out of Service if You Find any Issues



Product Features and Benefits

  • Lightweight
  • Foldable Without Tools
  • Easily Transported
  • Ideal for Home Care
  • Easy to Store
  • Convenient to Maneuver Through Tight Spaces
  • Broad Hoisting Range
  • Can Lift People From Floor
  • Comfortable 4-Point Sling Suspension
  • Awarded Design Excellence by Norwegian Design Council

Product Specifications

  • Manufacturer: etac
  • Materials: Aluminum, steel
  • Total Weight: 57 lbs
  • Heaviest Piece: 28.6 lbs
  • Length: 47.2 Inches
  • Leg Height: 4.4 Inches
  • Outer Width of Legs: 25.9 Inches
  • Folded Height: 45.32 Inches
  • Folded Width: 18.7 Inches
  • Folded Depth: 14 Inches
  • Hoisting Height: 10.6 - 66.1 Inches
  • Hoisting Interval: 55.5 Inches
  • Battery; NiMH 14.4 V - 2.2 Ah
  • Battery Charge Time: 3 Hours
  • Hoisting Speed: 60 mm/second
