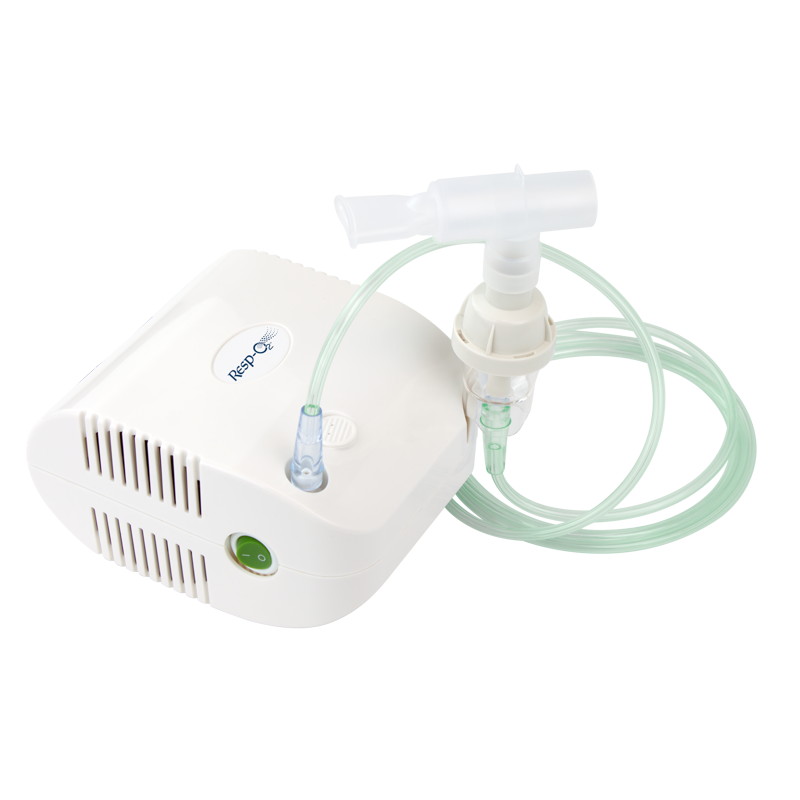

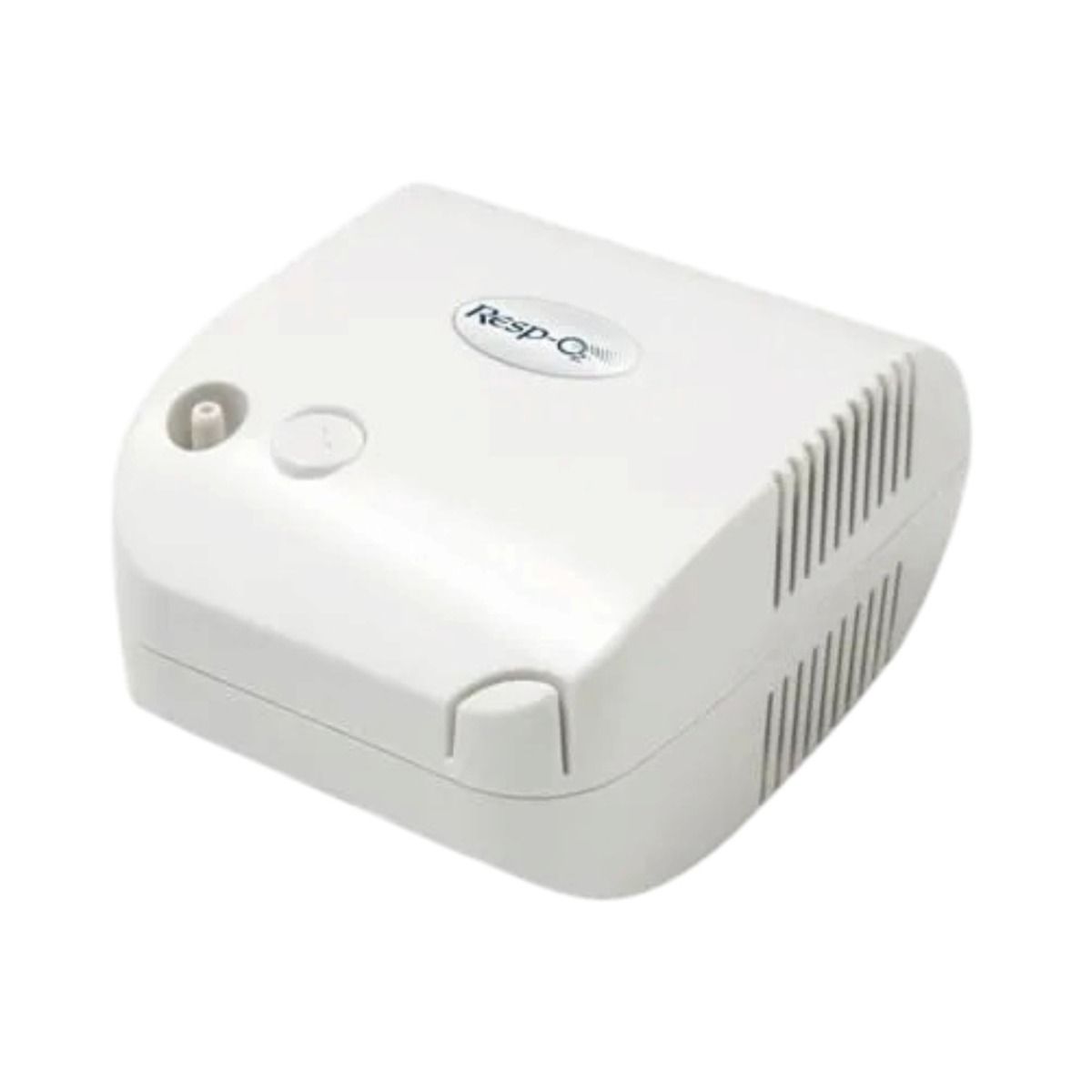

Dynarex Resp-O2 Compact Compressor Nebulizer

The Dynarex Resp-O2 Compact Compressor Nebulizer is an AC-powered small-volume compressor nebulizer for prescribed aerosol medication. It forces air through a reusable nebulizer cup, converting liquid medication into an inhalable aerosol with a 2.0 µm MMAD and an average nebulization rate of ≥0.2 mL/min. It has a 10 mL capacity and a 16-23.5 LPM flow rate.

The nebulizer includes adult and pediatric masks. It is compact and operates at a maximum of 60 dB.

Use this device only as directed by a medical professional.

Features and Benefits

• Adult and child-sized masks for users of various ages
• Washable medication cup is reusable
• Operates quietly at or below 60 dBA

Warnings

• Use only as directed by a medical professional
• Do not use mineral water
• Limit operation to 50 minutes on, 50 minutes off
• Rinse nebulizer parts after each use
• Replace nebulizer kit every 6 months
• Replace filter every 60 days or sooner if contaminated

Specifications

• Manufacturer: Dynarex
• Brand: Resp-O2
• Product Number: 34401
• Application: Small-Volume Nebulizer (SVN)
• Noise Level: ≤60 dB
• Medication Capacity: 10 mL
• Compressor Pressure Range: 30-58 psi
• Operation Mode: 50 Minutes On, 50 Minutes Off
• Operating Pressure Range: 14.5-27 psi (1bar-1.9 bar)
• Operating Humidity range: 10-95% RH
• Operating Temperature Range: 50-104 Degrees Fahrenheit (10-40 Degrees Celsius)
• Storage Temperature Range 14-149 Degrees Fahrenheit (-10 to 65 Degrees Celsius)
• Storage Humidity Range: 10-95% RH
• Flow Range: 16-23.5 LPM
• Input: AC 120 V, 60 Hz
• Extreme Pressure: >250 kpa
• Power Consumption: ≤200 VA
• Particle Size: ≤5 µm & 60%
• MMAD: 2.0 µm
• Average Nebulization Rate: ≥0.2 mL/min
• Latex Indicator: Not Made With Natural Rubber Latex
• DEHP Indicator: Not Made With DEHP
• Country of Origin: China
• HCPCS Code: A7005

Dimensions

Nebulizer

• Length: 6.1 Inches (15.5 Centimeters)
• Width: 5.8 Inches (13 Centimeters)
• Height: 4.1 Inches (8.3 Centimeters)
• Weight: 5.5 Pounds (2.5 Kilograms)

• Tube Length: 7 Feet (2.1 Meters)
• Size Non-Filter: 6mL

Warranty

• 3-Year Limited
