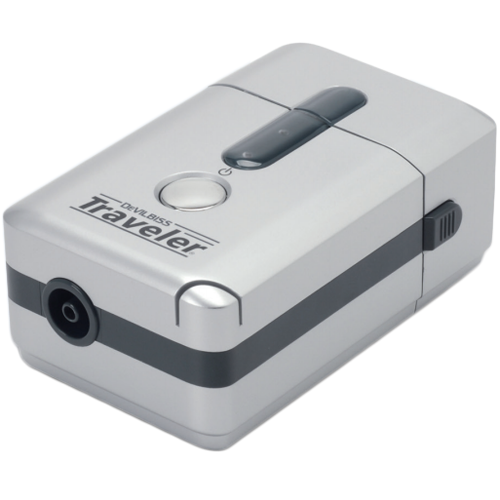

Devilbiss Traveler Portable Compressor Nebulizer System

DeVilbiss Traveler Portable Compressor Nebulizer System is a lightweight and highly portable nebulizer compressor system. The DeVilbiss Traveler nebulizer is one of the smallest Compressor Nebulizer Systems on the market. It weighs less than a pound and is smaller than a standard size postcard. The optional Traveler battery is small, easy to attach and weighs only 0.7 pounds. The system has a one-year warranty and 45 minute life makes it perfect for those on the go! Active users of nebulizers can get more out of their therapy and out of life with the Devilbiss Traveler Compressor Nebulizer System. The DeVilbiss portable nebulizer makes it easier and more convenient than ever to nebulize when users are away from home.

Product Features & Benefits

• Small compressor size.
• Lightweight for easy transport.
• Quick treatment time.
• System can be used with any manufacturer's nebulizer.
• Easy one-touch system operation.

Traveler Portable Compressor Specifications

• Manufacturer: Devilbiss
• Width: 3.34"
• Height: 2.2"
• Depth: 3.8" (5.3" with battery)
• Weight: 0.8 lbs. (1.5 lbs with battery)
• Sound: 54 dBA
• System Max Pressure: 30 psig
• System Free Air Flow: 6 LPM
• MMAD 5 microns
• System Electrical Requirements: 100-240V, 50-60Hz, 15VDC, 1.5A
• Battery Life Between Charges: 45 minutes
• System Warranty: 3 yrs
• Battery: 1 yr

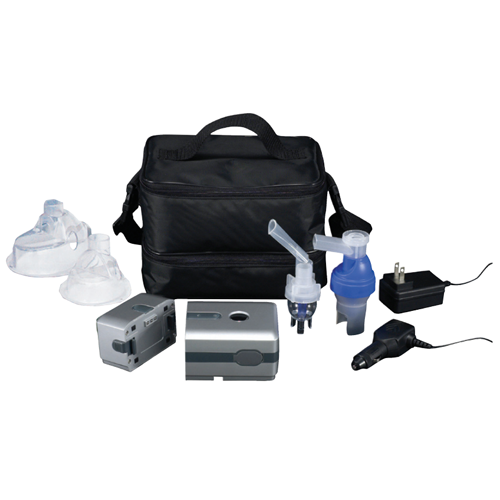

Included with Purchase

• Traveler compressor system
• DeVilbiss 800 series reusable nebulizer
• West Med VixOne disposable nebulizer
• 5 extra filters
• Extra filter door
• Tubing adapter
• Adult and pediatric masks
• AC adapter
• DC car adapter
• System Carrying case
• Instruction guide
• Instructional DVD
• Model 6910PDR comes standard with the rechargeable battery

Indications

• Asthma
• COPD
• Cystic Fibrosis
• As needed for respiratory diseases and recommended by physician

Warnings and Precautions

• Unplug after use
• Do not keep near or use near water or other liquids
• Make sure device is unplugged before filling
• Always follow doctor's recommendations for treatment
• The inlet filter should be dry before attempting use
• Keep away from extreme heat and flammable materials
• Do not use while drowsy
• Hose and opening should always be kept clear
• Do not use with a DC to AC converter
• Be aware of possible interference from other electronic devices
• Do not use while driving

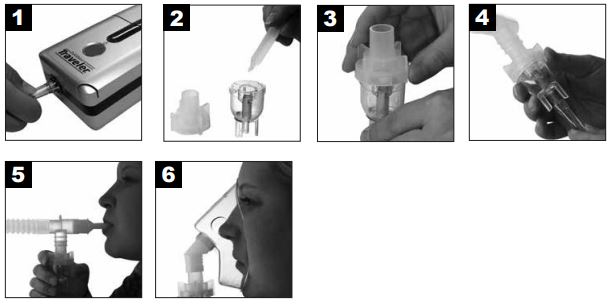

Devilbiss Traveler Portable Compressor Nebulizer System Operating Instructions

• Ensure device and hands have been cleaned
• Plug into a power source
• Attach nebulizer tubing to air outlet
• Insert baffle in the medication cup. See Owner's Manual for part identification
• Add medication and attach nebulizer cap
• If using mouthpiece, assemble with the t-piece
• Insert either the mouthpiece or face mask to the top of the nebulizer cap
• Attach tubing to the nebulizer
• Turn the compressor nebulizer to "on" using the power switch
• If using a mouthpiece, place between the user's teeth
• If using a face mask, cover the mouth and nose
• Begin treatment, taking deep and slow breaths
• If treatment needs to be paused, simply turn off the device and place nebulizer in holder so as to not spill medication
• When treatment is complete, turn off the device using the power switch and unplug from power source
• Be sure to clean equipment after each use

Troubleshooting

• If no mist is coming out, try the following:
• Make sure unit is plugged in
• Ensure everything is connected firmly
• Check the medication chamber to ensure it is not blocked

Changing Filter

• Replace at least every six months
• Pull back on filter cover (should remain attached to compressor)
• Remove filter and discard
• Place new filter inside and replace cover

How to Clean Your Devilbiss Nebulizer Compressor

Be sure to clean after every use and disinfect once per week

Cleaning Nebulizer:

• Ensure the unit is off and unplugged from the wall
• Disconnect and disassemble
• In hot water mixed with dishwashing soap, wash all pieces of the mouthpiece/mask and nebulizer except for tubing
• Rinse with hot water for 30 seconds
• Air dry

Disinfecting Nebulizer:

• Fill a clean container with 3 parts hot water and 1 part vinegar
• Soak for 30 minutes
• Ensure hands are clean before removing from solution
• Rinse for 30 seconds under hot running water
• Air dry

Cleaning Compressor:

• Turn compressor off and unplug
• Wipe with a clean damp cloth

Accessories

• Battery
• AC Adapter
• DC Adapter
• Carrying Case
• Air Filter
• Filter Cover
• Neb Bracket

Warranty Information

• Devilbiss Compressor: 3 years
• Battery: 1 year
