Chattanooga Intelect Legend XT Two Channel Stimulator System Overview

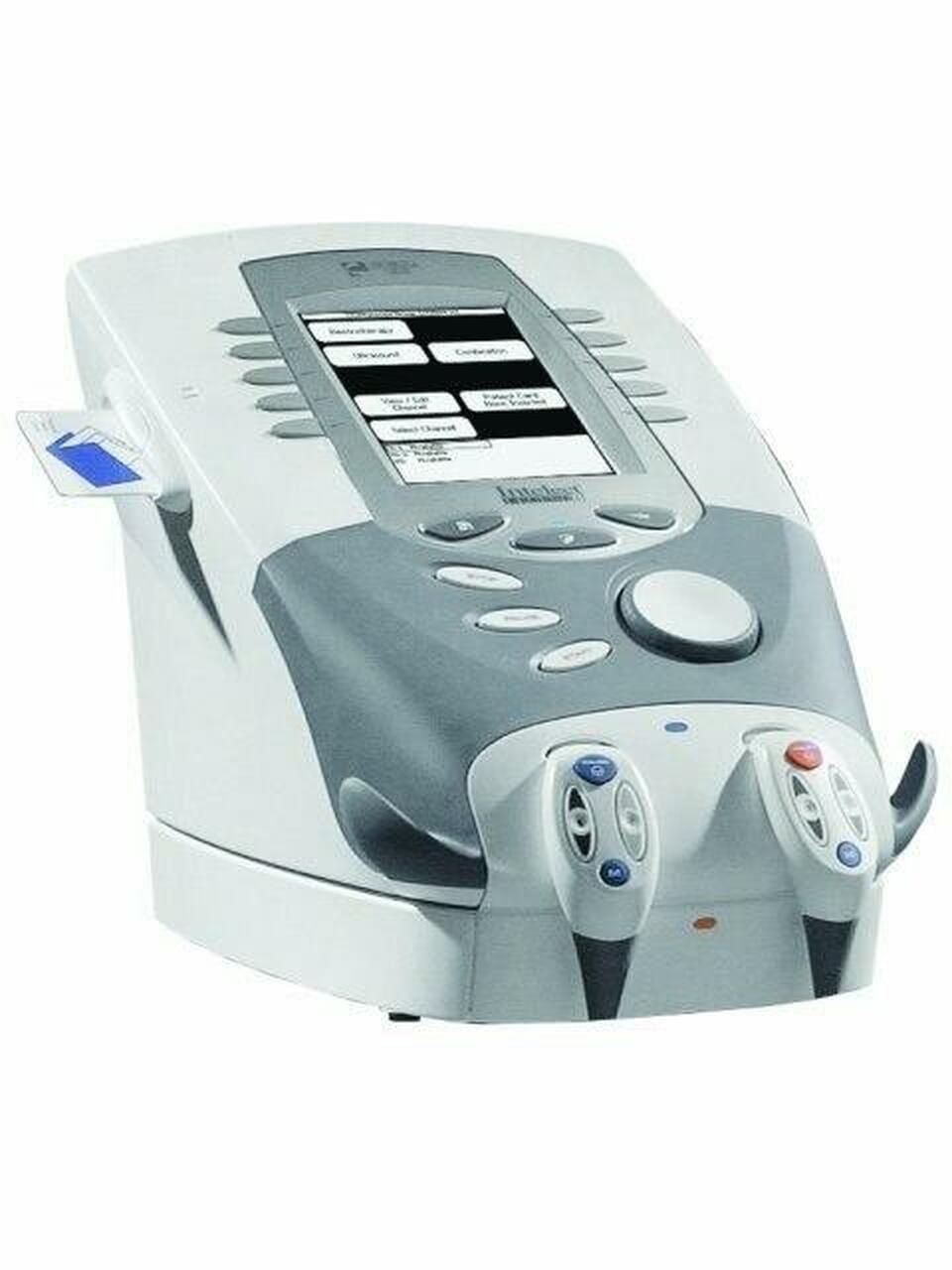

The Chattanooga Intelect Legend XT System with Cart is a state-of-the-art electrotherapy unit that offers a range of therapies in a single machine. The channels are independent, allowing for multiple muscle groups to be treated at one time. It has an ergonomic modular design that allows the Intelect Legend XT Electrotherapy Unit to be removed from the cart and transported wherever it is needed. Its high-contrast monochromatic LCD screen is easy to read and the operating system is user-friendly.
Features and Benefits
- Patented and Award-Winning Ergonomic Modular Design
- Patient Data Cards Document Treatment Data
- User-Defined Protocols for Specific Needs
- Dual Frequency Ultrasound With Pulsed or Continuous Duty Cycles
- High-Contrast FSTN LCD Monochromatic User Interface
- Wheeled Cart Is Easy To Maneuver
- Watertight soundhead applicator sizes: 1 cm², 2 cm², 5 cm² & 10 cm²
Professional Convenience
The Intelect Legend XT System is available in both 2-channel and 4-channel forms. The cart is entirely optional. It has four rolling casters for easy maneuverability and six drawers to keep accessories and clinical supplies safe and organized.
Multiple Waveforms
The Chattanooga Intelect Legend XT includes six clinical electrotherapy waveforms:
- High Volt
- Interferential
- Microcurrent
- Premodulated
- Russian
- Symmetrical Biphasic
Product Specifications
- Manufacturer: DJO Global
- Brand: Chattanooga
- Product Numbers: 2763, 2796
- Dimensions Without Cart:
- Weight: 7 Pounds
- Length: 12.75 Inches
- Width: 11.4 Inches
- Height: 8.75 Inches
- Dimensions With Cart:
- Weight: 38.4 Pounds
- Height: 42.5 Inches
- Power Consumption: 1000 Watts
- Electrical Safety Class: Class 1, Electrotherapy Type BF, Ultrasound Type B
- Ultrasound Frequencies: 1 , 3.3 megahertz (MHz)
- Warranty: 2 Years
Frequently Asked Questions (FAQ)
What electrodes are recommended to use with the Intelect Legend?
The system works with Dura-Stick II Electrodes.
What does the warranty cover?
This warranty covers defects in material or workmanship. All repairs to the unit must be performed by a service center certified by the manufacturer. Any modifications or repairs performed by unauthorized centers or groups will void this warranty.
What does the warranty not cover?
The warranty does not cover replacement parts or labor furnished by anyone other than the manufacturer, the selling dealer, or a certified company service technician. It also will not cover defects or damage caused by someone other than the manufacturer, the seller, or a manufacturer-certified service technician.
Manuals and Documents
Service Manual contains information regarding the care and service of this product.
Product Catalog lists Chattanooga products and specifications.
