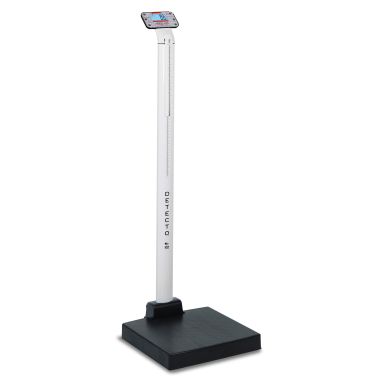

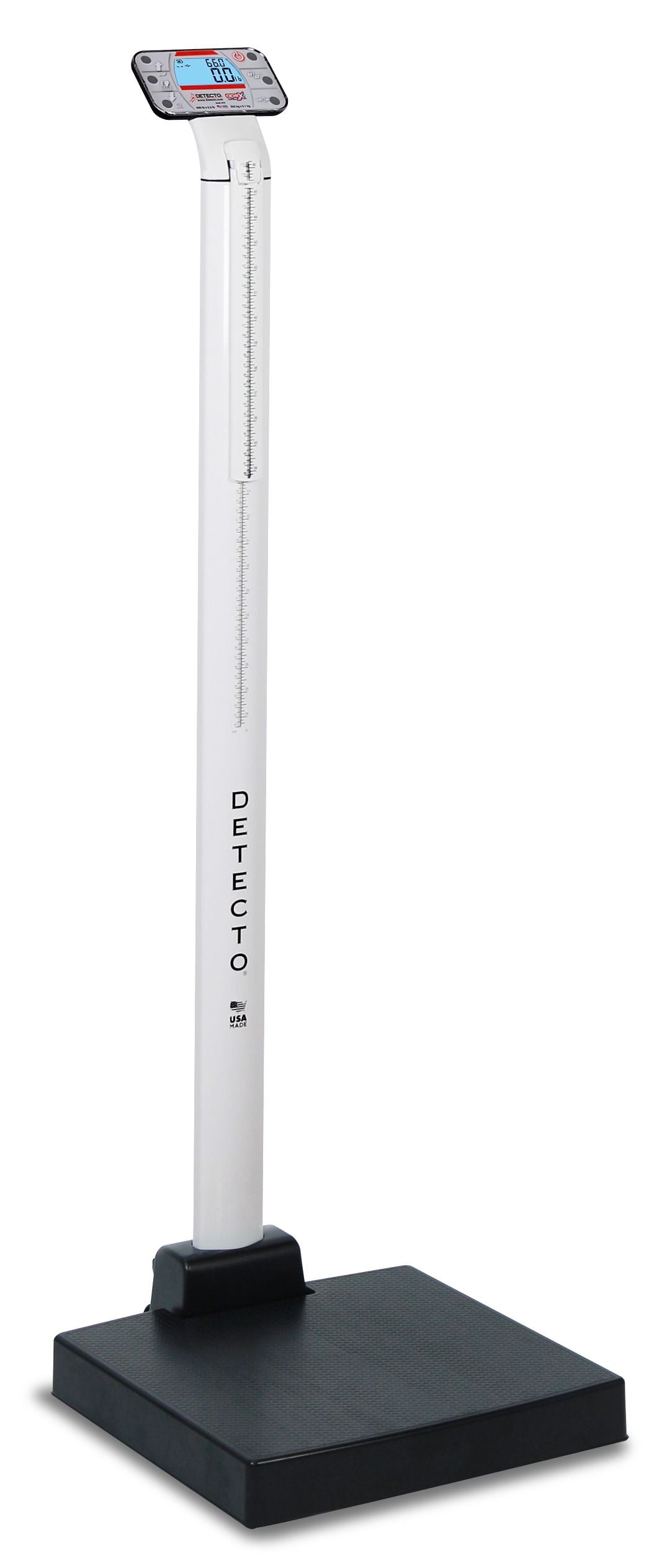

apex Digital Clinical Scale with Mechanical Height Rod

By Detecto
Fast Shipping! Secure Shopping Easy Returns

    Availability: In stock

  • Large LCD screen
  • Eye-Level Readout
  • Multiple Connectivity
  • Made in USA
  • Integrated Wheels for Portability
Item# Description Size Price

Scale with Mechanical Height Rod




Scale with Mechanical Height Rod Non-Medical-Grade AC Adapter




Scale with Mechanical Height Rod, Welch Allyn LXI Connectivity, AC Adapter




Scale with Mechanical Height Rod with Welch Allyn CVSM/CSM Connectivity and AC Adapter




Scale with Mechanical Height Rod, Non-Medical-Grade AC Adapter, Wi-Fi





apex® Digital Clinical Scale with Mechanical Height Rod is designed for use in physician offices. This scale offers an eye-level weight measurement. The height measurement is taken with an expandable mechanical measurement rod. To measure weight, simply have the patient step upon the scale platform and within one second the weight is displayed digitally on the eye-level LCD screen. This scale also has Body Mass Index (BMI) calculation. To calculate BMI, use the scroll arrows to enter the height measurement and then press the BMI key.

The apex LCD screen interface offers large, bold digital figures that are easy to read. This physician scale offers connectivity with serial ports, micro USB-B port and options for Wi-Fi and Welch Allyn. This scale is easy and quickly assembled right out of the box, requiring no tools. Shipping weight is only 41 pounds.

Apex scales are also available with sonar height rods and may be viewed by clicking on the following link: Apex Scale with Sonar Height Rod. Detecto also manufactures beam scales, pediatric scales, in bed scales and in floor scales.

Features & Benefits

  • Mechanical height measurements.
  • Dual integrated wheels for easy transport from room to room.
  • Eye-level weight display.
  • High-tech weight indicator.
  • Sturdy column construction with easy to read LCD screen.
  • Versatile connectivity with USB port, serial ports, Wi-Fi or Welch Allyn options.
  • Made in the USA.
  • No tools assembly.

Features & Benefits

  • pdf logo   Brochure offers the benefits and features for this clinical scale.
  • pdf logo   Mechanical Height Scale Flyer provides details about this new high tech feature.
  • pdf logo   Owner's Manual contains detailed instructions for setup, use and maintenance.
  • pdf logo   Warranty provides information about warranty time period and claims for this Detecto scale.



apex Digital Scale Demo and Review Video (1:27 minutes)


Additional Information

Additional Information

Overall Dimensions
  • Width
    Variable 36, 39 or 42 Inch
  • Depth
    19.5 Inch
  • Height Range
    89.5 Inch
  • Platform Size
    17 Inch Width x 17 Inch Depth x 2.75 Inch Height
  • Shipping Dimensions
    58 x 20 x 6 Inch
  • Weight
    32 Pounds
  • Shipping Weight
    41 Pounds
  • Weight Capacity
    600 Pounds
  • Weight/Height Measurement Units
    Pounds/Inch or Kilograms/Centimeters
  • Height Rod Measurement
    24 to 86 Inch
  • Ports
    2 RS232 serial ports and 1 micro USB-B port
  • Height Rod Measurement
    HL7 IEEE 11073 compliant (standard); Welch Allyn® device connectivity available on some models (CVSM, CSM, and LXI); Wi-Fi Ethernet models also available for wireless EMR/EHR
  • Keypad
    6 buttons (Power, Lock/Release, Zero, BMI, Up Arrow, Down Arrow)
  • Display Type
    Dual-row, seven-segment, clinical-blue LCD
  • Number of Characters
    Weight: 5 digit, 0.75 in (19 mm) high / Height/BMI: 4 digit, 0.4 in (10 mm) high
Dependability & Warranty
  • Manufacturer
  • Country of Orgin
  • Warranty
    2 Years
