Ultra-Care Excel Mattress with Pump System - 8 or 12 LPM

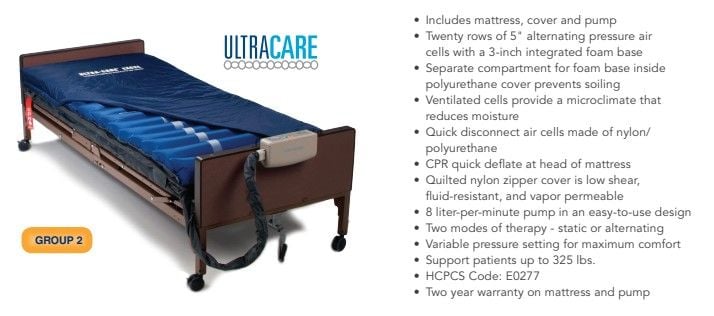

Ultra-Care Excel Mattress System combines alternating pressure therapy, low-air-loss, and a layered air-and-foam surface for pressure ulcer management during bed-based care. 20 rows of 5-inch alternating pressure air cells move air through the upper surface, while the 3-inch integrated foam base helps prevent bottoming out.

Ultra-Care Excel Pump system runs static and alternating-pressure therapy with a digital high-output pump that maintains the low air loss benefit in either mode. The ventilated nylon/polyurethane cells help reduce moisture at the sleep surface, and the CPR quick deflate valve allows faster air release during care response.

The full system pairs the mattress and cover with either an 8 LPM pump or a 12 LPM pump, making pump output the main difference between the two system choices. When the air surface is still usable, the replacement cover only item refreshes the top layer with a quilted nylon zipper cover that is low shear, fluid-resistant, and vapor permeable.

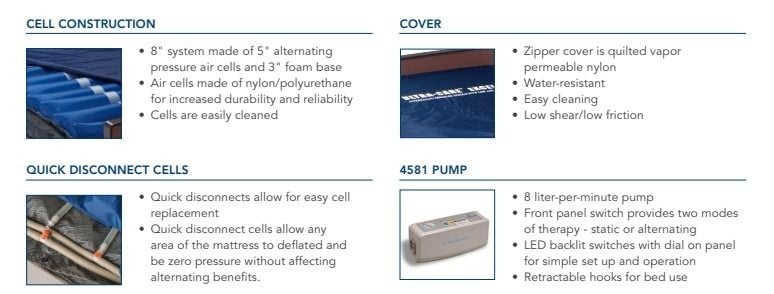

Features and Benefits

• Air Cells Shift Pressure
• Foam Base Helps Prevent Bottoming Out
• Pump Modes Adjust Therapy Delivery
• Vented Cells Help Reduce Moisture
• CPR Valve Speeds Air Release
• Cover Helps Reduce Shear

Mattress Specifications

• Manufacturer: Compass Health
• Dimensions: 80 (L) x 35.5 (W) x 8 (H) Inches
• Inflation Time: 25 to 30 Minutes with Static Pump / 2 to 5 Minutes with Rapid Inflate Pump
• Material: Nylon/Polyurethane Blend
• Mattress Weight: 13 Pounds
• Weight Capacity: 325 Pounds with 8 LPM Pump, 425 Pounds with 12 LPM Pump
• Base: Reinforced Nylon
• Cover Material: Urethane Coated Nylon
• HCPCS Code: E0277
• Application: Alternating Pressure Mattress System
• Warranty: 2-Year

Pump Specifications

• Power Cord: SJT 14 Feet, 3 Prong
• Indicator Lights: Power On, Normal Pressure, Low Pressure, Mode Selection
• Cycle Time: 10 Minutes
• Operating Modes: Alternating Pressure or Static
• Safety: UL 544 & CSA
• Warranty: 2-Year

8 LPM Pump

• Dimensions: 11.8 (L) x 3.7 (W) x 7.5 (H) Inches
• Weight: 4.8 Pounds
• Input Rating: 110-120 VAC, 60Hz, 100mA, 8.5W
• Pressure Range: 20 to 70 mmHg ± 10 Percent

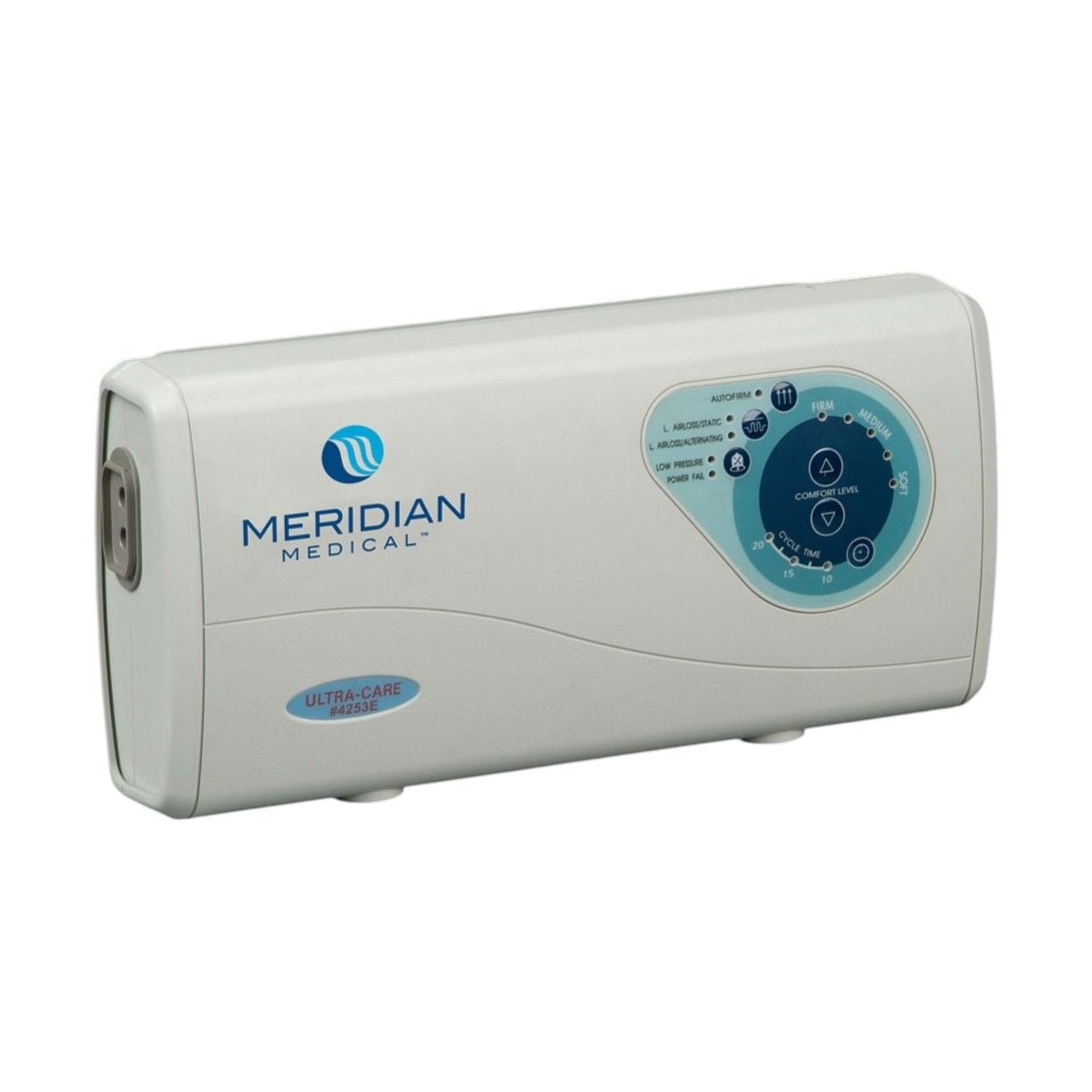

12 LPM Pump

Power: 120V AC/60Hz
• Pressure: 4501/40-90 mmHg, 4801/30 mmHg-60 mmHg

Product Brochure

User Manual
