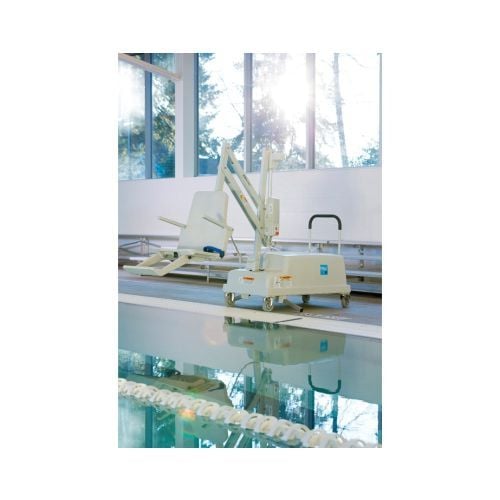

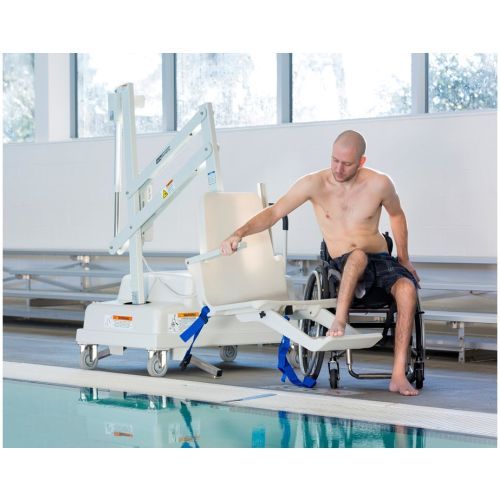

SR Smith Pal2 Portable Aquatic Pool Lift

By SR Smith
Fast Shipping! Secure Shopping Easy Returns

    Availability: In stock

  • Rechargeable Battery
  • Steady and Safe Transfer to Pool
  • Works with Intelligent Control
  • Comfortable Seat
  • ADA Compliant
Item# Description Size Price
202-0000

PAL2 Lift w/o Activation Key

Each

$13,292.06

$10,224.66
202-0000K

PAL2 Lift w/ Optional Activation Key

Each

$13,460.68

$10,354.37
400-7000

LiftOperator 4 Button, Replacement Kit w/o Battery

Each

$459.26

$328.05
400-7000K

LiftOperator 4 Button Keyed Replacement Kit w/o Battery

Each

$625.47

$446.76
Description

Details

The PAL2 Aquatic Pool Lift is a portable, free-standing lift that meets the Americans with Disabilities Act. The Secure-It Kit comes standard with the lift to ensure the lift stays fixed and always safe when in use. Having a portable pool lift allows homeowners or management at community pools to store the lift for events or for the season. The PAL2 features a 240 degree rotation and can be moved by a single person which gives freedom to where the lift will be fixed for safe pool access to patrons with limited mobility.

The PAL2 supports a weight capacity of 300 pounds. It's made with durable powder-coated stainless steel and aluminum with a gray mist matte finish. The seat is molded plastic with integrated armrests and footrest. It features SR Smith's proprietary LiftOperator Intelligent Controller, the most advanced pool lift control on the market. It's battery operated and has LED light indicators when battery is low. There is an emergency stop button to stop lift and audible safety alerts can be activated during emergency situations. The PAL2 can be purchased with an Activation Key that will activate the LiftOperator only when inserted to give the lift a higher level of security.

You may also be interested in other portable options by S.R. Smith such as the multiLift that has optional wheels for easy movement.

Pal2 Lift Includes:

  • LiftOperator Intelligent Control
  • Hand Control
  • Secure-It Kit
  • 24 Volt Rechargeable Battery
  • Battery Charger
  • Seat Belt Assembly
  • Electronics Console Cover

Features:

  • Adaptive Placement with Secure-It Kit
  • Water-Proof Hand Control
  • Steady and Controlled Transfers
  • Rechargeable Battery with Cover
  • Intelligent Control System
  • Comfortable Molded Seat
  • Armrests and Footrest
  • Secure Seat Belt
  • Third Party Verified ADA Compliant
  • Optional Key for Security
Manuals and Documents

Product Videos



How to Install and Operate PAL Pool Lift Video (10:33 minutes)






Additional Information

Additional Information

Dimensions/Capacity
  • Overall Height
    66 Inch
  • Base Height
    23 Inch
  • Base Length
    47 Inch
  • Base Width
    28 Inch
  • Overall Length w/ Footrest
    119 Inch
  • Overall Length w/o Footrest
    102 lbs
  • Overall Length in Stored Position
    72 Inch
  • Total Weight
    1010 lbs
  • Power
    24V DC
  • Battery Life (Charged)
    30 Cycles
  • Lifting Capacity
    300 lbs
  • Maximum Deck Slope
    2 Degrees
  • Seat Width
    23 Inch
Range of Motion
  • Lifting
    44 to 58 Inch travel from highest to lowest point
  • Rotation
    240 Degrees
  • Seat Depth
    18 - 20 Inch
Materials and Finish
  • Frame
    Powder Coated Stainless Steel
  • Handle
    Powder Coated Aluminum
  • Housing
    Vacuum Formed ABS Plastic
  • Front Casters
    5 Inch- Fixed Ball Bearing Stainless Steel
  • Rear Casters
    5 Inch- Lock Swivel Ball Bearing Stainless Steel
  • Arms
    Powder Coated Aluminum
  • Mast
    Powder Coated Stainless Steel
  • Seat Assembly
    Rotomolded Plastic
  • Seat Assembly Frame
    Powder Coated Stainless Steel
Actuator
  • Lifting
    Screw Type Mechanical Actuator
  • Max. Thrust
    1680 lb
  • Voltage
    24V DC
  • Max. Amp
    9
  • Max. Speed
    0.59 Inch
Warranty
  • Frame
    5 Years
  • Electronic and Motor
    2 Years
  • Battery
    1 Year
  • Lighting
    3 Years
  • Fiber Optic
    1 Year
