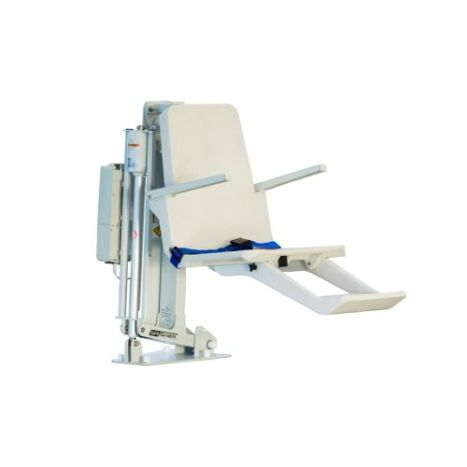

SR Smith ML300 Pool Lift

Choose from a number of S.R. Smith pool lifts that are certified ADA Compliant including the ML300 Pool Lift. Installing a lift provides safe and secure access to the pool for individuals with limited mobility. This not only opens up recreation activities but opens up physical therapy exercises as well. The ML300 design offers flexibility when selecting the pool deck location by allowing for either right or left side mounting. Installation is easy the flange mount secured with four anchor bolts. It offers integrated armrests and footrest with a durable plastic rotomolded seat that can lift up to a 300 pound weight capacity.

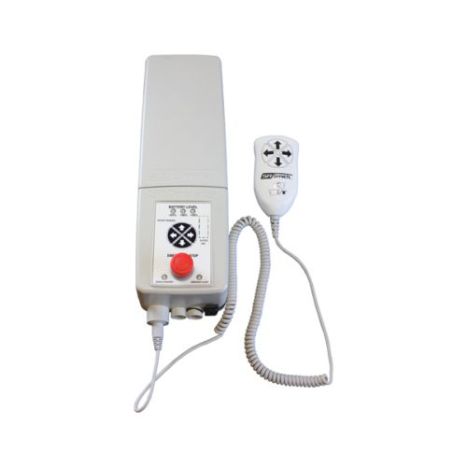

It's made with durable powder-coated stainless steel and aluminum to endure the elements. S.R. Smith's LiftOperator Intelligent Controller is the most advanced pool lift control on the market. It features an emergency stop button with an audible safety alert and internal memory provides usage data via a USB drive. It's powered by a 24 volt battery that's rechargeable with the supplied charging station. Choose an optional pool lift cover to protect it in the off season.

You may also be interested in another S.R. Smith lift called the multiLift with similar features but it has optional wheels to transport the lift so it can be removed for events or stored.

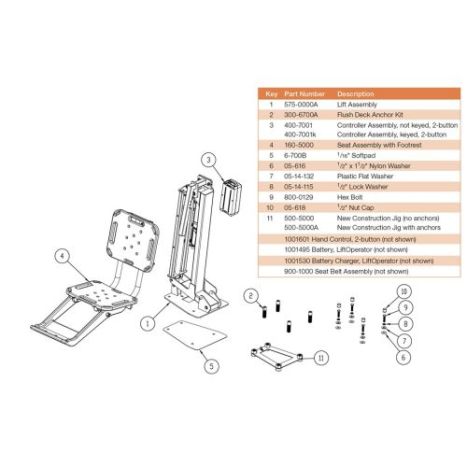

ML300 Lift Includes:

• Lift-Operator
• Retrofit Anchor Jig
• Flush Deck Anchors with 575-3000 Model
• 24 Volt Rechargeable Battery
• Battery Charger
• Seat Belt Assembly
• Electronics Console Cover

Features and Benefits:

• Adaptive Installation
• Steady and Controlled Transfers
• Rechargeable Battery with Cover
• Intelligent Control System
• Hand Control is Water-Resistant
• Comfortable and Rigid Rotomolded Seat
• Armrests and Footrests
• Secure Seat Belt
• Third Party Verified ADA Compliant

Product Specifications:

• Manufacturer: S.R. Smith
• Item Numbers: 575-3000 (w/ Anchor), 575-3000N (w/o Anchor), 500-5200 (Cover)
• Weight Capacity: 300 lbs
• Color: Gray Mist
• ADA Compliant

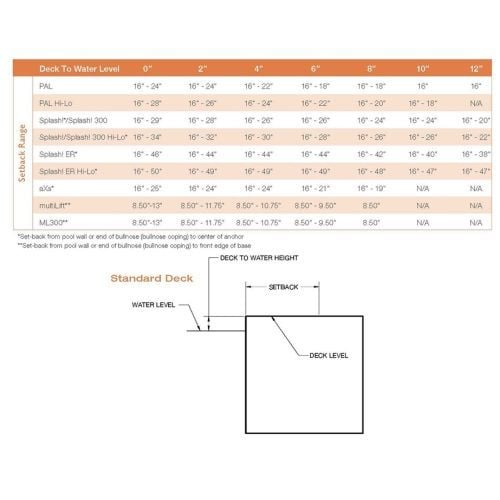

• Seat Loading Position: 16-18 Inches (Measured from the deck to the top of the seat surface in the raised position.)
• Submerged Seat Position: Minimum of 18 Inches to Water Level of 8 Inches Maximum
• Seat Width: 23 Inches
• Seat Height: 24 Inches
• Warranty:
  • Frame Structure: 5 Years
  • Electronic & Motor Components: 2 Years
  • Lighting Products: 1 Year

Manuals and Documents

•    Brochure for ML300 Lift

•    ADA Compliance Guide

•    Warranty for S.R. Smith Pool Lifts

•    Owner's Manual for ML300
