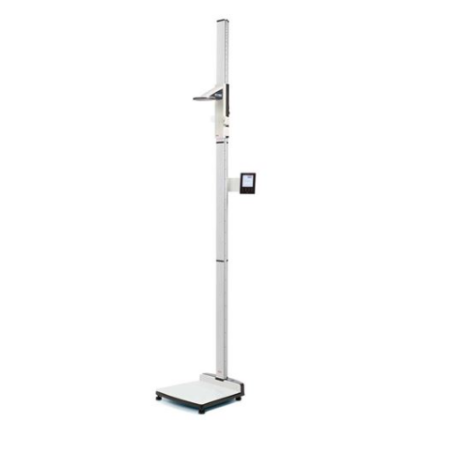

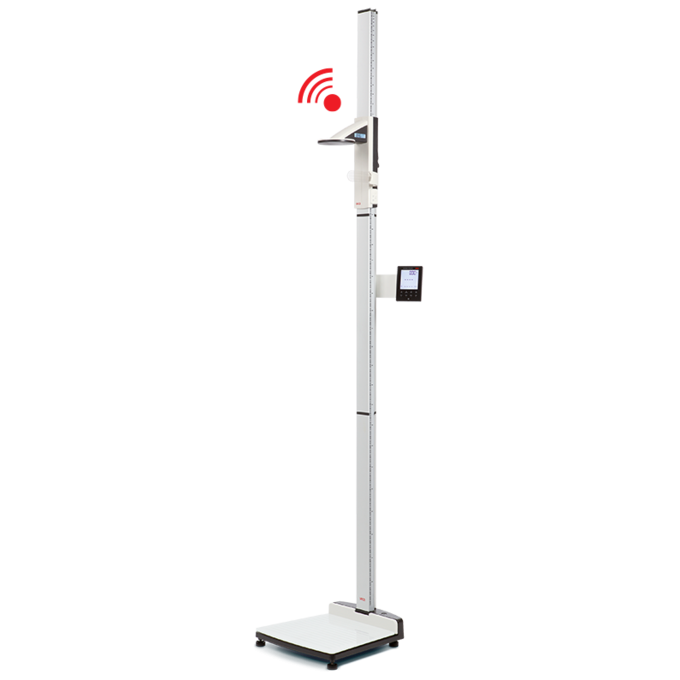

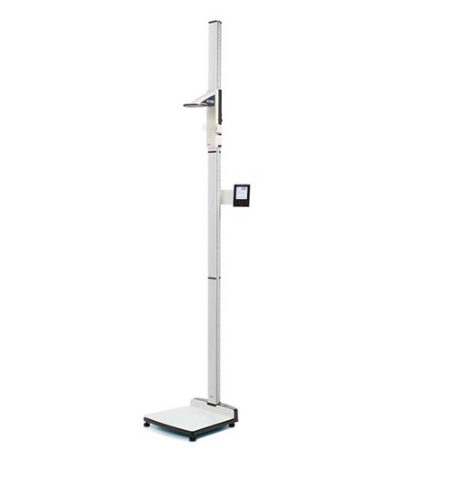

eca 284 measuring station is a digital scale and stadiometer for clinical and professional use. The device measures standing height and weight on a stable glass platform, while the measuring rod includes a heel positioner and a solid headpiece with the seca Frankfurt Line to support consistent body and head positioning during height measurement.
The measuring station provides two displays: a white backlit display on the headpiece for direct height readout and a multi-function touch display that shows weight, height, and BMI. The scale offers a fine graduation of 50 g / 0.1 lb to detect small weight changes. All measurements can be transmitted wirelessly through the seca 360° system to compatible printers, PCs, or other devices for documentation and analysis.
Features and benefits
- Combined digital scale and stadiometer in one measuring station
- High-capacity scale supports up to 300 kg / 660 lbs
- Stable glass platform provides a firm standing surface
- Heel positioner helps align the feet for height measurement
- Headpiece with seca Frankfurt Line aids accurate head positioning
- Dual displays for direct height readout and multi-parameter viewing
- Automatic BMI calculation from height and weight
- Fine graduation of 50 g / 0.1 lb for small weight changes
- Wireless transmission via seca 360° system to printers, scales, or PCs
- Battery and power adapter operation options for flexible installation
Product specifications
- Capacity: 300 kg / 660 lbs
- Graduation (scale): 50 g / 0.1 lb
- Measuring range (height, cm): 30 to 200 cm
- Measuring range (height, inches): 11 inch to 7 ft 2 inch
- Graduation (measuring rod): 1 mm / 0.05 inch
- Power supply: Battery, power adapter
- Dimensions (W x H x D): 434 x 2394 x 466 mm
- Dimensions (W x H x D): 17.1 x 94.3 x 18.3 inch
- Net weight: 16 kg / 35.3 lbs
Functions
- PRINT and auto-PRINT
- Overload protection
- TARE and pre-TARE
- Auto-clear
- Patient data input
- BFR (Body Fat Rate) function
- Mother/child function
- HOLD and auto-HOLD
- BMI and auto-BMI
- kg/lb switch-over
- Calibration and automatic calibration
- Automatic switch-off
- RS232 compatibility
- Wireless interface with SEND and auto-SEND
- RESET function
- Acoustic signals (can be activated)
- Backlighting
- cm/inch switch-over
- Damping
- User-defined zero setting
Certification
- CE marking: CE 0123
