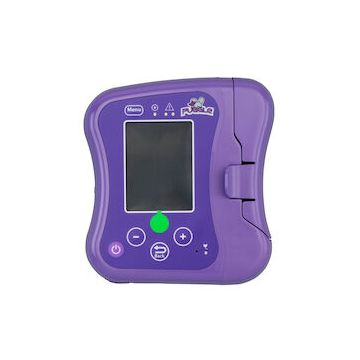

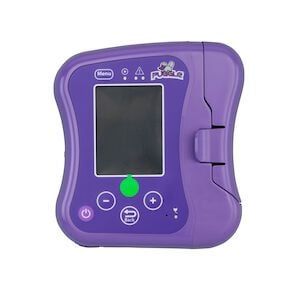

PUGGLE Enteral Feeding Pump - Infants to Seniors

Who Uses the PUGGLE Feeding Pump? EN patients interested in a more user-friendly feeding pump. The PUGGLE pump is intended for use from infants to seniors.

Why They Love It: The PUGGLE system has been thoughtfully designed from beginning to end to be simple and hassle-free, granting independence and improving quality of life for patients with enteral feeding requirements.

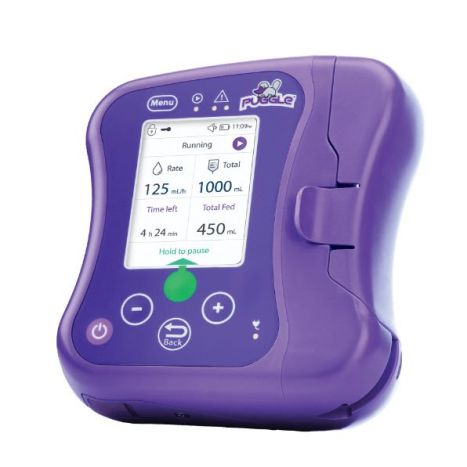

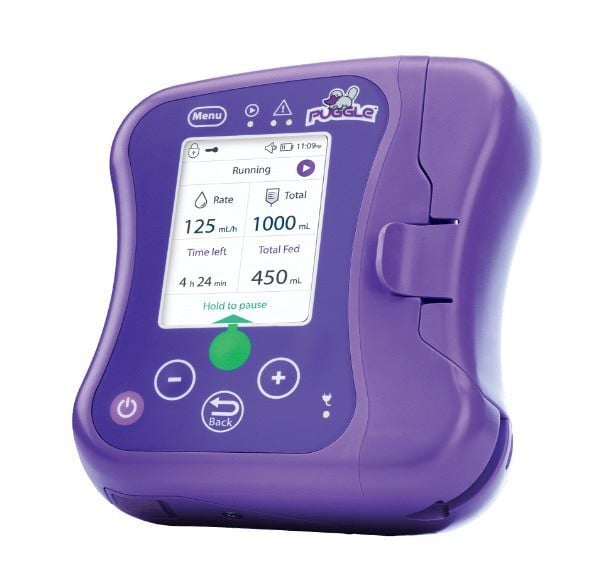

PUGGLE Feeding Pump System Overview

The PUGGLE Home Enteral Feeding Pump makes at-home enteral feeding easy to manage with its simple, intuitive design. Whether a caregiver or a patient, the PUGGLE pump is intended to be user-friendly with only six simple buttons and a large color display that provides step-by-step feeding instructions, preventing pump conversions. Its long 20-hour battery life ensures multiple treatments before having to charge the device again. Look back at nutrition memory at any time - the PUGGLE pump saves data until it is manually deleted.

Vitality Medical offers a variety of enteral feeding pump sets. Gain more independence with an enteral feeding pump today!

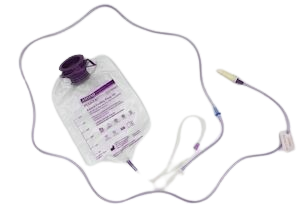

Pump Set Options

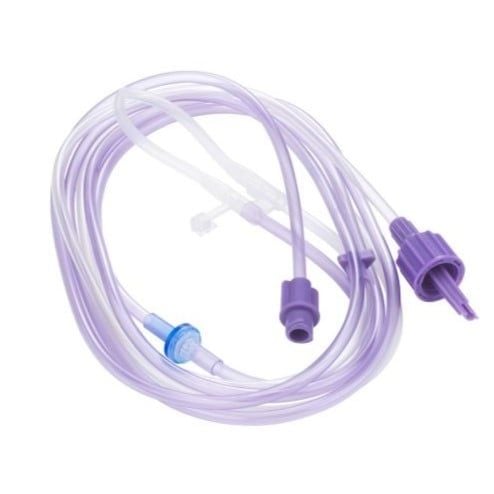

• PE90ST: Spike Set

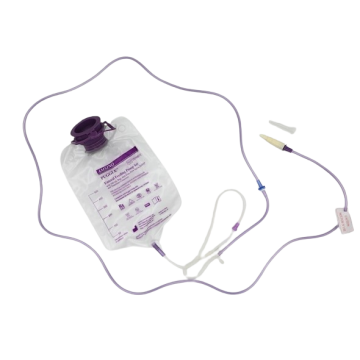

• PE90B5T: Pump Set with 500 mL bag

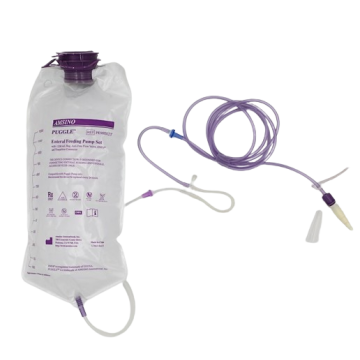

• PE90B12T: Pump Set with 1200 mL bag

All set options come with an anti-free flow valve, ENFit connector, and a transition connector.

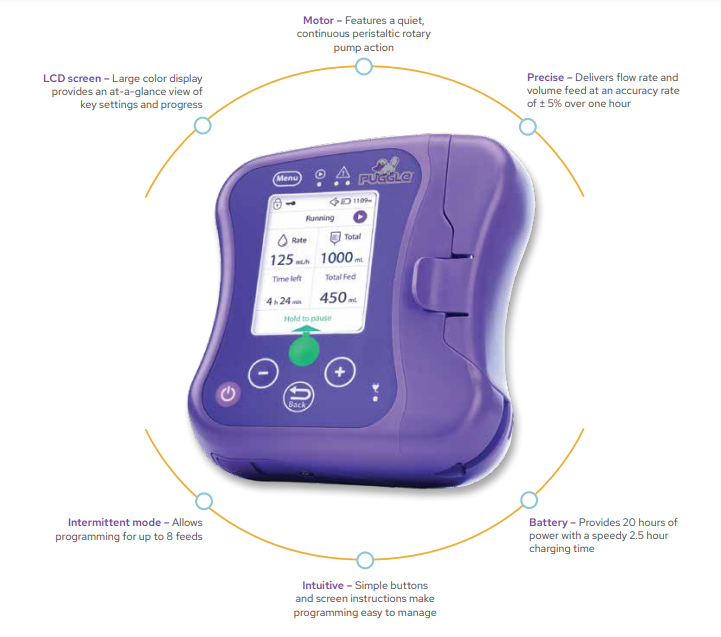

Features and Benefits

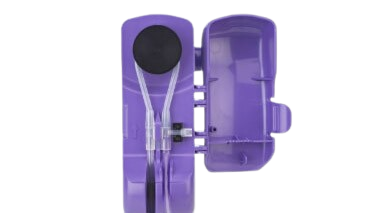

• Quiet Motor Provides Continuous Peristaltic Rotary Pump Action
• Only Six Buttons for User-Friendly, Simple Feeding Programming
• Onscreen Step-by-Step Instructions Eliminates Any Confusion
• LED Indicators Allow for Quick, Convenient, and Discreet Checks

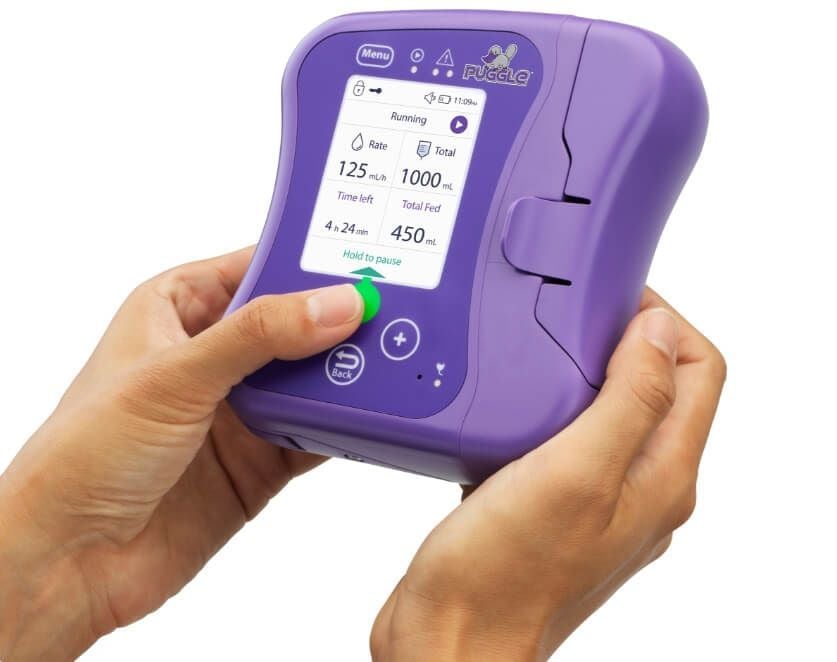

• Lightweight and Compact Enough To Take On-the-Go
• Intermittent Mode Enables User To Preprogram Up to Eight Feeds
• Quick 2.5-Hour Charging Time Gets Users Started Faster Than With Other Pumps

Product Specifications

• Manufacturer: Amsino International
• Product Numbers: PG001, PE90ST, PE90B12T, PE90B5T
• Pump Dimensions: 5.4 H x 5 W x 2.5 D Inches
• Pump Color: Purple
• Weight: 1.4 Pounds (with Battery)
• Casing: PC ABS V0
• Protection: IP 44
• Battery: 7.2 V 2 Ah NiMH (Nickel Metal Hybrid)
• Display: LCD
• Front Panel: 6 Sealed Keys
• Indicators: 4 Lights
• Flow Rate Range: 1 to 400 Milliliters/Hour in 1 mL Increments
• Volume Range: 1 to 9999 Milliliters in 1 mL Increments
• Accuracy: ± 5%
• Charging Time: 2 Hours, 30 Minutes
• Autonomy: 20 Hours at 125 mL/Hour
• Main Power Adapter: External AC/DC - IP 40
• Input: 100 V ~240 V ~ 50 Hz – 60 Hz
• Output: 12 V Direct Current / 1.5A
• Charging Temperature: 50°F (10°C) to 104°F (40°C)
• Operating Temperature: 41°F (5°C) to 104°F (40°C)
• Storage Temperature: 32°F (0°C) to 104°F (40°C)
• Operating Humidity: 15 - 93% RH Non-Condensing
• Storage Humidity: < 93% RH Non-Condensing
• Operating Pressure: 700 hPa - 1060 hPa
• Application: Enteral Feeding Pump
• Warranty: 2 Years (Pump), 6 Months (Battery Only)

Manuals and Documents

    Brochure contains features and benefits of the PUGGLE pump.

    Quick Reference Guide contains brief, quick-reference information about the PUGGLE Pump.

    Quick Start Guide contains quick setup instructions.

    User Manual contains instructions on how to use the PUGGLE Pump.
